Hertz

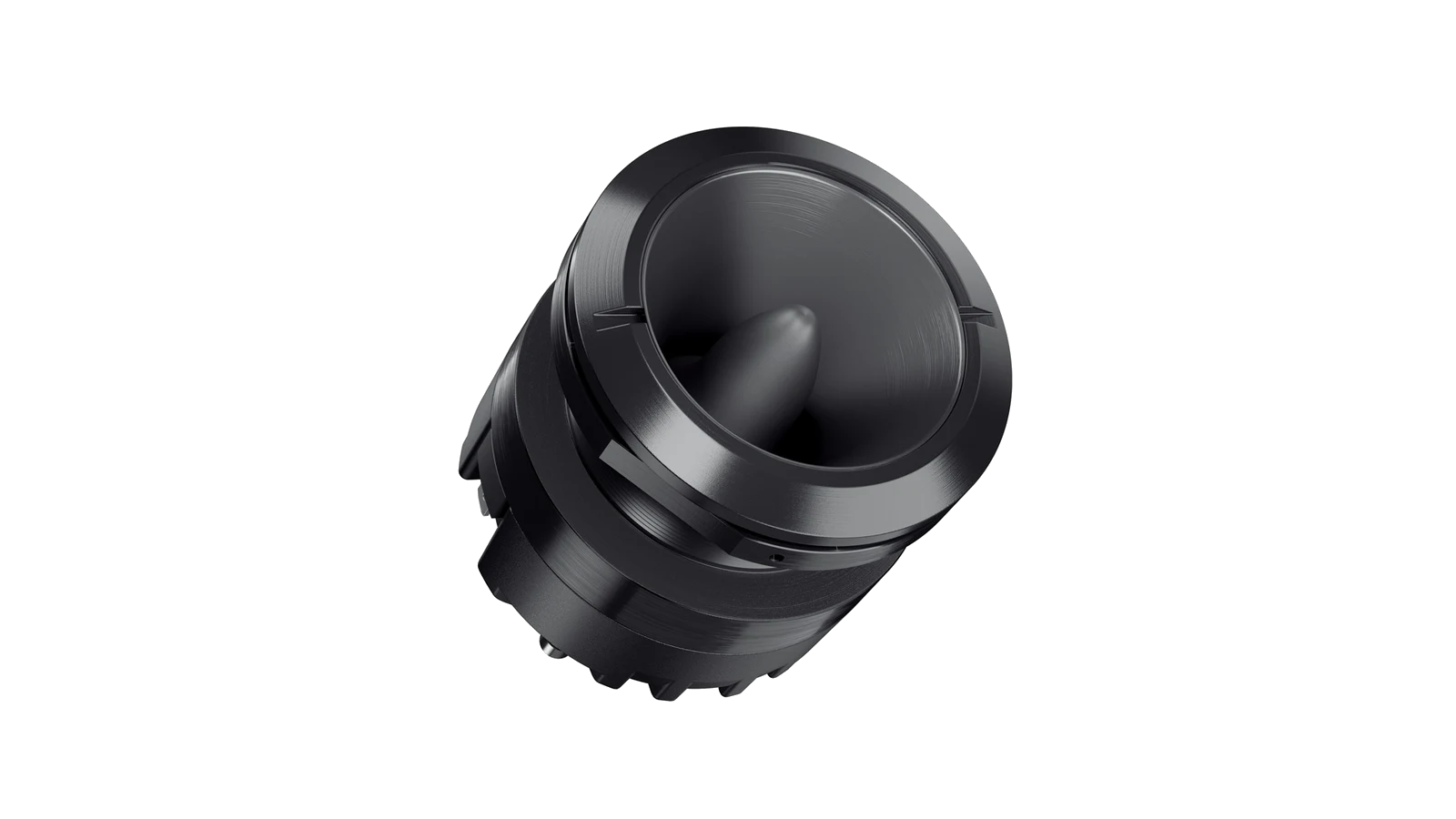

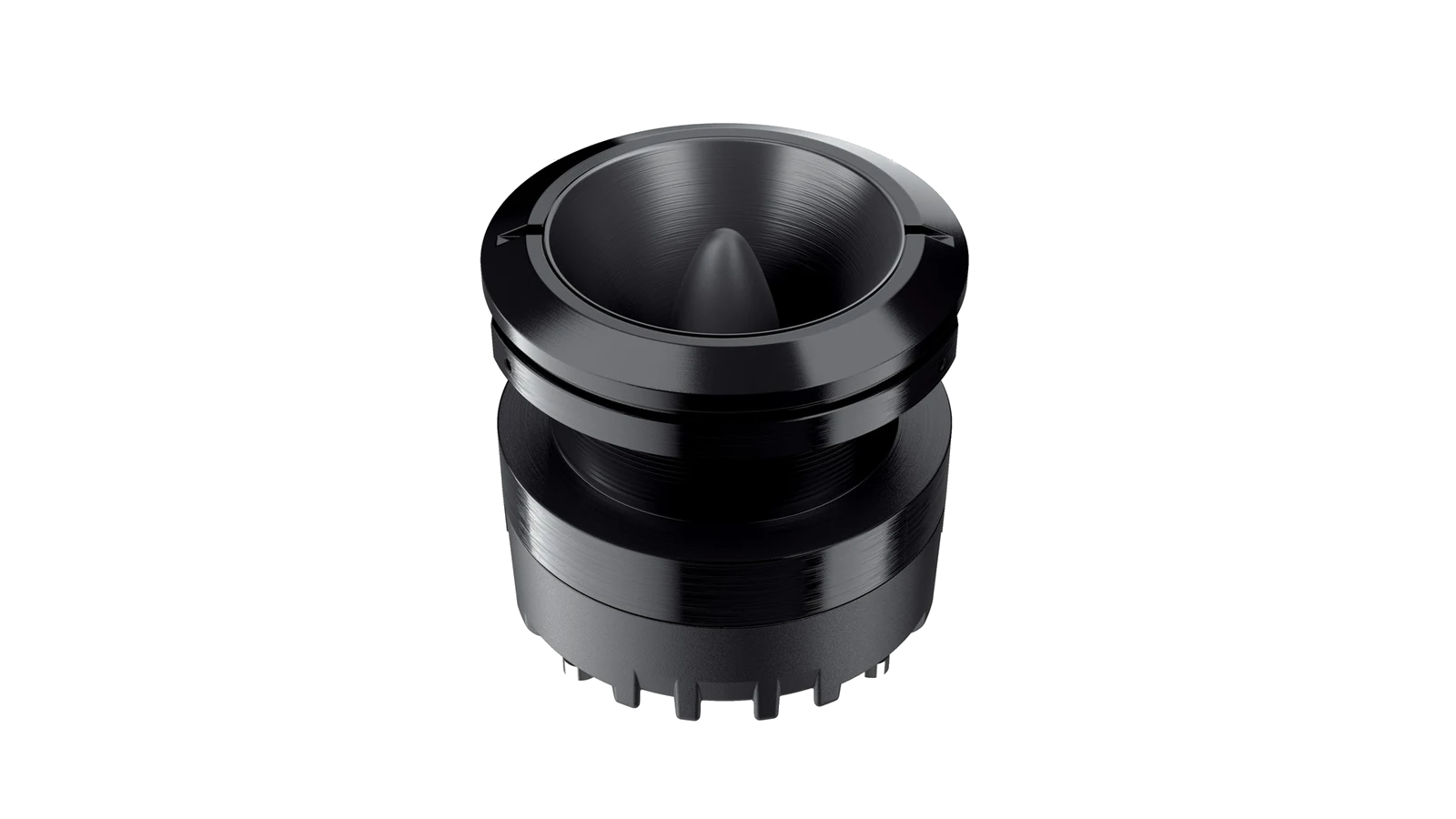

Hertz SPL Show ST 35A NEOProvides Tweeter Only
NEO line bullet tweeters are a totally new project, lighter and more compact compared to the previous ST 35 and with superior performance thanks to the use of Neodymium N38 H for the motor units and a FEM (Finite Element Method) optimized driver/horn design.
Highlights
- Powerful Neodymium magnet providing high performance with compact size.
- FEM (Finite Element Method) optimized phase-plug and loading horn.
- CCAR (Copper Clad Aluminium Ribbon) voice coil for unheard-of thermal and mechanical capability ready for an easy replacement with replacement body kit.
- Extra-light aluminium membrane to maximize SPL with high current, screw terminals.
Key specs
Full specs- Component
- HIGH EFFICIENCY COMPRESSION DRIVER
- Size mm (in.)
- 46 (1.8)
- Power Handling - Peak W
- 120
- Power Handling - Peak Note
- Hi-pass filtered @ 5 kHz - 12 dB Oct.
- Impedance Ohm
- 4
- Voice Coil Ø
- 35 (1.4)
- Frequency Response Hz
- 2k ÷ 20k
- Weight of one component kg (lb.)
- 0,53 (1.17)
Key specs
Full specs- Component
- HIGH EFFICIENCY COMPRESSION DRIVER
- Size mm (in.)
- 46 (1.8)
- Power Handling - Peak W
- 120
- Power Handling - Peak Note
- Hi-pass filtered @ 5 kHz - 12 dB Oct.
Highlights
Overview- Powerful Neodymium magnet providing high performance with compact size.
- FEM (Finite Element Method) optimized phase-plug and loading horn.
- CCAR (Copper Clad Aluminium Ribbon) voice coil for unheard-of thermal and mechanical capability ready for an easy replacement with replacement body kit.
Overview
NEO line bullet tweeters are a totally new project, lighter and more compact compared to the previous ST 35 and with superior performance thanks to the use of Neodymium N38 H for the motor units and a FEM (Finite Element Method) optimized driver/horn design. The “Active” version, ST 35A Neo provides tweeter only.
Highlights
Key features
- Powerful Neodymium magnet providing high performance with compact size.
- FEM (Finite Element Method) optimized phase-plug and loading horn.
- CCAR (Copper Clad Aluminium Ribbon) voice coil for unheard-of thermal and mechanical capability ready for an easy replacement with replacement body kit.
- Extra-light aluminium membrane to maximize SPL with high current, screw terminals.
- Body waterproofing and anti-UV treatment to allow safe outdoor use without discoloration over time.
- Aluminium back cover for superior heat dissipation.
- Impressive low frequency extension and efficiency.
- NATURE PROOF
Technologies
NATURE PROOF
Compact and lightweight, the new spl neo systems are extremely loud and do not fear nature elements for an
Specs
Technical Specs
10
| Component | HIGH EFFICIENCY COMPRESSION DRIVER |
| Size mm (in.) | 46 (1.8) |
| Power Handling - Peak W | 120 |
| Power Handling - Peak Note | Hi-pass filtered @ 5 kHz - 12 dB Oct. |
| Impedance Ohm | 4 |
| Voice Coil Ø | 35 (1.4) |
| Frequency Response Hz | 2k ÷ 20k |
| Weight of one component kg (lb.) | 0,53 (1.17) |
| Magnet | Neodymium |
| Dome | Aluminium |
Electro-acoustic Specs
6
| D mm | 46 |
| Re Ohm | 3,3 |
| Fs Hz | 4000 |
| Le mH | 0,02 |
| BL T*m | 3,5 |
| Spl dB | 109 |
Physical Specs
4
| A | 69 mm | 2.72 in. |
| B | 52 mm | 2.05 in. |
| C | 65,7 mm | 2.59 in. |
| D | 33,3 mm | 1.31 in. |
Frequency response
Visual spec reference.
