Audison

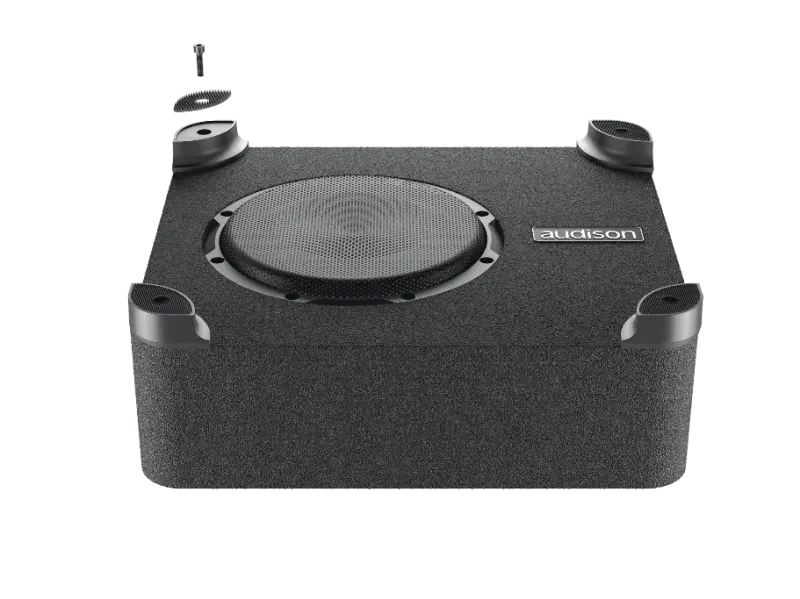

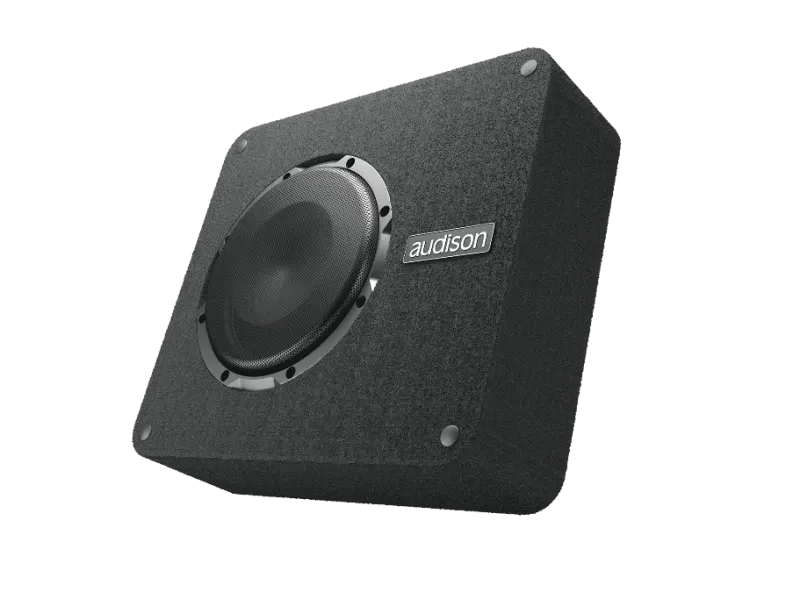

APBX8DSAPBX8DS 200 mm Subwoofer
Ultra-low profile (5.16 in. / 131 mm) box with sealed design perfectly tuned to fully exploit the APS 8 D driver.
Highlights
- Ultra-low profile (5.16 in. / 131 mm) box with sealed design perfectly tuned to fully exploit the APS 8 D driver.
- 2S² (2 Sides/2 Sounds) design provides the ability to choose between Down-Firing mounting to increase the low-frequency extension and Up-Firing install to obtain more punch and definition.
- Leveling feet with velcro inserts included for a secure grip with the carpet while maintaining easy removal.
- SSP (Sub Smart Plug) features both traditional push contacts and a Plug-&-Play terminal block to easily configure the impedance as required and provides a quick release.
Key specs
Full specs- Nominal diameter
- 200 mm
- Impedance
- 4+4 Ohm
- Power Handling - Peak
- 500 W
- Power Handling - Continuous
- 250 W
- Magnet Material
- HIGH DENSITY FLUX FERRITE
- Cone Material
- WATER REPELLENT PRESSED PAPER
- Dimension A
- 374 mm
- Dimension B
- 334 mm
Key specs
Full specs- Nominal diameter
- 200 mm
- Impedance
- 4+4 Ohm
- Power Handling - Peak
- 500 W
- Power Handling - Continuous
- 250 W
Highlights
Overview- Ultra-low profile (5.16 in. / 131 mm) box with sealed design perfectly tuned to fully exploit the APS 8 D driver.
- 2S² (2 Sides/2 Sounds) design provides the ability to choose between Down-Firing mounting to increase the low-frequency extension and Up-Firing install to obtain more punch and definition.
- Leveling feet with velcro inserts included for a secure grip with the carpet while maintaining easy removal.
Overview
- Ultra-low profile (5.16 in. / 131 mm) box with sealed design perfectly tuned to fully exploit the APS 8 D driver.
- 2S² (2 Sides/2 Sounds) design provides the ability to choose between Down-Firing mounting to increase the low-frequency extension and Up-Firing install to obtain more punch and definition.
- Leveling feet with velcro inserts included for a secure grip with the carpet while maintaining easy removal.
- SSP (Sub Smart Plug) features both traditional push contacts and a Plug-&-Play terminal block to easily configure the impedance as required and provides a quick release.
- Rounded corners allow easy positioning in the trunk and act as reinforcement to reduce enclosure resonance.
- Special designed cone-dustcap-basket geometry which guarantees a long linear excursion capability (9 mm, one-way).
- Massive driver motor assembly, optimized with FEM (Finite Element Modeling) for perfect control under high excursion conditions.
- Water-repellent pressed paper 8 in. cone, featuring a profile developed with FEM simulation and optimized with the Klippel Scan Vibrometer. Specifically developed to be combined with either AF M1D mono or AF C4.10 bit/AF C4D/AF M4D (2 CH bridged) amplifiers taking advantage of the bass boost feature and integrated parametric equalizer of the built-in DSP.
- Sturdy metal grid included for a total protection of the subwoofer driver.

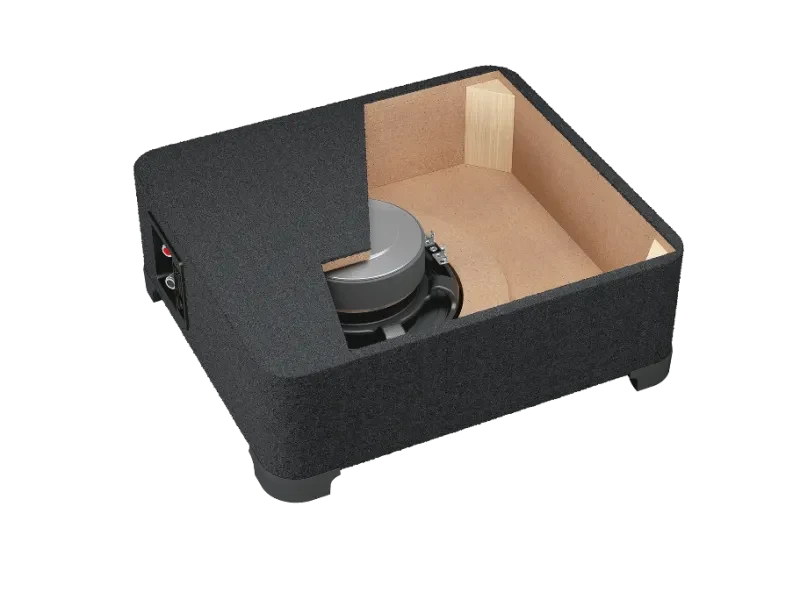

- The APBX 8 DS loaded enclosure provides the highest performance/ size ratio. For this purpose an 8.5 lt. sealed enclosure with a 4+4 ohm dual voice-coil configuration was adopted to exploit the full power of an AF M5.11 bit (paralleling voice coils for a 2 ohm load) or with two pairs of AF C8.14 bit/AF M8.14 bit bridged channels (one bridged pair of channels to each voice coil). The speakers high excursion capability allows the use of the proprietary BASS BOOST of AP bit amplifiers to make use of all the available power for rich and dynamic bass.
Highlights
Key features
- Ultra-low profile (5.16 in. / 131 mm) box with sealed design perfectly tuned to fully exploit the APS 8 D driver.
- 2S² (2 Sides/2 Sounds) design provides the ability to choose between Down-Firing mounting to increase the low-frequency extension and Up-Firing install to obtain more punch and definition.
- Leveling feet with velcro inserts included for a secure grip with the carpet while maintaining easy removal.
- SSP (Sub Smart Plug) features both traditional push contacts and a Plug-&-Play terminal block to easily configure the impedance as required and provides a quick release.
- Rounded corners allow easy positioning in the trunk and act as reinforcement to reduce enclosure resonance.
- Special designed cone-dustcap-basket geometry which guarantees a long linear excursion capability (9 mm, one-way).
- Massive driver motor assembly, optimized with FEM (Finite Element Modeling) for perfect control under high excursion conditions.
- Water-repellent pressed paper 8 in. cone, featuring a profile developed with FEM simulation and optimized with the Klippel Scan Vibrometer. Specifically developed to be combined with either AF M1D mono or AF C4.10 bit/AF C4D/AF M4D (2 CH bridged) amplifiers taking advantage of the bass boost feature and integrated parametric equalizer of the built-in DSP.
- Sturdy metal grid included for a total protection of the subwoofer driver.
Specs
Technical Specs
6
| Nominal diameter | 200 mm |
| Impedance | 4+4 Ohm |
| Power Handling - Peak | 500 W |
| Power Handling - Continuous | 250 W |
| Magnet Material | HIGH DENSITY FLUX FERRITE |
| Cone Material | WATER REPELLENT PRESSED PAPER |
Dimensions
4
| Dimension A | 374 mm |
| Dimension B | 334 mm |
| Dimension C | 109 mm |
| Dimension D | 131 mm |
Reviews (0)
—
No average rating yet
0 reviews
No written reviews are live yet. Signed-in customers can submit one below.
No written reviews are live for this item yet.
Support
Downloads
Similar products
Compare nearby options
Rockford Fosgate•Punch
P2D2-8 Punch 8" P2 2-Ohm DVC Subwoofer
4.539 reviews
$199.99CAD
$239.99
In stock
Rockford Fosgate•Punch
P2D4-8 Punch 8" P2 4-Ohm DVC Subwoofer
4.115 reviews
$199.99CAD
$239.99
In stock
Rockford Fosgate•Punch
P3SD4-8 Punch 8" P3S Shallow 4-Ohm DVC Subwoofer
4.659 reviews
$299.99CAD
$349.99
In stock
Rockford Fosgate•Punch

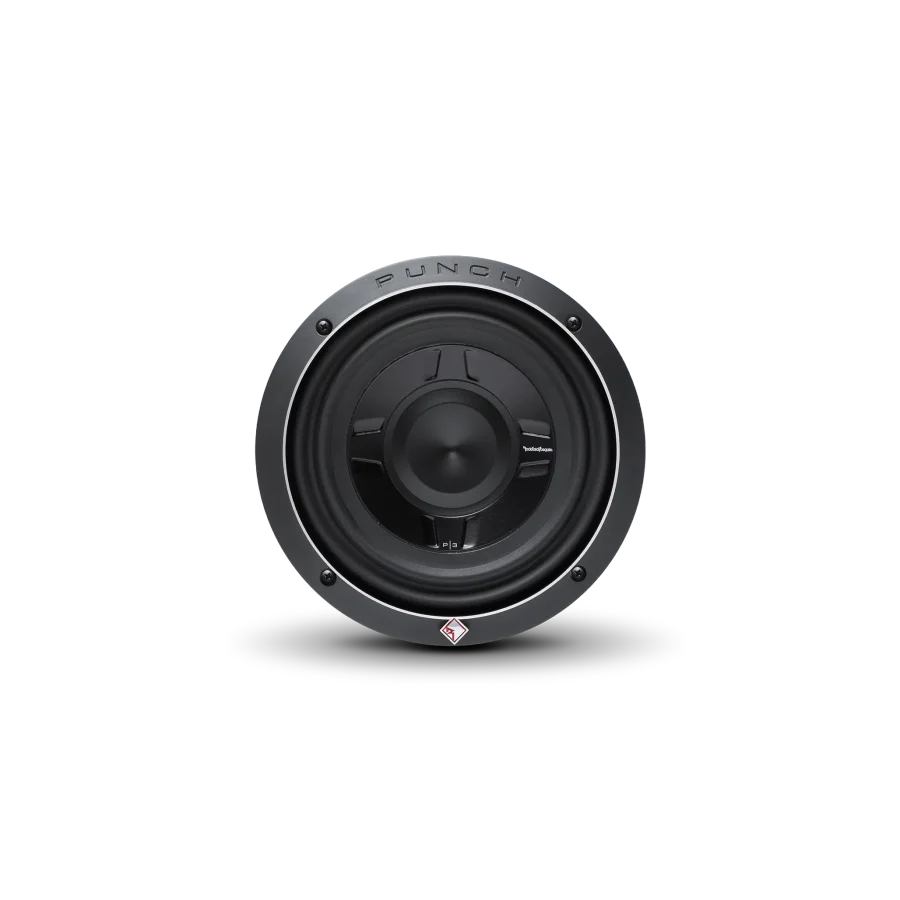

P3SD2-8 Punch 8" P3S Shallow 2-Ohm DVC Subwoofer
