A small, easy-to-install powered sub that provides tight, musical bass and good value in trucks and compact cars, but it won’t deliver very deep bass or extreme SPL.
Buyer confidence
91%Highlights
- 1 Year Warranty
- High-Efficiency, Low Current Amplifier Design
- Thermal and over/under voltage protection
- Intelligent auto turn on/off function
Key specs
Full specs- Frequency Response
- 30 Hz to 200 Hz
- Woofer Quantity
- 1
- Woofer Size
- 8"
- Woofer Series
- Proprietary
- Nominal Impedance
- —
- Power Handling (Watts RMS)
- 300 Watts RMS
- Enclosure Type
- Vented
- Enclosure Material
- 5/8" MDF (Medium Density Fiberboard
Key specs
Full specs- Frequency Response
- 30 Hz to 200 Hz
- Woofer Quantity
- 1
- Woofer Size
- 8"
- Woofer Series
- Proprietary
Highlights
Overview- 1 Year Warranty
- High-Efficiency, Low Current Amplifier Design
- Thermal and over/under voltage protection
Review highlights
Based on customer reviewsCompact powered 8" that delivers surprising punch for small cabins
A small, easy-to-install powered sub that provides tight, musical bass and good value in trucks and compact cars, but it won’t deliver very deep bass or extreme SPL.
What buyers praise
- Surprisingly full, tight bass for an 8" in a compact enclosure
- Integrated amp and wired remote bass knob make tuning simple
What to watch for
- Limited low-end extension and overall volume—not for those seeking deep, high-SPL bass
Overview
The Punch P300-8P is a self-contained powered subwoofer enclosure that combines an 8" high-output woofer with a 300-watt internal class-D amplifier in a slim, space-saving enclosure designed for truck and small car applications.
Best for
- Adding low-end punch to factory or aftermarket car audio systems
- Installations with limited trunk or cargo space
- Users who want an all-in-one powered subwoofer solution
Key points
- 8" high-output subwoofer
- 300-watt internal class-D amplifier
- Built-in low-pass crossover, bass EQ and phase switch
- Accepts speaker-level inputs (for factory systems) or line-level inputs (for aftermarket systems)
- Intelligent auto turn-on circuit (no separate turn-on wire required)
- Slim MDF enclosure with heat-activated vinyl finish
Fit and use
The enclosure is designed to fit in tight spaces in trucks and small cars. It connects to source units via speaker-level or line-level inputs and uses quick-release power and signal connectors for easy removal. Use the built-in low-pass crossover, bass EQ, and phase switch to integrate the subwoofer into your system’s low-frequency response.
What to know
This is a powered, self-contained subwoofer enclosure that requires proper power, ground and signal connections. The unit’s intelligent auto turn-on feature removes the need for a separate remote turn-on wire in many installations. Review vehicle space and wiring access before purchase to ensure fit and routing. The p…
Highlights
Key features
- 1 Year Warranty
- High-Efficiency, Low Current Amplifier Design
- Thermal and over/under voltage protection
- Intelligent auto turn on/off function
- Robust Power/Ground connections
- Adjustable 12db/Octave low pass crossover
- Separate low level and speaker level inputs
- Optimized 8" Low Impedance Woofer
- 300 Watt Class-D Amplifier with Optimized "Closed Loop" Design
- On Board Phase Switch
- Quick Input Connections for Easy Removal
- On Board Adjustable Bass EQ
Technologies
CEA-2006 Compliant
Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your
CEA-2031
Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards. This means your speaker has
Klippel Verified
To adorn the ‘Verified with Klippel’ mark, the qualifying company’s loudspeaker engineering personnel must be
Specs
Specifications
28
| Frequency Response | 30 Hz to 200 Hz |
| Woofer Quantity | 1 |
| Woofer Size | 8" |
| Woofer Series | Proprietary |
| Nominal Impedance | — |
| Power Handling (Watts RMS) | 300 Watts RMS |
| Enclosure Type | Vented |
| Enclosure Material | 5/8" MDF (Medium Density Fiberboard |
| Speaker Connector | — |
| Integrated Amplifier | 300 Watts RMS |
| Crossover Controls | Variable 50 Hz to 200 Hz 12dB/Octave Butterworth |
| Tone Controls | Bass Boost 0 dB to +12 dB; |
| Phase Control | 0° to 180° |
| Remote Control | Punch Level Control (Included) Replacement Part: 1130-59232-01 |
| Auto Turn-On Selector | Remote Trigger DC Offset Sense Audio Sense |
| Input Switch | High-Level (Speaker Line) Low-Level (RCA) |
| Signal Input | Low/High-Level: 1 RCA Pair (L/R Summed) Replacement Part: 1130-59232-01 |
| Input Sensitivity | Low-Level: 150 mV to 6 V High-Level: 300 mV to 12 V |
| Input Impedance | 20k Ohms |
| Power Input Connector | Quick Disconnect Replacement Part: 1130-59232-01 |
| Power Wire Gauge | B+/GND: 8 AWG REM: 18 AWG |
| Circuit Topology Class | Class-D |
| Heatsink Type | Extruded Aluminum |
| Cooling | Convection |
| Visual Indicators | Power/Protect LED |
| Fuses | 20 Amp (2 x 10 Amp ATO Fuse) |
| Dimensions Box H x W x D Wedge H x W x D1 x D2 | 11.4" x 17.6" x 5.6" 289 mm x 448 mm 141 mm |
| Shipping Weight | 19 lbs. (8.6 kg) |
Reviews (0)
—
No average rating yet
0 reviews
No written reviews are live yet. Signed-in customers can submit one below.
No written reviews are live for this item yet.
Similar products
Compare nearby options
Rockford Fosgate•Punch

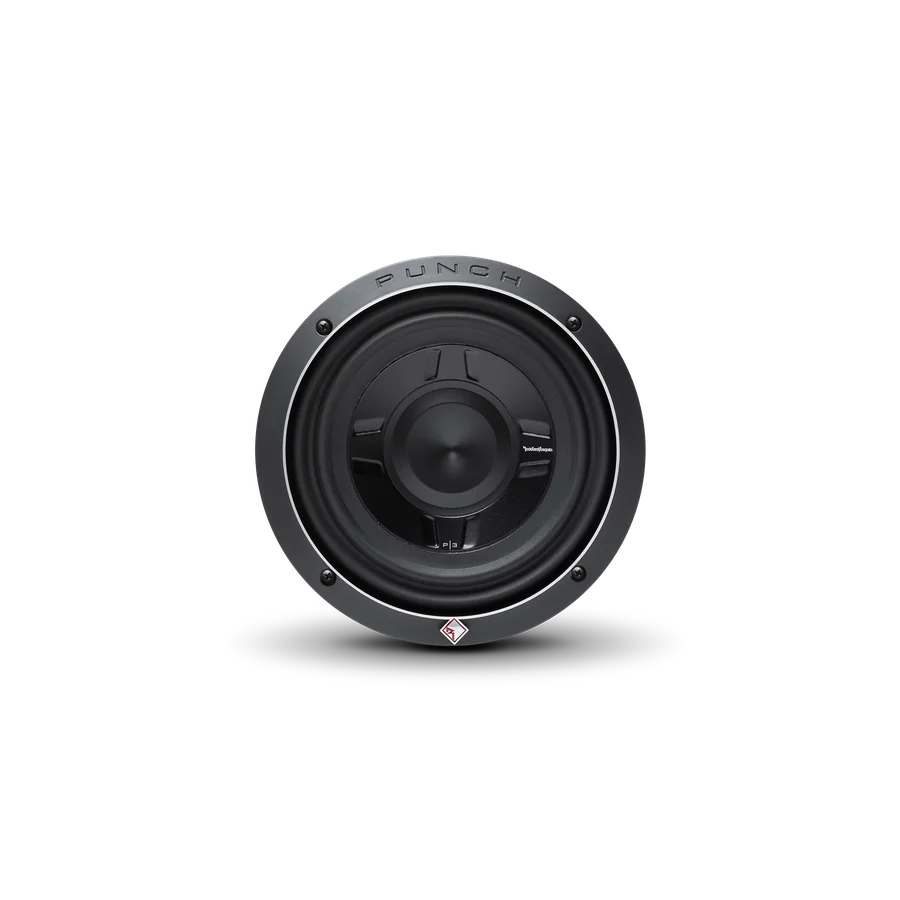

P3SD2-8 Punch 8" P3S Shallow 2-Ohm DVC Subwoofer
4.8145 reviews
$299.99CAD
$349.99
In stock
Rockford Fosgate•Punch
P3SD4-8 Punch 8" P3S Shallow 4-Ohm DVC Subwoofer
4.659 reviews
$299.99CAD
$349.99
In stock
Rockford Fosgate•Punch

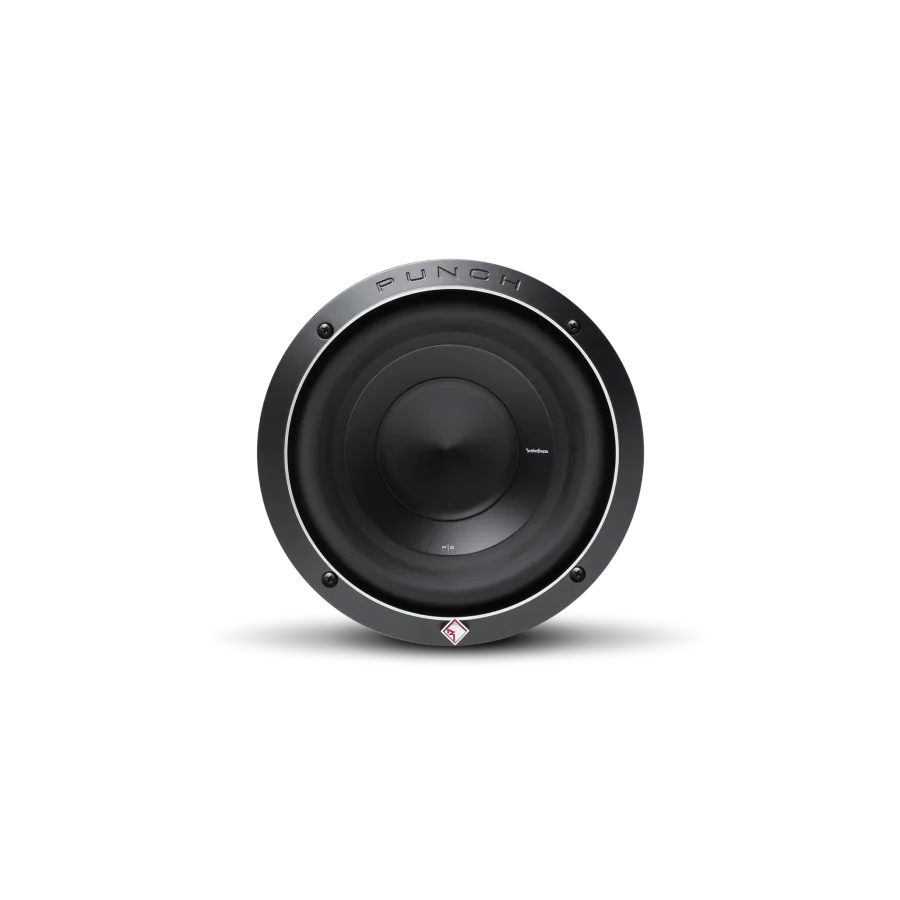

P2D2-8 Punch 8" P2 2-Ohm DVC Subwoofer
