1 / 4
Variants
A small, powered 10" enclosure that delivers clean, accurate low end and fits under many rear seats—easy to set up with factory systems, though some installs require extra wiring or securing.
Buyer confidence
91%Highlights
- 1 Year Warranty
- Slim Design For Truck Applications
- Thermal and over/under voltage protection
- Intelligent auto turn on/off function
Key specs
Full specs- Frequency Response
- 25 Hz to 200 Hz
- Woofer Quantity
- 1
- Woofer Size
- 10"
- Woofer Series
- Proprietary
- Nominal Impedance
- —
- Power Handling (Watts RMS)
- 300 Watts RMS
- Enclosure Type
- Sealed
- Enclosure Material
- 5/8" MDF (Medium Density Fiberboard
Key specs
Full specs- Frequency Response
- 25 Hz to 200 Hz
- Woofer Quantity
- 1
- Woofer Size
- 10"
- Woofer Series
- Proprietary
Highlights
Overview- 1 Year Warranty
- Slim Design For Truck Applications
- Thermal and over/under voltage protection
Review highlights
Based on customer reviewsCompact under-seat sub with tight, punchy bass
A small, powered 10" enclosure that delivers clean, accurate low end and fits under many rear seats—easy to set up with factory systems, though some installs require extra wiring or securing.
What buyers praise
- Compact truck-style enclosure that tucks under rear seats without sacrificing cargo space
- Tight, punchy and accurate bass across genres for a 300W unit
What to watch for
- Some users needed heavier gauge power wiring or tuning to avoid distortion or amp cut-out at higher volumes
Overview
The Punch P300-10T is a universal, all-in-one 10" powered subwoofer enclosure designed for truck applications. It combines a 10" high-output woofer with a built-in 300-watt Class-D amplifier in a slim MDF cabinet.
Best for
- Adding low-end punch to factory or aftermarket truck audio systems
- Installations where a slim, removable enclosure is preferred
- Users who need speaker-level or line-level connectivity
Key points
- 10" high-output woofer with impedance optimized design
- Built-in 300-watt Class-D amplifier
- Low-pass crossover, bass EQ and phase switch
- Speaker-level and line-level inputs
- Intelligent auto turn-on/off (eliminates separate turn-on wire)
- Quick-release input and power connectors for easy removal
Fit and use
Slim enclosure intended for universal truck placement. Connect via speaker-level inputs for factory systems or line-level inputs for aftermarket systems. Quick-release power and input connectors allow removal when extra cargo space is needed.
What to know
The amplifier includes a low-pass crossover, bass EQ and a phase switch for tuning low-frequency response. The enclosure is constructed from MDF and covered with a heat-activated vinyl finish for durability and acoustical properties. An intelligent auto turn-on/off circuit removes the need for a separate remote turn-o…
Highlights
Key features
- 1 Year Warranty
- Slim Design For Truck Applications
- Thermal and over/under voltage protection
- Intelligent auto turn on/off function
- Robust Power/Ground connections
- Adjustable 12db/Octave low pass crossover
- Separate low level and speaker level inputs
- High-Efficiency, Low Current Amplifier Design
- Optimized 10" Low Impedance Woofer
- 300 Watt Class-D Amplifier with Optimized "Closed Loop" Design
- On Board Phase Switch
- Quick Input Connections for Easy Removal
More info
Manufacturer details
The Punch P300-10T is a universal "all in one" solution for dropping Bass in any factory or aftermarket system. This model features a 10" high output woofer with a 300-watt internal amplifier in a slim design enclosure that's great for universal truck applications. The enclosure features quick release input and power connectors for easy removal when extra space is required.
Additional details
The Punch 300-10T is a self-contained subwoofer enclosure with built-in amplifier. This "all in one" solution is great for systems that need extra Punch on the low-end of the frequency spectrum. The 10" high output subwoofer is impedance optimized for the built in 300-watt class-D amplifier that features a low-pass crossover, bass EQ and phase switch. The enclosure can be connected via speaker level inputs for connection to factory systems, or traditional line level inputs for aftermarket systems. It also features an intelligent auto turn-on/off circuit that eliminates the need for a separate turn-on wire. The enclosure itself is precision designed and constructed using MDF (Medium Density Fiberboard) for the best acoustical properties and covered with heat activated vinyl finish to resist marks.
Technologies
CEA-2031
Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards. This means your speaker has
CEA-2006 Compliant
Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your
Klippel Verified
To adorn the ‘Verified with Klippel’ mark, the qualifying company’s loudspeaker engineering personnel must be
Specs
Specifications
28
| Frequency Response | 25 Hz to 200 Hz |
| Woofer Quantity | 1 |
| Woofer Size | 10" |
| Woofer Series | Proprietary |
| Nominal Impedance | — |
| Power Handling (Watts RMS) | 300 Watts RMS |
| Enclosure Type | Sealed |
| Enclosure Material | 5/8" MDF (Medium Density Fiberboard |
| Speaker Connector | — |
| Integrated Amplifier | 300 Watts RMS |
| Crossover Controls | Variable 50 Hz to 200 Hz 12dB/Octave Butterworth |
| Tone Controls | Bass Boost 0 dB to +12 dB; |
| Phase Control | 0° to 180° |
| Remote Control | Punch Level Control (Included) Replacement Part: 1130-59232-01 |
| Auto Turn-On Selector | Remote Trigger DC Offset Sense Audio Sense |
| Input Switch | High-Level (Speaker Line) Low-Level (RCA) |
| Signal Input | Low/High-Level: 1 RCA Pair (L/R Summed) Replacement Part: 1130-59232-01 |
| Input Sensitivity | Low-Level: 150 mV to 6 V High-Level: 300 mV to 12 V |
| Input Impedance | 20k Ohms |
| Power Input Connector | Quick Disconnect Replacement Part: 1130-59232-01 |
| Power Wire Gauge | B+/GND: 8 AWG REM: 18 AWG |
| Circuit Topology Class | Class-D |
| Heatsink Type | Extruded Aluminum |
| Cooling | Convection |
| Visual Indicators | Power/Protect LED |
| Fuses | 20 Amp (2 x 10 Amp ATO Fuse) |
| Dimensions Box H x W x D Wedge H x W x D1 x D2 | 13.3" x 21.7" x 4.8" x 7.9" 338 mm x 552 mm x 122 mm x 201 mm |
| Shipping Weight | 25 lbs. (11.3 kg) |
Reviews (0)
—
No average rating yet
0 reviews
No written reviews are live yet. Signed-in customers can submit one below.
No written reviews are live for this item yet.
Support
Return Authorization
If you bought this product from Onkar Electronics, use the Contact Us page on the Onkar Electronics website and we will help with return authorization and warranty support. If you purchased it from another dealer, contact that authorized dealer first for return assistance.
Popular Questions
No FAQs available
Similar products
Compare nearby options
Rockford Fosgate•Punch
P3S-1X10 Punch Single P3S 10" Shallow Loaded Enclosure
4.820 reviews
$529.99CAD
$629.99
In stock
Rockford Fosgate•Punch

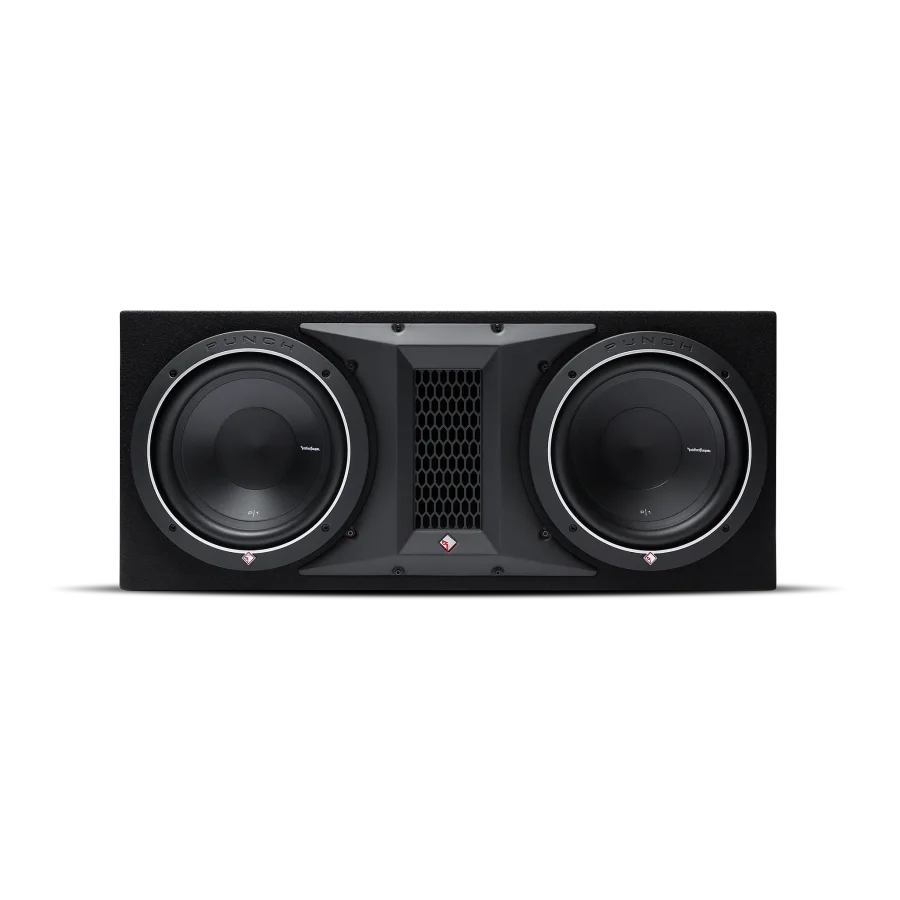

P1-2X10 Punch Dual P1 10" Loaded Enclosure
