1 / 5

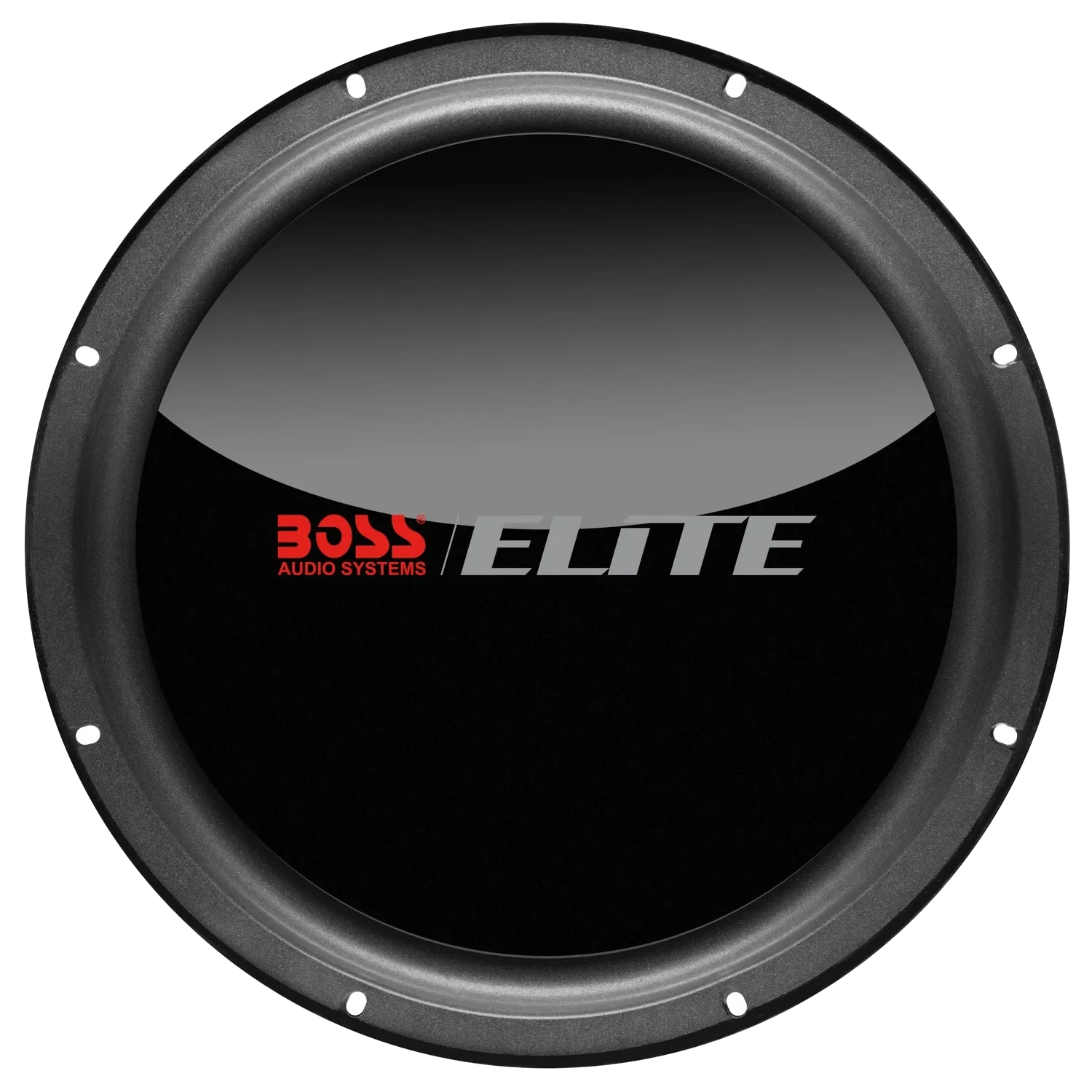

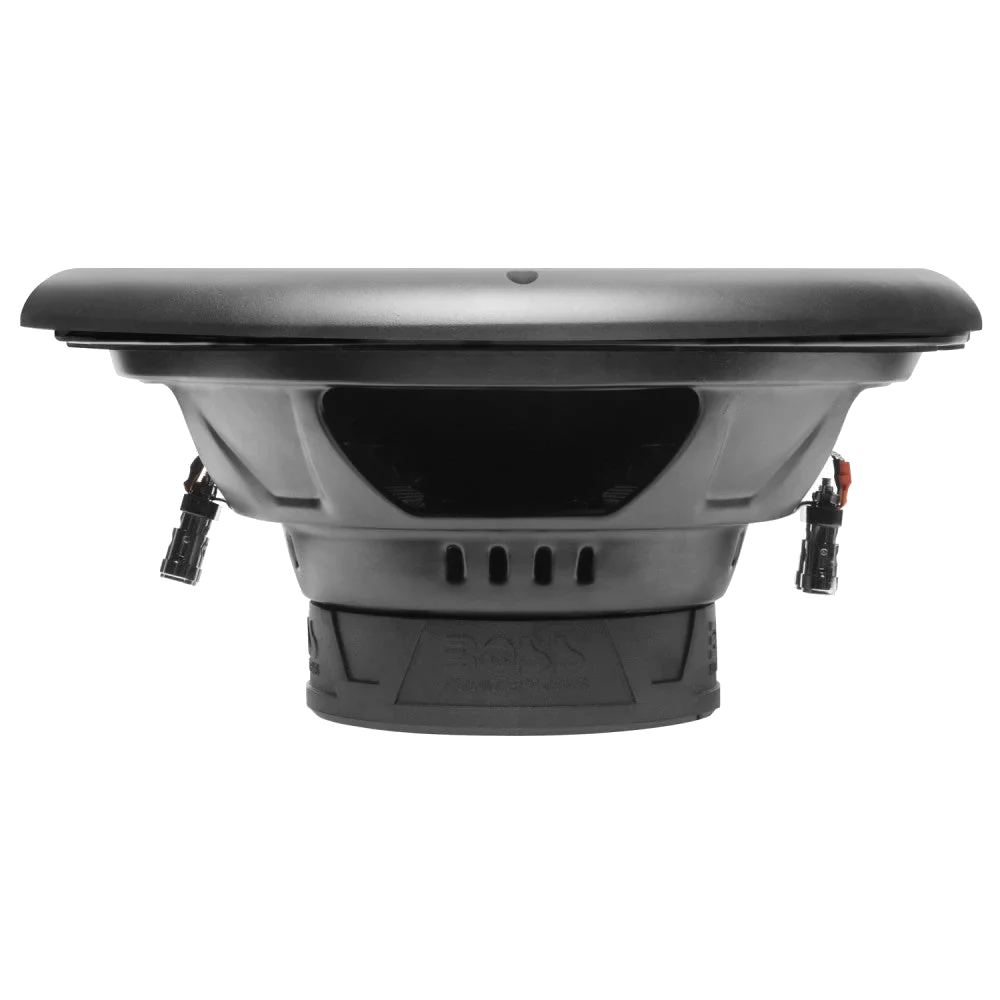

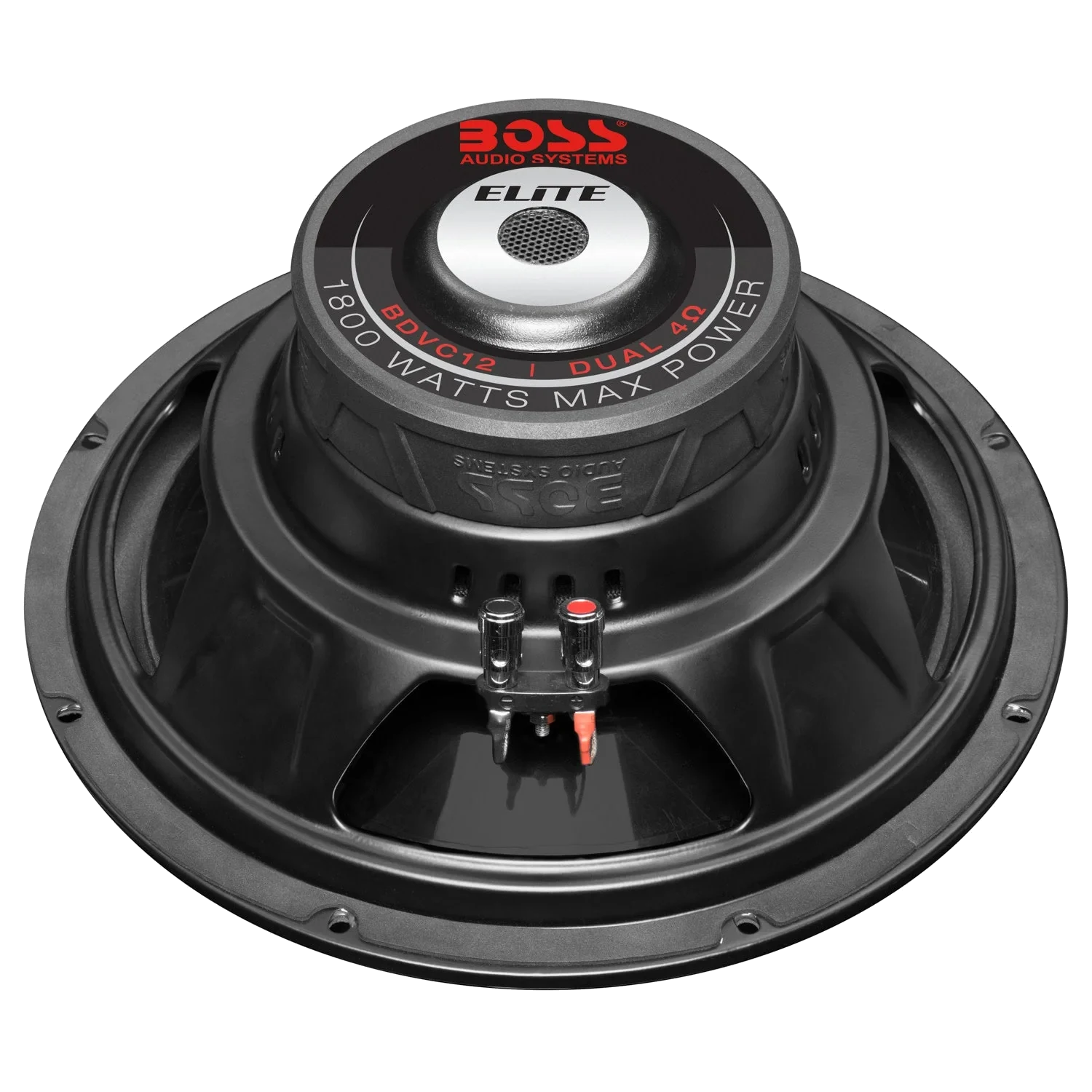

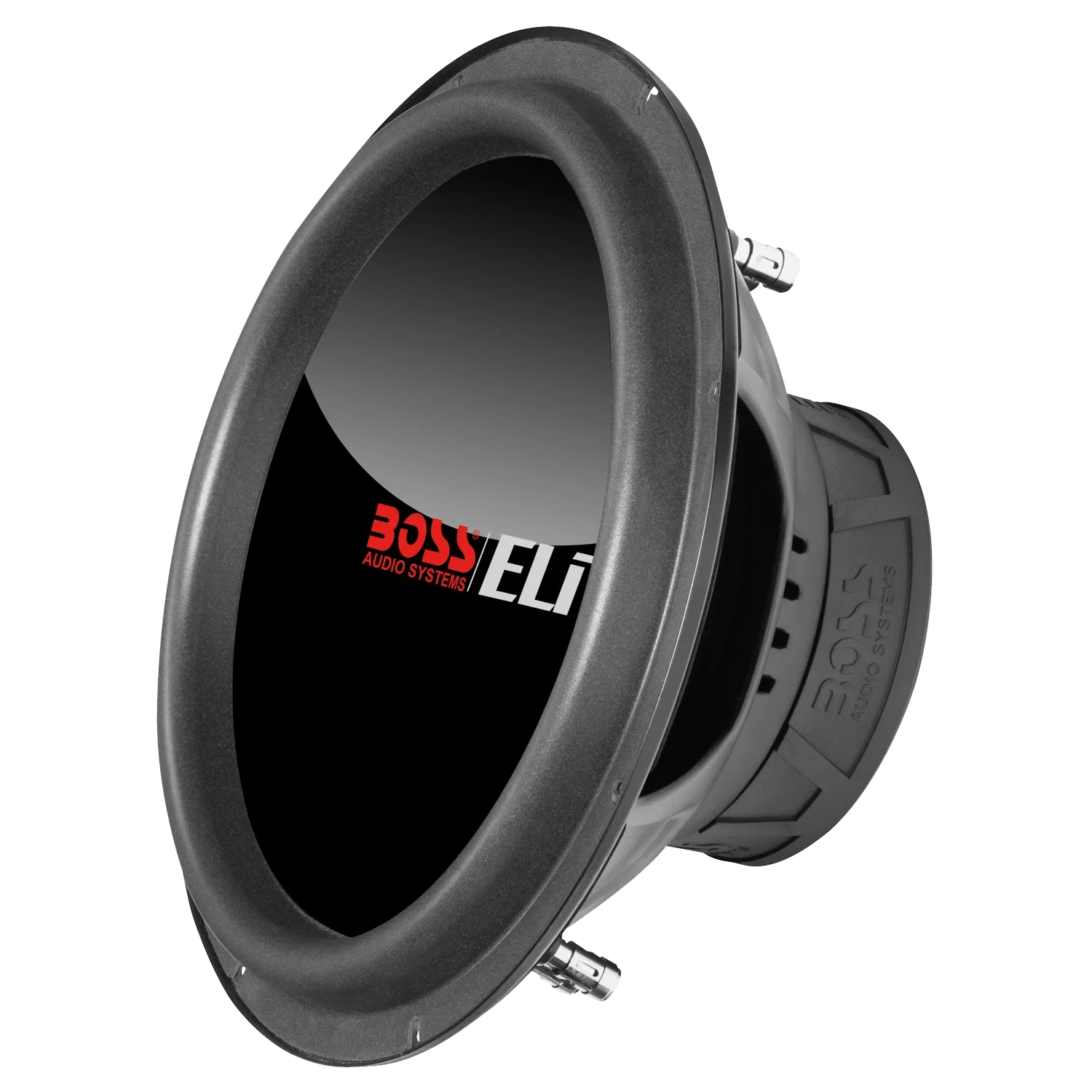

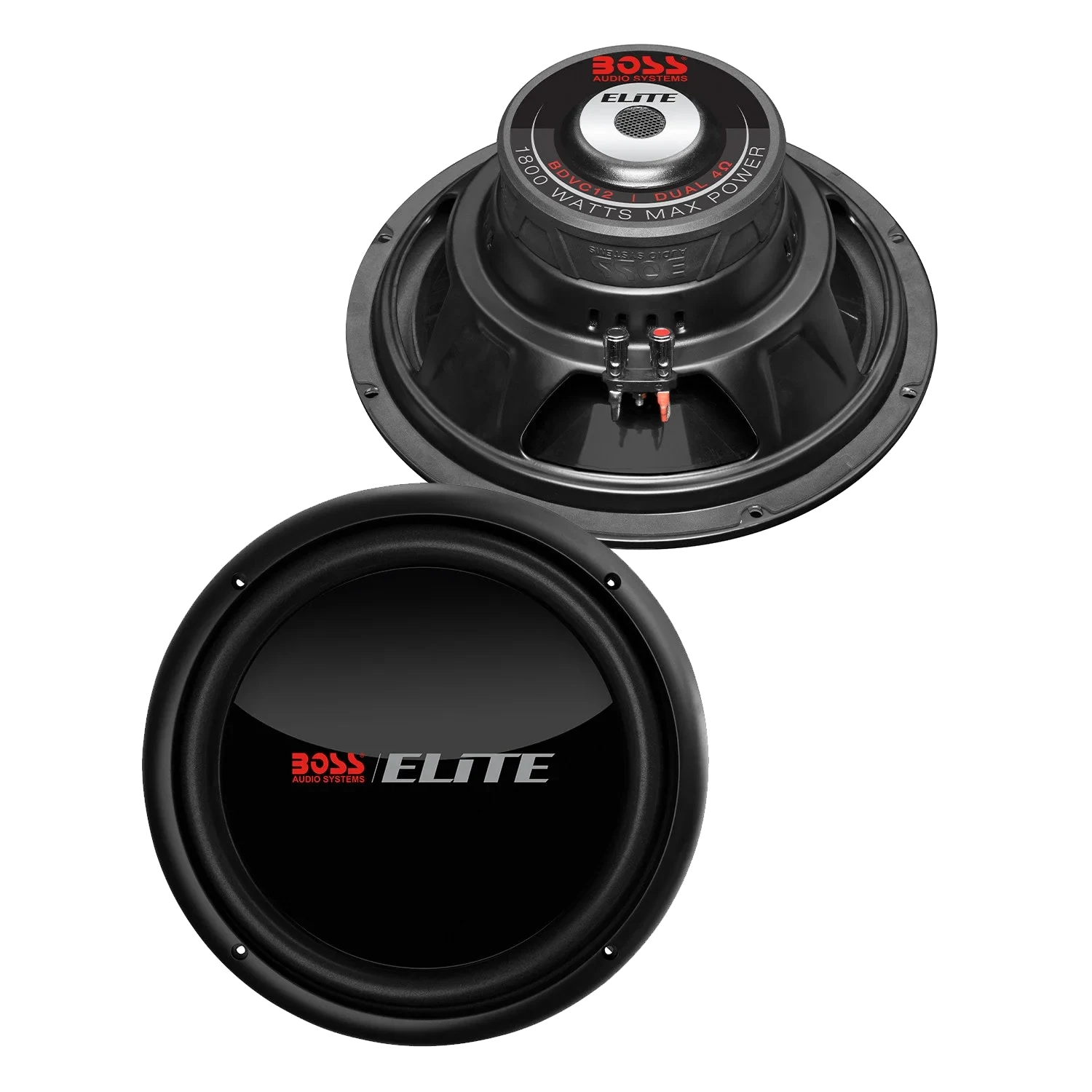

Boss Elite
BDVC128-Inch Amplified Subwoofer
The Boss Elite BDVC12 is organized here as a 8-Inch Amplified Subwoofer for compact bass upgrades, with the main product role, controls, and core specs up front. Important details include Foam Surround, Polypropylene Cone, Stamped Steel Basket.
Highlights
- Foam Surround
- Polypropylene Cone
- Stamped Steel Basket
- Push Terminals
Key specs
Full specs- Peak Power Handling
- 1800 Watts
- RMS Power Handling
- 900 Watts
- Voice Coil Configuration
- DUAL
- Impedance
- 4 Ω
- Mounting Diameter
- 11 "
- Mounting Depth
- 5.375 "
- FS
- 34 Hz
- Qes
- 0.881
Key specs
Full specs- Peak Power Handling
- 1800 Watts
- RMS Power Handling
- 900 Watts
- Voice Coil Configuration
- DUAL
- Impedance
- 4 Ω
Highlights
Overview- Foam Surround
- Polypropylene Cone
- Stamped Steel Basket
Overview
The Boss Elite BDVC12 is organized here as a 8-Inch Amplified Subwoofer for compact bass upgrades, with the main product role, controls, and core specs up front. Important details include Foam Surround, Polypropylene Cone, Stamped Steel Basket.
Best for
- Subwoofers
- compact bass upgrades
- Car audio upgrades
- Adding compact low-frequency output
Key points
- Foam Surround
- Polypropylene Cone
- Stamped Steel Basket
- Push Terminals
- Paintable Trim Ring
- Max Power: 1800 W
Fit and use
Check the listed dimensions, connection options, and power ratings against the vehicle and system plan before ordering. The specification table keeps the source measurements and electrical details available for comparison.
What to know
This content is normalized from Boss Elite product data and Automob category/inventory data. Use the specs and manuals on the page for final confirmation before installation.
Highlights
Key features
- Foam Surround
- Polypropylene Cone
- Stamped Steel Basket
- Push Terminals
- Paintable Trim Ring
- Max Power: 1800 W
More info
- Foam Surround
- Polypropylene Cone
- Stamped Steel Basket
- Push Terminals
- Paintable Trim Ring
- Max Power: 1800 W
- Nominal Impedance: Dual 4Ω
- System Sensitivity (1W/1m): 88 dB
Specs
General Specs
4
| Peak Power Handling | 1800 Watts |
| RMS Power Handling | 900 Watts |
| Voice Coil Configuration | DUAL |
| Impedance | 4 Ω |
Mounting Dimensions
2
| Mounting Diameter | 11 " |
| Mounting Depth | 5.375 " |
T/S Parameters
7
| FS | 34 Hz |
| Qes | 0.881 |
| Qms | 3.948 |
| Qts | 0.712 |
| Vas | 2.132 CuFt |
| Xmax (One-Way) | 10 mm |
| Sensitivity (1W/1m) | 88 dB |
Enclosure Specs
5
| Recommended Sealed | 1.25 CuFt |
| Recommended Ported | 2 CuFt |
| Port Dimension | Round PORT_DIMENSION (excel value) |
| Port Length | 5 " |
| Port Frequency | 34 Hz |
Additional Specs
6
| Unit Length In | 13.0 |
| Unit Width In | 13.0 |
| Unit Weight lbs | 10.05 |
| Cone Material | Poly Injection |
| Basket Structure | Stamped |
| Surround Material | Foam |
