Hertz DBA active subwoofer box

Hey there, bass-lover! Ready to take your car audio game to the next level?
Meet the Hertz DBA 201 active subwoofer – your ticket to bass heaven on the road!

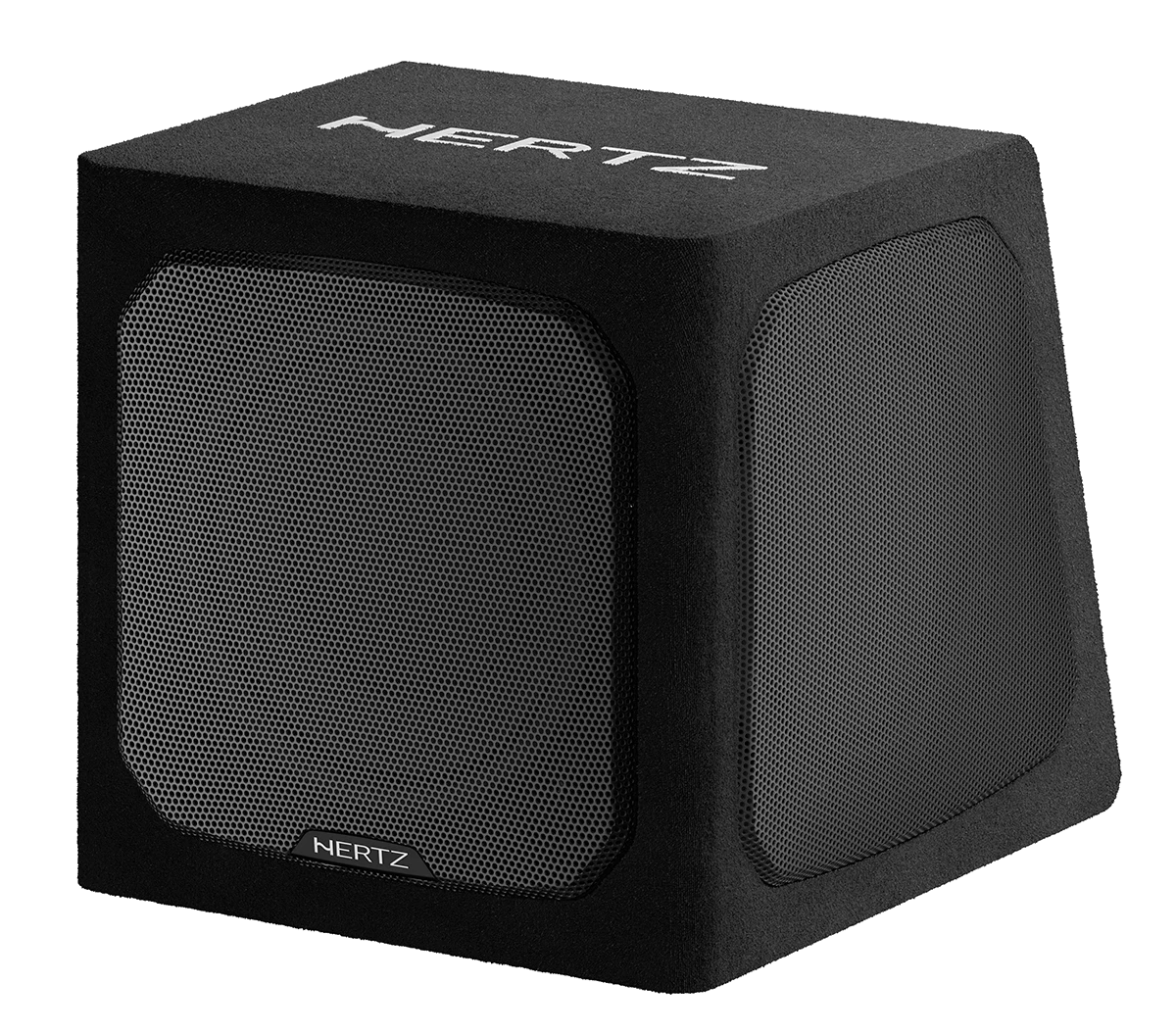

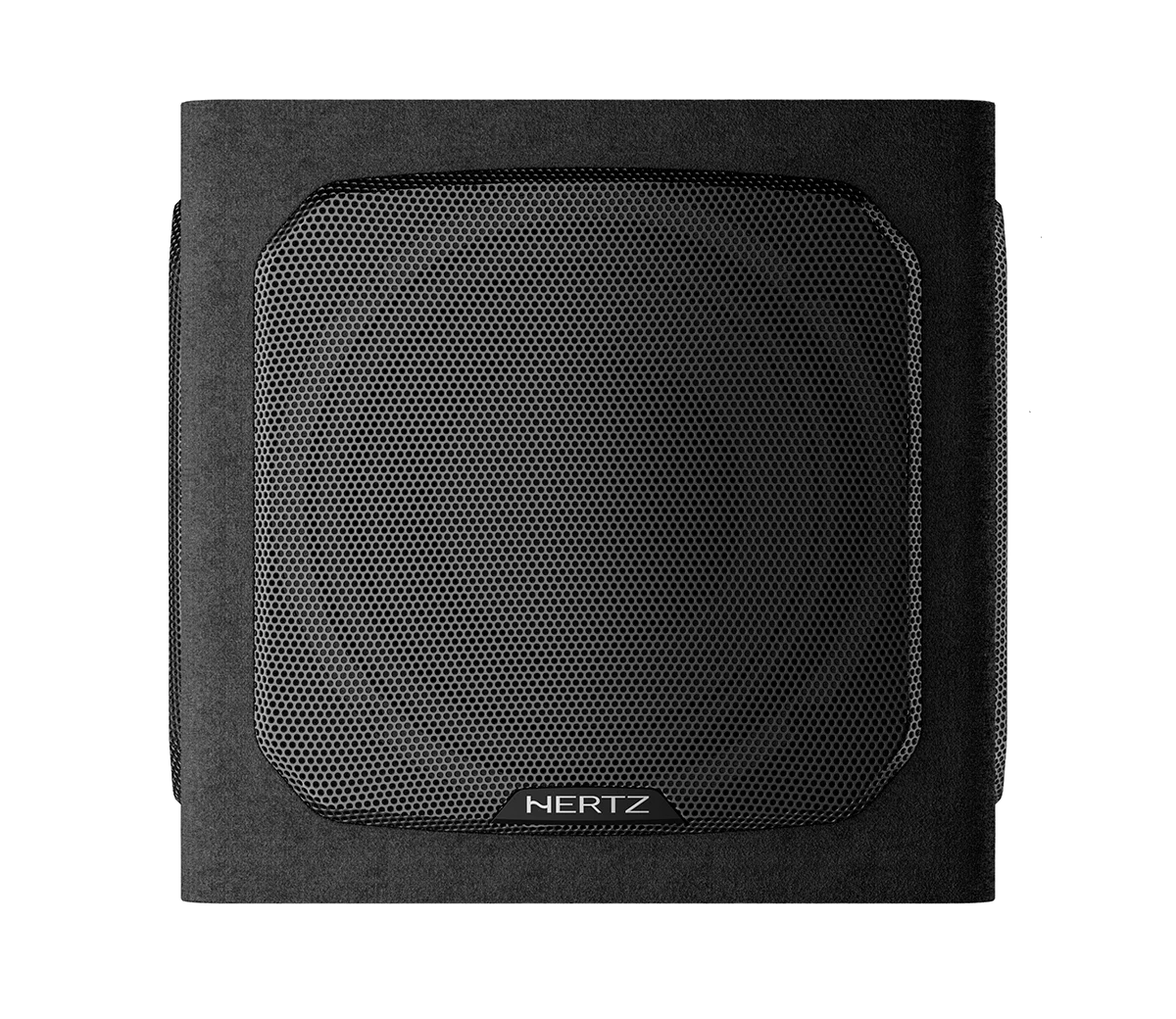

DBA 201 active subwoofer

Imagine cruising down the highway, feeling every beat thump through your car. That’s what the Hertz Audio DBA 201 Subwoofer Box is all about. It’s like having a concert in your car, with deep, rich bass that’ll make you never want to leave your vehicle.

And hey, installation? Piece of cake. No need to stress about complicated setups. Just pop this bad boy in your car, and you’re good to go. Trust us, your ears will thank you.

High performance in a compact stylish design

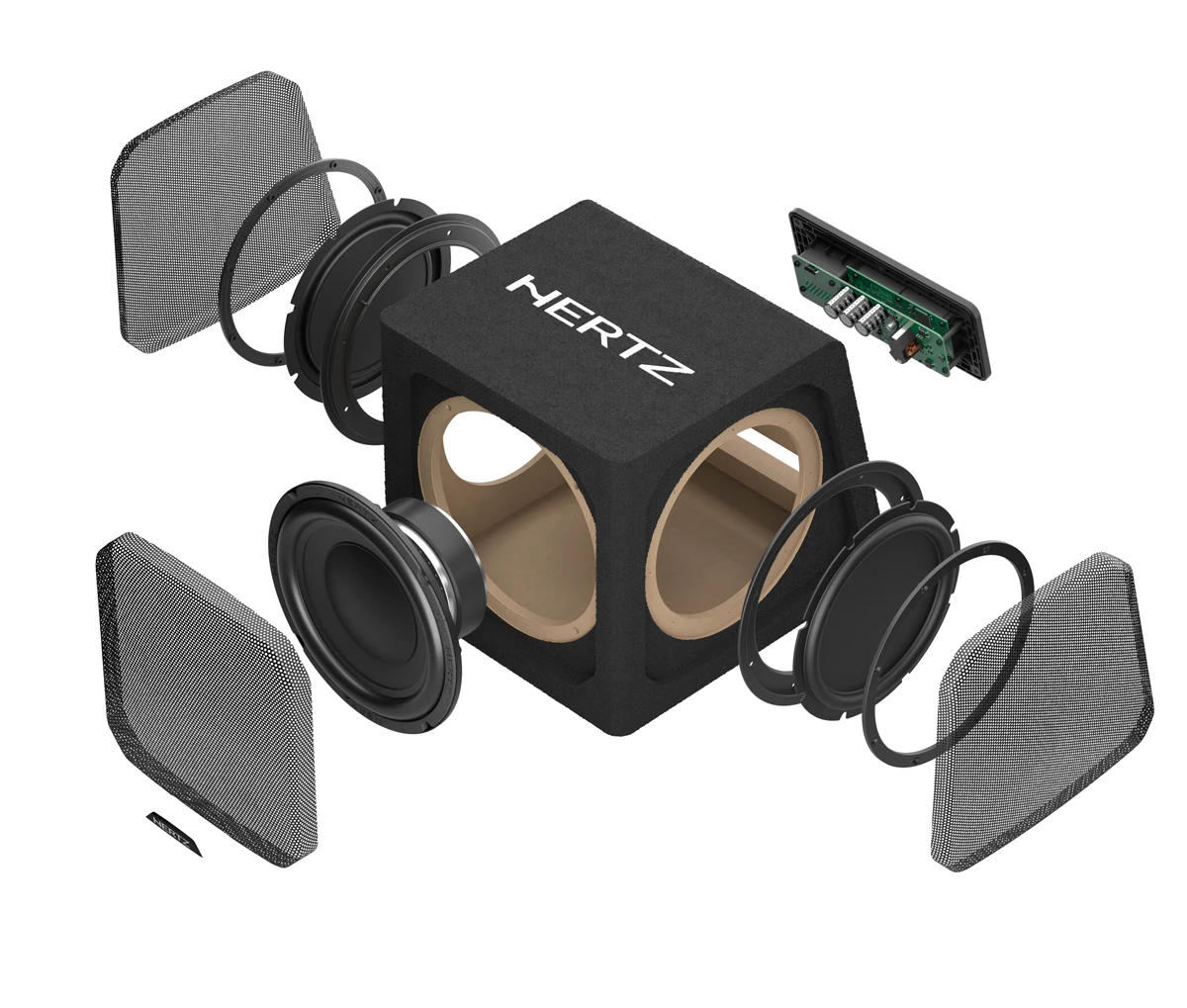

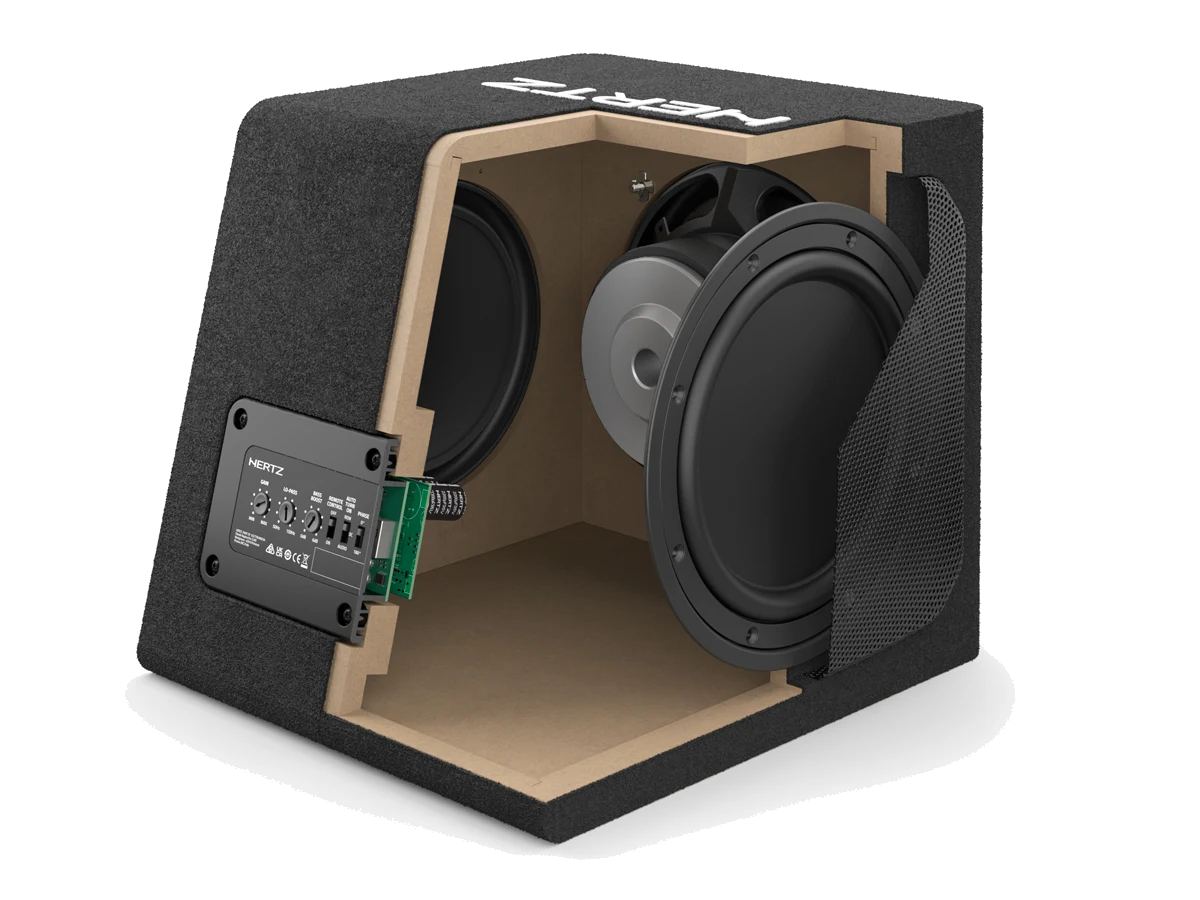

The DBA 201 active subwoofer box features a double passive radiator enclosure made with solid MDF and optimized with FEM simulation to ensure superior performance, maximizing the subwoofer output. The massive magnet of the 8-in. driver provides optimal control during the highest cone excursion.

The DBA 201 active subwoofer box features a double passive radiator enclosure made with solid MDF and optimized with FEM simulation to ensure superior performance, maximizing the subwoofer output. The massive magnet of the 8-in. driver provides optimal control during the highest cone excursion.

DBA 201 F Flat Active Subwoofer

Now, if you’re all about that sleek, minimalist vibe, then the Hertz Audio DBA 201 F Flat Active Subwoofer is right up your alley. This thing is slim, but don’t let its size fool you – it packs a serious punch. Plus, with its built-in amplifier, you’ll get that powerful bass without cluttering up your car with extra gear.

High performance in a super flat design

The DBA 201 F flat active subwoofer enclosure optimized with FEM simulation ensures superior performance, maximizing the subwoofer output with a super flat size. The massive magnet of the 8 in. driver provides optimal control during the highest cone excursion.

DBA 201 F and DBA 201 are designed to easily release via a Plug & Play Molex® and harness, which includes the power connection. When you need extra cargo room, you can quickly unplug and

remove the box.

DBA 201 and DBA 201F share the 440 W Class D amplifier provides an unmatched performance/size ratio, drawing less current from the vehicle’s electrical system. He-Li technology (high efficiency/low impedance) is optimized for the 0.4 Ω load of the DBA 201 subwoofer drivers, and the sealed enclosure.

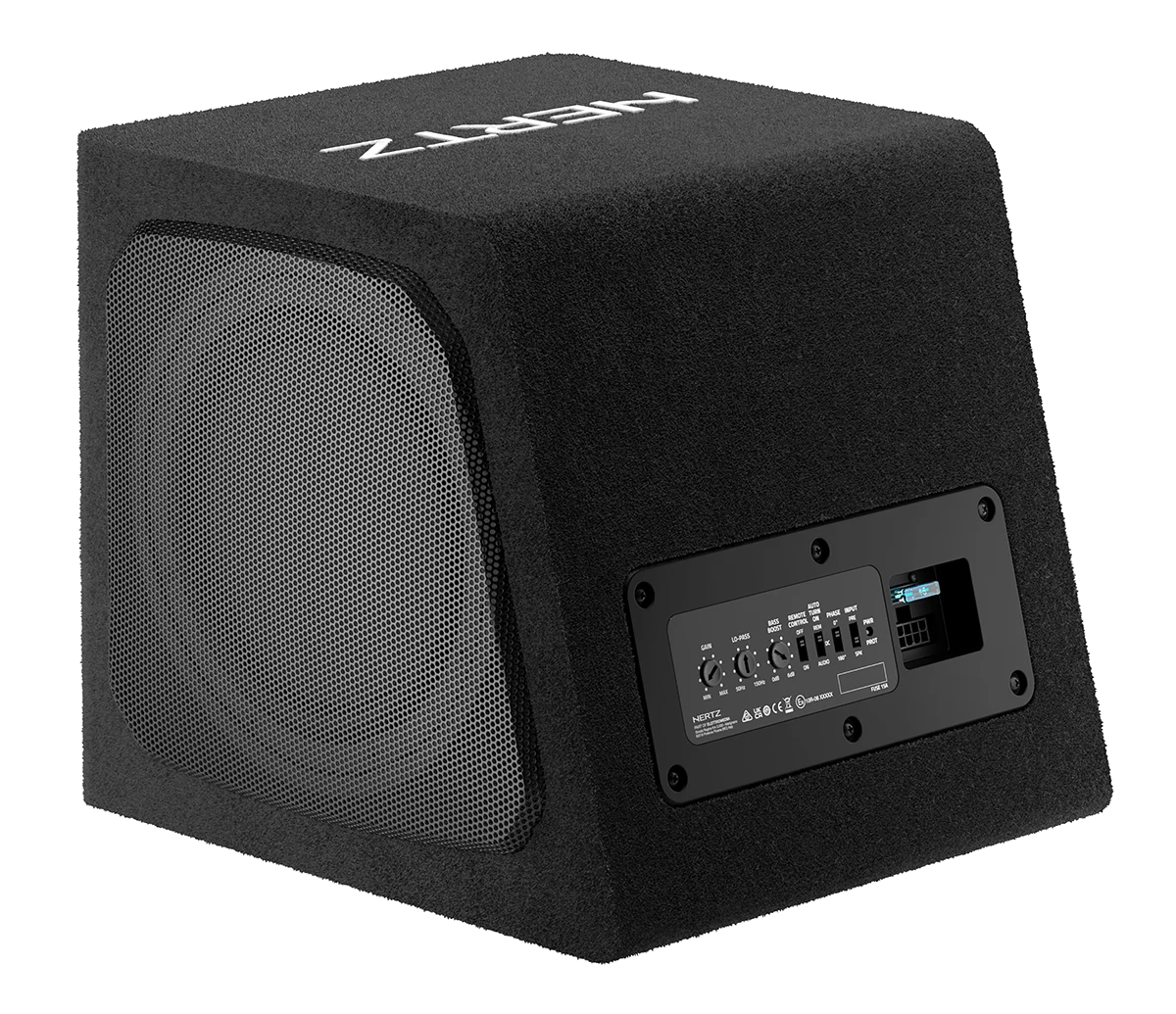

Extra full set of controls to fine-tune the in-car performance

The built-in 24 dB/Oct. low-pass crossover filter with variable cutting corner frequency (50÷150 Hz) allows you to perfectly match the DBA 201 to your speaker system. Adjustable bass-boost (0÷6 dB @ 45Hz) can add bass output as you prefer, allowing correction for OEM sound equalization. With the phase inverter (0-180°), you can optimize phase alignment between the DBA 201 and your speaker system, regardless of the subwoofer’s position in the car. The subsonic filter (15 Hz @ 24 dB/Oct) protect the cone from over excursion and amplifiers from overheating. The input sensitivity control is the perfect tool to maximize the overall system output level while preventing clipping.

DBA 201 and DBA 201F can handle speaker-level signals up to 30 volts (1.2V – 30 V rms) and includes USS for OEM systems and handles RCA line-level signals as well (0.2mV – 5 V rms) from aftermarket systems. Thanks to the low idling current and wide operating supply voltage (6.5V – 18V) DBA 201 F is fully EV (Electrical Vehicle) friendly.

Provided remote level control

DBA 201 level can be adjusted (-15 dB ÷ 0 dB) using the new stylish HRC 01 remote control. HRC 01 AS control is ready for tape surface mounting, screw surface mounting, and recessed mounting, thanks to the provided accessories.

Picture this: You, behind the wheel, with bass so intense it'll make your heart race. Yeah, that's the Hertz Audio DBA 201 Series for you.

So, what are you waiting for?

Upgrade your car audio experience today and feel the music like never before with the Hertz Audio DBA 201 Series. Trust us, you won't regret it.
