1 / 9
Variants
Reviewers praise the P2D2-12 for thunderous, punchy low end, solid build, and good power handling — performs best when wired and enclosed correctly.
Buyer confidence
90%Highlights
- 1 Year Warranty
- Kevlar fiber reinforced paper cone
- Diamond cut cast aluminum trim ring with optional grille
- StampCast basket with integrated spider venting
Key specs
Full specs- Power Handling (Watts RMS)
- 400 Watts RMS 800 Watts Max
- Nominal Impedance
- Dual 2-Ohm
- Mounting Depth
- 6.40 in. (162 mm)
- Speaker Connector
- Dual 10 AWG compression
- Size
- 12"
- Voice Coil Diameter
- 2.25" (57.15 mm)
- SPL (dB @ 1w/1m)
- 86
- Fs (Hz)
- 26
Key specs
Full specs- Power Handling (Watts RMS)
- 400 Watts RMS 800 Watts Max
- Nominal Impedance
- Dual 2-Ohm
- Mounting Depth
- 6.40 in. (162 mm)
- Speaker Connector
- Dual 10 AWG compression
Highlights
Overview- 1 Year Warranty
- Kevlar fiber reinforced paper cone
- Diamond cut cast aluminum trim ring with optional grille
Review highlights
Based on customer reviewsHard‑hitting 12" sub that delivers deep, clean bass at a strong value
Reviewers praise the P2D2-12 for thunderous, punchy low end, solid build, and good power handling — performs best when wired and enclosed correctly.
What buyers praise
- Very loud, hard‑hitting bass with deep, punchy low end
- Clean sound across a wide range of music at moderate to high levels
What to watch for
- Requires correct voice‑coil wiring/impedance for mono/bridged amps — incorrect wiring caused clacking for some users
Overview
The Punch P2 12" (P2D2-12) from Rockford Fosgate is a 12-inch car subwoofer engineered for impactful low-frequency output. It features a 2-Ohm dual voice coil, 400 Watts RMS power handling and a cast aluminum trim ring that accepts an optional grille insert.
Best for
- Drivers and installers who want strong
- punchy bass in cars and trucks and prefer a subwoofer that performs well in standard sealed or vented enclosures.
Key points
- 12-inch subwoofer with 2-Ohm dual voice coil (DVC)
- 400 Watts RMS power handling
- Kevlar fiber reinforced paper cone for durable impact
- VAST surround increases effective cone area for more output
- Cast aluminum trim ring compatible with an optional grille insert
- Technologies: Klippel Verified, Anodized Aluminum Voice Coil Former, FlexFit Basket, Stitched Tinsel Leads, CEA-2031
Fit and use
Performs best in standard sealed or vented enclosures. Use with an amplifier that matches the subwoofer’s 400 Watts RMS power handling and wiring options offered by the 2-Ohm dual voice coil.
What to know
Handles 400 Watts RMS—match amplifier power accordingly. The 2-Ohm DVC provides wiring flexibility for different system configurations. VAST surround increases cone area for higher output without increasing overall diameter. Includes a cast aluminum trim ring; an optional grille insert is available separately.
Highlights
Key features
- 1 Year Warranty
- Kevlar fiber reinforced paper cone
- Diamond cut cast aluminum trim ring with optional grille
- StampCast basket with integrated spider venting
- Custom 10-AWG nickel plated push terminals
- Protective PVC textured magnet cover
- Extended pole piece and bumped vented backplate
- Dual linear spider with embedded 16 AWG tinsel leads
- High-temp voice coil with spun-laced Nomex® re-inforcement collar
- Stitched Tinsel Leads
- CEA-2031
- VAST Surround - Subs
More info
Manufacturer details
The Rockford Fosgate P2 12” subwoofer continues “The PUNCH” tradition of generating powerful car and truck audio. The P2D2-12 features a 2-Ohm Dual voice coil (DVC), 400 Watts RMS power handling, and can accommodate a grille insert using the included cast aluminum trim ring. The P2D2 12 inch car subwoofer also includes:
Additional details
Rockford Fosgate has always been known as "The PUNCH" and the P2 12 inch car subwoofer certainly continues with the tradition. Kevlar fiber reinforced paper cones deliver bass impact you can feel along with VAST technology to increase surface cone area of your sub up to 25%. The P2 Punch subwoofers perform best in standard sealed and vented enclosures. Includes diamond cut cast aluminum trim ring. Optional grille insert available. Looking for more options?
Check out all of our car subwoofers.
Technologies
Stitched Tinsel Leads
Multipoint "periodic" stitched lead wire technique reduces the mass of each tinsel lead and spreads stress and
CEA-2031
Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards. This means your speaker has
Patent: Patent Pending
VAST Surround - Subs
Rockford Fosgate's proprietary surround technique, VAST, provides up to a 25% increase in the speakers effective
FlexFit Basket - Subwoofer
The slot mounted frame pattern of the FlexFit basket utilizes slots (where feasible) instead of single screw sized
Anodized Aluminum Voice Coil Former
Two things generally happen when voice coils heat-up. They can generate heat close to the melt-down temp of their
Klippel Verified
To adorn the ‘Verified with Klippel’ mark, the qualifying company’s loudspeaker engineering personnel must be
Specs
Specifications
24
| Power Handling (Watts RMS) | 400 Watts RMS 800 Watts Max |
| Nominal Impedance | Dual 2-Ohm |
| Mounting Depth | 6.40 in. (162 mm) |
| Speaker Connector | Dual 10 AWG compression |
| Size | 12" |
| Voice Coil Diameter | 2.25" (57.15 mm) |
| SPL (dB @ 1w/1m) | 86 |
| Fs (Hz) | 26 |
| Woofer Displacement | 0.085 cu. ft. (2.4 Liters) |
| Le (mH) | 3.7 |
| Xmax (mm) | 13.3 |
| Qts | 0.52 |
| Qes | 0.56 |
| Shipping Weight | 15.6 Lbs. (7.07 kg) |
| Magnet Weight (oz) | 72.8 oz. (2.06 kg.) |
| Re (Ohms) | 3.30 |
| Qms | 6.50 |
| Cutout Diameter | 11.22 in. (285 mm) |
| Vas (Liters) | 81.5 |
| Sd (cm2) | 570 |
| Subwoofer Type | Standard |
| Voice Coil Type | Dual Voice Coil |
| Sealed Box Volume (Vb) | 1.02 cu. ft. (28.8 Liters) |
| Vented Box Volume (Vb) | 1.79 cu. ft. (50.6 Liters) |
Reviews (0)
—
No average rating yet
0 reviews
No written reviews are live yet. Signed-in customers can submit one below.
No written reviews are live for this item yet.
Installation resources
Wiring diagrams
9
Wiring Diagram #1
Source: Rockford Fosgate
Wiring Diagram #2
Source: Rockford Fosgate
Wiring Diagram #3
Source: Rockford Fosgate
Wiring Diagram #4
Source: Rockford Fosgate
Wiring Diagram #5
Source: Rockford Fosgate
Wiring Diagram #6
Source: Rockford Fosgate
Wiring Diagram #7
Source: Rockford Fosgate
Wiring Diagram #8
Source: Rockford Fosgate
Wiring Diagram #9
Source: Rockford Fosgate
Box Advisor
Sealed Enclosure
- Recommended volume
- 1.02 cu ft
- Volume range
- 0.7 cu ft to 1.8 cu ft
- Dimensions
- 18 in W x 14 in H x 10 in D
- F3
- 43.7 Hz
- Qtc
- 0.94
- Port / ID
- 59 in
- Subwoofer size
- 61 in
- Impedance
- 3 ohm
- Power handling (RMS)
- 400 W
Vented Enclosure
- Recommended volume
- 1.79 cu ft
- Volume range
- 1.5 cu ft to 2 cu ft
- Dimensions
- 25 in W x 14 in H x 12 in D
- F3
- 35 Hz
- Tuning (Fb)
- 40 Hz
- Port / ID
- 61 in
- Subwoofer size
- 61 in
- Impedance
- 3 ohm
- Power handling (RMS)
- 400 W
Support
Return Authorization
If you bought this product from Onkar Electronics, use the Contact Us page on the Onkar Electronics website and we will help with return authorization and warranty support. If you purchased it from another dealer, contact that authorized dealer first for return assistance.
Popular Questions
No FAQs available
Similar products
Compare nearby options
Rockford Fosgate•Punch
P3SD2-12 Punch 12" P3S Shallow 2-Ohm DVC Subwoofer
4.734 reviews
$349.99CAD
$419.99
In stock
Rockford Fosgate•Punch
P3D2-12 Punch 12" P3 2-Ohm DVC Subwoofer
4.970 reviews
$379.99CAD
$459.99
In stock
Rockford Fosgate•Prime

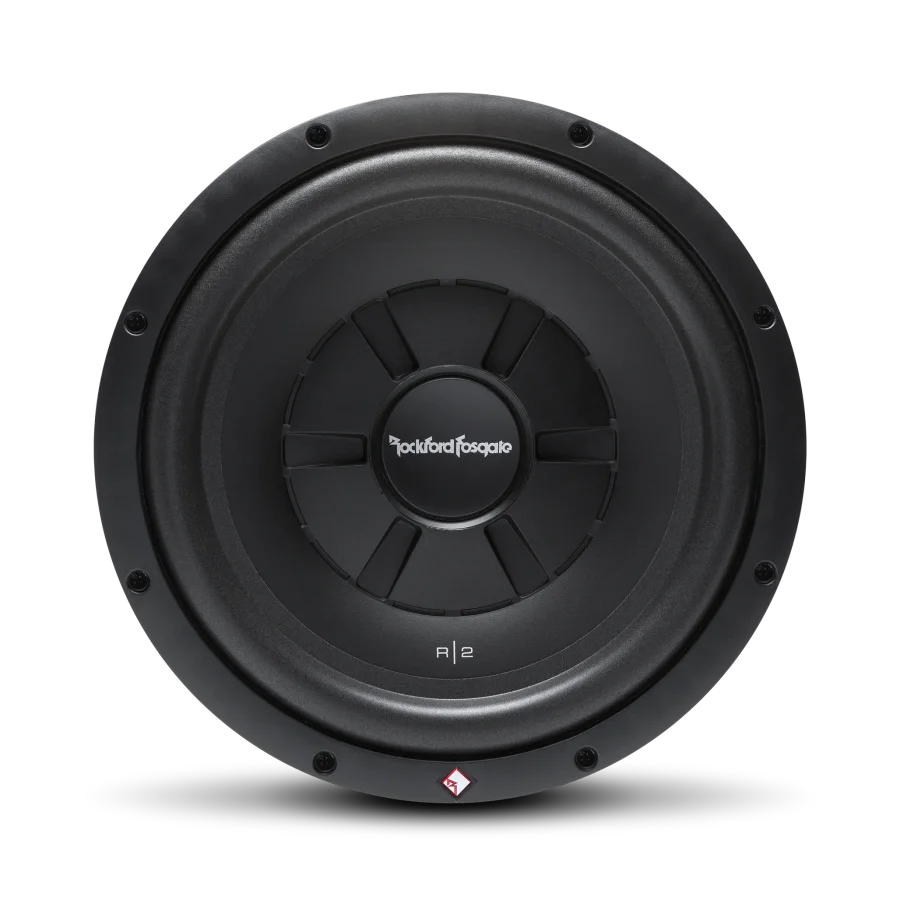

R2SD2-12 Prime 12" R2S 2-Ohm DVC Shallow Subwoofer
