Rockford Fosgate Power T3S2-19Power 19" T3 Single 2-Ohm Superwoofer
Variants
The Power T3S2-19 is a 19-inch superwoofer engineered for very large, low-frequency output. It uses a single 2‑Ohm voice coil for simpler wiring and incorporates several technologies aimed at high power handling and efficiency.
Highlights
- 1 Year Warranty
- Injection molded foam surround with VAST™
- Dual Nomex progressive spiders with stitched tinsel leads
- Three layer glass fiber/Aramid honeycomb/Glass fiber cone
Key specs
Full specs- Magnet Weight (oz)
- 115 oz. (3.26 Kg)
- Nominal Impedance
- 2-Ohm
- Voice Coil Type
- Single Voice Coil
- Subwoofer Type
- Superwoofer
- Le (mH)
- 0.96
- Voice Coil Diameter
- 5.0" (127 mm)
- Power Handling (Watts RMS)
- 3000 Watts RMS 6000 Watts Max
- Size
- 19"
Key specs
Full specs- Magnet Weight (oz)
- 115 oz. (3.26 Kg)
- Nominal Impedance
- 2-Ohm
- Voice Coil Type
- Single Voice Coil
- Subwoofer Type
- Superwoofer
Highlights
Overview- 1 Year Warranty
- Injection molded foam surround with VAST™
- Dual Nomex progressive spiders with stitched tinsel leads
Overview
The Power T3S2-19 is a 19-inch superwoofer engineered for very large, low-frequency output. It uses a single 2‑Ohm voice coil for simpler wiring and incorporates several technologies aimed at high power handling and efficiency.
Best for
- Car-audio enthusiasts and installers who want extreme low-end output and are able to accommodate a very large subwoofer…
Key points
- 19 inches of effective radiating cone area for deep low-frequency output.
- Single 2‑Ohm voice coil design for straightforward wiring options.
- Injection Molded Foam Surround for durability and excursion control.
- Edge-wound voice coil and anodized aluminum former to improve cooling and power handling.
- Push/pull voice coil motor design paired with a large neodymium magnet for efficiency.
- Technologies and verification: VAST Surround, Stitched Tinsel Leads, CEA-2031, and Klippel Verified.
Fit and use
This subwoofer requires substantial mounting space and an appropriately sized enclosure. It is intended for installations where vehicle space, mounting depth, and a matching amplifier can support a large, high-power driver. Wiring uses a single 2‑Ohm voice coil configuration.
What to know
The T3S2-19 is physically large; confirm cabinet dimensions and vehicle fit before purchase. It is designed for high power handling—match it with an amplifier and vehicle electrical system suitable for sustained output. Performance measurements have been verified (Klippel, CEA-2031); consult detailed specs and install…
Highlights
Key features
- 1 Year Warranty
- Injection molded foam surround with VAST™
- Dual Nomex progressive spiders with stitched tinsel leads
- Three layer glass fiber/Aramid honeycomb/Glass fiber cone
- Aluminum dustcap
- Since voice coil design with dual (push/pull) windings
- Custom push spring insulated 4 AWG terminals
- Single layer edge wound aluminum 5" voice coil
- Integrated die cast aluminum trim ring
- Dual gap multi-pole Neodymium push/pull motor structure
- Diecast aluminum frame with integrated heat sink fins and venting
- Proprietary surround mechanical clamping ring
More info
Manufacturer details
The Power T3S2-19 superwoofer has a whopping 19-inches of effective radiating cone area for deep bass and features a single 2-Ohm voice coil for easy wiring. This is the largest, most powerful loudspeaker Rockford Fosgate has ever built!
Additional details
The Power T3S2-19 can rightfully be classified as a superwoofer due to its whopping 19-inches of effective radiating cone area! That's right... we don't need no stinkin' 18" subs ... this is for genuine Car Audio Fanatics that want to go BIG like Mannie Fresh. We're talkin' Real Big bass and Real Big power handling in a Real Big ride.
The Power 19" incorporates technologies never before seen in car audio, like the Injection Molded Foam Surround, making the foam strong and durable like a rubberized material. The Edge Wound voice coil allows the windings to be very close with no air gaps so it stays cool for high power handling capacity. We also engineered a very efficient "Push/Pull" voice coil design with a huge Neodymium magnet for a very efficient motor assembly. Looking for more options? Check out all of our best subwoofers here.
Technologies
Patent: Patent Pending
VAST Surround - Subs
Rockford Fosgate's proprietary surround technique, VAST, provides up to a 25% increase in the speakers effective
Stitched Tinsel Leads
Multipoint "periodic" stitched lead wire technique reduces the mass of each tinsel lead and spreads stress and
Anodized Aluminum Voice Coil Former
Two things generally happen when voice coils heat-up. They can generate heat close to the melt-down temp of their
CEA-2031
Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards. This means your speaker has
Klippel Verified
To adorn the ‘Verified with Klippel’ mark, the qualifying company’s loudspeaker engineering personnel must be
Specs
Specifications
24
| Magnet Weight (oz) | 115 oz. (3.26 Kg) |
| Nominal Impedance | 2-Ohm |
| Voice Coil Type | Single Voice Coil |
| Subwoofer Type | Superwoofer |
| Le (mH) | 0.96 |
| Voice Coil Diameter | 5.0" (127 mm) |
| Power Handling (Watts RMS) | 3000 Watts RMS 6000 Watts Max |
| Size | 19" |
| Qms | 1.92 |
| Fs (Hz) | 27 |
| Speaker Connector | 4 AWG Compression Terminal |
| Vas (Liters) | 103.4 |
| Sd (cm2) | 1472 |
| Re (Ohms) | 1.7 |
| Qes | 0.37 |
| Qts | 0.31 |
| Mounting Depth | 15.62 in. (396 mm) |
| Cutout Diameter | 17.72 in. (440 mm) |
| Xmax (mm) | 34 |
| SPL (dB @ 1w/1m) | 90 |
| Shipping Weight | 106.30 Lbs. (48.2 Kg.) |
| Woofer Displacement | 0.339 cu. ft. (9.6 Liters) |
| Sealed Box Volume (Vb) | Not Recommended |
| Vented Box Volume (Vb) | 8.0 cu. ft. (226.5 Liters) |
Reviews (0)
—
No average rating yet
0 reviews
No written reviews are live yet. Signed-in customers can submit one below.
No written reviews are live for this item yet.
Installation resources
Wiring diagrams
7
Wiring Diagram #1
Source: Rockford Fosgate
Wiring Diagram #2
Source: Rockford Fosgate
Wiring Diagram #3
Source: Rockford Fosgate
Wiring Diagram #4
Source: Rockford Fosgate
Wiring Diagram #5
Source: Rockford Fosgate
Wiring Diagram #6
Source: Rockford Fosgate
Wiring Diagram #7
Source: Rockford Fosgate
Box Advisor
Vented Enclosure
- Recommended volume
- 8 cu ft
- Volume range
- 7 cu ft to 9 cu ft
- Dimensions
- 32.5 in W x 25 in H x 21.75 in D
- F3
- 26.5 Hz
- Tuning (Fb)
- 30 Hz
- Port / ID
- 24 in
- Subwoofer size
- 24 in
- Impedance
- 5 ohm
- Power handling (RMS)
- 3000 W
Support
Return Authorization
If you bought this product from Onkar Electronics, use the Contact Us page on the Onkar Electronics website and we will help with return authorization and warranty support. If you purchased it from another dealer, contact that authorized dealer first for return assistance.
Popular Questions
No FAQs available
Similar products
Compare nearby options
Cerwin Vega
XLS-15S-NA XLS Series 15" Home Theatre Powered Subwoofer - XLS-15S
$759.99CAD
Backorder
Cerwin Vega
XLS-12S-NA XLS Series 12" Home Theatre Powered Subwoofer - XLS-12S
$599.99CAD
Backorder
Cerwin Vega
XEDBP12 XED Bass Package - XED 3001D Amplifier W/Single 12" Subwoofer Vented Enclosure
$279.98CAD
Backorder
Rockford Fosgate•Power
T2S2-16 Power 16" T2 Single 2-Ohm Subwoofer
5.010 reviews
$1949.99CAD
$2289.99
Backorder
Rockford Fosgate•Power
T2S2-13 Power 13" T2 Single 2-Ohm Subwoofer
4.710 reviews
$1619.99CAD
$1919.99
In stock
Rockford Fosgate•Power

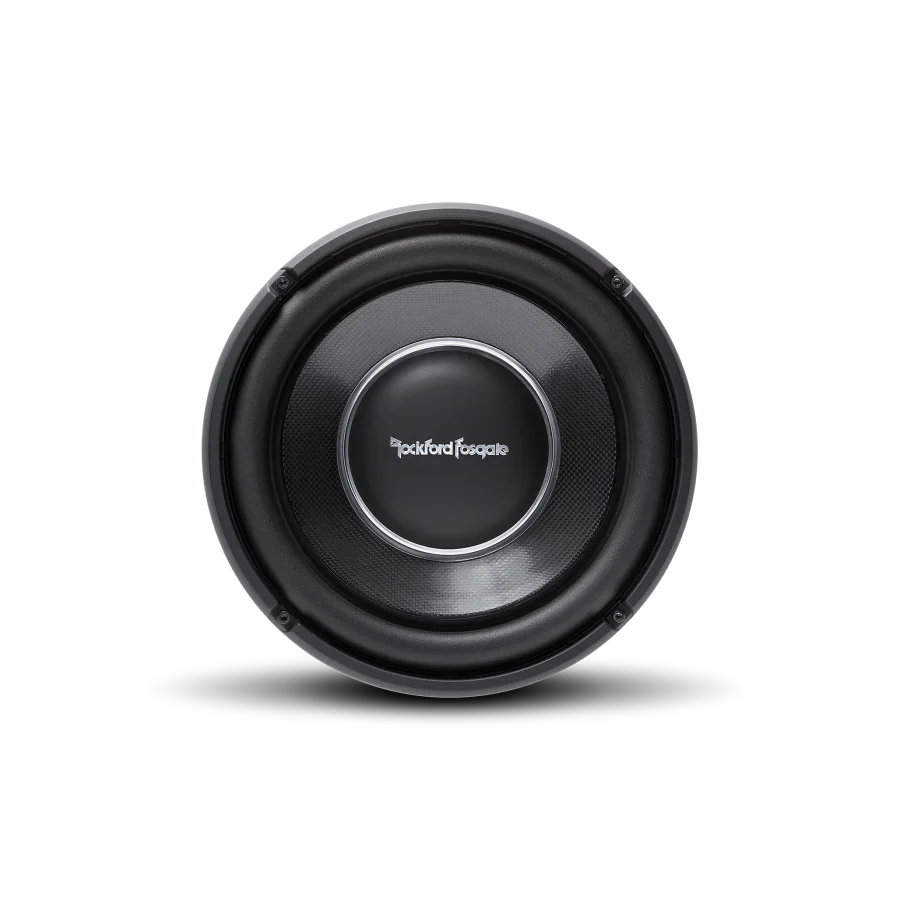

T1S2-12 Power 12" T1 Slim Single 2-Ohm Subwoofer
4.815 reviews
$849.99CAD
$999.99
In stock
Rockford Fosgate•Power

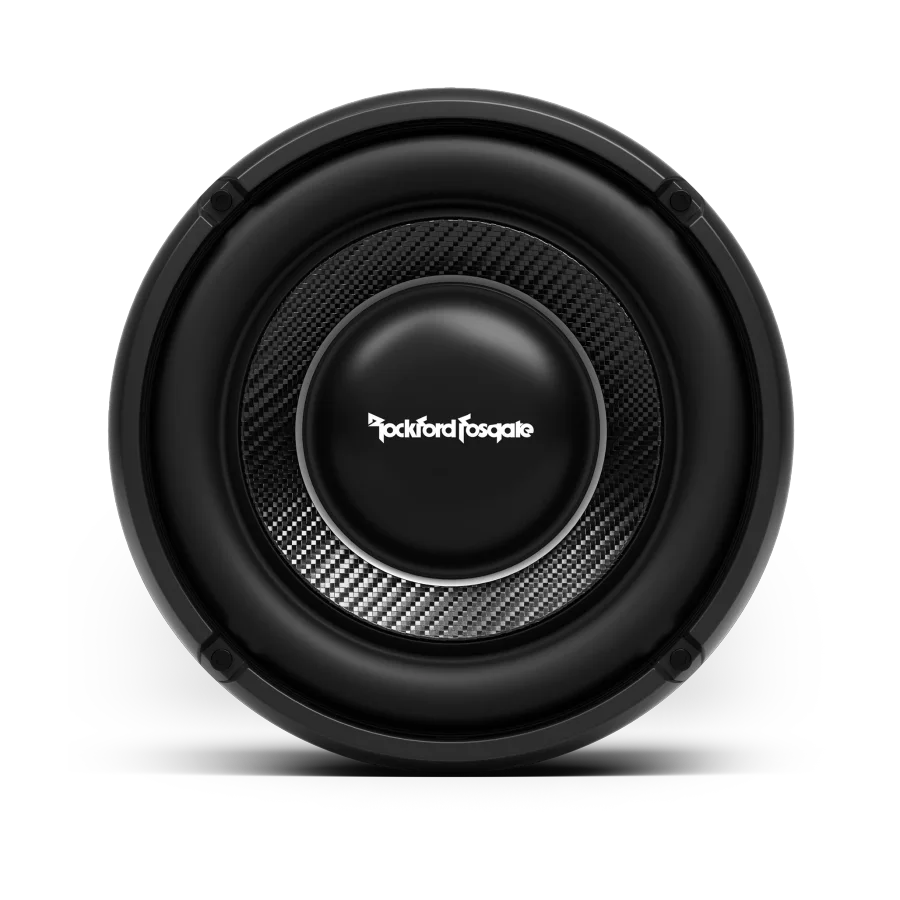

T1S2-10P Power 10" T1 Slim 2Ω SVC Subwoofer for Ported Enclosures
