Rockford Fosgate M2D2-10IB-G2M2 10" DVC 2Ω Color Optix™ Infinite Baffle Marine Subwoofer: Black Gen-2
Variants
The M2 10" DVC 2Ω Color Optix™ Gen-2 marine subwoofer delivers deep bass for Infinite Baffle installations, with on-water lighting compatibility and marine-grade construction.
Highlights
- Optimized for infinite baffle applications when an enclosure is not an option
- 2-Year Warranty
- New vented T-yoke improves power and performance without bottoming
- VAST vertical attach surround technique increases effective radiating cone area up to 25%
Key specs
Full specs- Size
- 10"
- Voice Coil Type
- Dual Voice Coil
- Frequency Response
- 32 Hz - 250 Hz
- Nominal Impedance (Ohms)
- 1-Ohm or 4-Ohm Switchable
- Power Handling (Watts RMS)
- 400 Watts RMS 1600 Watts PEAK
- Voice Coil Diameter
- 2" (51 mm)
- Magnet Weight (oz)
- 55.04 oz. (1.56 Kg)
- Fs (Hz)
- 43
Key specs
Full specs- Size
- 10"
- Voice Coil Type
- Dual Voice Coil
- Frequency Response
- 32 Hz - 250 Hz
- Nominal Impedance (Ohms)
- 1-Ohm or 4-Ohm Switchable
Highlights
Overview- Optimized for infinite baffle applications when an enclosure is not an option
- 2-Year Warranty
- New vented T-yoke improves power and performance without bottoming
Overview
The M2 10" DVC 2Ω Color Optix™ Gen-2 marine subwoofer delivers deep bass for Infinite Baffle installations, with on-water lighting compatibility and marine-grade construction.
Best for
- Boaters and marine audio enthusiasts who want powerful low-frequency output without a sealed enclosure and who want con…
Key points
- Optimized for Infinite Baffle installations (enclosure not required for basic operation)
- Color Optix™ lighting compatibility for app-based, on-water lighting control (controller sold separately)
- Element Ready™ construction for resistance to water, salt, and UV exposure
- VERSA Switch to change impedance settings for system matching
- Klippel Verified performance and VAST surround for extended cone area
- Includes sport and stainless-steel grille inserts plus Deutsch ColorOptix™ pigtail (sold as the Marine 10” Subwoofer includes list in product materials)
Fit and use
This subwoofer is intended for Infinite Baffle use; a mounting baffle is required to isolate front and rear wavelengths. It integrates with the Rockford Fosgate RF Connect app and Color Optix™ controller (PMX-RGB required and sold separately) via Deutsch™ and Amphenol™ connectors. Use the VersaSwitch to select the appropriate impedance for your amplifier and system design.
What to know
The Color Optix lighting controller and app are separate components — the PMX-RGB controller is required for full lighting control. A proper mounting baffle is necessary for Infinite Baffle installations to ensure acoustic isolation. Element Ready™ materials improve durability in marine environments, but follow standa…
Highlights
Key features
- Optimized for infinite baffle applications when an enclosure is not an option
- 2-Year Warranty
- New vented T-yoke improves power and performance without bottoming
- VAST vertical attach surround technique increases effective radiating cone area up to 25%
- Co-molded surround and cone body chemically bonded for high durability
- Ultra-high temperature PA66 with 30% glass fill injection-molded frame with UV inhibitors
- Vented motor design with water-repelling nano coated mesh screen
- Injection molded mineral filled polypropylene cone body with UV inhibitors
- Provides superb low and midrange frequency reproduction with smooth high frequency roll-off
- Integrated Deutsch™/Amphenol™ connectors make wiring connections simple and error proof
- Industry’s first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
- Deutsch™ connector front/rear silicone seal protects against water ingress
More info
Manufacturer details
The second generation M2 10-inch subwoofers create an unmatched audio experience, with class-leading output, complete on-water lighting control and grille customization. This subwoofer is optimized for Infinite Baffle installations, where an enclosure is not required. Sold individually (1 each).
Color Optix™: Adjust your own bright, wide, and limitless lighting experience with the Rockford Fosgate Color Optix™ plug-and-play controller (sold separately) and App.
Element Ready™: Purpose Built for the Marine Environment, Rockford’s Element Ready™ products are built to stand up to Water, Salt, and UV rays, making sure your subwoofers stand the test of time.
Grille Customization: Multiple grille options provides a customized look by using either the stainless-steel grille or the “sport” grille inserts, allowing you to dial in your personalized-on water experience.
True Marine Ecosystem: Integrated Deutsch™ / Amphenol™ connections provide industry leading marine plug-and-play connectivity and flexible install options.
Color Optix™: Requires PMX-RGB controller and RF Connect™ App
Additional details
NEXT GEN PERFORMANCE
The redesigned M2 Element Ready™ subwoofers bring unmatched reliability and deep, powerful bass, with enhanced responsiveness and superior thermal management. Built to handle any adventure, they were engineered to endure the toughest conditions.
The subwoofers are designed to pair with the Rockford Fosgate RF Connect App and Color Optix™ controller (PMX-RGB required) through its Deutsch™ and Amphenol™ connectors integrated into the basket. To streamline installation, M2 subwoofers are equipped with a VersaSwitch™ to make changing impedance between 1Ω and 4Ω as easy as flipping a switch.
Since this subwoofer is optimized for Infinite Baffle installations, a mounting baffle is required to adequately isolate the front and rear wavelengths.
The Marine 10” Subwoofer Includes:
• (1) Sport grille insert
• (1) Stainless steel grille insert
• (1) Deutsch ColorOptix™ pigtail
Technologies
Klippel Verified
To adorn the ‘Verified with Klippel’ mark, the qualifying company’s loudspeaker engineering personnel must be
Element Ready™ | Subwoofers
All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion &
Color Optix™ Control
Adjust your own bright, wide, and limitless lighting experience with the Rockford Fosgate Color Optix™
Patent: Patent Pending
VAST Surround - Subs
Rockford Fosgate's proprietary surround technique, VAST, provides up to a 25% increase in the speakers effective
VERSA Switch
Allows you to easily configure a 2Ω Dual Voice Coil subwoofer into 1Ω / 4Ω or a 4Ω DVC sub into 2Ω / 8Ω with the
Flex Fit Basket - Marine
The slot mounted frame pattern allows fine-tuning of the marine speaker's mounting position.
Stitched Tinsel Leads
Multipoint "periodic" stitched lead wire technique reduces the mass of each tinsel lead and spreads stress and
Water Resistant
IPX Ratings allow for the components to be directly sprayed with water without ingress.
Corrosion Protection
Components are tested for salt spray corrosion resistance.
Showing the main technologies for this product.
Specs
Specifications
23
| Size | 10" |
| Voice Coil Type | Dual Voice Coil |
| Frequency Response | 32 Hz - 250 Hz |
| Nominal Impedance (Ohms) | 1-Ohm or 4-Ohm Switchable |
| Power Handling (Watts RMS) | 400 Watts RMS 1600 Watts PEAK |
| Voice Coil Diameter | 2" (51 mm) |
| Magnet Weight (oz) | 55.04 oz. (1.56 Kg) |
| Fs (Hz) | 43 |
| Re (Ohms) | 3.3 |
| Le (mH) | 1.17 |
| Sd (cm2) | 363 |
| Qms | 5.69 |
| Qes | 0.86 |
| Qts | 0.74 |
| Vas | 30.5 |
| SPL (dB @ 1w/1m) | 87 |
| Xmax (mm) | 13 |
| Woofer Displacement | 0.047 cu. ft. (1.33 Liters) |
| Speaker Connector | Deutsch™ and 1/8" Spade |
| Cutout Diameter | 8.98" (228 mm) |
| Mounting Depth | 4.70" (119.35 mm) |
| In The Box | (6) 1025-71213-01: Black Grille Spacer (1) 1120-71212-01: Stainless Steel Grill (1) 1125-71208-01: 4.5mm x 80mmL Drill Bit (6) 1125-71237-01: 3.0mm x 60mmL Hex Screws (1) 1125-73494-01: 5.0mm x 40mmL Hex Bit (1) 1560-71095-01: 4-Wire RGB Harness 300mm |
| Shipping Weight | 14.3 Lbs. (6.5 Kg) |
Reviews (0)
—
No average rating yet
0 reviews
No written reviews are live yet. Signed-in customers can submit one below.
No written reviews are live for this item yet.
Installation resources
Wiring diagrams
9
Wiring Diagram #1
Source: Rockford Fosgate
Wiring Diagram #2
Source: Rockford Fosgate
Wiring Diagram #3
Source: Rockford Fosgate
Wiring Diagram #4
Source: Rockford Fosgate
Wiring Diagram #5
Source: Rockford Fosgate
Wiring Diagram #6
Source: Rockford Fosgate
Wiring Diagram #7
Source: Rockford Fosgate
Wiring Diagram #8
Source: Rockford Fosgate
Wiring Diagram #9
Source: Rockford Fosgate
Box Advisor
Support
Return Authorization
If you bought this product from Onkar Electronics, use the Contact Us page on the Onkar Electronics website and we will help with return authorization and warranty support. If you purchased it from another dealer, contact that authorized dealer first for return assistance.
Popular Questions
No FAQs available
Videos

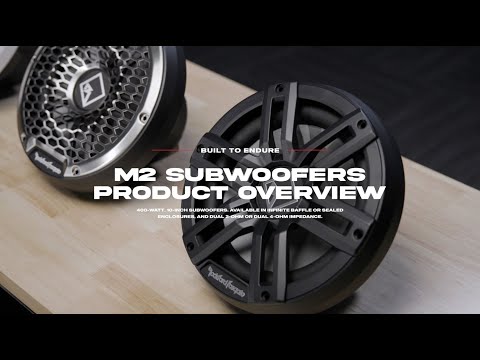

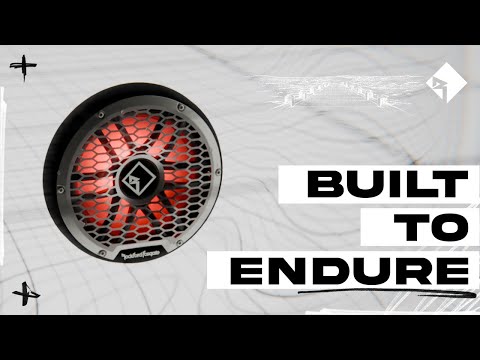

M2 G2 Subwoofer Launch
Introducing the next generation of M2 Subwoofers!
