Rockford Fosgate RNGR18-STG42018+ Ranger Stage 4 Audio System (Gen-2)
Stage-4 is a 1,500-watt Gen-2 Polaris Ranger audio system with PMX-2 color-screen source (Pandora® ready), a 5-channel M5-1500X5 amplifier, 6.5" front and rear speakers and a 10" subwoofer for select 2018+ Ranger XP 1000 full-size and crew models.
Highlights
Key specs
Full specs- Speaker Qty
- 5
- Amplifier Type
- External
- Total Power
- 1,500 Watts
- Mounting Hardware
- Yes
- Grille/Trim Ring Included
- Yes
- Included In The Box
- (1 ea) PMX-2 (1 ea) RNGR18-DK (1 pr) RNGR18-FSE (2 pr) M1-65B (1 ea) M5-1500X5 (1 ea) RNGR18-FWE (1 ea) M1D2-10B (1 ea) RNGR18-K4 (1 pr) RNGR18-RSE (1 ea) PMX-RGB
- Shipping Weight
- 69 Lbs (31.29 Kg)
Key specs
Full specs- Speaker Qty
- 5
- Amplifier Type
- External
- Total Power
- 1,500 Watts
- Mounting Hardware
- Yes
Overview
Stage-4 is a 1,500-watt Gen-2 Polaris Ranger audio system with PMX-2 color-screen source (Pandora® ready), a 5-channel M5-1500X5 amplifier, 6.5" front and rear speakers and a 10" subwoofer for select 2018+ Ranger XP 1000 full-size and crew models.
Best for
- Riders who want a pre-tuned
- high-power
- weather-resistant audio upgrade with simple plug-and-play installation and customizable Color Optix lighting.
Key points
- 1,500-watt system driven by the M5-1500X5 5-channel amplifier
- PMX-2 color touchscreen source unit with Pandora® compatibility and Bluetooth control
- Factory-like plug-and-play design: minimal drilling, no cutting
- Controls 6.5" front speakers, 6.5" rear speakers and a 10" subwoofer; supports adding a second 10" subwoofer in the rear
- Element Ready™ construction with IPX6 water intrusion rating, vibration resistance, water resistance and UV-inhibitor materials
- Color Optix™ lighting control for adjustable lighting effects
Fit and use
Designed for select 2018 and newer Polaris Ranger XP 1000 FULL-SIZE (3-seat) and CREW (6-seat) models. Rear-speaker installation requires a Polaris Ranger Poly Roof (with or without the Premium Roof Liner). The kit is built for off-road conditions and intended as a vehicle-specific, plug-and-play upgrade.
What to know
The system ships pre-tuned for immediate performance with no user adjustments required. Components are Element Ready™ for resistance to water, dirt, mud and UV exposure. Although installation is plug-and-play with minimal modification, confirm your Ranger model and roof configuration before purchasing to ensure rear s…
Highlights
Key features
- RNGR18-DK: Dash kit for PMX-1, PMX-2 or PMX-3 on select Polaris® Ranger models
- PMX-2: Compact AM/FM/WB Digital Media Receiver 2.7" Display
- RNGR18-FSE: 6.5" front Color Optix™ speaker pods for select Polaris® Ranger models
- M1-65B: M1 6.5” Color Optix™ Marine 2-Way Speakers - Black
- PMX-RGB: Color Optix™ speaker color controllable via RF Connect mobile app
- RNGR18-FWE: Color Optix™ 10" ported subwoofer enclosure for select Polaris® Ranger models
- M1D4-10B: M1 10" DVC 4Ω Element Ready™ Color Optix™ Subwoofer - Black
- RNGR18-K4: 4 AWG amp installation kit for select Polaris® Ranger models
- RNGR18-RSE: 6.5" rear speaker pods for select Polaris® Ranger (requires Polaris® poly roof)
- M5-1500X5: 1,500 Watt 5-Channel IPX6 Element Ready™ Amplifier
- Element Ready™ | Motorsports
- IPX6 Water Intrusion Rating
More info
Manufacturer details
All the Rockford Fosgate sound, easy installation, quick smartphone connection, and right out of the box performance, so everything just works, so you can too.
Element Ready™: Purpose built for the off-road environment, Rockford’s Element Ready™ products are built to stand up to water, dirt, mud and UV rays, making sure all your audio components perform regardless of the conditions.
Plug-and-Play Design: Minimal drilling, no cutting and designed to work right out of the box. Simple installation ensures less time in the garage and more time out riding.
Color Optix™: Adjust your own bright, wide, and limitless lighting experience with the Rockford Fosgate Color Optix™ plug-and-play controller and App.
Preset: Out of the box performance, literally. No settings or adjustments are needed. Pre-Tuned by Rockford to deliver the legendary performance you have come to expect.
RF3 (Rockford Factory Fit and Finish): Designed and engineered to match and compliment the factory fit and finish of your vehicle. These components are purpose built to the exact specifications to ensure the best-in-class fitment and look.
Compatibility Chart: Please review below tab for fitment before purchasing.
Ranger Lifestyle
Ranger Stages Product Overview

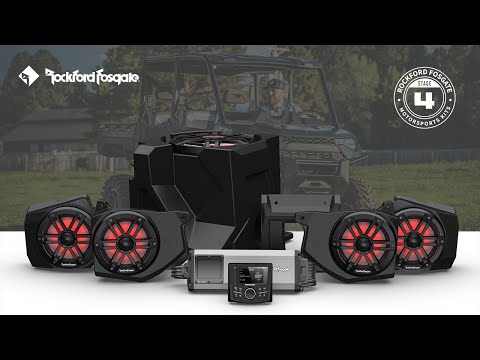

Ranger Stage-4 Installation
Additional details
STAGE-4 PERFORMANCE
The Ranger Stage-4 is an aftermarket 1,500-watt M1 Color Optix™ front and rear audio system with subwoofer. This kit features the PMX-2 color screen multi-media source unit with Pandora® internet radio. Building on all the great features of Stage-3, this kit nearly doubles the amplifier power with the M5-1500X5. With 5 discrete channels, you’ll have full control of the 6.5” front speakers, 6.5” rear speakers, and 10” subwoofer, with future expansion of a secondary 10” subwoofer with rear-seats. A Polaris Ranger Poly Roof equipped with/without the Premium Roof Liner is required for installation of the rear speakers. The system is designed for select 2018 and newer XP 1000 FULL-SIZE (3-seat) and CREW (6-seat) models.
Technologies
Element Ready™ | Motorsports
All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion &
IPX6 Water Intrusion Rating
A device with a level 6 water resistance rating can survive strong water jets projected by a 12.5mm nozzle at any
Bluetooth Control
With Bluetooth® connectivity it’s easy to control your music and take your playlist with you no matter where you
Plug & Play
This product is designed for rapid installation using pre-configured wiring harnesses and quick connect terminals.
Color Optix™ Control
Adjust your own bright, wide, and limitless lighting experience with the Rockford Fosgate Color Optix™
Vibration Resistant
Components are able to withstand shock and vibration conditions common with outdoor vehicles.
Water Resistant
IPX Ratings allow for the components to be directly sprayed with water without ingress.
UV Inhibitor Materials
Centrex and ASA plastic materials are used for their UV radiation resistance and components are tested in
Thermal Shock Resistant
Components are designed to withstand extreme temperature fluctuations ensuring they perform day-in and day-out.
Showing the main technologies for this product.
Specs
Specifications
7
| Speaker Qty | 5 |
| Amplifier Type | External |
| Total Power | 1,500 Watts |
| Mounting Hardware | Yes |
| Grille/Trim Ring Included | Yes |
| Included In The Box | (1 ea) PMX-2 (1 ea) RNGR18-DK (1 pr) RNGR18-FSE (2 pr) M1-65B (1 ea) M5-1500X5 (1 ea) RNGR18-FWE (1 ea) M1D2-10B (1 ea) RNGR18-K4 (1 pr) RNGR18-RSE (1 ea) PMX-RGB |
| Shipping Weight | 69 Lbs (31.29 Kg) |
What's in the box
| Qty | Part number | Item details |
|---|---|---|
| 1 ea | PMX-2 | Included component |
| 1 ea | RNGR18-DK | Included component |
| 1 pr | RNGR18-FSE | Included component |
| 2 pr | M1-65B | Included component |
| 1 ea | M5-1500X5 | Included component |
| 1 ea | RNGR18-FWE | Included component |
| 1 ea | M1D2-10B | Included component |
| 1 ea | RNGR18-K4 | Included component |
| 1 pr | RNGR18-RSE | Included component |
| 1 ea | — | PMX-RGB |
Reviews (0)
—
No average rating yet
0 reviews
No written reviews are live yet. Signed-in customers can submit one below.
No written reviews are live for this item yet.
Support
Return Authorization
If you bought this product from Onkar Electronics, use the Contact Us page on the Onkar Electronics website and we will help with return authorization and warranty support. If you purchased it from another dealer, contact that authorized dealer first for return assistance.
Popular Questions
No FAQs available
Compatibility
YESRanger model IS compatible with kit |
NORanger model NOT compatible with kit |
NOT AVAILABLERanger model not produced this year |
|---|
| MODEL | 2018 | 2019 | 2020 | 2021 | 2022 | 2023 | 2024 | 2025 |
|---|---|---|---|---|---|---|---|---|
| Ranger EV | ✕ | ✕ | ✕ | ✕ | ✕ | — | — | — |
| Ranger XP Kinetic Premium | — | — | — | — | — | ✕ | ✕ | — |
| Ranger XP Kinetic Ultimate | — | — | — | — | — | ✕ | ✕ | — |
YESRanger XP 1000 Models |
YESRanger XP 1000 Northstar Models |
REQUIREDPolaris Ranger Poly Roof |
COMPATIBLEPolaris Ranger Premium Roof Liner |
COMPATIBLEPolaris Tip-Out Full Windshield(drill hole for receiver) |
COMPATIBLEPolaris Ranger HVAC System |
|---|
| MODEL | 2018 | 2019 | 2020 | 2021 | 2022 |
|---|---|---|---|---|---|
| Ranger 500 | ✕ | ✕ | ✕ | ✕ | ✕ |
| Ranger 570 | ✕ | ✕ | ✕ | — | — |
| Ranger 570 EPS | ✕ | ✕ | ✕ | — | — |
| Ranger SP 570 | — | — | — | ✕ | ✕ |
| Ranger SP 570 Premium | — | — | — | ✕ | ✕ |
| Ranger SP 570 NorthStar Edition | — | — | — | ✕ | ✕ |
| Ranger EV | ✕ | ✕ | ✕ | ✕ | ✕ |
| MODEL | 2018 | 2019 | 2020 | 2021 | 2022 |
|---|---|---|---|---|---|
| Ranger 570 Full-Size | ✕ | ✕ | ✕ | ✕ | ✕ |
| Ranger Diesel | ✕ | — | — | — | — |
| Ranger 1000 | — | — | ✕ | ✕ | ✕ |
| Ranger 1000 EPS | — | — | ✕ | ✕ | ✕ |
| Ranger 1000 Premium | — | — | ✕ | ✕ | ✕ |
| Ranger 1000 Premium + Winter Prep Package | — | — | — | ✕ | ✕ |
| Ranger XP 900 | ✕ | ✕ | — | — | — |
| Ranger XP 900 EPS | — | — | — | — | — |
| Ranger XP 1000 Big Game Edition | — | — | — | ✅ | ✅ |
| Ranger XP 1000 Texas Edition | — | — | ✅ | ✅ | — |
| Ranger XP 1000 Trail Boss | — | — | — | ✅ | ✅ |
| Ranger XP 1000 Waterfowl Edition | — | — | — | ✅ | ✅ |
| Ranger XP 1000 NorthStar [Edition] Premium | — | — | ✅ | ✅ | ✅ |
| Ranger XP 1000 NorthStar [Edition] Ultimate | — | — | ✅ | ✅ | ✅ |
| Ranger XP 1000 NorthStar Edition Trail Boss | — | — | — | ✅ | ✅ |
| Ranger XP 1000 EPS | ✅ | ✅ | — | — | — |
| Ranger XP 1000 [EPS] Premium | — | ✅ | ✅ | ✅ | ✅ |
| Ranger XP 1000 [EPS] High Lifter Edition | ✅ | ✅ | ✅ | ✅ | ✅ |
| Ranger XP 1000 EPS NorthStar [HVAC] Edition | ✅ | ✅ | — | — | — |
| Ranger XP 1000 EPS Back Country Limited Edition | — | ✅ | — | — | — |
| MODEL | 2018 | 2019 | 2020 | 2021 | 2022 | 2023 | 2024 | 2025 |
|---|---|---|---|---|---|---|---|---|
| Ranger XD 1500 Premium | — | — | — | — | — | — | ✕ | — |
| Ranger XD 1500 Northstar Edition Premium | — | — | — | — | — | — | ✕ | — |
| Ranger XD 1500 Northstar Edition Ultimate | — | — | — | — | — | — | ✕ | — |
| MODEL | 2018 | 2019 | 2020 | 2021 | 2022 |
|---|---|---|---|---|---|
| Ranger Crew 570[-4] | ✕ | ✕ | ✕ | ✕ | — |
| Ranger Crew 570-4 EPS | ✕ | ✕ | — | — | — |
| Ranger Crew 570[-4] Premium | — | — | ✕ | ✕ | — |
| Ranger Crew SP 570 | — | — | — | ✕ | ✕ |
| Ranger Crew SP 570 Premium | — | — | — | — | ✕ |
| Ranger Crew SP 570 NorthStar Edition | — | — | — | ✕ | ✕ |
| MODEL | 2018 | 2019 | 2020 | 2021 | 2022 |
|---|---|---|---|---|---|
| Ranger Crew 570-6 | ✕ | ✕ | ✕ | — | — |
| Ranger Crew 570 Full-Size | — | — | — | ✕ | ✕ |
| Ranger Crew Diesel | ✕ | — | — | — | — |
| Ranger Crew 1000 | — | — | ✕ | ✕ | ✕ |
| Ranger Crew 1000 EPS | — | — | ✕ | — | — |
| Ranger Crew 1000 Premium | — | — | ✕ | ✕ | ✕ |
| Ranger Crew 1000 Premium + Winter Prep Package | — | — | — | — | ✕ |
| Ranger Crew XP 900 EPS | ✕ | ✕ | — | — | — |
| Ranger Crew XP 900 | ✕ | ✕ | — | — | — |
| Ranger Crew XP 1000 Big Game Edition | — | — | — | ✅ | ✅ |
| Ranger Crew XP 1000 Premium | — | — | ✅ | ✅ | ✅ |
| Ranger Crew XP 1000 Texas Edition | — | — | ✅ | ✅ | ✅ |
| Ranger Crew XP 1000 Trail Boss | — | — | — | ✅ | ✅ |
| Ranger Crew XP 1000 Waterfowl Edition | — | — | — | ✅ | ✅ |
| Ranger Crew XP 1000 NorthStar Big Game Edition | — | — | — | — | ✅ |
| Ranger Crew XP 1000 NorthStar [Edition] Premium | — | — | ✅ | ✅ | ✅ |
| Ranger Crew XP 1000 NorthStar [Edition] Ultimate | — | — | ✅ | ✅ | ✅ |
| Ranger Crew XP 1000 NorthStar Edition Trail Boss | — | — | — | ✅ | ✅ |
| Ranger Crew XP 1000 EPS | ✅ | ✅ | — | — | — |
| Ranger Crew XP 1000 [EPS] High Lifter Edition | ✅ | ✅ | ✅ | ✅ | ✅ |
| Ranger Crew XP 1000 EPS NorthStar [HVAC] Edition | ✅ | ✅ | — | — | — |
| Ranger Crew XP 1000 EPS Back Country Edition | — | ✅ | — | — | — |
| MODEL | 2018 | 2019 | 2020 | 2021 | 2022 | 2023 | 2024 | 2025 |
|---|---|---|---|---|---|---|---|---|
| Ranger XD 1500 Premium | — | — | — | — | — | — | ✕ | — |
| Ranger XD 1500 Northstar Edition Premium | — | — | — | — | — | — | ✕ | — |
| Ranger XD 1500 Northstar Edition Ultimate | — | — | — | — | — | — | ✕ | — |
| MODEL | 2018 | 2019 | 2020 | 2021 | 2022 | 2023 | 2024 | 2025 |
|---|---|---|---|---|---|---|---|---|
| Ranger 150 EFI | ✕ | ✕ | ✕ | ✕ | ✕ | ✕ | ✕ | — |
[ ]
Indicates early model name nomenclature that was later inherited
*
Denotes Optional Package
FSE
2025 Lower Dash does not fit Front Speaker Enclosures. Make compatible by replacing with 2024 lower dash (Polaris #5453747-070).
HVAC
HVAC Heating ventilation & air conditioning system
IA
Integrated Audio with AM/FM radio and in-dash speakers.
JBL
JBL Trail Pro 2000 Audio equipped from factory not compatible for upgrade to RF kit.
RC
Ride Command equipped from factory. RF kits equipped with PMX source will bypass Ride Command. RF kits with RC interface use Ride Command as source unit.
SR
Sport Roof
SRP
Sport Roof + Premium Liner
PW
Powered windows . Crew models feature powered front seat windows.
WF
Windshield Front (Lock and Ride)
WT
Windshield Tipout
WR
Window Rear Panel (Poly or Glass)
