Cerwin Vega
Cerwin Vega VCU86VEGA Series 6-Channel Full Range Class-D Amplifier
Variants
VCU86 - VEGA Class-D Digital 6 Channel Amplifier Cerwin-Vega Vega Series Amplifiers – Compact Design, Monstrous Power The Vega Series Amplifiers have solidified their place as the backbone of the Cerwin-Vega Mobile brand, delivering unrivaled performance in a sleek, compact...
Highlights
- Updated High-Efficiency Full Range Digital Topology: Experience exceptional sound clarity with maximum energy efficiency.
- Enhanced Power IR Digital Chipset: Engineered for stability and precision, ensuring consistent performance under any condition.
- Conformal-Coated 4-Layer PCB: Protected against moisture and environmental wear for long-lasting reliability.
- Water-Resistant Design: Built to withstand the rigors of the road, wherever your journey takes you.
Key specs
Full specs- FREQUENCY RESPONSE (HZ)
- 40HZ - 400HZ
- RMS POWER PER CHANNEL 4Ω
- 100W x 6
- RMS POWER PER CHANNEL 2Ω
- 150W x 6
- RMS POWER PER 2 CHANNELS BRIDGED 4Ω
- 300W x 3
- Power Supply
- Full PWM
- Power Supply Threshold
- 10.0V-17.0V (DC)
- Idle Current
- (0.7A)
- THD 4 (1KHz @4Ω)
- 0.05%
Key specs
Full specs- FREQUENCY RESPONSE (HZ)
- 40HZ - 400HZ
- RMS POWER PER CHANNEL 4Ω
- 100W x 6
- RMS POWER PER CHANNEL 2Ω
- 150W x 6
- RMS POWER PER 2 CHANNELS BRIDGED 4Ω
- 300W x 3
Highlights
Overview- Updated High-Efficiency Full Range Digital Topology: Experience exceptional sound clarity with maximum energy efficiency.
- Enhanced Power IR Digital Chipset: Engineered for stability and precision, ensuring consistent performance under any condition.
- Conformal-Coated 4-Layer PCB: Protected against moisture and environmental wear for long-lasting reliability.
Overview

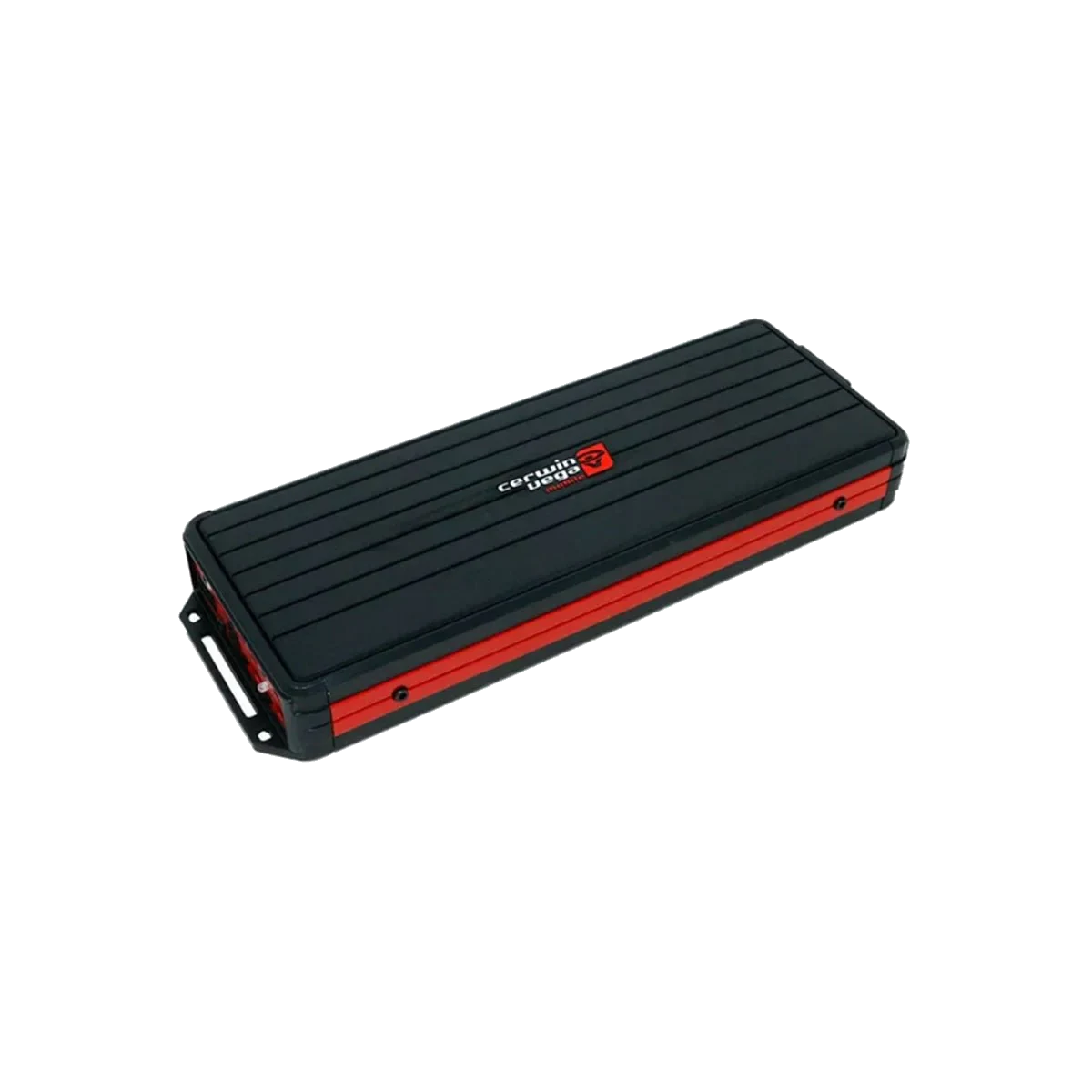

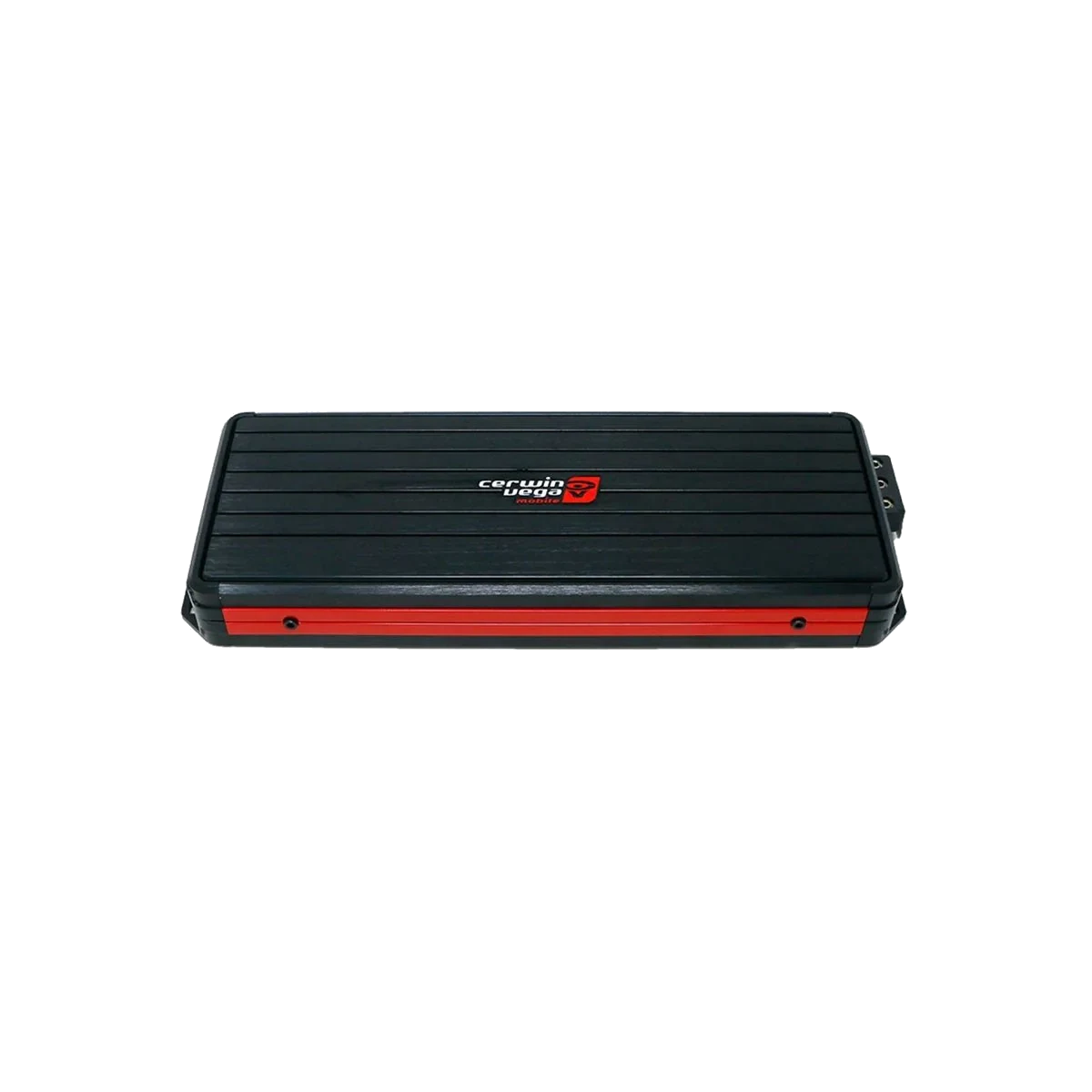

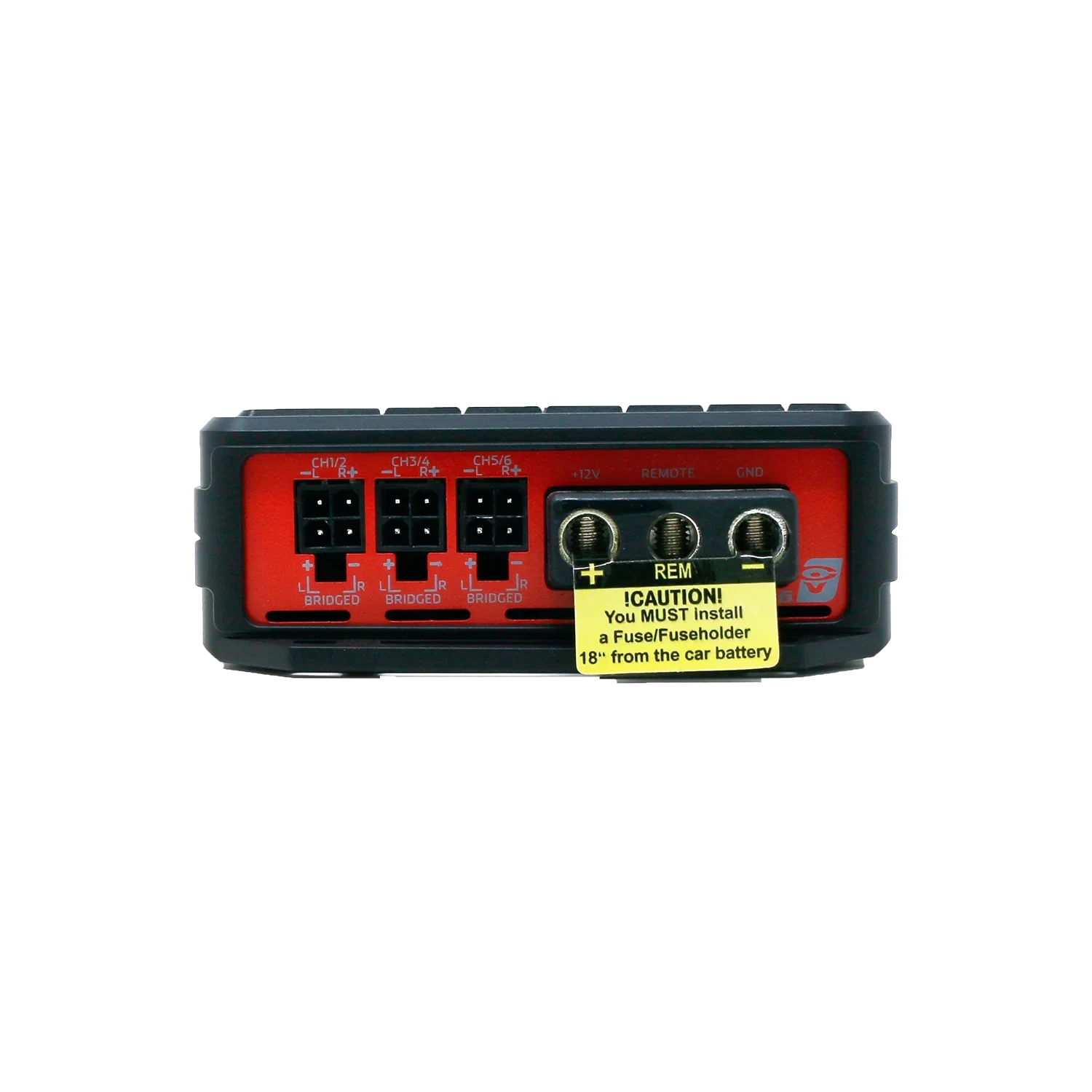

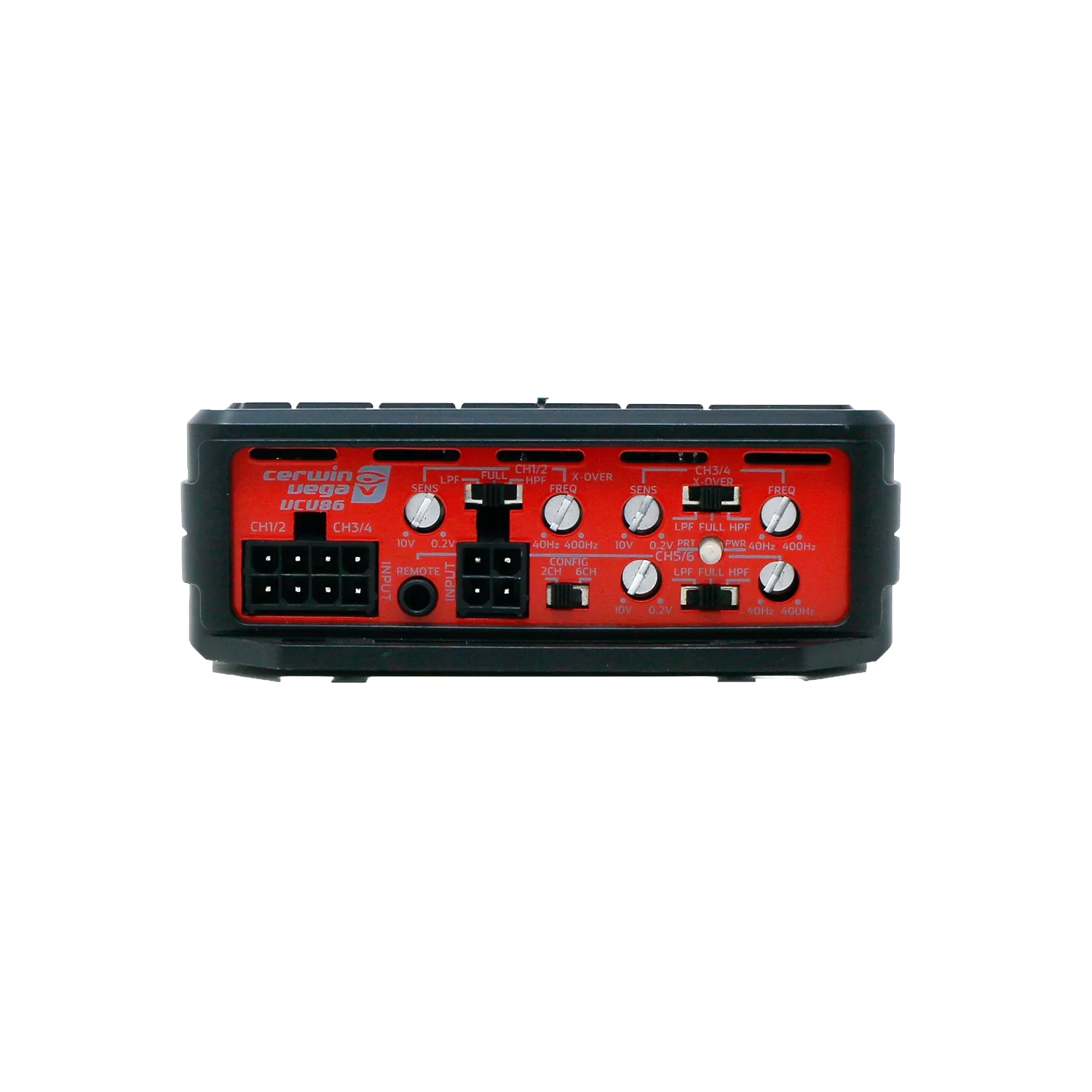

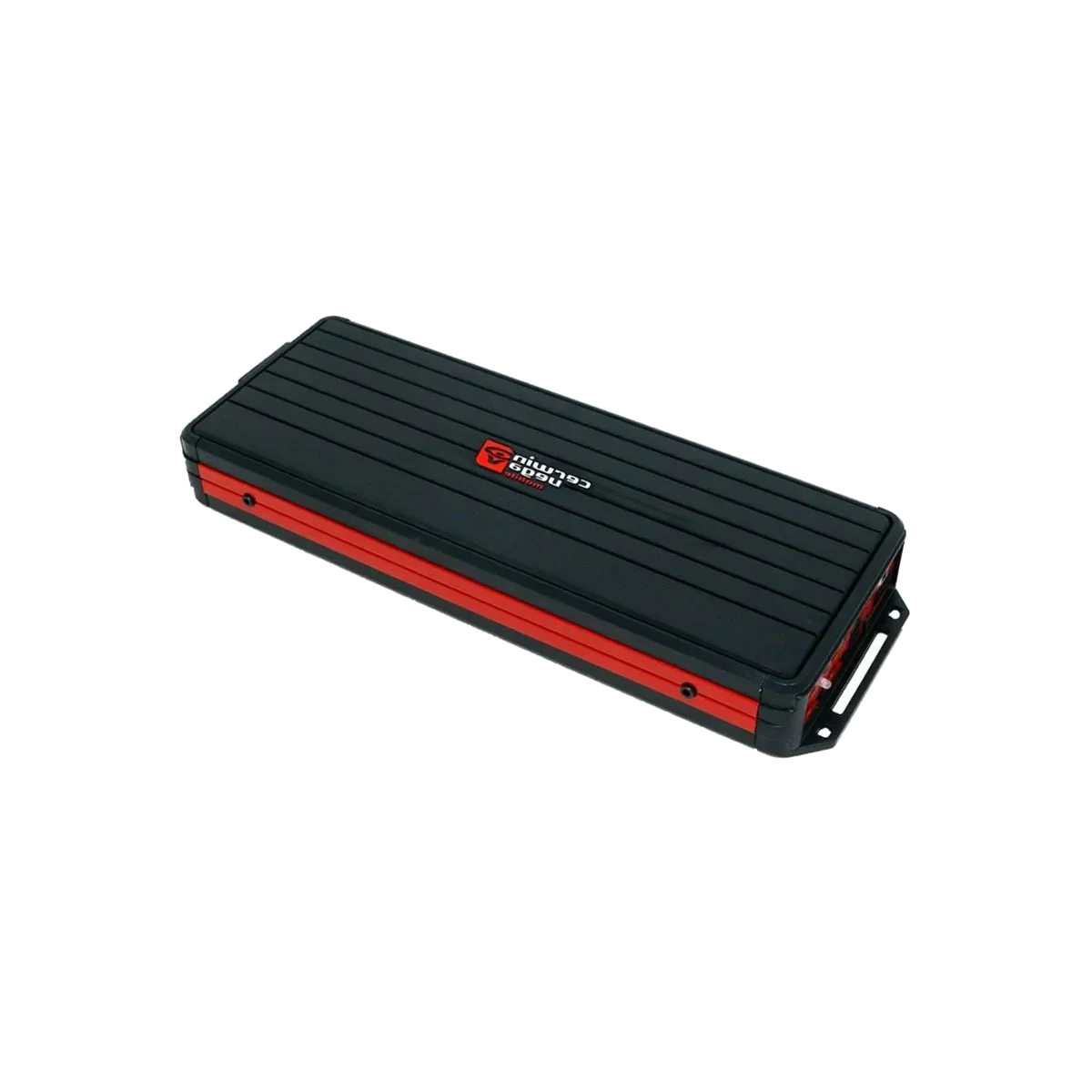

VCU86 - VEGA Class-D Digital 6 Channel Amplifier
Cerwin-Vega Vega Series Amplifiers – Compact Design, Monstrous Power
The Vega Series Amplifiers have solidified their place as the backbone of the Cerwin-Vega Mobile brand, delivering unrivaled performance in a sleek, compact package. Don’t be deceived by their streamlined design—these amplifiers pack a punch with monstrous power output to drive your system to its fullest potential.
Innovation Meets Power
- Updated High-Efficiency Full Range Digital Topology: Experience exceptional sound clarity with maximum energy efficiency.
- Enhanced Power IR Digital Chipset: Engineered for stability and precision, ensuring consistent performance under any condition.
Engineered for Durability
- Conformal-Coated 4-Layer PCB: Protected against moisture and environmental wear for long-lasting reliability.
- Water-Resistant Design: Built to withstand the rigors of the road, wherever your journey takes you.
Unmatched Versatility
- Remote Turn-On Configurator (REM/DC/VOX): Simplifies integration with any audio system.
- Accepts Hi and Lo-Level Inputs Up to 12V: Seamlessly connects to your existing setup, no matter the source.
- Boosted RFI Rejection: Keeps your sound crystal-clear, free from interference.
Compact Design, Big Impact
The matching heatsink platform dimensions ensure a consistent, stylish look while optimizing thermal management for uninterrupted performance.
Why Choose Vega?
Whether you’re a seasoned audio enthusiast or just starting to elevate your system, the Vega Series Amplifiers offer a balance of design, durability, and performance that’s hard to beat. From pounding bass to crystal-clear highs, these amps are the powerhouse your system deserves.
The Vega Legacy
With Cerwin-Vega’s unmatched legacy of audio innovation and more than 65 years of expertise, the Vega Series Amplifiers continue to define what’s possible in mobile sound systems.
Compact. Powerful. Reliable. Elevate your audio experience with Vega Series Amplifiers.
Key features
- Updated High-Efficiency Full Range Digital Topology: Experience exceptional sound clarity with maximum energy efficiency.
- Enhanced Power IR Digital Chipset: Engineered for stability and precision, ensuring consistent performance under any condition.
- Conformal-Coated 4-Layer PCB: Protected against moisture and environmental wear for long-lasting reliability.
- Water-Resistant Design: Built to withstand the rigors of the road, wherever your journey takes you.
- Remote Turn-On Configurator (REM/DC/VOX): Simplifies integration with any audio system.
- Accepts Hi and Lo-Level Inputs Up to 12V: Seamlessly connects to your existing setup, no matter the source.
- Boosted RFI Rejection: Keeps your sound crystal-clear, free from interference.
Specs
Specifications
| FREQUENCY RESPONSE (HZ) | 40HZ - 400HZ |
| RMS POWER PER CHANNEL 4Ω | 100W x 6 |
| RMS POWER PER CHANNEL 2Ω | 150W x 6 |
| RMS POWER PER 2 CHANNELS BRIDGED 4Ω | 300W x 3 |
| Power Supply | Full PWM |
| Power Supply Threshold | 10.0V-17.0V (DC) |
| Idle Current | (0.7A) |
| THD 4 (1KHz @4Ω) | 0.05% |
| S/N Ratio (A weighted @1W) | -85 dBA |
| S/N Ratio (A weighted @FP) | -101.1 dBA |
| Low Input Level | 200mV-10.0V |
| High Input Level | 200mV-10.0V |
| Low Input Level | 20 KΩ |
| High Input Level | 20 KΩ |
| Output Impedance | 0.018Ω |
| Damping Factor (50Hz @ 4Ω) | >250 |
| Bandwidth (-3dB) | 10Hz-35KHz |
| Variable High-Pass | Flat or Fixed 70Hz |
| Variable Low-Pass | 40Hz-400Hz |
| ATC | 60A |
| L x W x H | 11.24”x 4.02”x 1.4” (285.6mm x 102mm x 36mm) |
