The Hertz MP 70.3 PRO delivers punchy, crystal-clear midrange from a small, low-profile driver that blends well in active three-way systems and outperforms many stock speakers. It may sound a touch bright to some listeners.
Buyer confidence
86%Highlights
- Symmetrical dual Neodymium magnet structure specifically developed with FEM (Finite Element Modeling) simulations, for superior dynamics and control.
- 20 mm CCAW double layer voice coil wound on a Polyamide former with 8 decompression holes, for exceptional power handling and compression-free reproduction.
- Exponential V-cone® profile pressed-pulp cone with cotton fibers, combining stiffness and lightweight for a wide frequency response. Cone profile geometrically optimized for utmost linearity and dispersion in the mid-high frequency range.
- “Boundary Free” rubber surround, for better efficiency and wider mid-bass frequency.
Key specs
Full specs- Component
- Mid-range
- Size mm (in.)
- 70 (3)
- Power Handling - Peak W
- 100
- Power Handling - Peak Note
- (Hi-Pass filtered @250Hz - 12 dB Oct.)
- Impedance Ohm
- 4
- Voice Coil Ø
- 20 (0.8)
- Frequency Response Hz
- 180 ÷ 18k
- Magnet size D x d x h mm (in.)
- 19.7 x 0 x 2 (0.78 x 0 x 0.08)
Key specs
Full specs- Component
- Mid-range
- Size mm (in.)
- 70 (3)
- Power Handling - Peak W
- 100
- Power Handling - Peak Note
- (Hi-Pass filtered @250Hz - 12 dB Oct.)
Highlights
Overview- Symmetrical dual Neodymium magnet structure specifically developed with FEM (Finite Element Modeling) simulations, for superior dynamics and control.
- 20 mm CCAW double layer voice coil wound on a Polyamide former with 8 decompression holes, for exceptional power handling and compression-free reproduction.
- Exponential V-cone® profile pressed-pulp cone with cotton fibers, combining stiffness and lightweight for a wide frequency response. Cone profile geometrically optimized for utmost linearity and dispersion in the mid-high frequency range.
Review highlights
Based on customer reviewsCompact, punchy midrange with clear, detailed sound
The Hertz MP 70.3 PRO delivers punchy, crystal-clear midrange from a small, low-profile driver that blends well in active three-way systems and outperforms many stock speakers. It may sound a touch bright to some listeners.
What buyers praise
- Clear, detailed midrange reproduction
- Punchy dynamics and good soundstage
What to watch for
- Slightly brighter tonal balance than some users expect, may need EQ to taste
Overview
The MP 70.3 car audio mid-range speakers featuring Neodymium double magnet inside the coil produces an enthralling mid range, perfect to combine with the powerful mid-low of the MP 165P.3 woofer as well as with the detailed high range of the MP25.3 tweeter. The 20 mm coil of the MP 70.3 maximizes the dynamics; the V-cone® profile enhances off-axis dispersion and the Boundary Free Surround allows for a wider extension towards the low frequency range.
Highlights

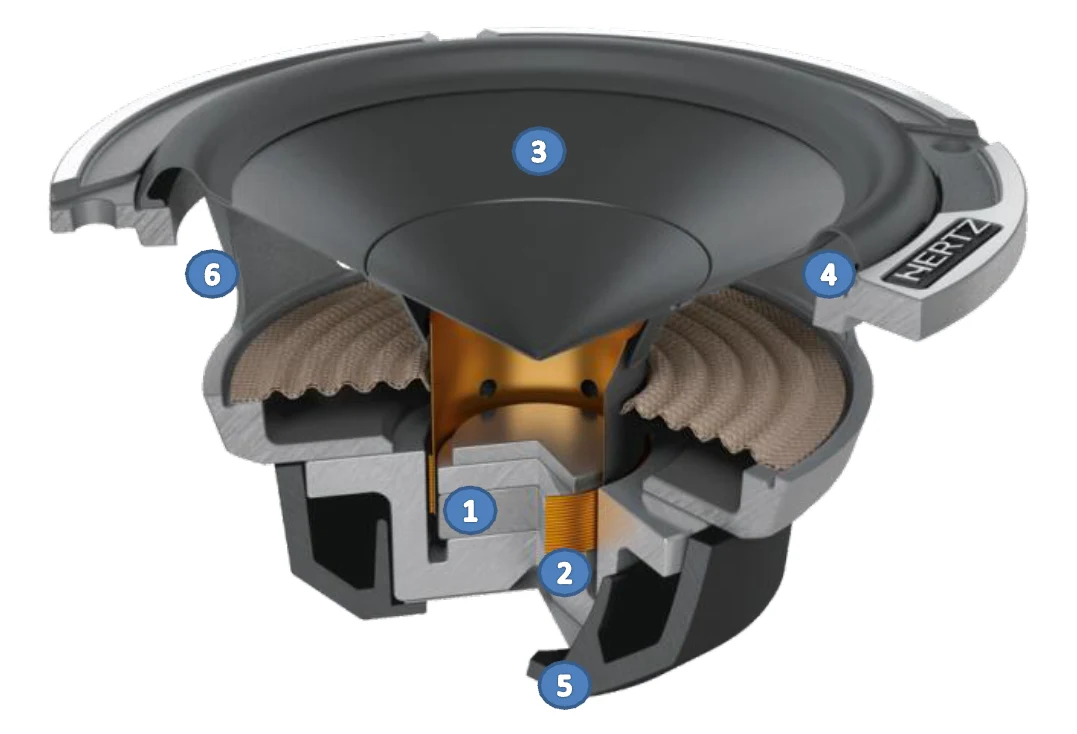

Key features
- Symmetrical dual Neodymium magnet structure specifically developed with FEM (Finite Element Modeling) simulations, for superior dynamics and control.
- 20 mm CCAW double layer voice coil wound on a Polyamide former with 8 decompression holes, for exceptional power handling and compression-free reproduction.
- Exponential V-cone® profile pressed-pulp cone with cotton fibers, combining stiffness and lightweight for a wide frequency response. Cone profile geometrically optimized for utmost linearity and dispersion in the mid-high frequency range.
- “Boundary Free” rubber surround, for better efficiency and wider mid-bass frequency.
- Anti-vibration rubber magnet cover, to damp spurious vibrations, removable to fit limited mounting depth installations.
- Acoustically transparent aluminium alloy basket with elegant diamond cutting and featuring the aluminium Hertz logo.
- Full protection metal mesh grill featuring the aluminium Hertz logo and attractive look mineral powder coated inner grill are included for several install combinations.
Specs
Technical Specs
11
| Component | Mid-range |
| Size mm (in.) | 70 (3) |
| Power Handling - Peak W | 100 |
| Power Handling - Peak Note | (Hi-Pass filtered @250Hz - 12 dB Oct.) |
| Impedance Ohm | 4 |
| Voice Coil Ø | 20 (0.8) |
| Frequency Response Hz | 180 ÷ 18k |
| Magnet size D x d x h mm (in.) | 19.7 x 0 x 2 (0.78 x 0 x 0.08) |
| Weight of one speaker kg (lb.) | 0.17 (0.37) |
| Magnet | Neodymium |
| Cone | Pressed-pulp cone with cotton fibers |
Electro-acoustic Specs
12
| D mm | 65 |
| Re Ohm | 3,7 |
| Fs Hz | 110 |
| Le mH | 0,12 |
| Vas I | 1 |
| Mms g | 2,9 |
| Cms mm/N | 0,7 |
| BL T*m | 2,8 |
| Qts | 0,82 |
| Qes | 1 |
| Qms | 4,6 |
| Spl dB | 88 |
Physical Specs
6
| A | 87,8 mm | 3,46 in. |
| B | 73 mm | 2,87 in. |
| C | 50 mm | 1.97 in. |
| D | 44 mm | 1.73 in. |
| E | 93 mm | 3.66 in. |
| F | 17 mm | 0.67 in. |
Frequency response
Visual spec reference.
