Audison

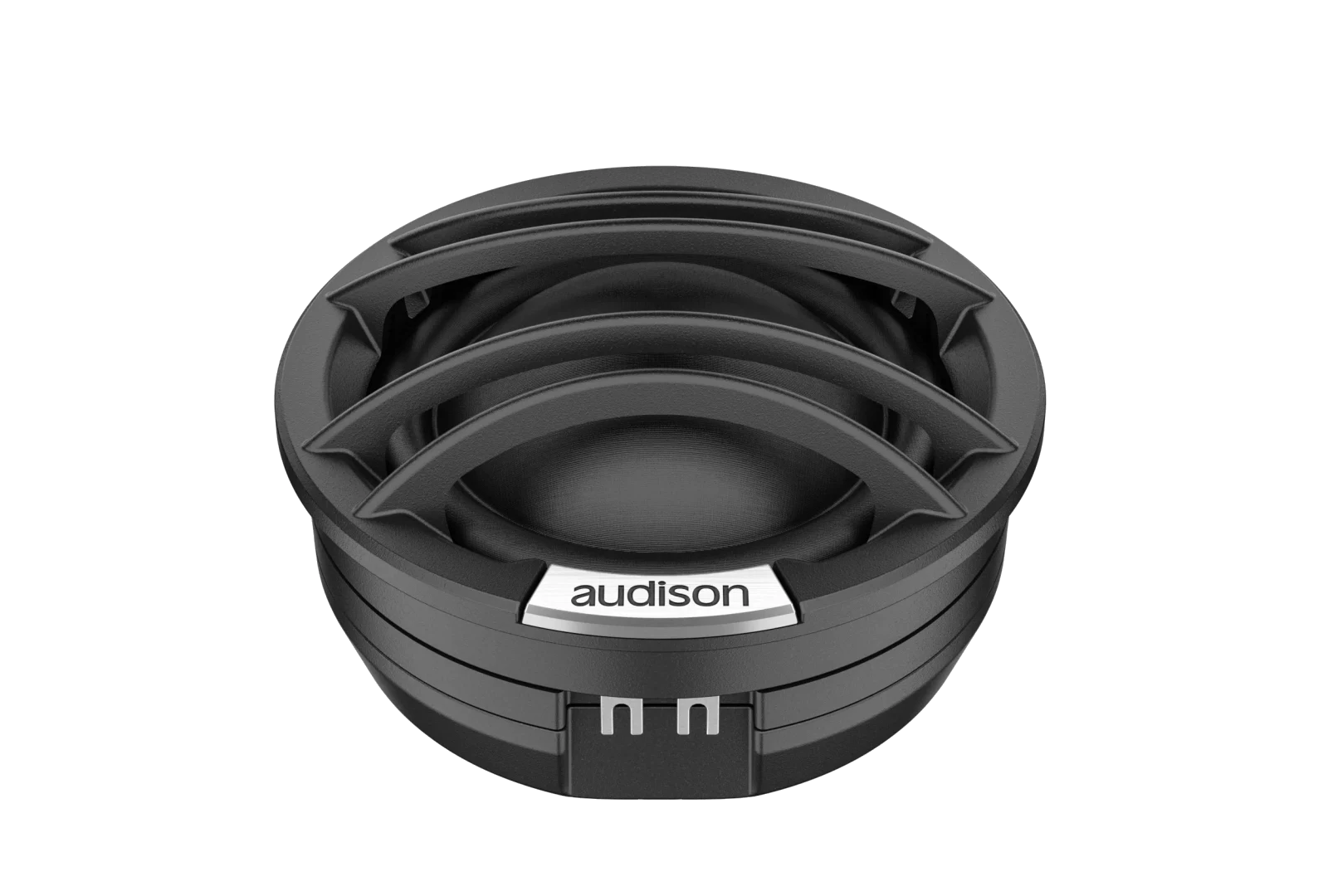

AV1.1IIAV1.1II Speaker Grille

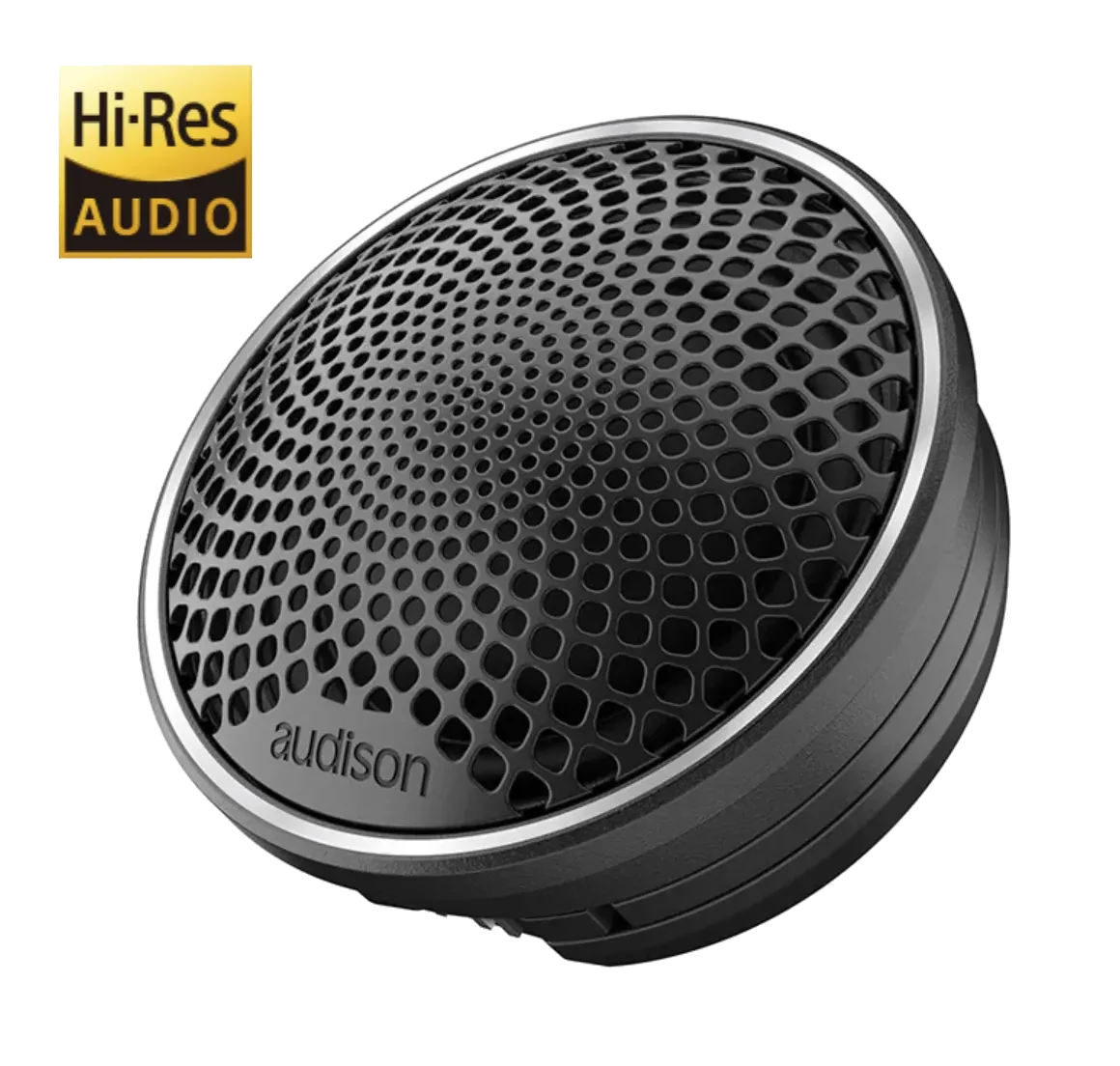

Hi-Res Audio Certified, Extending Up to 40 kHz: Delivers detailed high-frequency reproduction with improved off-axis response, ensuring exceptional performance even when the tweeter is not directly aligned with the listener, ideal for in-car installations.

Highlights

Hi-Res Audio Certified, Extending Up to 40 kHz: Delivers detailed high-frequency reproduction with improved off-axis response, ensuring exceptional performance even when the tweeter is not directly aligned with the listener, ideal for in-car installations.
Tetolon Soft Dome: Optimized through advanced material characterization, laser vibrometer scanning, and simulations, providing smooth, extended response with warm, natural sound reproduction.
1.1” (28 mm) CCAW Voice Coil: Lightweight and stable, eliminating transient compression and ensuring low distortion for clean, natural sound, even at high SPL levels.
Powerful Neodymium Magnet: Designed for superior dynamic response and minimal distortion across the frequency range, enhancing clarity and precision.

Key specs

Nominal diameter: 28 mm (1.1 in)
Impedance: 4 Ohm
Minimum Impedance: 3.9 Ohm
Power Handling - Peak: 180 W
Sensitivity: 91 dB
Frequency Response: 1000 - 40000 Hz
Voice Coil Ø: 28 mm (1.1 in)
Magnet Material: NEODYMIUM

Key specs

Nominal diameter: 28 mm (1.1 in)
Impedance: 4 Ohm
Minimum Impedance: 3.9 Ohm
Power Handling - Peak: 180 W

Highlights

Hi-Res Audio Certified, Extending Up to 40 kHz: Delivers detailed high-frequency reproduction with improved off-axis response, ensuring exceptional performance even when the tweeter is not directly aligned with the listener, ideal for in-car installations.
Tetolon Soft Dome: Optimized through advanced material characterization, laser vibrometer scanning, and simulations, providing smooth, extended response with warm, natural sound reproduction.
1.1” (28 mm) CCAW Voice Coil: Lightweight and stable, eliminating transient compression and ensuring low distortion for clean, natural sound, even at high SPL levels.

Overview

Hi-Res Audio Certified, Extending Up to 40 kHz: Delivers detailed high-frequency reproduction with improved off-axis response, ensuring exceptional performance even when the tweeter is not directly aligned with the listener, ideal for in-car installations.
Tetolon Soft Dome: Optimized through advanced material characterization, laser vibrometer scanning, and simulations, providing smooth, extended response with warm, natural sound reproduction.
1.1” (28 mm) CCAW Voice Coil: Lightweight and stable, eliminating transient compression and ensuring low distortion for clean, natural sound, even at high SPL levels.
Powerful Neodymium Magnet: Designed for superior dynamic response and minimal distortion across the frequency range, enhancing clarity and precision.

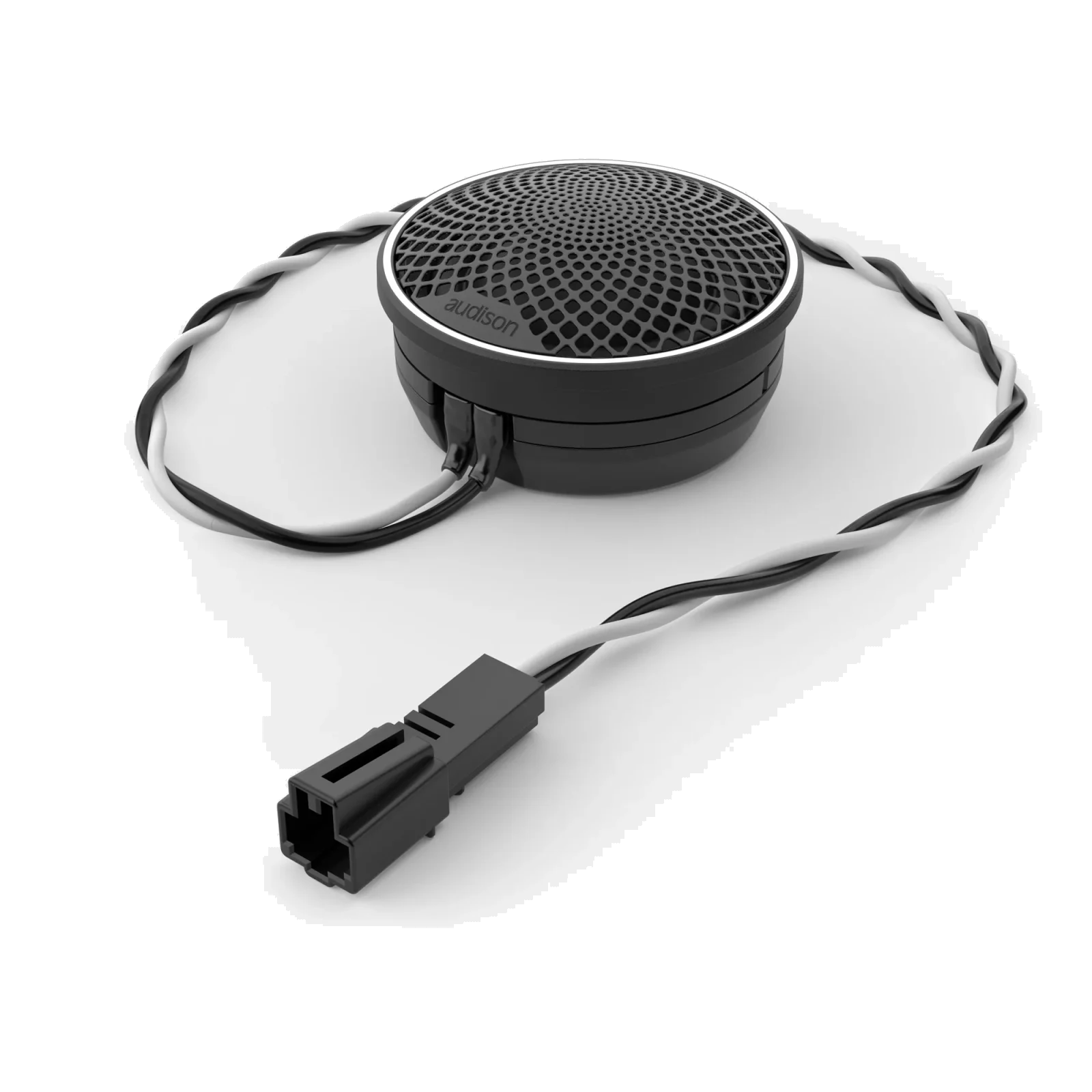

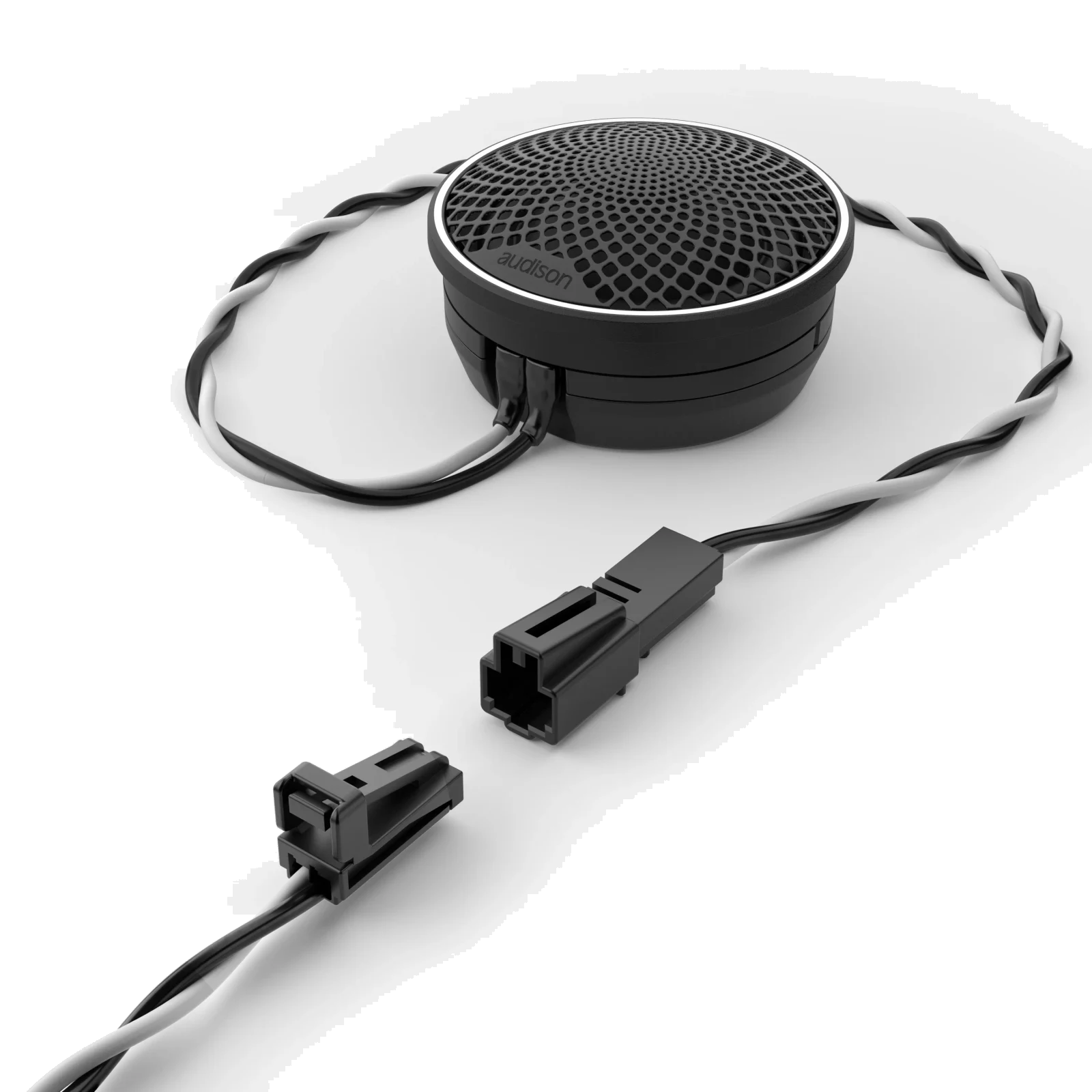

OEM-style and Faston connectors: Ensures maximum versatility for quick and easy installation in any vehicle, no additional adapters needed.

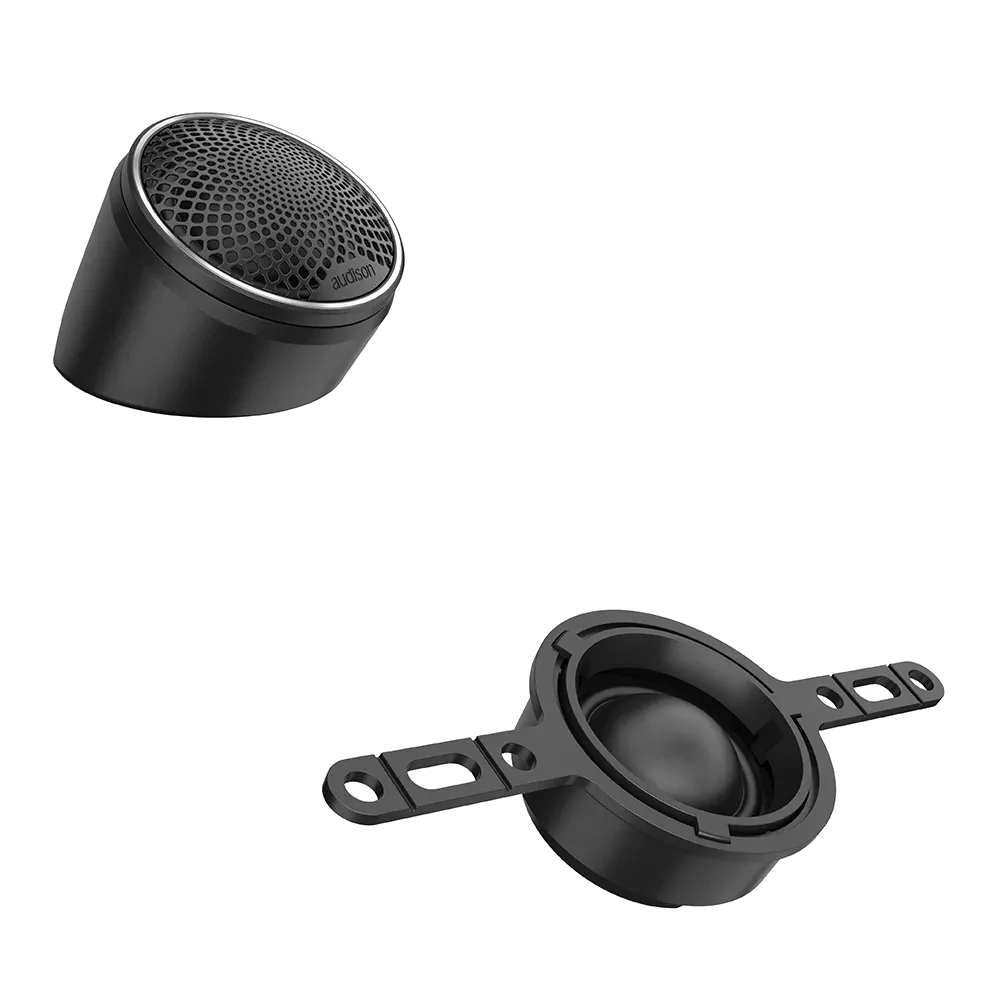

AIF (Any Install Faceplate) Technology: Offers total installation flexibility and significantly reduces setup time, with two faceplates and three mounting accessories included—perfect for any configuration.
FEM-Optimized Faceplates: Enhance sound dispersion for a balanced and immersive audio experience from any listening angle.

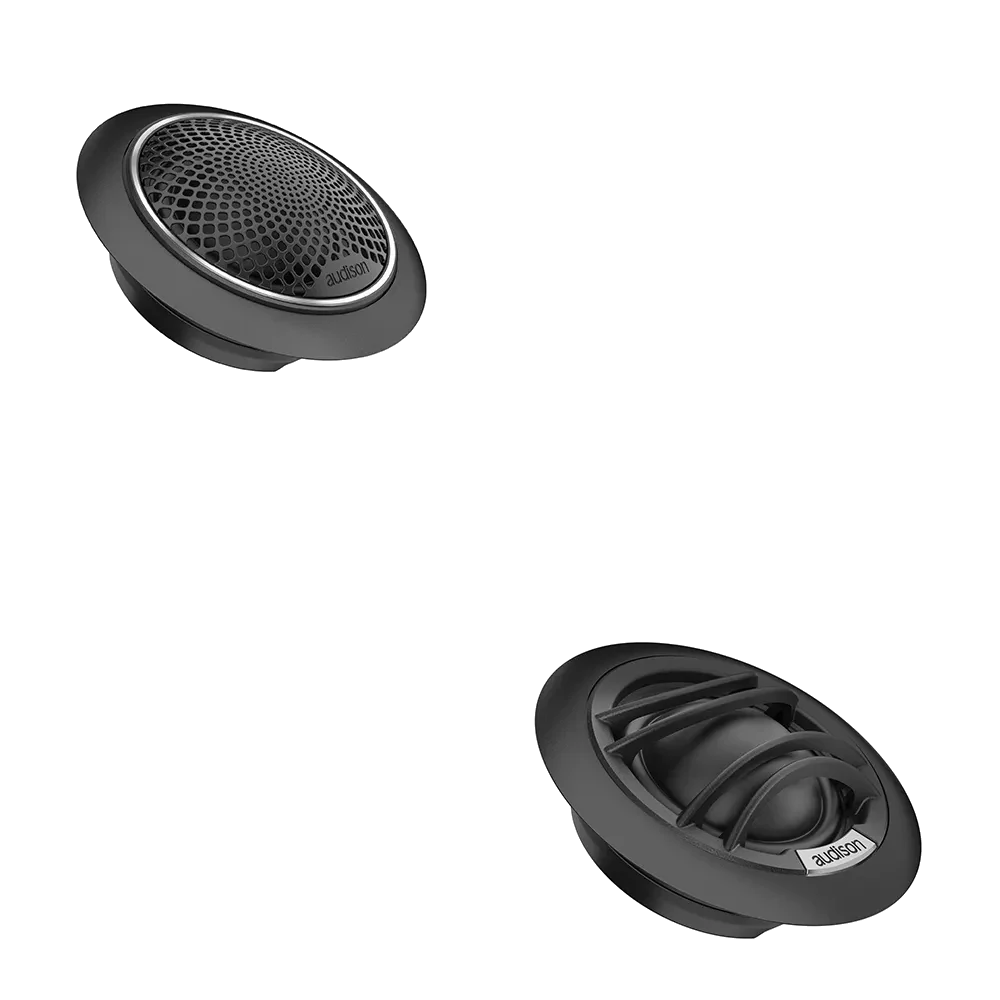

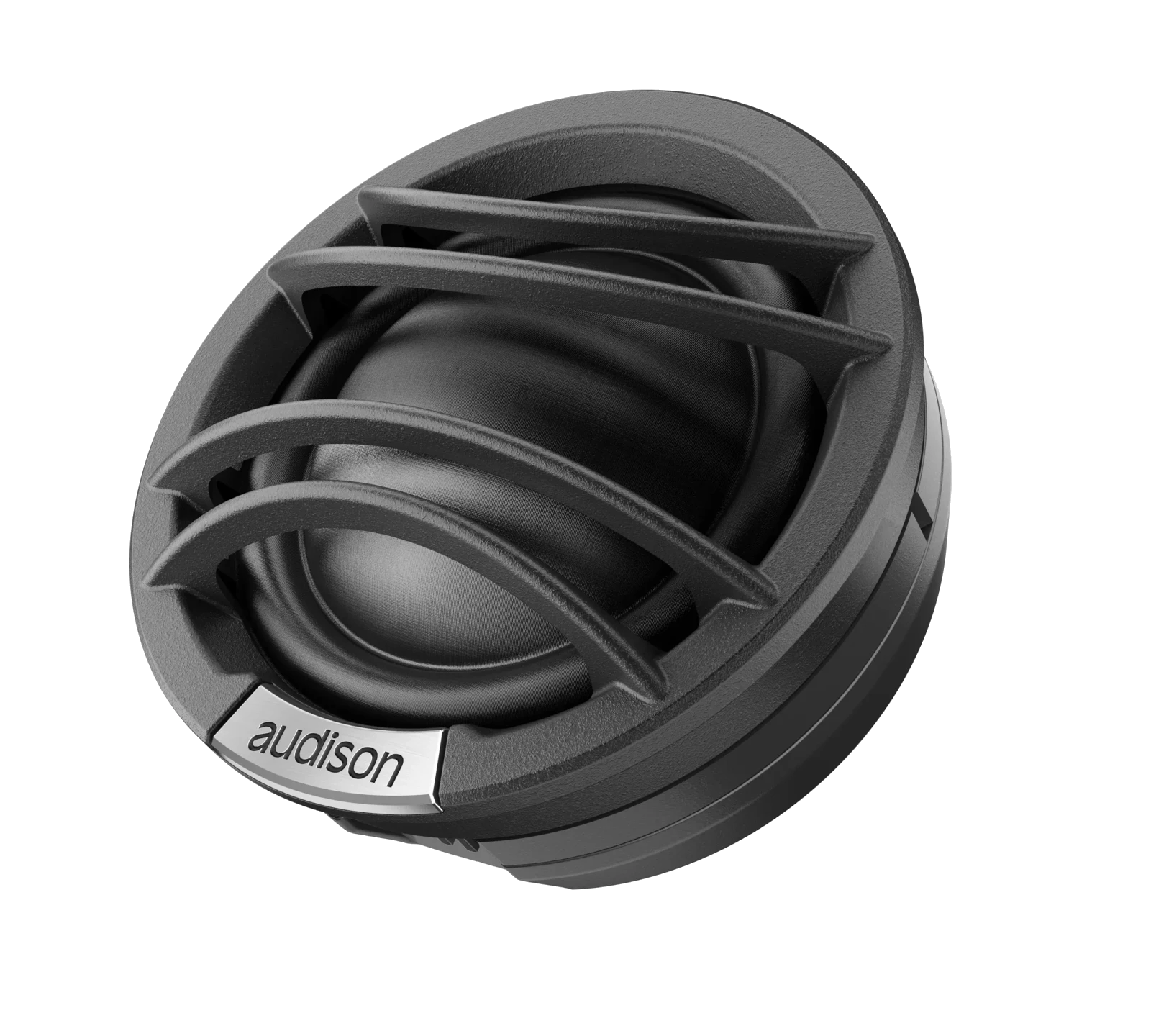

Mesh and Spoke Grilles Included: Both grille options ensure perfect in-car integration, combining aesthetics with performance. Includes two provided adhesive Audison logos, allowing for personalized placement to enhance branding and aesthetics.
eID Technology: Provides traceability from production to owner, guaranteeing authenticity and product security.
The Audison Voce AV 1.1 II tweeter showcases its engineering prowess by achieving Hi-Res Audio certification, a notable accomplishment for a tweeter with a Tetolon soft dome. Tetolon was specifically chosen for its superb sound timbre, allowing the tweeter to extend its frequency response up to 40kHz. This design provides unparalleled clarity and depth in high-frequency sound reproduction. Equipped with AIF (Any Install Faceplate) technology, the AV 1.1 II offers flexible installation options with various faceplates and accessories, ensuring perfect integration into any vehicle environment. This careful blend of advanced materials and versatile installation underscores the tweeter’s appeal to today’s car audio enthusiasts who demand the best performance.

Highlights

Key features

Hi-Res Audio Certified, Extending Up to 40 kHz: Delivers detailed high-frequency reproduction with improved off-axis response, ensuring exceptional performance even when the tweeter is not directly aligned with the listener, ideal for in-car installations.
Tetolon Soft Dome: Optimized through advanced material characterization, laser vibrometer scanning, and simulations, providing smooth, extended response with warm, natural sound reproduction.
1.1” (28 mm) CCAW Voice Coil: Lightweight and stable, eliminating transient compression and ensuring low distortion for clean, natural sound, even at high SPL levels.
Powerful Neodymium Magnet: Designed for superior dynamic response and minimal distortion across the frequency range, enhancing clarity and precision.
OEM-style and Faston connectors: Ensures maximum versatility for quick and easy installation in any vehicle, no additional adapters needed.
AIF (Any Install Faceplate) Technology: Offers total installation flexibility and significantly reduces setup time, with two faceplates and three mounting accessories included—perfect for any configuration.
FEM-Optimized Faceplates: Enhance sound dispersion for a balanced and immersive audio experience from any listening angle.
Mesh and Spoke Grilles Included: Both grille options ensure perfect in-car integration, combining aesthetics with performance. Includes two provided adhesive Audison logos, allowing for personalized placement to enhance branding and aesthetics.
eID Technology: Provides traceability from production to owner, guaranteeing authenticity and product security.

Specs

Technical Specs

Nominal diameter	28 mm (1.1 in)
Impedance	4 Ohm
Minimum Impedance	3.9 Ohm
Power Handling - Peak	180 W
Sensitivity	91 dB
Frequency Response	1000 - 40000 Hz
Voice Coil Ø	28 mm (1.1 in)
Magnet Material	NEODYMIUM
Voice Coil Material	CCAW
Dome Material	TELOTON FIBRE
Former Material	ALUMINUM
Diaphragm Surround Material	TETOLON FIBRE
Ferrofluid	No

Electric-acoustic Specs

D	8.55 cm² (1.325 in²)
Re	3.2 Ohm
Fs	900 Hz
Le	0.02 mH
Mms	0.38 g (0.013 oz)
Cms	0.088 mm/N
BL	2.15 T•m
Qts	1.1
Qes	1,5
Qms	4.4

Dimensions

Dimension A	48 mm (1.89 in)
Dimension B	44.9 mm (1.77 in)
Dimension C	26.7 mm (1.05 in)
Dimension D	16.5 mm (0.65 in)

Reviews (0)

—

No average rating yet

0 reviews

No written reviews are live yet. Signed-in customers can submit one below.

Own this product?

Share installation notes, sound quality feedback, and fitment tips. Customer reviews are saved in the same database and go live after moderation.

No written reviews are live for this item yet.

Support

Downloads

$659.99

In stock

Rockford Fosgate•Punch

P2V2-69 Punch P2 6"x9” 2-Way Convertible Speakers

$649.99CAD

$769.99

In stock

Rockford Fosgate•Punch

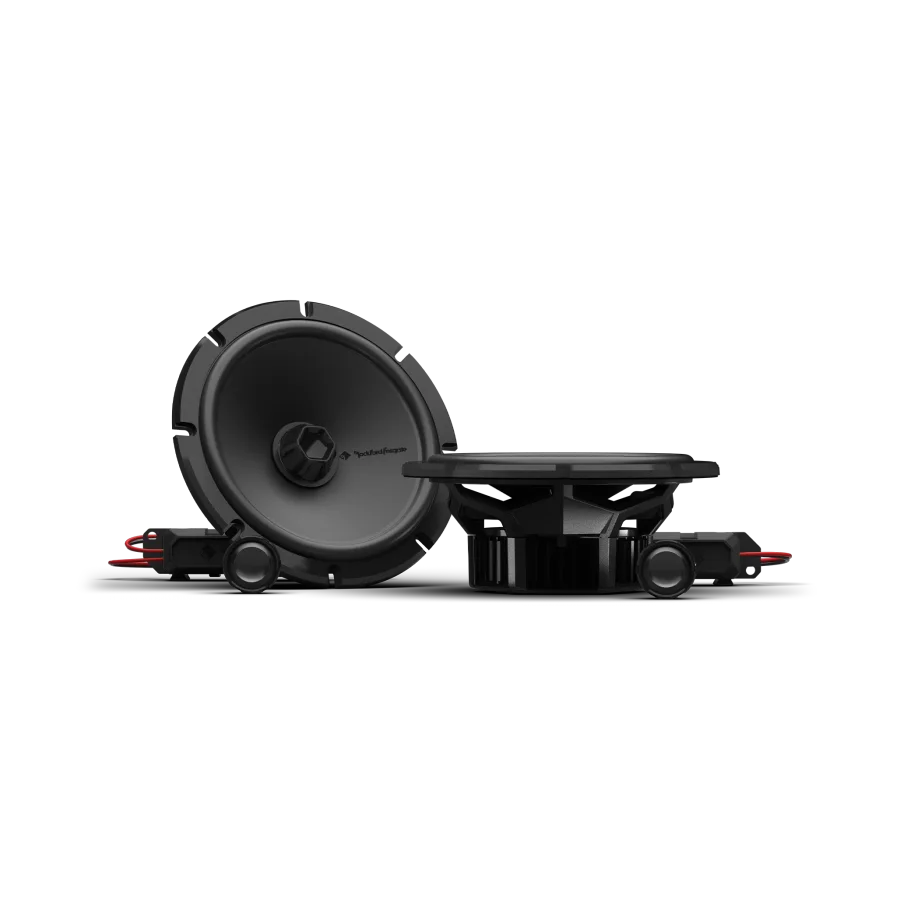

P2V2-675 Punch P2 6.75” 2-Way Convertible Speakers
