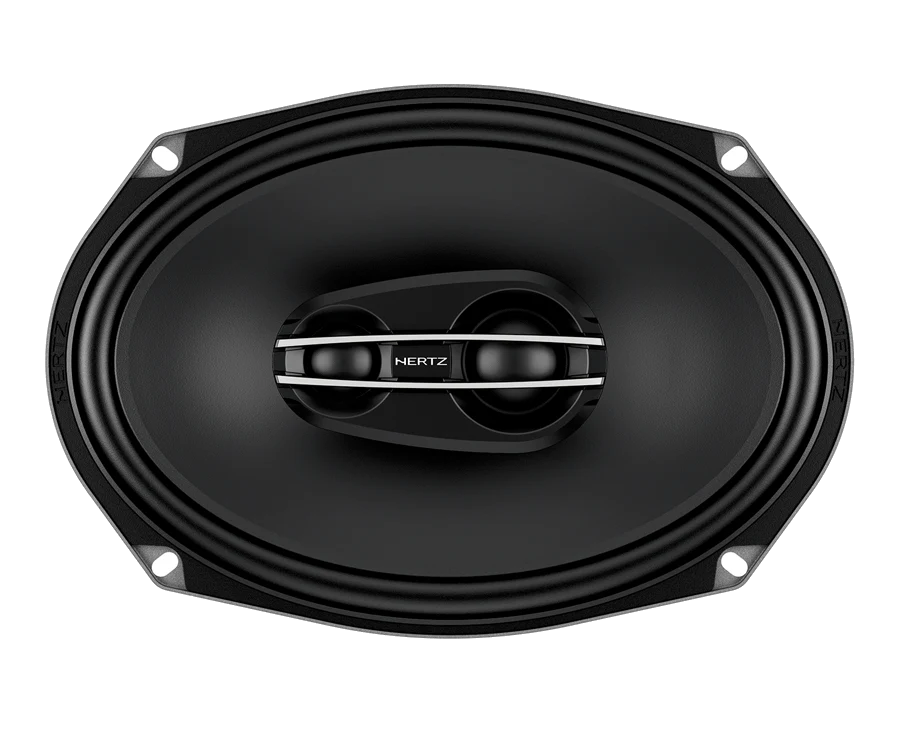

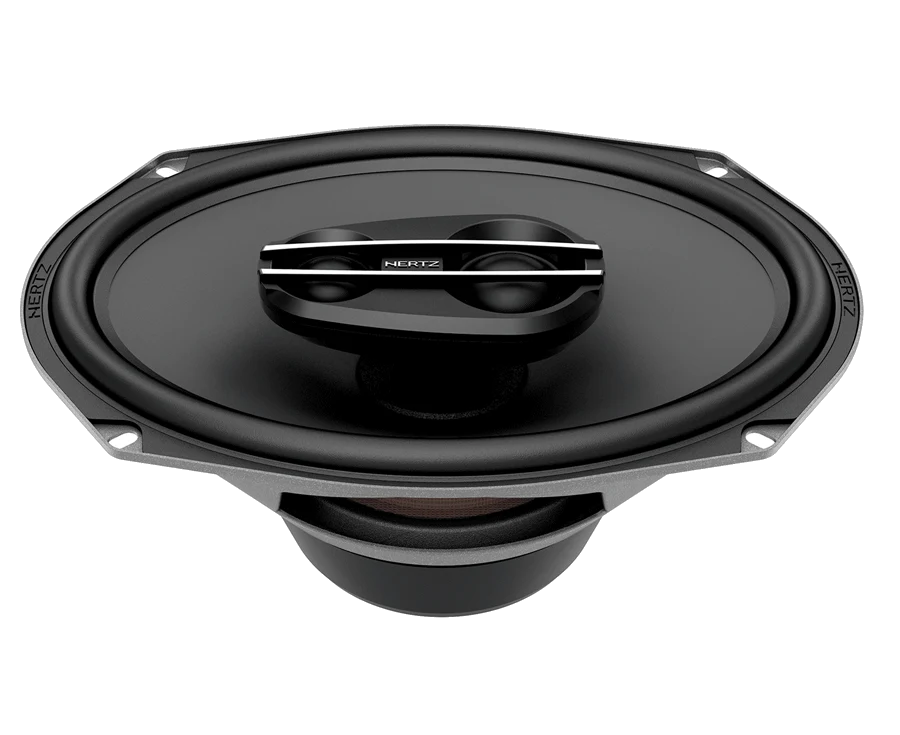

The three-way car audio coaxial CPX 690 is the best solution for enthusiasts who love highly dynamic listening with low engaging frequencies and want to make the most of the rear deck mount.
Buyer confidence
88%Highlights
- Pressed paper cone with FEM-optimized geometry combining rigidity and lightness for color-free sound.
- Wide rubber suspension designed for a long excursion and excellent sound damping .
- High density ferrite magnet in combination with low carbon polar plates for a reduced distortion at high power levels.
- Metal finished basket combined with an anti-vibration rubber magnet cover for an overall damping of spurious vibrations.
Key specs
Full specs- Component
- Coaxials
- Size mm (in.)
- (6 x 9)
- Power Handling - Continuous W
- 120
- Power Handling - Peak W
- 360
- Impedance Ohm
- 4
- Tweeter diaphragm mm (in.)
- 32 (1.26)
- Woofer Voice Coil Ø mm (in.)
- 30 (1.2)
- Tweeter Voice Coil Ø mm (in.)
- 28 (1.1)
Key specs
Full specs- Component
- Coaxials
- Size mm (in.)
- (6 x 9)
- Power Handling - Continuous W
- 120
- Power Handling - Peak W
- 360
Highlights
Overview- Pressed paper cone with FEM-optimized geometry combining rigidity and lightness for color-free sound.
- Wide rubber suspension designed for a long excursion and excellent sound damping .
- High density ferrite magnet in combination with low carbon polar plates for a reduced distortion at high power levels.
Overview
The three-way car audio coaxial CPX 690 is the best solution for enthusiasts who love highly dynamic listening with low engaging frequencies and want to make the most of the rear deck mount. Tweeter and Supertweeter both feature Neodymium magnet and Tetolon dome, 32 mm and 24 mm respectively. The stylish faceplate is designed to maximize off-axis emissions and thus optimizing horizontal installation. As for the CPX 165, the CPX 690's Tweeter and Supertweeter boasts Radial Venting System technology for outstanding cooling and acoustic performance. The robust basket with radial ventilation keeps operating temperatures low. The supplied grille is made of a high resistance ABS plastic support and metallic mesh to ensure a high level of protection with a Hi-tech design
Highlights
Key features

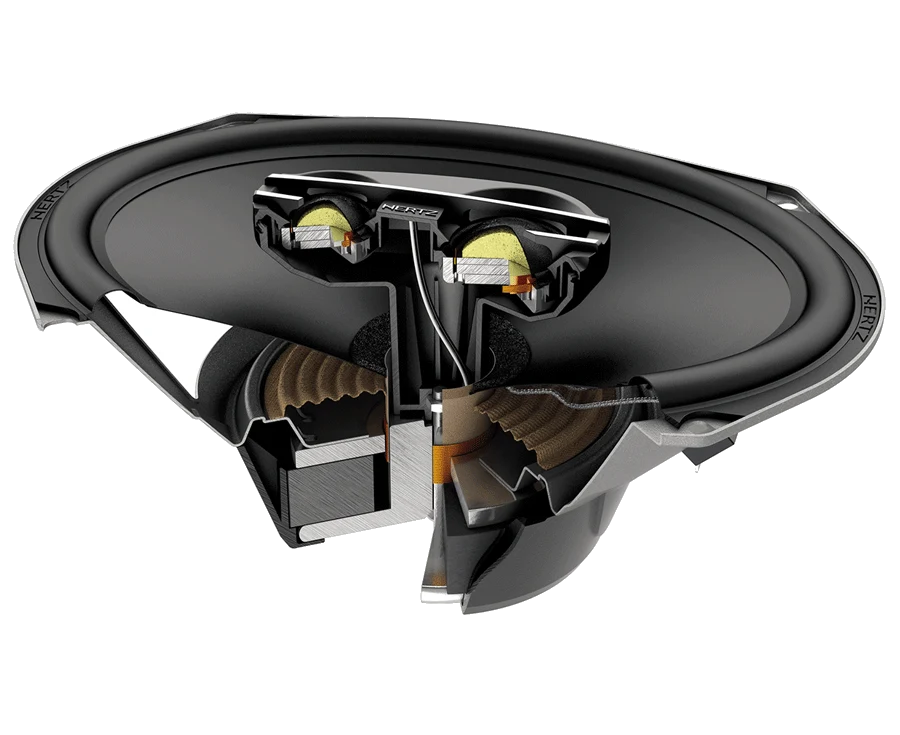

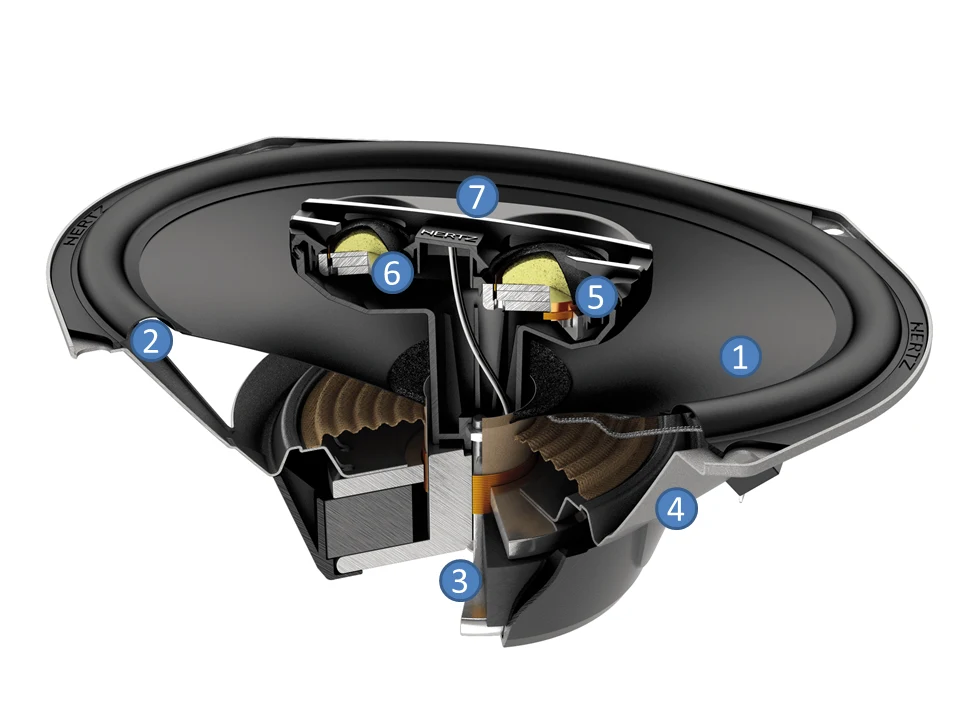

- Pressed paper cone with FEM-optimized geometry combining rigidity and lightness for color-free sound.
- Wide rubber suspension designed for a long excursion and excellent sound damping .
- High density ferrite magnet in combination with low carbon polar plates for a reduced distortion at high power levels.

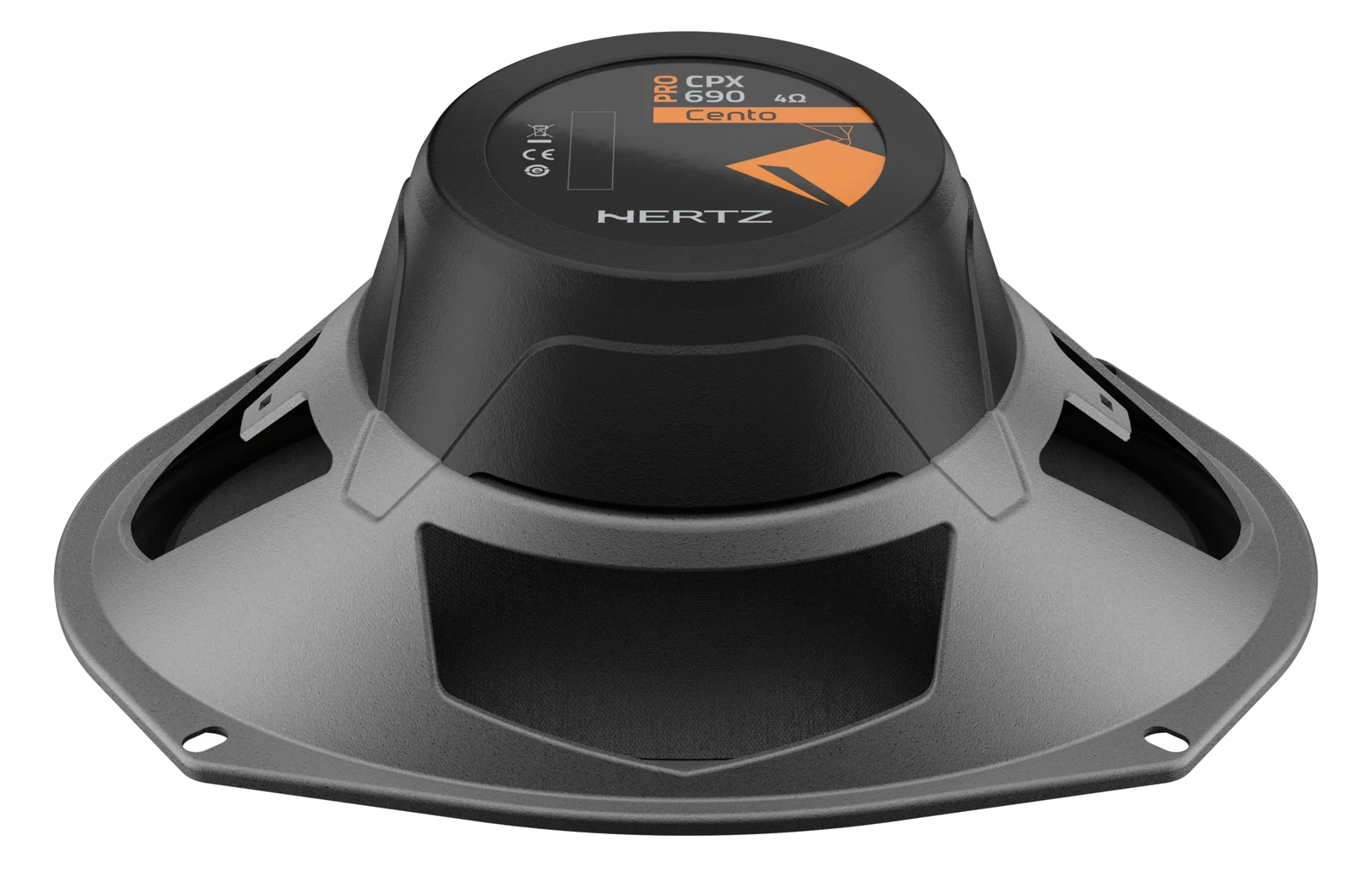

- Metal finished basket combined with an anti-vibration rubber magnet cover for an overall damping of spurious vibrations.
- Soft Tetolon fiber dome Neodimium tweeter featuring a 28 mm mobile voice coil, for a distortion-free reproduction of mid-high frequencies.
- Tetolon fiber Neodimium Supertweeter featuring a 20 mm mobile voice coil, to compensate for the natural fall of high frequency response in horizontal installations.
- Faceplate geometry optimized with FEM (Finite Element Modeling) technology for a linear frequency response in off-axis installations..
- Stylish grille with high resistance ABS plastic frame with metal finish combined with a protective metallic mesh.
Specs
Technical Specs
17
| Component | Coaxials |
| Size mm (in.) | (6 x 9) |
| Power Handling - Continuous W | 120 |
| Power Handling - Peak W | 360 |
| Impedance Ohm | 4 |
| Tweeter diaphragm mm (in.) | 32 (1.26) |
| Woofer Voice Coil Ø mm (in.) | 30 (1.2) |
| Tweeter Voice Coil Ø mm (in.) | 28 (1.1) |
| Frequency Response Hz | 35 ÷ 24k |
| Woofer Magnet size D x d x h mm (in.) | 90 x 40 x 20 (3.54 x 1.57 x 0.79) |
| Tweeter Magnet size D x h mm (in.) | 27,8 x 3 (1.09 x 0.12) |
| Weight of one speaker kg (lb.) | 1,63 (3.59) |
| Woofer Magnet | Ferrite |
| Tweeter Magnet | Neodymium |
| Cone | Water repellent pressed paper |
| Dome | Tetolon |
| Xmech mm (in.) | 7,5 (0.3) |
Electro-acoustic Specs
12
| D mm | 172 |
| Re Ohm | 3,4 |
| Fs Hz | 68 |
| Le mH | 0,53 |
| Vas I | 15,8 |
| Mms g | 26,5 |
| Cms mm/N | 0,21 |
| BL T*m | 6,0 |
| Qts | 0,77 |
| Qes | 1,10 |
| Qms | 2,7 |
| Spl dB | 94 |
Physical Specs
6
| A | 237,5 mm | 9.35 in. |
| B | 225 mm | 8.86 in. |
| C | 103 mm | 4.06 in. |
| D | 85 mm | 3.35 in. |
| E | 269 mm | 10.55 in. |
| F | 28,5 mm | 1.12 in. |
