Hertz

Mille#MLK 700.3 LEGEND

Hertz Mille MLK 700.3 LEGENDMLK 700

5.01 reviewSee all reviews

The MLK 700.3 Legend car audio speakers system aims at offering a mid-high frequency range of excellence, to combine with a Legend woofer with a choice between ML 1650.3 and ML 1800.3 actively filtered in a multi-amplified configuration. MLK 700.

Buyer confidence

88%

Key specs

Full specs
Component
System
Size mm (in.)
70 (3)
Power Handling - Continuous W
100
Power Handling - Peak W
200
Impedance Ohm
4
Tweeter diaphragm mm (in.)
35 (1.38)
Woofer Voice Coil Ø mm (in.)
20 (0.8)
Tweeter Voice Coil Ø mm (in.)
28 (1.1)

Key specs

Full specs
Component
System
Size mm (in.)
70 (3)
Power Handling - Continuous W
100
Power Handling - Peak W
200
Overview

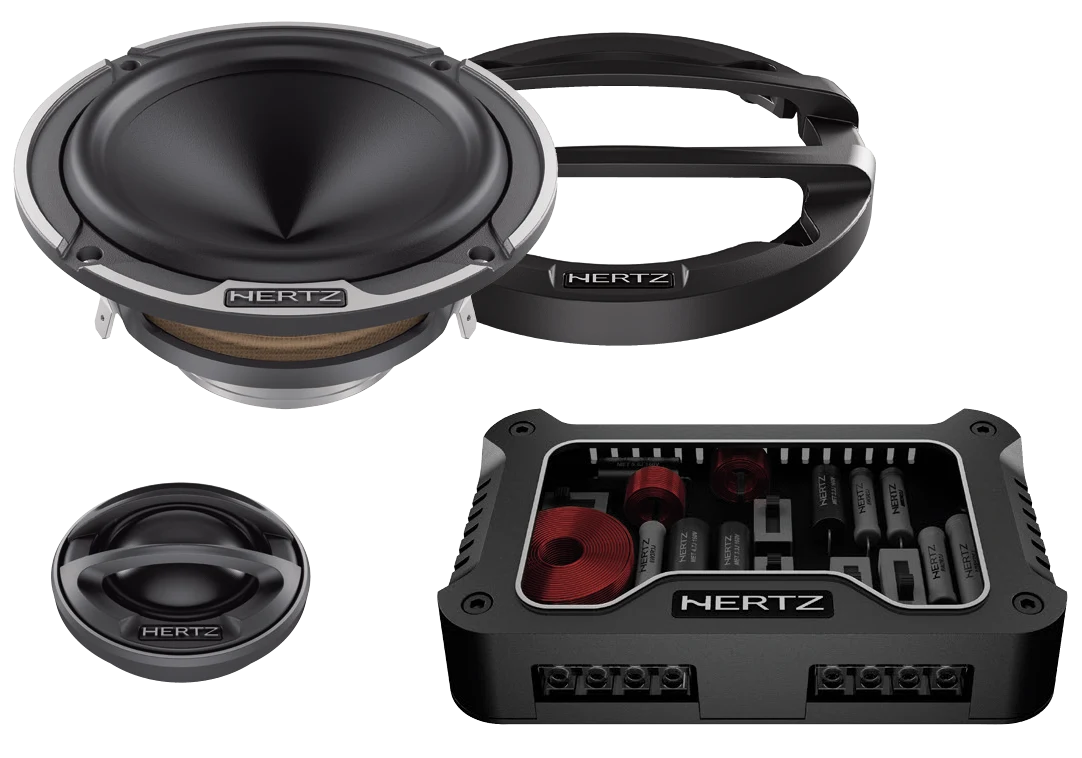

The MLK 700.3 Legend car audio speakers system aims at offering a mid-high frequency range of excellence, to combine with a Legend woofer with a choice between ML 1650.3 and ML 1800.3 actively filtered in a multi-amplified configuration. MLK 700.3 Legend is composed of the ML 700.3 Legend Extended Midrange, the ML 280.3 Legend tweeter and the MLCX 2 TM.3 dedicated crossover that features the unique Mid-Countour control with its three-position selector, acting on the mid frequencies of the ML 700.3 Legend midrange by varying the cross-point with the tweeter to obtain the desired sound.  The V-cone® exponential profile without the traditional dustcap gets close to the perfect one, generating exceptional dispersion: thanks to the synergistic action of these technological elements, ML700.3 Legend boasts outstanding high frequency extension making it possible to build purist two-way systems in combination with ML 1650.3 Legend or ML 1800.3 Legend.  Thanks to this configuration, where there is only one cross-point, phase rotations are limited to the minimum, ensuring excellent soundstage and disarming timbre consistency. With the mid-high frequencies being handled by the ML700.3 Legend and the low ones by the ML1800.3 Legend, the whole audio range is reproduced with transducers built with the same materials and based on the same electro-acoustic structure; that doesn’t happen with woofer and tweeter, since due to its own nature the tweeter is different in materials and structure. The uniformity in materials and structures creates very high timbre consistency, so the speakers can “disappear” and leave room to emotions.
Specs

Technical Specs

15
ComponentSystem
Size mm (in.)70 (3)
Power Handling - Continuous W100
Power Handling - Peak W200
Impedance Ohm4
Tweeter diaphragm mm (in.)35 (1.38)
Woofer Voice Coil Ø mm (in.)20 (0.8)
Tweeter Voice Coil Ø mm (in.)28 (1.1)
Sensitivity dB SPLMidrange 90 Tweeter 92
Frequency Response Hz200 ÷ 28k
Crossover Cut off4.5 kHz - 6/12 dB Oct.
Crossover Type2 Way Passive Crossover
Weight of one component - Woofer0,210 (0.46)
Weight of one component - Tweeter kg (lb)0,1 (0.22)
Weight of one component - Crossover kg (lb)0,57 (1.26)

Electro-acoustic Specs

12
D mm65
Re Ohm3,8
Fs Hz110
Le mH0,05
Vas I1,1
Mms g2,7
Cms mm/N0,7
BL T*m3,3
Qts0,57
Qes0,67
Qms4
Spl dB90
Reviews (0)

No average rating yet

0 reviews

No written reviews are live yet. Signed-in customers can submit one below.

Own this product?

Share installation notes, sound quality feedback, and fitment tips. Customer reviews are saved in the same database and go live after moderation.

Checking account status...

No written reviews are live for this item yet.

Support
Accessories
Grille

Grille

Die-cast aluminium factory provided grille featuring diamond-cut aluminium Hertz logo.
