Hertz

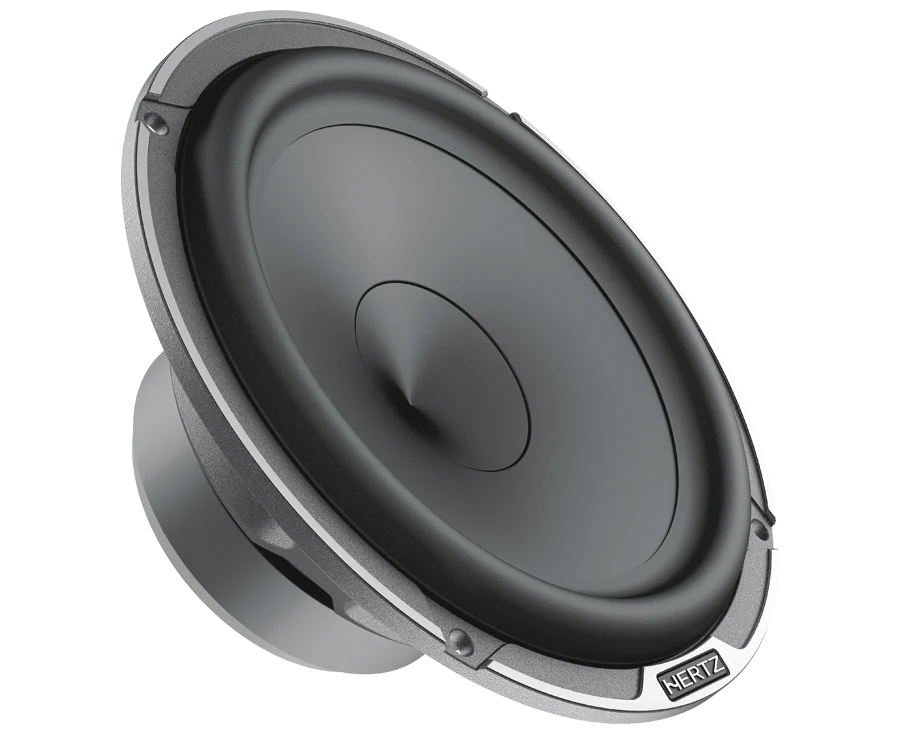

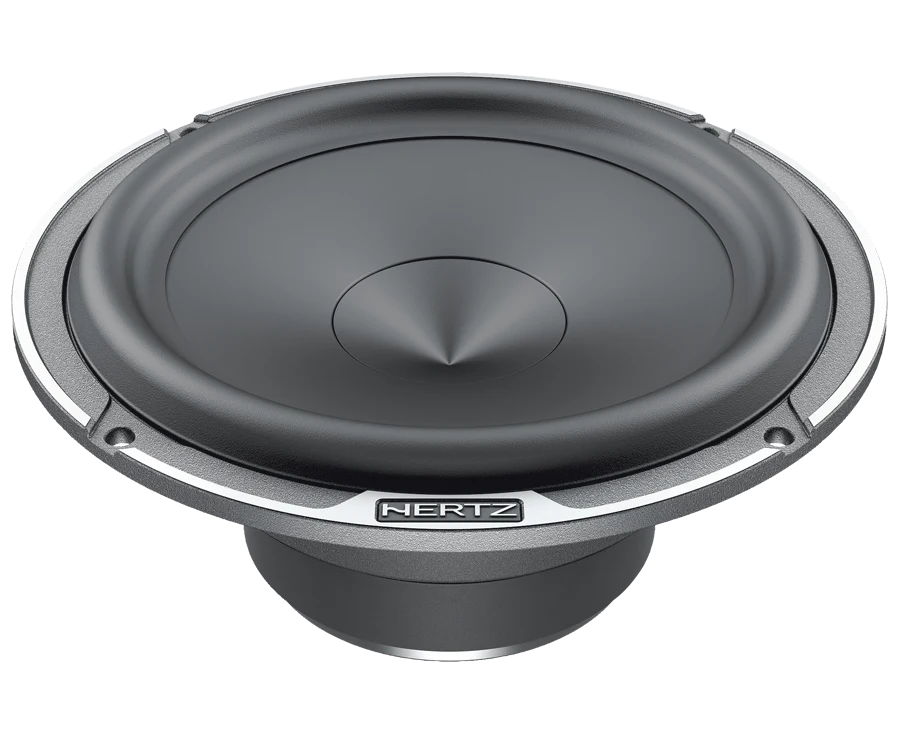

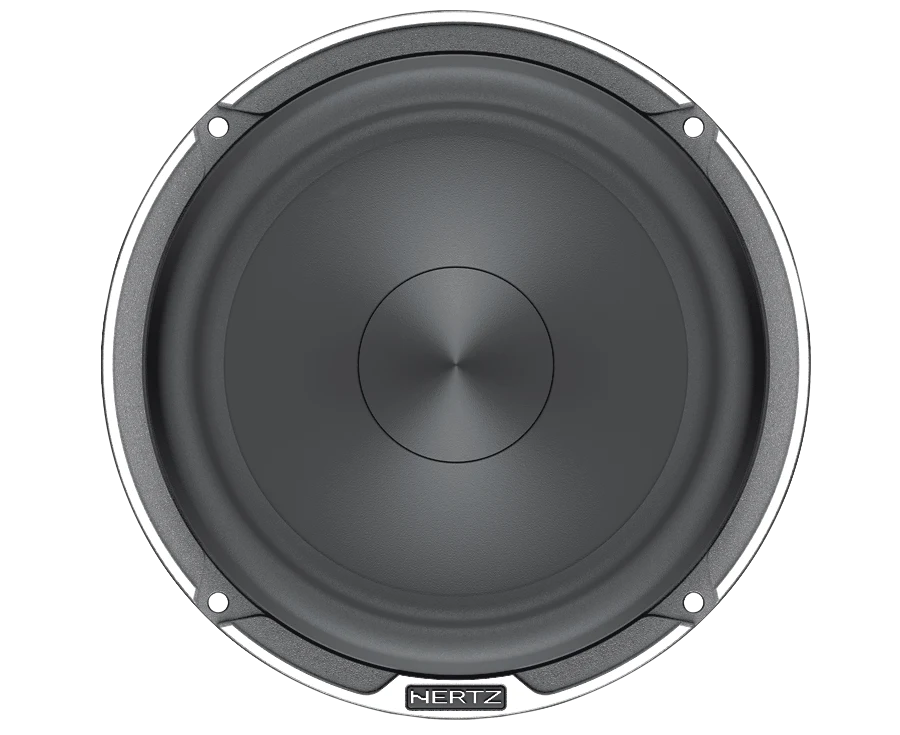

Hertz Mille MP 165.3 PROThanks To The V-Cone® And Boundary Free Surround Technologies The MP 165
Thanks to the V-cone® and Boundary Free Surround technologies the MP 165.3 car audio woofers boast outstanding dispersion features and generates high SPL with compact dimensions, ensuring a wide low frequency response , even in cars with no space for a subwoofer.
Highlights
- PURE COPPER VOICE COIL: wound on a Polyamide former for high power handling combined with very low intermodulation distortion of vocals.
- EXPONENTIAL V-CONE® PROFILE: geometrically optimized for utmost linearity and dispersion in the mid frequency range. (Logo VCone)
- “BOUNDARY FREE” RUBBER SURROUND: for improved efficiency and wider mid-bass frequency. (Logo Boundary Free)
- HIGH DENSITY FLUX FERRITE MAGNET: combined with very low carbon content iron plates, for low distortion at high power levels.
Key specs
Full specs- Component
- Woofer
- Size mm (in.)
- 165 (6.5)
- Power Handling - Continuous W
- 90
- Power Handling - Peak W
- 180
- Impedance Ohm
- 4
- Voice Coil Ø
- 25 (1)
- Frequency Response Hz
- 40 ÷ 5k
- Magnet size D x d x h mm (in.)
- 85 x 32 x 17 (3.35 x 1.26 x 0.67)
Key specs
Full specs- Component
- Woofer
- Size mm (in.)
- 165 (6.5)
- Power Handling - Continuous W
- 90
- Power Handling - Peak W
- 180
Highlights
Overview- PURE COPPER VOICE COIL: wound on a Polyamide former for high power handling combined with very low intermodulation distortion of vocals.
- EXPONENTIAL V-CONE® PROFILE: geometrically optimized for utmost linearity and dispersion in the mid frequency range. (Logo VCone)
- “BOUNDARY FREE” RUBBER SURROUND: for improved efficiency and wider mid-bass frequency. (Logo Boundary Free)
Overview
Thanks to the V-cone® and Boundary Free Surround technologies the MP 165.3 car audio woofers boast outstanding dispersion features and generates high SPL with compact dimensions, ensuring a wide low frequency response, even in cars with no space for a subwoofer.
Highlights

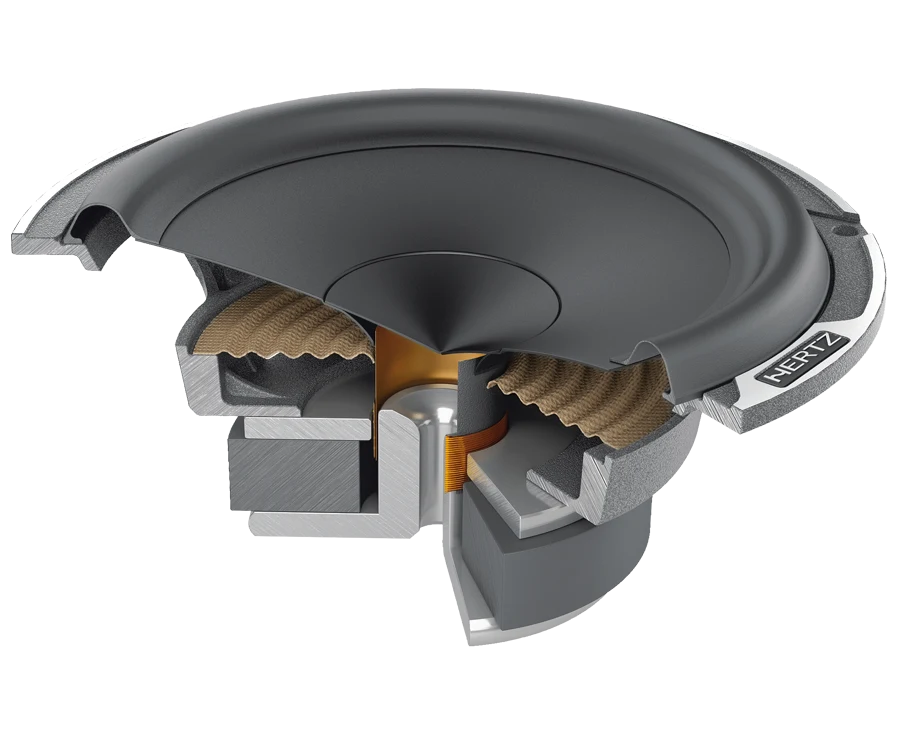

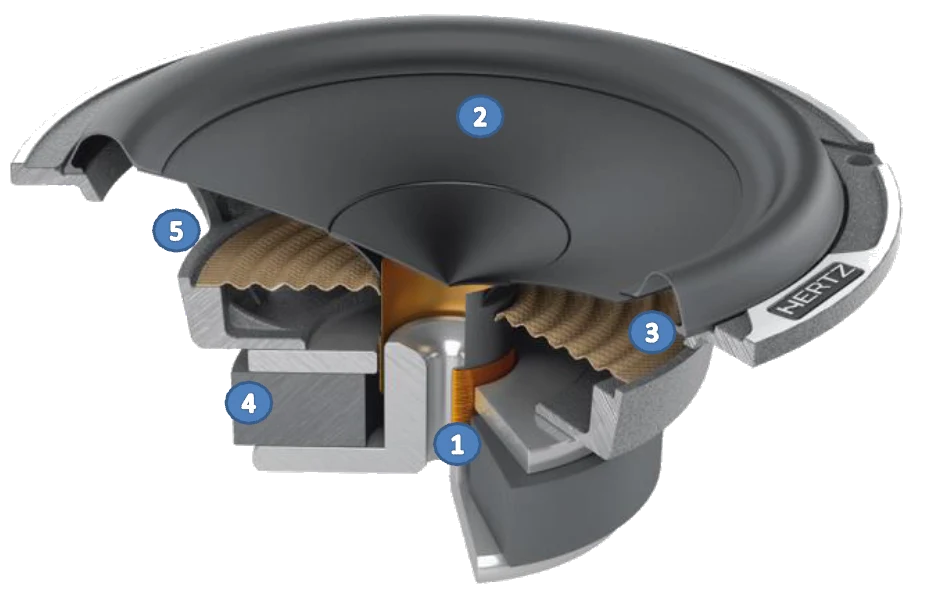

Key features
- PURE COPPER VOICE COIL: wound on a Polyamide former for high power handling combined with very low intermodulation distortion of vocals.
- EXPONENTIAL V-CONE® PROFILE: geometrically optimized for utmost linearity and dispersion in the mid frequency range. (Logo VCone)
- “BOUNDARY FREE” RUBBER SURROUND: for improved efficiency and wider mid-bass frequency. (Logo Boundary Free)
- HIGH DENSITY FLUX FERRITE MAGNET: combined with very low carbon content iron plates, for low distortion at high power levels.
- BASKET: low mounting depth, acoustically transparent aluminium alloy basket with elegant diamond cutting and featuring the aluminium Hertz logo.
Specs
Technical Specs
12
| Component | Woofer |
| Size mm (in.) | 165 (6.5) |
| Power Handling - Continuous W | 90 |
| Power Handling - Peak W | 180 |
| Impedance Ohm | 4 |
| Voice Coil Ø | 25 (1) |
| Frequency Response Hz | 40 ÷ 5k |
| Magnet size D x d x h mm (in.) | 85 x 32 x 17 (3.35 x 1.26 x 0.67) |
| Weight of one speaker kg (lb.) | 1.07 (2.36) |
| Magnet | High density flux ferrite |
| Cone | Pressed-pulp cone with cotton fibers |
| Xmech mm (in.) | ±7 (0.28) |
Electro-acoustic Specs
12
| D mm | 132 |
| Re Ohm | 3,1 |
| Fs Hz | 70 |
| Le mH | 0,3 |
| Vas I | 9,5 |
| Mms g | 14,9 |
| Cms mm/N | 0,36 |
| BL T*m | 5,5 |
| Qts | 0,58 |
| Qes | 0,67 |
| Qms | 4,6 |
| Spl dB | 93 |
Physical Specs
6
| A | 165 mm | 6.5 in. |
| B | 141 mm | 5.55 in. |
| C | 74 mm | 2.91 in. |
| D | 63 mm | 2.48 in. |
| E | 183,5 mm | 7.22 in. |
| F | 29 mm | 1.14 in. |
Frequency response
Visual spec reference.
