Hertz
Hertz Mille MP 165P.3 PROMP 165P
The MP 165P.3 car audio woofers electro-acoustic parameters have been forged to give it the pure and solid sound of an authentic mid-bass, designed for high dynamic systems.
Highlights
- PURE COPPER VOICE COIL: wound on a Polyamide former for high power handling combined with very low intermodulation distortion of vocals.
- EXPONENTIAL V-CONE® PROFILE: geometrically optimized for utmost linearity and dispersion in the mid frequency range. (Logo VCone)
- “BOUNDARY FREE” RUBBER SURROUND: for improved efficiency and wider mid-bass frequency. (Logo Boundary Free)
- HIGH DENSITY FLUX FERRITE MAGNET: combined with very low carbon content iron plates, for low distortion at high power levels.
Key specs
Full specs- Component
- Woofer
- Size mm (in.)
- 165 (6.5)
- Power Handling - Continuous W
- 100
- Power Handling - Peak W
- 200
- Impedance Ohm
- 3
- Voice Coil Ø
- 25 (1)
- Frequency Response Hz
- 45 ÷ 4,5k
- Magnet size D x d x h mm (in.)
- 95 x 45 x 17 (3.74 x 1.77 x 0.67)
Key specs
Full specs- Component
- Woofer
- Size mm (in.)
- 165 (6.5)
- Power Handling - Continuous W
- 100
- Power Handling - Peak W
- 200
Highlights
Overview- PURE COPPER VOICE COIL: wound on a Polyamide former for high power handling combined with very low intermodulation distortion of vocals.
- EXPONENTIAL V-CONE® PROFILE: geometrically optimized for utmost linearity and dispersion in the mid frequency range. (Logo VCone)
- “BOUNDARY FREE” RUBBER SURROUND: for improved efficiency and wider mid-bass frequency. (Logo Boundary Free)
Overview
The MP 165P.3 car audio woofers electro-acoustic parameters have been forged to give it the pure and solid sound of an authentic mid-bass, designed for high dynamic systems. The voice coil with a generous 14 mm height, has a nominal 3 Ω impedance in addition to an increased power handling. These features provide the ability to maximally exploit the power of the Hertz HCP and HDP amplifiers as well as all the 2 Ω stable electronics. The ferrite 95 mm diameter magnet enables a +/-4.5 mm voice coil linear excursion, ensuring utmost control at all times. The Boundary Free Surround moves a bigger amount of air, and the V-cone® profile improves the offaxis dispersion, the real in-car listening condition. The sophisticated aluminium alloy basket neutralizes the undesired vibrations.
Highlights

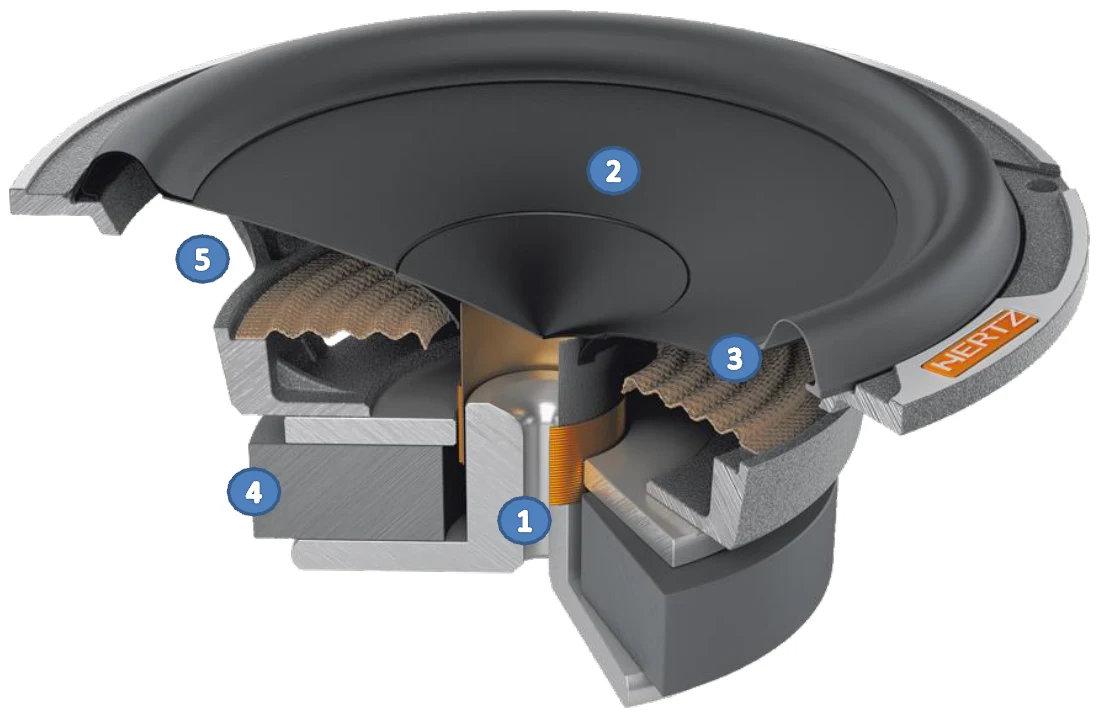

Key features
- PURE COPPER VOICE COIL: wound on a Polyamide former for high power handling combined with very low intermodulation distortion of vocals.
- EXPONENTIAL V-CONE® PROFILE: geometrically optimized for utmost linearity and dispersion in the mid frequency range. (Logo VCone)
- “BOUNDARY FREE” RUBBER SURROUND: for improved efficiency and wider mid-bass frequency. (Logo Boundary Free)
- HIGH DENSITY FLUX FERRITE MAGNET: combined with very low carbon content iron plates, for low distortion at high power levels.
- BASKET: low mounting depth, acoustically transparent aluminium alloy basket with elegant diamond cutting and featuring the aluminium Hertz logo.
Specs
Technical Specs
12
| Component | Woofer |
| Size mm (in.) | 165 (6.5) |
| Power Handling - Continuous W | 100 |
| Power Handling - Peak W | 200 |
| Impedance Ohm | 3 |
| Voice Coil Ø | 25 (1) |
| Frequency Response Hz | 45 ÷ 4,5k |
| Magnet size D x d x h mm (in.) | 95 x 45 x 17 (3.74 x 1.77 x 0.67) |
| Weight of one speaker kg (lb.) | 1.2 (2.65) |
| Magnet | High density flux ferrite |
| Cone | Pressed-pulp cone with cotton fibers |
| Xmech mm (in.) | ±7.5 (0.3) |
Electro-acoustic Specs
12
| D mm | 132 |
| Re Ohm | 2,6 |
| Fs Hz | 75 |
| Le mH | 0,28 |
| Vas I | 8 |
| Mms g | 15,1 |
| Cms mm/N | 0,3 |
| BL T*m | 5,45 |
| Qts | 0,56 |
| Qes | 0,63 |
| Qms | 5,2 |
| Spl dB | 94 |
Physical Specs
6
| A | 165 mm | 6.5 in. |
| B | 141 mm | 5.55 in. |
| C | 74,5 mm | 2.93 in. |
| D | 64 mm | 2.52 in. |
| E | 183,5 mm | 7.22 in. |
| F | 29 mm | 1.14 in. |
Frequency response
Visual spec reference.
