Audison

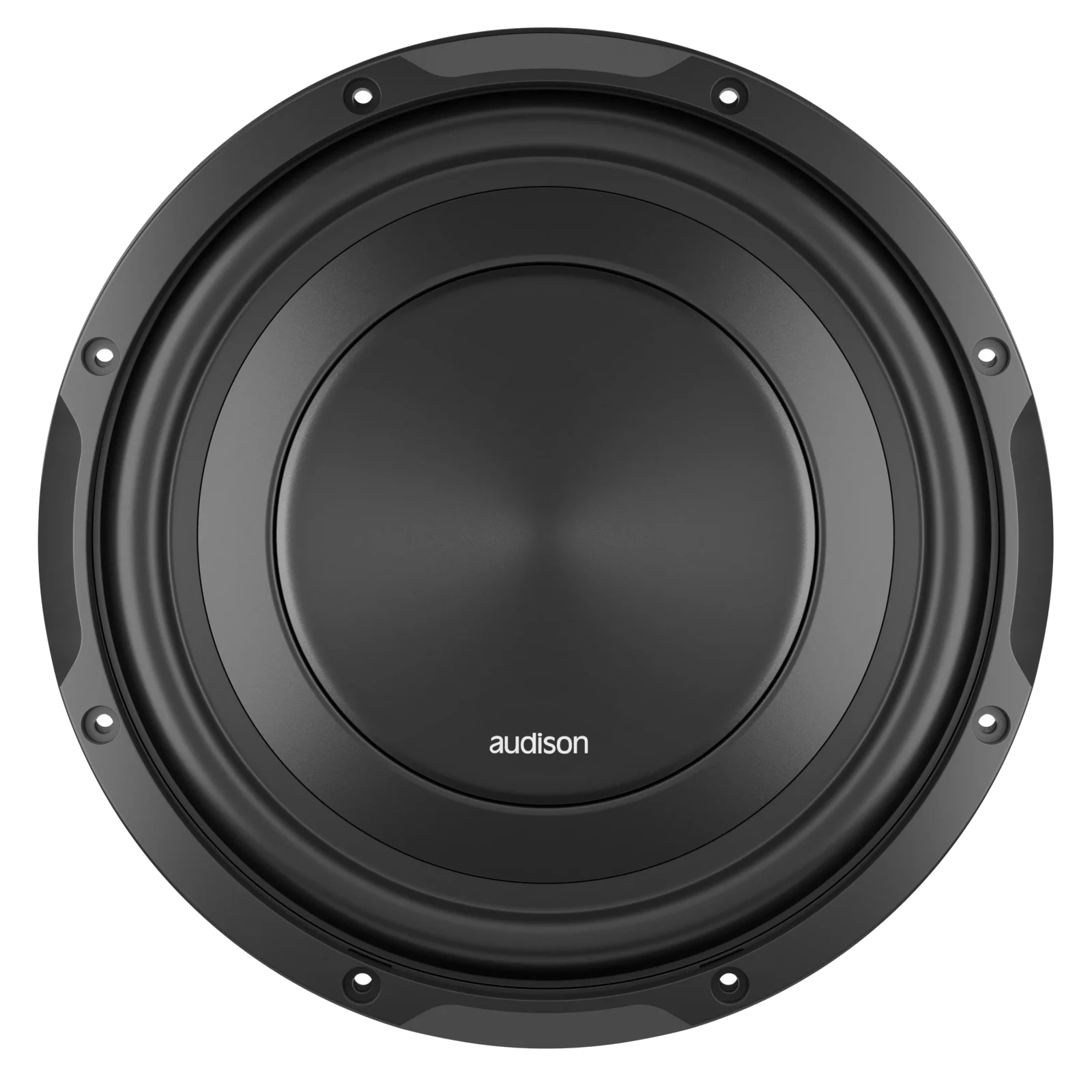

APS10DAPS10D 250 mm Subwoofer
Ultra-low profile (4.7 in. / 120 mm) for maximum installation flexibility. Designed to deliver maximum performance in a sealed enclosure starting from 10 lt.
Highlights
- Ultra-low profile (4.7 in. / 120 mm) for maximum installation flexibility.
- Designed to deliver maximum performance in a sealed enclosure starting from 10 lt.
- Special designed cone-dustcap-basket geometry which guarantees a long linear excursion capability (11 mm, one-way) while keeping the mounting depth to minimum.
- Air vents on the basket underneath the spider, eliminating the need for the central pole vent allowing mounting close to rear wall of enclosure.
Key specs
Full specs- Nominal diameter
- 250 mm (10 in)
- Impedance
- 4+4 Ohm
- Power Handling - Peak
- 800 W
- Power Handling - Continuous
- 400 W
- Sensitivity
- 84 dB
- Voice Coil Ø
- 60 mm
- Magnet Material
- HIGH DENSITY FLUX FERRITE
- Magnet size D x d x h
- 140 x 70 x 30 mm
Key specs
Full specs- Nominal diameter
- 250 mm (10 in)
- Impedance
- 4+4 Ohm
- Power Handling - Peak
- 800 W
- Power Handling - Continuous
- 400 W
Highlights
Overview- Ultra-low profile (4.7 in. / 120 mm) for maximum installation flexibility.
- Designed to deliver maximum performance in a sealed enclosure starting from 10 lt.
- Special designed cone-dustcap-basket geometry which guarantees a long linear excursion capability (11 mm, one-way) while keeping the mounting depth to minimum.
Overview
- Ultra-low profile (4.7 in. / 120 mm) for maximum installation flexibility.
- Designed to deliver maximum performance in a sealed enclosure starting from 10 lt.
- Special designed cone-dustcap-basket geometry which guarantees a long linear excursion capability (11 mm, one-way) while keeping the mounting depth to minimum.
- Air vents on the basket underneath the spider, eliminating the need for the central pole vent allowing mounting close to rear wall of enclosure.
- Massive motor assembly, optimized with FEM (Finite Element Modeling) for perfect control under high power, high excursion conditions.
- Water-repellent pressed paper 10 in. cone, featuring a profile developed with FEM simulation and optimized with the Klippel Scan Vibrometer.
- Dual voice coil design specifically developed to be combined with either AF C4.10 bit (2 CH + 2 CH bridged), AF M5.11 bit (Sub CH) or AF C4D/AF M4D (2 CH bridged) amplifiers.
- Steel mesh grille and plastic gasket included.
- The APS 10 D is designed to deliver maximum performance in a sealed enclosure with ultra-compact volumes, from 10 lt. to 12 lt. The dual voice-coil and single voice coil versions feature push connectors for ease of wiring and configurations. Prima subwoofer components have been developed with a primary goal: to deliver high output in tight spaces. Output is a matter of excursion; the more air the cone moves, the more output. However reduced mounting depth traditionally has meant low excursion. Prima subwoofers employ a special cone-dustcap-basket geometry which guarantees large excursion of the mobile group, while keeping the mounting depth to a minimum. The surround and spider have been carefully designed to prevent the rocking-mode phenomenon. The cooling circuit has been designed with air vents on the basket underneath the spider, eliminating the need for vents on the bottom-plate. This allows the subwoofer to be mounted close to the back wall of the enclosure, making the most of the reduced mounting depth.
Highlights
Key features
- Ultra-low profile (4.7 in. / 120 mm) for maximum installation flexibility.
- Designed to deliver maximum performance in a sealed enclosure starting from 10 lt.
- Special designed cone-dustcap-basket geometry which guarantees a long linear excursion capability (11 mm, one-way) while keeping the mounting depth to minimum.
- Air vents on the basket underneath the spider, eliminating the need for the central pole vent allowing mounting close to rear wall of enclosure.
- Massive motor assembly, optimized with FEM (Finite Element Modeling) for perfect control under high power, high excursion conditions.
- Water-repellent pressed paper 10 in. cone, featuring a profile developed with FEM simulation and optimized with the Klippel Scan Vibrometer.
- Dual voice coil design specifically developed to be combined with either AF C4.10 bit (2 CH + 2 CH bridged), AF M5.11 bit (Sub CH) or AF C4D/AF M4D (2 CH bridged) amplifiers.
- Steel mesh grille and plastic gasket included.
Specs
Technical Specs
12
| Nominal diameter | 250 mm (10 in) |
| Impedance | 4+4 Ohm |
| Power Handling - Peak | 800 W |
| Power Handling - Continuous | 400 W |
| Sensitivity | 84 dB |
| Voice Coil Ø | 60 mm |
| Magnet Material | HIGH DENSITY FLUX FERRITE |
| Magnet size D x d x h | 140 x 70 x 30 mm |
| Cone Material | WATER REPELLENT PRESSED PAPER |
| Xmax | 12.6 mm (0.5 in) |
| Xmech | 18 mm (0.71 in) |
| Driver Displacement Volume | 1.12 l (0.04 ft) |
Electric-acoustic Specs
10
| Re | 2.2 Ohm |
| Fs | 27 Hz |
| Le | 1.5 mH |
| Vas | 41 l (1.448 ft) |
| Mms | 170 g (5.997 oz) |
| Cms | 0.2 mm/N |
| BL | 10.4 T•m |
| Qts | 0.52 |
| Qes | 0,58 |
| Qms | 4.7 |
General
1
| Weight | 5.24 kg |
Dimensions
5
| Dimension A | 270 mm (10.63 in) |
| Dimension B | 233 mm (9.17 in) |
| Dimension C | 105 mm (4.13 in) |
| Dimension D | 88 mm (3.46 in) |
| Dimension C1 | 119 mm |
