Hertz

Cento#CBA 250

Hertz Cento CBA 250Active Subwoofer Box

Hertz CBA 250 active subwoofer box, with the 10-inch driver, features a dedicated high-performance amplification module that enhances all the passive box technologies, such as the 2S²(2 Sides / 2 Sounds) design, the Plug & Play terminal block and ultra-compact size.

Highlights

  • Butterworth low-pass filter at 12dB/Oct. with variable cutting frequency (50-200 Hz), Subsonic filter, phase control (0 – 180°), and adjustable bass-boost 0÷6 db @ 45Hz.
  • Defeatable filter to use the sub dedicated output of a processor.
  • High-level audio input on multi-pin connector for maximum OEM integration and low level on RCA for aftermarket sources.
  • ART turn on function (Automatic Remote Turn-On) selectable among: Remote-in, Hi-level, Audio signal.

Key specs

Full specs
Size mm (in.)
250 (10)
Power Handling - Continuous W
250
Power Handling - Peak W
500
Impedance Ohm
0.4
Design
Active sealed subwoofer box
Voice Coil Ø
60 (2.36)
Frequency Response Hz
20 - 200
Magnet size D x d x h mm (in.)
140 x 70 x 30 ( 5.51 x 2.76 x 1.81)

Key specs

Full specs
Size mm (in.)
250 (10)
Power Handling - Continuous W
250
Power Handling - Peak W
500
Impedance Ohm
0.4

Highlights

Overview
  • Butterworth low-pass filter at 12dB/Oct. with variable cutting frequency (50-200 Hz), Subsonic filter, phase control (0 – 180°), and adjustable bass-boost 0÷6 db @ 45Hz.
  • Defeatable filter to use the sub dedicated output of a processor.
  • High-level audio input on multi-pin connector for maximum OEM integration and low level on RCA for aftermarket sources.
Overview

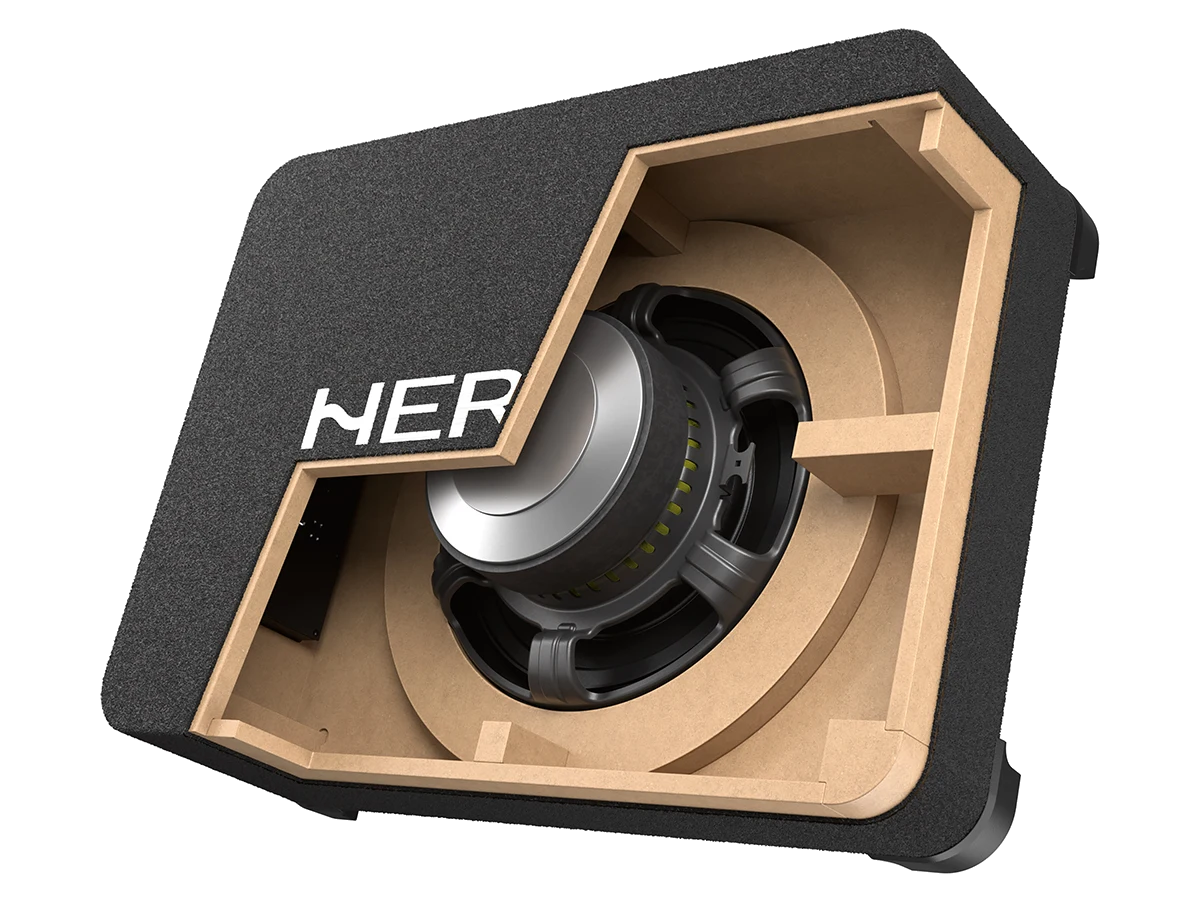

Hertz CBA 250 active subwoofer box, with the 10-inch driver, features a dedicated high-performance amplification module that enhances all the passive box technologies, such as the 2S²(2 Sides / 2 Sounds) design, the Plug & Play terminal block and ultra-compact size. The SSP (Sub Smart Plug) terminal block is provided with a single Plug & Play connector to be able to disconnect the box easily and safely. The amplification module, with power outputs of 250W RMS, is developed with he-li technology (high efficiency / low impedance), which thanks to the absence of the DC-DC voltage booster reach the impressive 90% efficiency level, very close to the theoretical limit of the D-Class. The Butterworth low pass filter at 12dB/Oct. with variable cut-off frequency (50-200 Hz) can be bypassed, when used with an external processor with pre-out output dedicated to the sub. The adjustable bass-boost control (0 ÷ 6 dB) at 45 Hz allows the user to emphasize the response on the lower side of the spectrum and the Phase control (0 - 180°) completes the equipment. The high-level speaker-in input on the multi-pole connector eases the integration with OEM audio systems while the low-level input on RCA is dedicated to the connection with after-market sources.
Highlights

Key features

  • Butterworth low-pass filter at 12dB/Oct. with variable cutting frequency (50-200 Hz), Subsonic filter, phase control (0 – 180°), and adjustable bass-boost 0÷6 db @ 45Hz.
  • Defeatable filter to use the sub dedicated output of a processor.
  • High-level audio input on multi-pin connector for maximum OEM integration and low level on RCA for aftermarket sources.
  • ART turn on function (Automatic Remote Turn-On) selectable among: Remote-in, Hi-level, Audio signal.

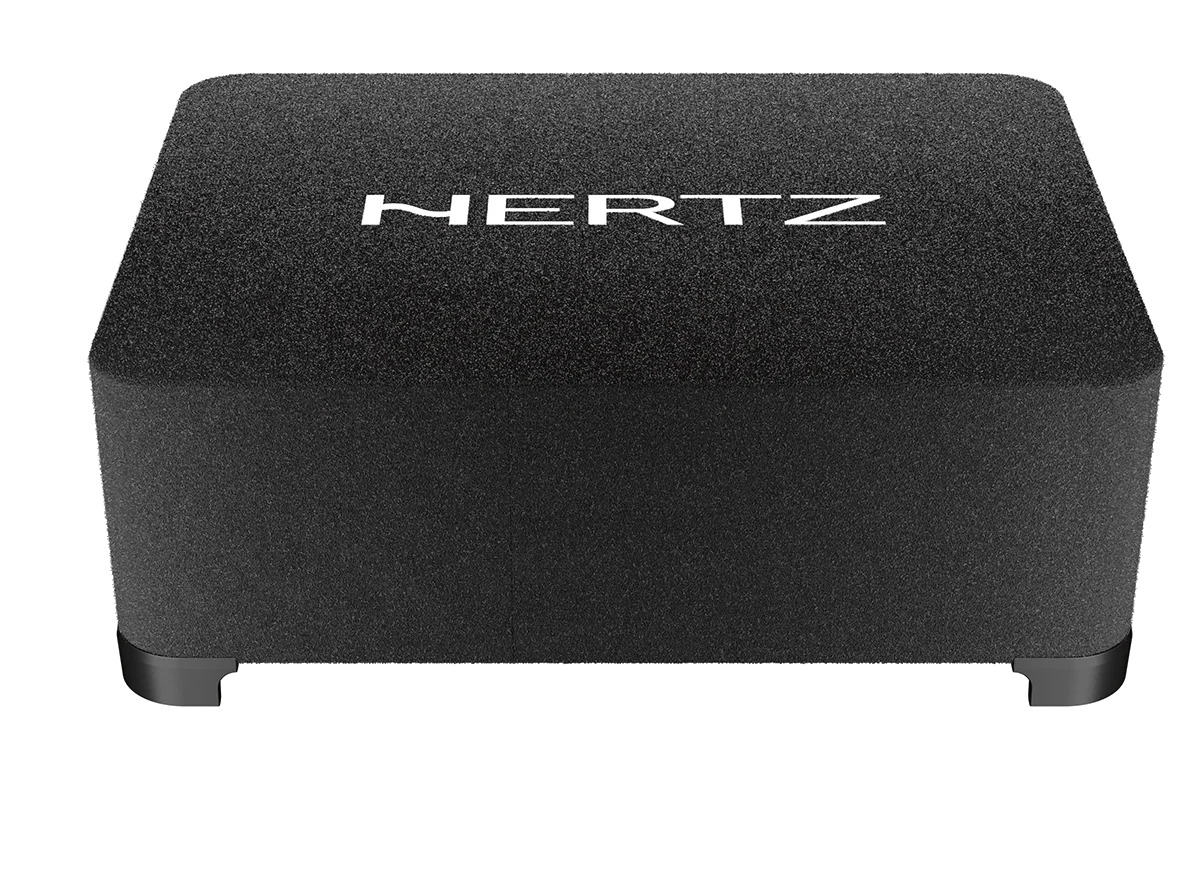

  • Box with ultra-low profile (6.22 in. / 158 mm) in air suspension, designed to take full advantage of the performance of the 10 inch high-impedance driver.
  • Down-firing leveling feet with Velcro inserts included for a secure grip with the carpet, ensuring extreme ease of removal.
  • Rounded corners allow easy placement in the trunk and act as a reinforcement to reduce enclosure resonances.
  • The exclusive design of the cone, dust-cap, and basket geometry to achieve a wide linear excursion (9 mm in one direction), keeping the depth required for the assembly to a minimum.
  • HRC AP remote control included.

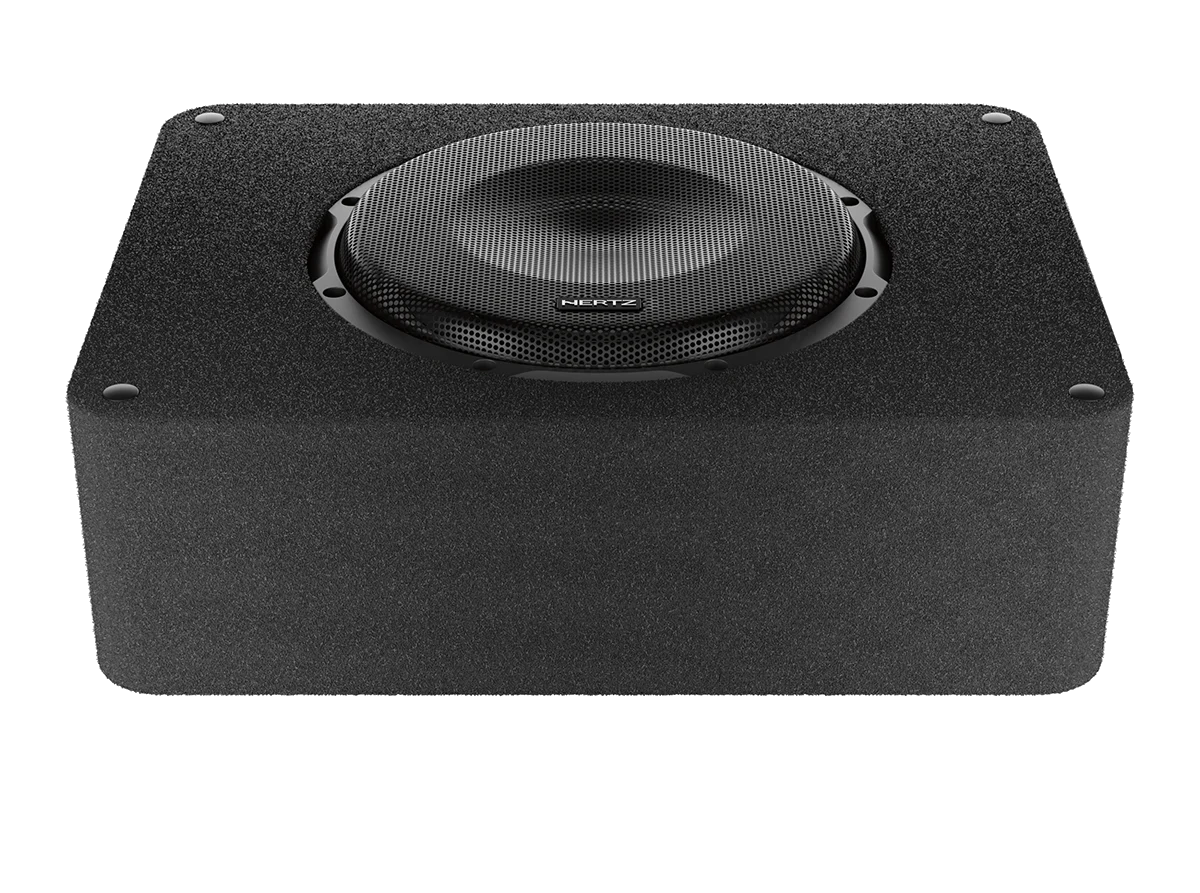

  • A sturdy metal grille is included, for total protection of the subwoofer driver.
  • High EfficiencyLow Impedance
  • Sub Smart Plug
Technologies
High EfficiencyLow Impedance

High EfficiencyLow Impedance

Integrated 500 W peak/250 W RMS @ 0.4 Ω D-Class amplifier featuring he-li technology (high efficiency / low

Sub Smart Plug

Sub Smart Plug

The SSP (Sub Smart Plug) terminal block is provided with a Plug&Play connector to be able to disconnect the box

2 Side 2 Sound

2 Side 2 Sound

Two sides, two sound design provides the ability to select between Down-Firing positioning to increase the

Specs

Technical Specs

12
Size mm (in.)250 (10)
Power Handling - Continuous W250
Power Handling - Peak W500
Impedance Ohm0.4
DesignActive sealed subwoofer box
Voice Coil Ø60 (2.36)
Frequency Response Hz20 - 200
Magnet size D x d x h mm (in.)140 x 70 x 30 ( 5.51 x 2.76 x 1.81)
MagnetHigh density flux ferrite
ConePressed Paper
Xmech mm (in.)14.75
Voice Coil TypeCopper

Physical Specs

5
CBA 250
mmin.
A440 | 17.32
B334 | 13.14
C158 | 6.22
C1135 | 5.31
