Rockford Fosgate RZR19RCPXP-STG42019+ Stage 4 Audio System for Select RZR Pro XP, Pro R, and Turbo R Models with Ride Command
Variants
The Stage 4 is a 1,500 watt, purpose-built audio system for select 2019+ RZR Pro XP, Pro R, and Turbo R models with Ride Command. It delivers higher output and clarity while retaining Ride Command navigation and offers a weather-resistant, plug-and-play design.
Highlights
- M1D4-10B: M1 10" DVC 4Ω Element Ready™ Color Optix™ Subwoofer - Black
- Plug-n-Play wiring harnesses for select RZR models
- Direct bolt into vehicle using OEM mounting holes. Minimal drilling required
- Element Ready™ to withstand the harsh outdoor environment like dust, water, and UV rays
Key specs
Full specs- Speaker Qty
- 5
- Amplifier Type
- External
- Total Power
- 1,500 Watts
- Mounting Hardware
- Yes
- Grille/Trim Ring Included
- Yes
- Included In The Box
- (1 ea) RZR19PXP-RCA (1 pr) RZR19PXP-FSE (loaded with TMS6SG) (1 ea) M1D4-10B (1 ea) RZR19PXP-M1FWE (1 pr) M1WL-65MB (1 ea) M5-1500X5 (1 ea) RZR19PXP-K4 (1 ea) PMX-RGB
- Shipping Weight
- 92 Lbs (41.7 Kg)
Key specs
Full specs- Speaker Qty
- 5
- Amplifier Type
- External
- Total Power
- 1,500 Watts
- Mounting Hardware
- Yes
Overview
The Stage 4 is a 1,500 watt, purpose-built audio system for select 2019+ RZR Pro XP, Pro R, and Turbo R models with Ride Command. It delivers higher output and clarity while retaining Ride Command navigation and offers a weather-resistant, plug-and-play design.
Best for
- Owners of select 2019+ RZR Pro XP, Pro R, and Turbo R vehicles equipped with Ride Command
- Riders who want a higher-performance, waterproof audio upgrade
- Users who prefer a plug-and-play system with factory-style fit and finish
Key points
- 1,500 watts total system power for louder output and improved clarity
- Element Ready™ construction to withstand water, dirt, mud and UV exposure
- IPX6 water intrusion rating
- Vented subwoofer enclosure with option to seal the vent for submersion
- Plug-and-play design using OEM mounting points to minimize cutting or drilling
- Rockford Fosgate preset—pre-tuned out of the box for optimized performance
Fit and use
Designed specifically for select 2019+ RZR Pro XP, Pro R, and Turbo R models that use Ride Command. The system installs using OEM mounting points with a minimal modification approach and is pre-tuned for immediate out-of-the-box performance while retaining GPS navigation on Ride Command-equipped vehicles.
What to know
This Stage 4 system is built for off-road exposure with Element Ready construction and an IPX6 rating. The subwoofer enclosure is vented for bass performance and includes the ability to seal the vent when submerging the vehicle. The plug-and-play design reduces required cutting or drilling, and Rockford’s preset tunin…
Highlights
Key features
- M1D4-10B: M1 10" DVC 4Ω Element Ready™ Color Optix™ Subwoofer - Black
- Plug-n-Play wiring harnesses for select RZR models
- Direct bolt into vehicle using OEM mounting holes. Minimal drilling required
- Element Ready™ to withstand the harsh outdoor environment like dust, water, and UV rays
- Enclosures for speakers/subwoofer integrate with no loss of passenger space
- PMX-RGB: Color Optix™ speaker color controllable via RF Connect mobile app
- RZR19PXP-FSE: 6.5" speaker in a front ported Color Optix™ enclosure for select RZR® models
- RZR19PXP-M1FWE: M1 10" Element Ready™ subwoofer enclosure for select RZR® models
- M1WL-65MB: M1 6.5" Element Ready™ Color Optix™ Moto-Can Speaker - Black
- M5-1500X5: 1,500 Watt 5-Channel IPX6 Element Ready™ Amplifier
- RZR19PXP-K4: 4 AWG amp installation kit for select RZR® models
- RZR19PXP-RCA: Ride Command® 3-way active noise reduction interface for select RZR® models
More info
Manufacturer details
The easiest SXS kits to install and set up, Color Optix™ lighting control, and even higher performance, all to ensure an epic off-road audio experience.
Element Ready™: Purpose built for the off-road environment, Rockford’s Element Ready™ products are built to stand up to water, dirt, mud and UV rays, making sure all your audio components perform regardless of the conditions.
Plug-and-Play Design: Minimal drilling or cutting and designed to work right out of the box. Simple installation ensures less time in the garage and more time out riding.
Color Optix: Adjust your own bright, wide, and limitless lighting experience with the Rockford Fosgate Color Optix™ plug-and-play controller and App.
Preset: Out of the box performance, literally. No settings or adjustments are needed. Pre-Tuned by Rockford to deliver the legendary performance you have come to expect.
RF3 (Rockford Factory Fit and Finish): Designed and engineered to match and compliment the factory fit and finish of your vehicle. These components are purpose built to the exact specifications to ensure the best-in-class fitment and look.
Compatibility Chart: Please review below tab for fitment before purchasing.
Aftermarket Pro XP Lifestyle
Aftermarket Pro XP Overview of Stage Kits

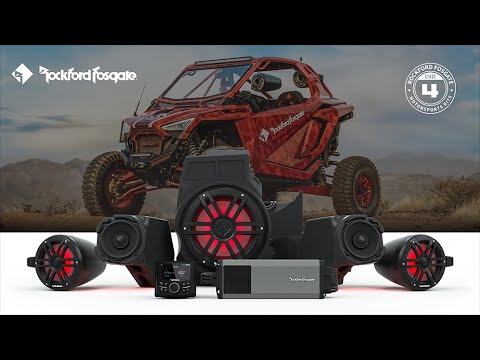

Aftermarket Pro XP Stage 4 Installation
• This kit also available with a PMX source unit
Additional details
PRO AUDIO PERFORMANCE
The Stage 4 is a 1,500 watt audio system for Ride Command® takes entertainment to a new level with higher performance, louder output, and greater clarity while retaining your GPS navigation. This complete waterproof solution provides the ability to take your UTV into any environment. The subwoofer enclosure – vented to provide maximum bass performance – offers the ability to seal the vent when submerging the vehicle. The plug-and-play design requires minimal cutting or drilling by using OEM mounting points and features an easy to set-up “Rockford Fosgate” preset to optimize performance. The Color Optix™ control allows RGB color adjustment of speakers and rear moto-cans in addition to a Rockford Fosgate illuminated logo for a finishing touch to the passenger dash.
Technologies
IPX6 Water Intrusion Rating
A device with a level 6 water resistance rating can survive strong water jets projected by a 12.5mm nozzle at any
PRESET
Amplifier switch engages Rockford Fosgate tune, eliminating need for manual setup.
Rockford Factory Fit & Finish
Designed and engineered to compliment the factory fit and finish of your vehicle. These components are
Element Ready™ | Motorsports
All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion &
Color Optix™ Control
Adjust your own bright, wide, and limitless lighting experience with the Rockford Fosgate Color Optix™
Plug & Play
This product is designed for rapid installation using pre-configured wiring harnesses and quick connect terminals.
Specs
Specifications
7
| Speaker Qty | 5 |
| Amplifier Type | External |
| Total Power | 1,500 Watts |
| Mounting Hardware | Yes |
| Grille/Trim Ring Included | Yes |
| Included In The Box | (1 ea) RZR19PXP-RCA (1 pr) RZR19PXP-FSE (loaded with TMS6SG) (1 ea) M1D4-10B (1 ea) RZR19PXP-M1FWE (1 pr) M1WL-65MB (1 ea) M5-1500X5 (1 ea) RZR19PXP-K4 (1 ea) PMX-RGB |
| Shipping Weight | 92 Lbs (41.7 Kg) |
Reviews (0)
—
No average rating yet
0 reviews
No written reviews are live yet. Signed-in customers can submit one below.
No written reviews are live for this item yet.
Support
Return Authorization
If you bought this product from Onkar Electronics, use the Contact Us page on the Onkar Electronics website and we will help with return authorization and warranty support. If you purchased it from another dealer, contact that authorized dealer first for return assistance.
Popular Questions
No FAQs available
Compatibility
NO2024+ RZR XP(2-SEAT) |
NO2024+ RZR XP(4-SEAT) |
NO2025+ RZR Pro S(2-SEAT) |
NO2025+ RZR Pro S(4-SEAT) |
| 4-SEAT MODELS | 2020 | 2021 | 2022 | 2023 | 2024 | 2025 |
|---|---|---|---|---|---|---|
| RZR Pro XP 4 | ✅ | — | — | — | — | — |
| RZR Pro XP 4 Orange Madness LE | ✅ RC,RF3 | — | — | — | — | — |
| RZR Pro XP 4 Sport | — | ✅ | ✅ | ✅ | ✅ | X |
| RZR Pro XP 4 Sport Rockford Fosgate® LE RF1 | — | ✅ | — | — | — | — |
| RZR Pro XP 4 Premium RC,RF | ✅ | ✅ RF3 | ✅ RC*,RF2* | ✅ RF2 | ✅ RF2 | X |
| RZR Pro XP 4 Ultimate RC,DY | ✅ RF3 | ✅ RF | ✅ RF2 | ✅ RF2 | ✅ RF2 | X RF4 |
| RZR Pro XP 4 Ultimate Rockford Fosgate [LE] Limited Edition RC, DY, RF4 | — | ✅ | ✅ | — | — | — |
REQUIREDPolaris RIDE COMMAND RCUsed as Source Unit |
YESRZR Pro XP(2-SEAT) |
YESRZR Pro XP(4-SEAT) |
YESRZR Turbo R(2-SEAT) |
YESRZR Turbo R(4-SEAT) |
YESRZR Pro R(2-SEAT) |
YESRZR Pro R(4-SEAT) |
| 2-SEAT MODELS | 2020 | 2021 | 2022 | 2023 | 2024 | 2025 |
|---|---|---|---|---|---|---|
| RZR Pro XP | ✅ | — | — | — | — | — |
| RZR Pro XP Orange Madness LE RC,RF2 | ✅ | — | — | — | — | — |
| RZR Pro XP Sport | — | ✅ | ✅ | ✅ | ✅ | X |
| RZR Pro XP Sport Rockford Fosgate LE RF1 | — | ✅ | — | — | — | — |
| RZR Pro XP Premium | ✅ | ✅ RC,RF2 | ✅ RC*,RF2* | ✅ RF2 | ✅ RF2 | X RC |
| RZR Pro XP Ultimate RC,DY | ✅ RF2 | ✅ RF | ✅ RF2 | ✅ RF2 | ✅ RF2 | X RF4 |
| RZR Pro XP Ultimate Rockford Fosgate [LE] Limited Edition RC,DY,RF4 | — | ✅ | ✅ | — | — | — |
YESModel IS compatible with kit |
NOModel NOT compatible with kit |
NOT AVAILABLEModel not produced this year |
|---|
| 2-SEAT MODELS | 2020 | 2021 | 2022 | 2023 | 2024 | 2025 |
|---|---|---|---|---|---|---|
| RZR Turbo R Sport | — | — | ✅ | ✅ | ✅ | — |
| RZR Turbo R Premium RC*,RF2* | — | — | ✅ | ✅ | ✅ | — |
| RZR Turbo R Ultimate DY | — | — | ✅ | ✅ RC,RF2 | ✅ RC,RF2 | — |
| 4-SEAT MODELS | 2020 | 2021 | 2022 | 2023 | 2024 | 2025 |
|---|---|---|---|---|---|---|
| RZR Turbo R 4 Sport | — | — | ✅ | ✅ | ✅ | — |
| RZR Turbo R 4 Premium RC*, RF2* | — | — | ✅ | ✅ | ✅ | — |
| RZR Turbo R 4 Ultimate DY | — | — | ✅ | ✅ RC,RF2 | ✅ RC,RF2 | — |
| 2-SEAT MODELS | 2020 | 2021 | 2022 | 2023 | 2024 | 2025 |
|---|---|---|---|---|---|---|
| RZR Pro S Sport | — | — | — | — | — | X |
| RZR Pro S Premium RC | — | — | — | — | — | X |
| RZR Pro S Ultimate RC | — | — | — | — | — | X RF4 |
| 4-SEAT MODELS | 2020 | 2021 | 2022 | 2023 | 2024 | 2025 |
|---|---|---|---|---|---|---|
| RZR Pro S 4 Sport | — | — | — | — | — | X |
| RZR Pro S 4 Premium RC | — | — | — | — | — | X |
| RZR Pro S 4 Ultimate RC | — | — | — | — | — | X RF4 |
| 2-SEAT MODELS | 2020 | 2021 | 2022 | 2023 | 2024 | 2025 |
|---|---|---|---|---|---|---|
| RZR Pro R Sport | — | — | ✅ | — | — | X |
| RZR Pro R Premium RC,RF | — | — | ✅ | ✅ | ✅ | — |
| RZR Pro R Ultimate RC,DY | — | — | ✅ RF | ✅ RF2 | ✅ RF2 | X RF4 |
| RZR Pro R Ultimate Launch Edition DSC | — | — | ✅ | — | — | — |
| RZR Pro R Troy Lee Designs Edition RC, DY, RF4 | — | — | — | ✅ | — | — |
| 4-SEAT MODELS | 2020 | 2021 | 2022 | 2023 | 2024 | 2025 |
|---|---|---|---|---|---|---|
| RZR Pro R 4 Sport | — | — | ✅ | — | — | X |
| RZR Pro R 4 Premium RC, RF | — | — | ✅ | ✅ | ✅ | — |
| RZR Pro R 4 Ultimate RC, DY | — | — | ✅ RF | ✅ RF2 | ✅ RF2 | X RF4 |
| RZR Pro R 4 Ultimate Launch Edition DSC | — | — | ✅ | — | — | — |
| RZR Pro R 4 Troy Lee Designs Edition RC, DY, RF4 | — | — | — | ✅ | — | — |
[ ] Brackets indicate nomenclature used on earlier models and inherited on later models.
* Optional package available from factory
CV Clutch Vent impedes installation of rear add-on subwoofer
DY DYNAMIX suspension factory equipped
RB Rear Brace impedes installation of rear add-on subwoofer
RC Ride Command comes factory equipped
RF1 Stage 1 factory equipped with Rockford Fosgate premium audio (2 front speakers). Needs to be bypassed.
RF2 Stage 2 factory equipped with Rockford Fosgate premium audio (2 tweeters, 2 front speakers, 400W amp). Needs to be bypassed.
RF3 Stage 3 factory equipped with Rockford Fosgate premium audio (2 tweeters, 2 front speakers, 2 rear speakers, 400W amp). Needs to be bypassed.
Videos
Pro XP Lifestyle
Meet the all-new audio kits for Polaris RZR Pro XP. These systems are designed to deliver Pro Audio Performance.
