Rockford Fosgate RZR24XP-STG6Stage 6 Aftermarket 1,500-Watt Audio System for 2024+ RZR XP
Variants
Stage 6 is a vehicle-specific, amplified audio upgrade delivering high output and integrated controls for 2024+ Polaris RZR XP. The system combines a PMX-3 SiriusXM Ready source with an IPX6-rated 5-channel amplifier, M2 Color Optix speakers, and a 10" under-dash subwoofer.
Highlights
- Includes wired antenna
- SiriusXM-Ready® satellite radio (requires SXV300 tuner)
- True plug-and-play design with OEM connectors for easy installation
- Direct bolt into vehicle using OEM mounting holes. Minimal drilling required
Key specs
Full specs- Speaker Qty
- 7
- Amplifier Type
- External
- Total Power
- 1,500 Watts
- Mounting Hardware
- Yes
- Grille-Trim Ring Included
- Yes
- Included In The Box
- PMX-DK • (4) Torx plastic tapping screw, ¼” x 1” long • (1) PMX radio bracket RZR24XP-FSE • (1) RZR24 Driver FSE • (1) RZR24 Passenger FSE • (6) Torx Bolt M6x0.75mm, 14mm long • (12) Hex Bolt M4x0.7mm, 22mm long • (2) Hex Screw M6 self-tapping • (2) Tube clamp mount bracket RZR24-FTP • (1) RZR24 Driver Pod • (1) RZR24 Passenger Pod • (4) Washer, M3x1.5” thick • (2) Hex bolt M3x0.6mm, 20mm long • (1) Hex key 2.5mm
- Shipping Weight
- TBA
- Expansion Ports
- Color Optix™ RGB: Front: DT06-4S (4-Pin) Rear: DT06-4S (4-Pin)
Key specs
Full specs- Speaker Qty
- 7
- Amplifier Type
- External
- Total Power
- 1,500 Watts
- Mounting Hardware
- Yes
Highlights
Overview- Includes wired antenna
- SiriusXM-Ready® satellite radio (requires SXV300 tuner)
- True plug-and-play design with OEM connectors for easy installation
Overview
Stage 6 is a vehicle-specific, amplified audio upgrade delivering high output and integrated controls for 2024+ Polaris RZR XP. The system combines a PMX-3 SiriusXM Ready source with an IPX6-rated 5-channel amplifier, M2 Color Optix speakers, and a 10" under-dash subwoofer.
Best for
- Owners of 2024+ Polaris RZR XP seeking a high-output, factory-style audio upgrade
- Riders who want integrated source control with SiriusXM Ready and USB playback
- Users who want speaker LED color control and a plug-and-play wiring fit
Key points
- Total system power: 1,500 watts (amplified, 5-channel)
- Speakers: 2× 6.5" front coax, 2× 8" rear coax, 2× 1" door pod tweeters, 1× 10" under-dash subwoofer
- Source unit: PMX-3 SiriusXM Ready source with USB and MP3 playback support
- Durability features: IPX6 water intrusion rating, corrosion protection, thermal shock resistance, stainless hardware
- Color Optix controller included for adjusting speaker LED colors

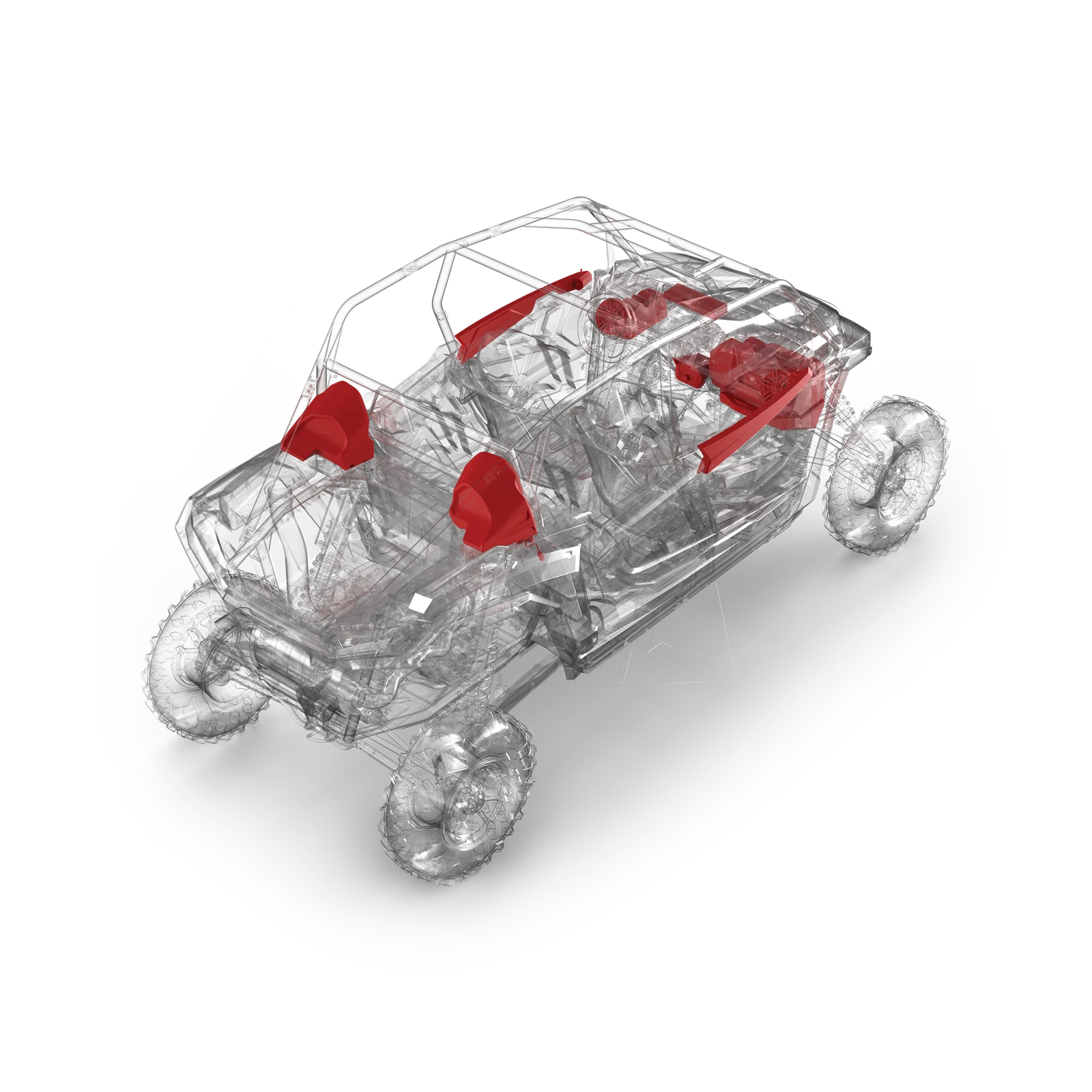

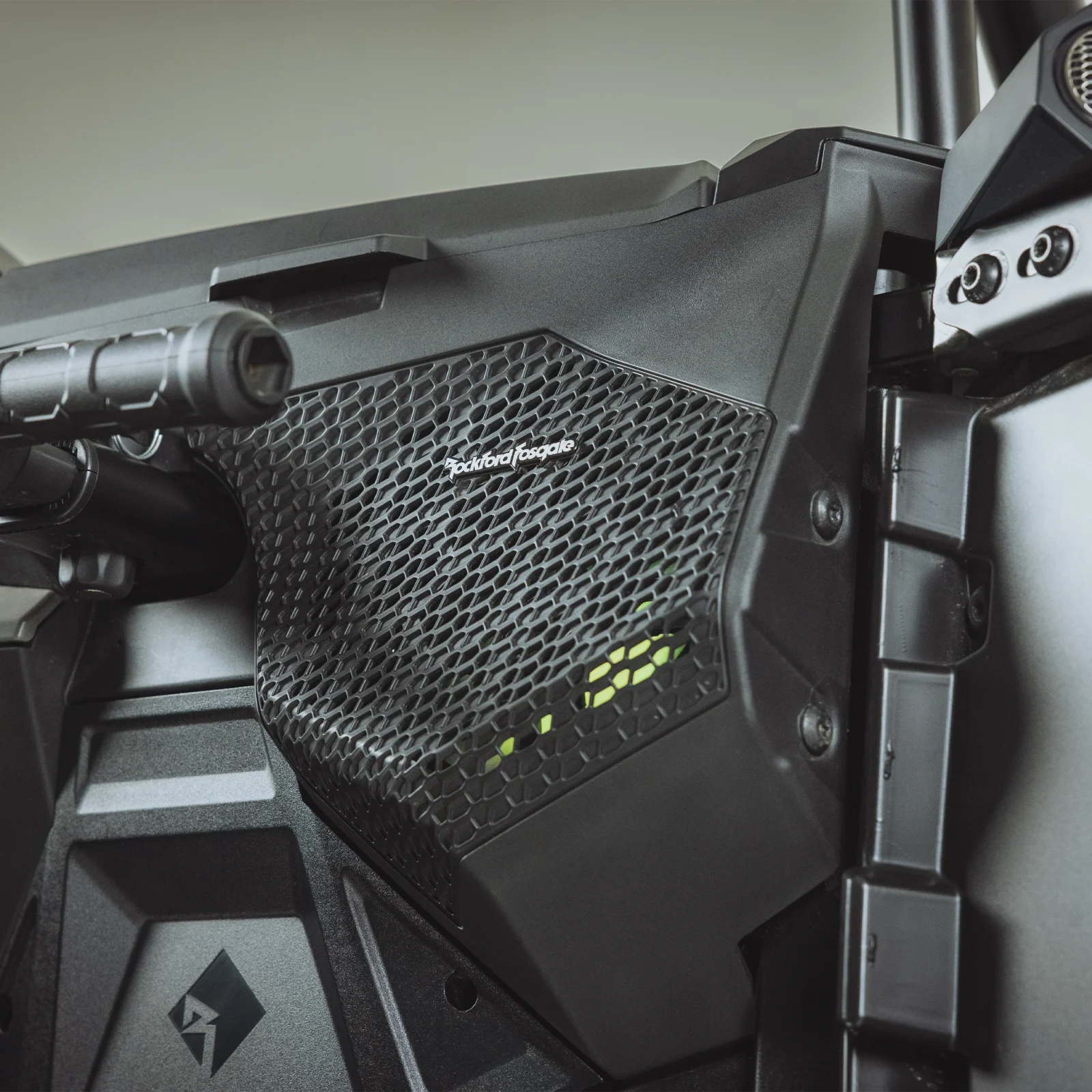

- Custom-fabricated enclosures designed to maintain functional cabin space
Fit and use
Designed specifically for 2024+ Polaris RZR XP. Typical upgrade time is listed as about 6 hours (per product documentation). The system is intended to replace or upgrade the vehicle's factory audio components and uses OEM-style connectors to simplify integration.
What to know
This kit is vehicle-specific for 2024+ RZR XP and is supplied with a PMX-3 source, a 5-channel IPX6 amplifier, Color Optix speakers and controller, and a plug-and-play wiring harness. The IPX6 rating applies to the amplifier for increased resistance to water intrusion. Enclosures are custom fabricated to fit the inter…
Highlights
Key features
- Includes wired antenna
- SiriusXM-Ready® satellite radio (requires SXV300 tuner)
- True plug-and-play design with OEM connectors for easy installation
- Direct bolt into vehicle using OEM mounting holes. Minimal drilling required

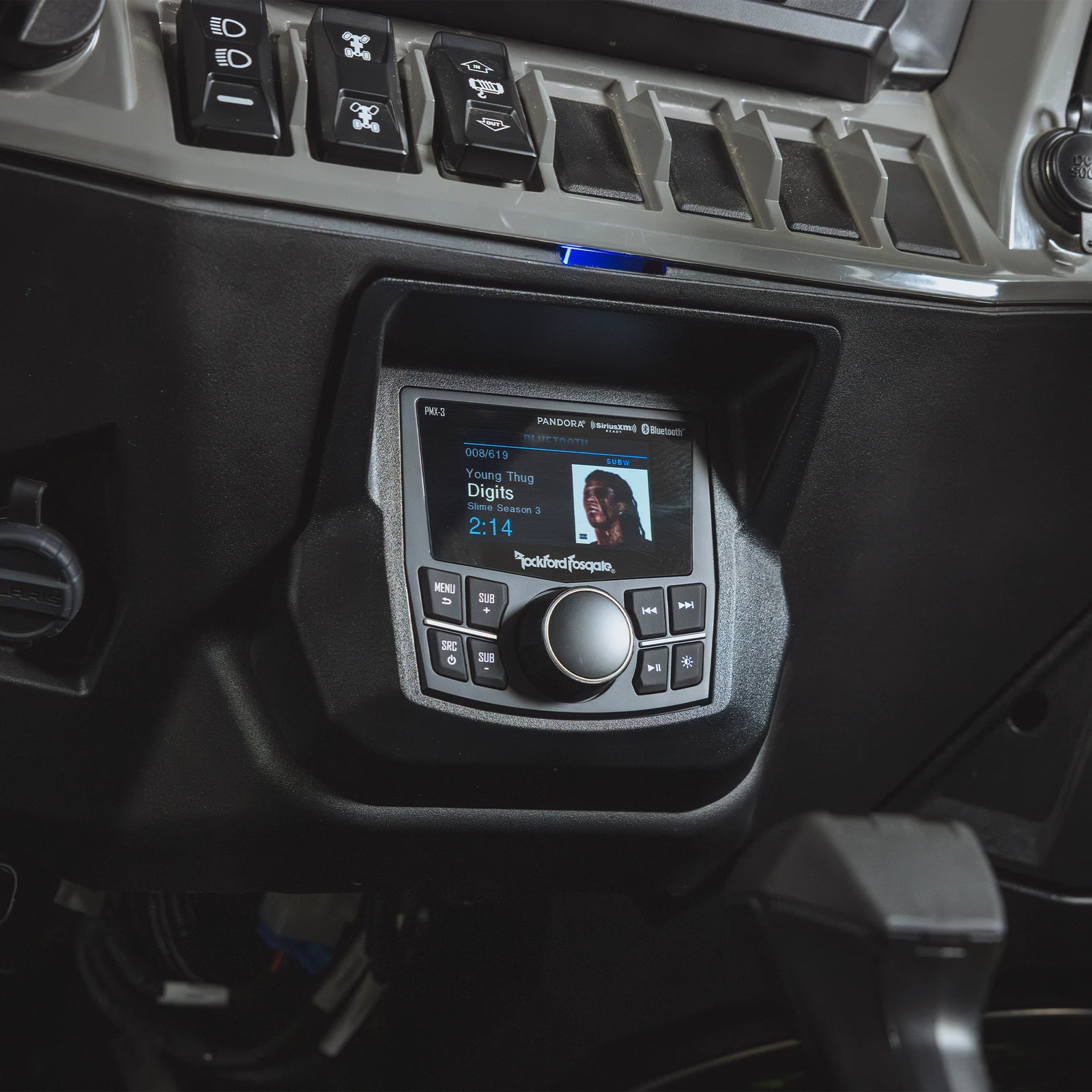

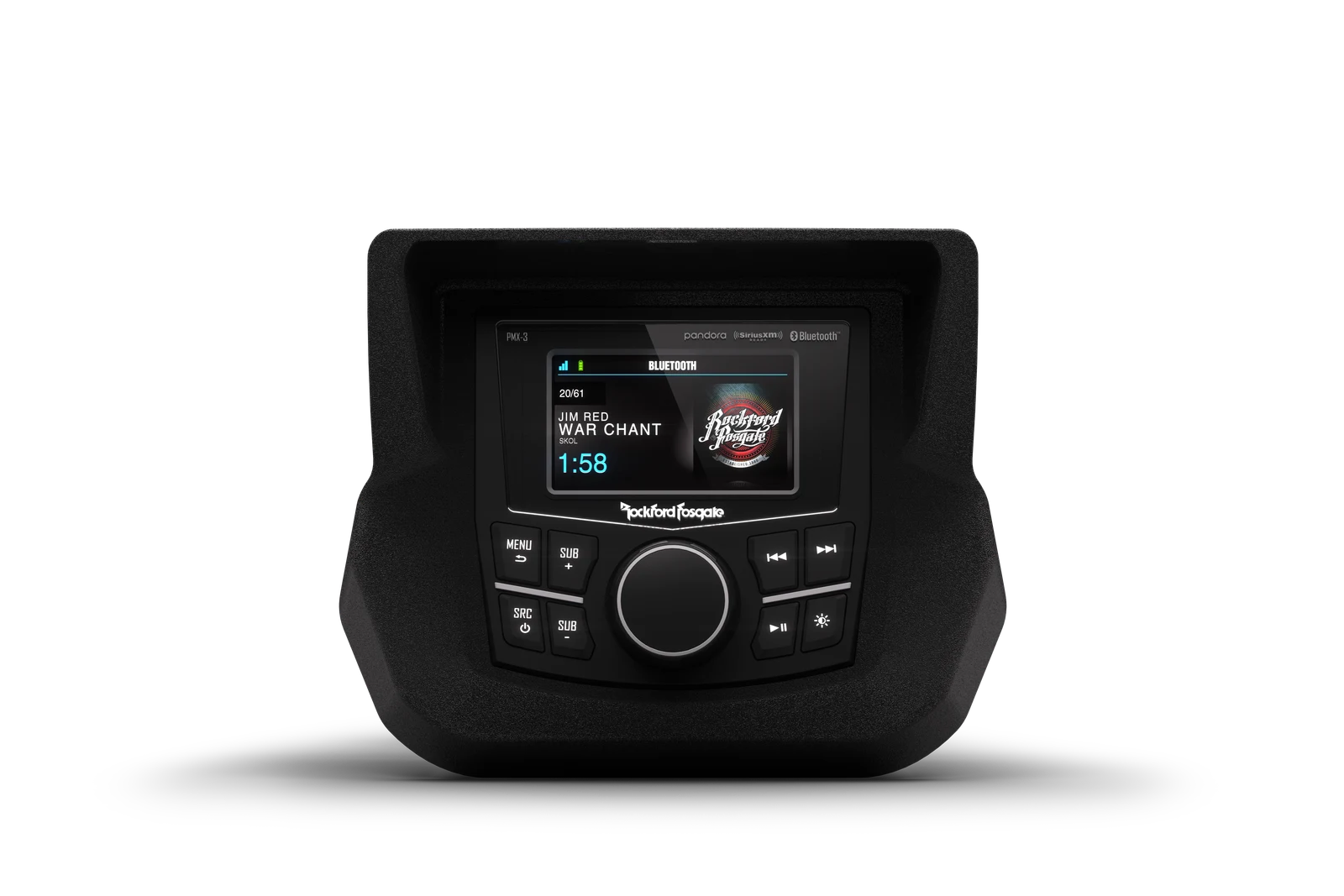

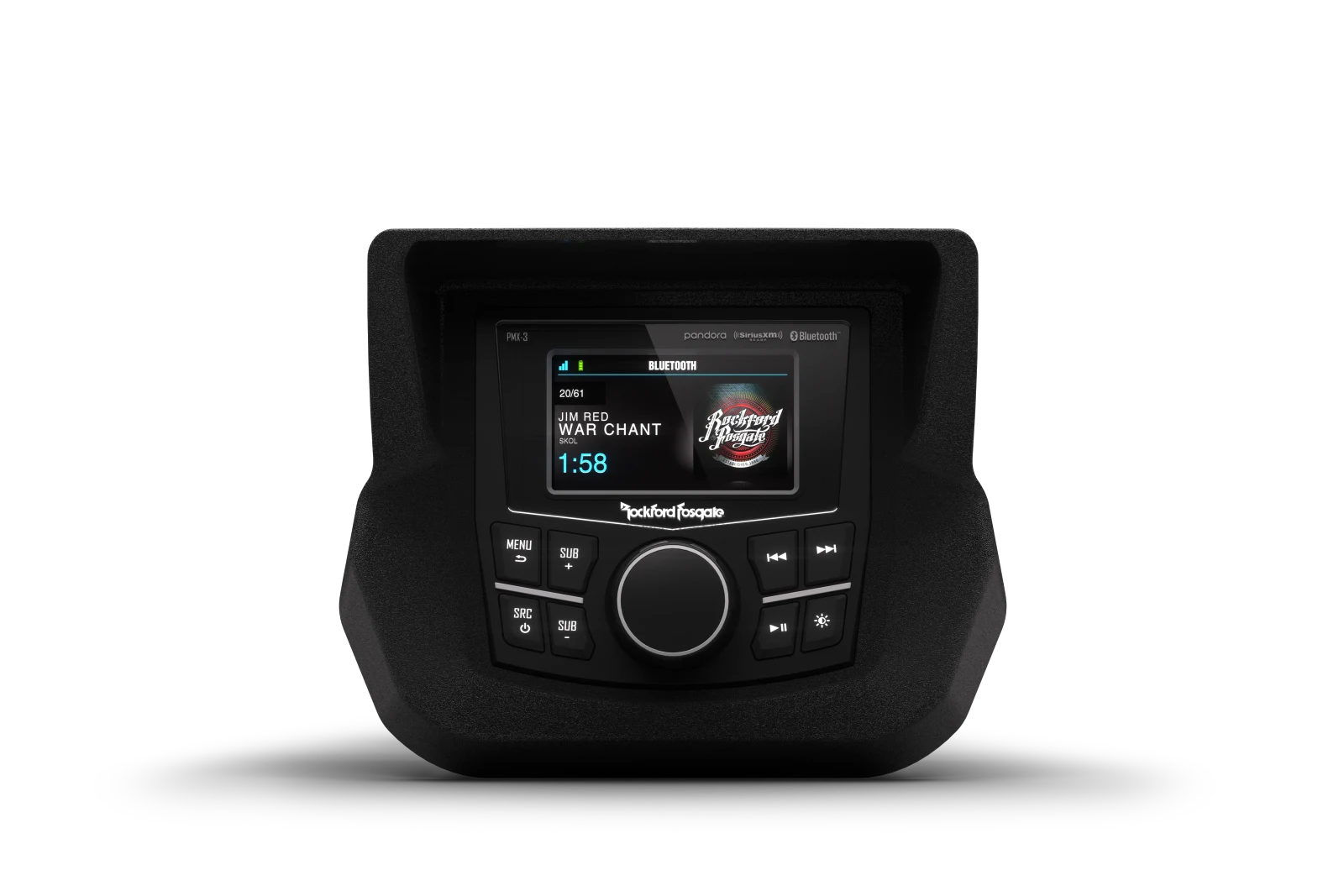

- PMX-3: Compact AM/FM/WB SiriusXM Ready™ 2.7" Digital Media Receiver
- M5-1500X5: 1,500 Watt 5-Channel IPX6 Element Ready™ Amplifier
- M2-TS: M2 1" Element Ready™ marine grade tweeters

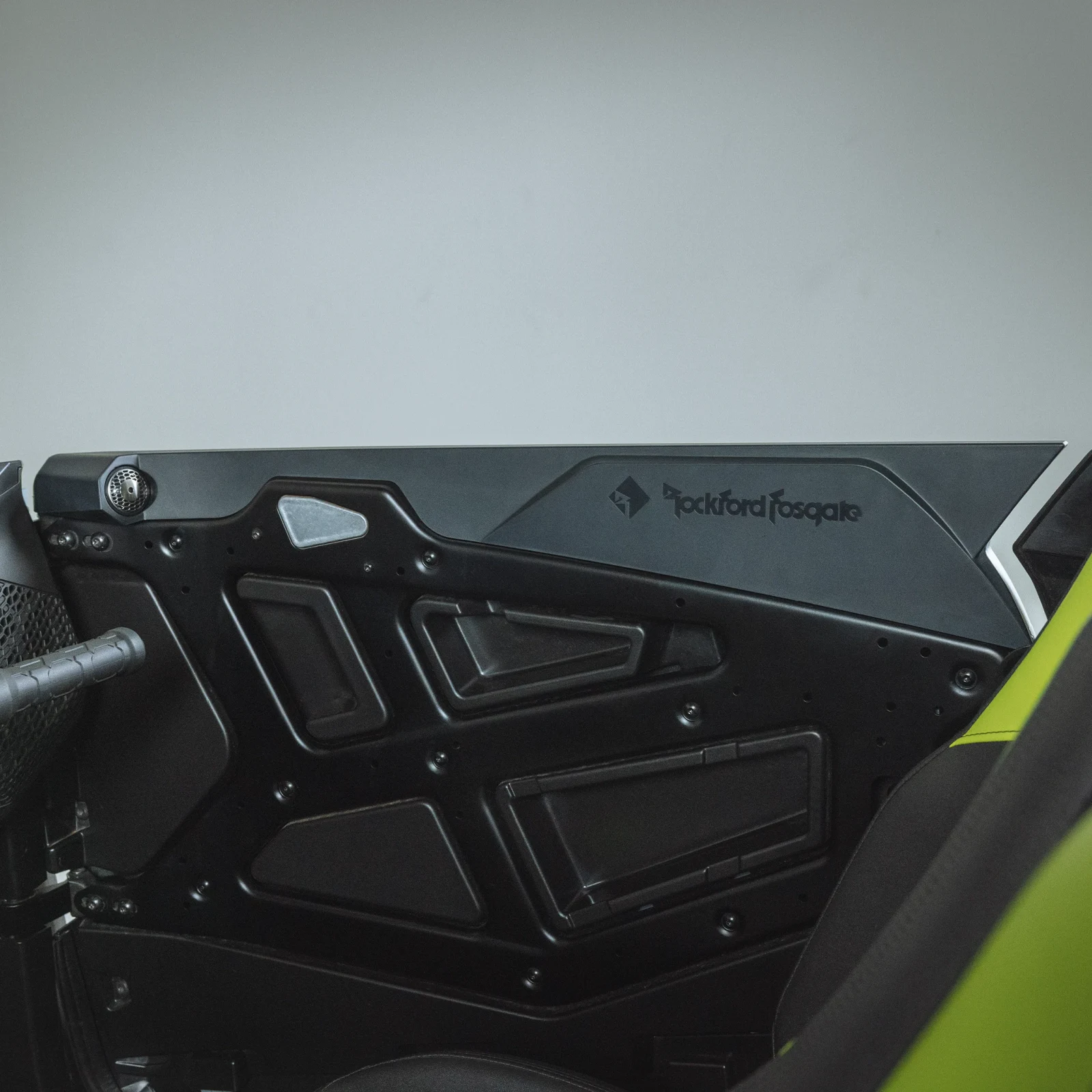

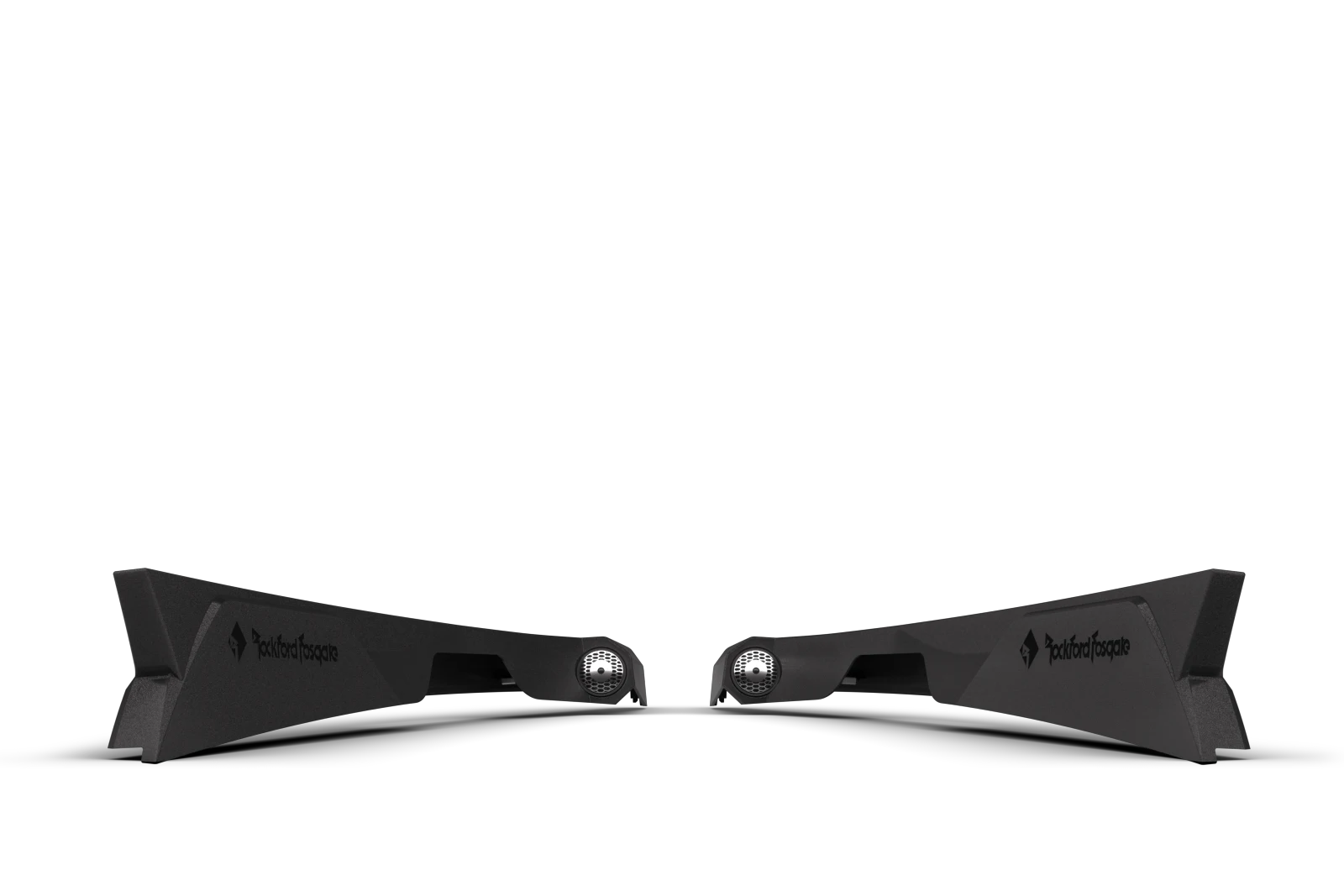

- Tweeter pods mount to top of doors and compliment vehicle body lines
- M2-65B: M2 6.5” Color Optix™ marine grade 2-Way speakers - Black

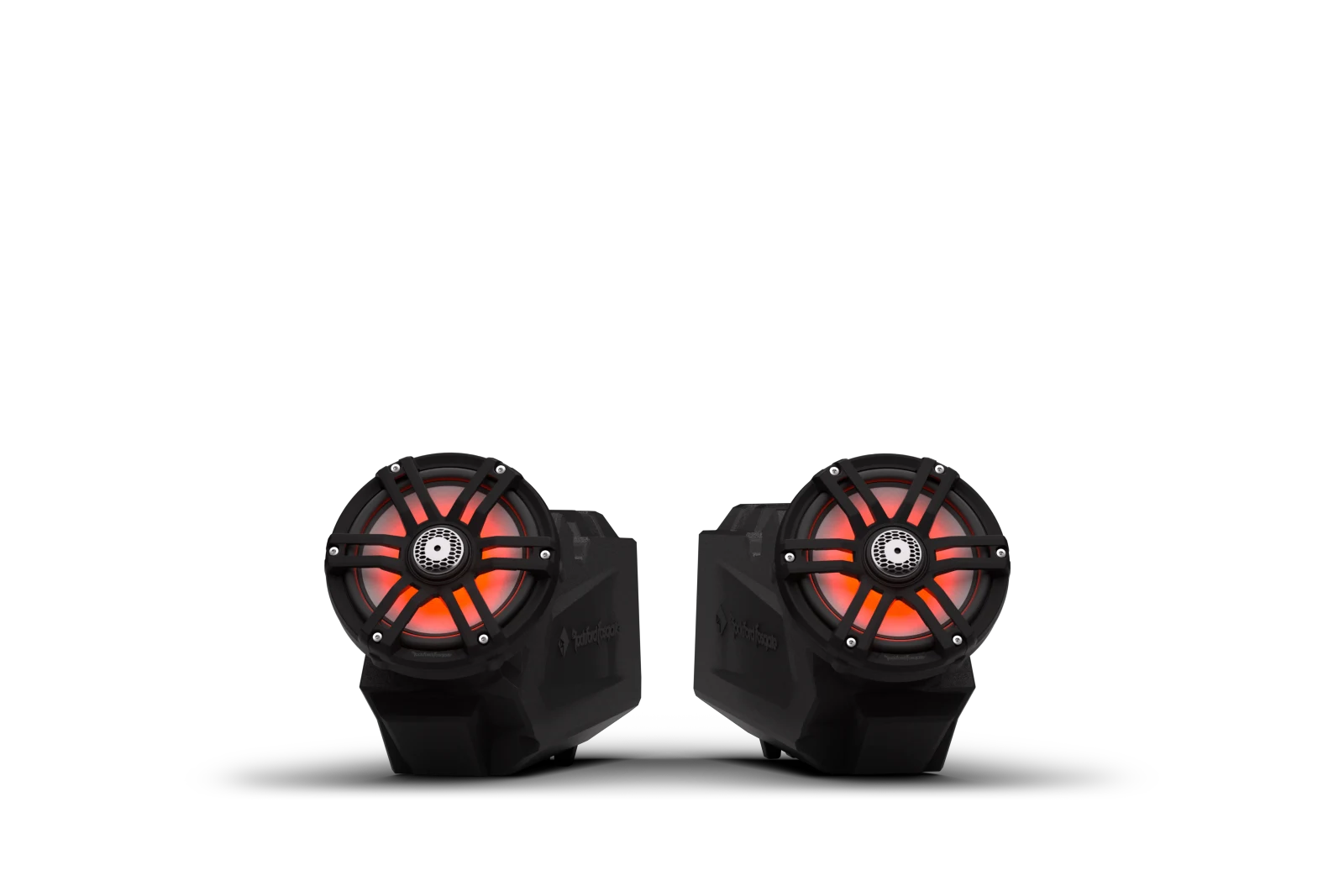

- M2-8B: M2 8" Color Optix™ marine grade 2-way speakers - Black

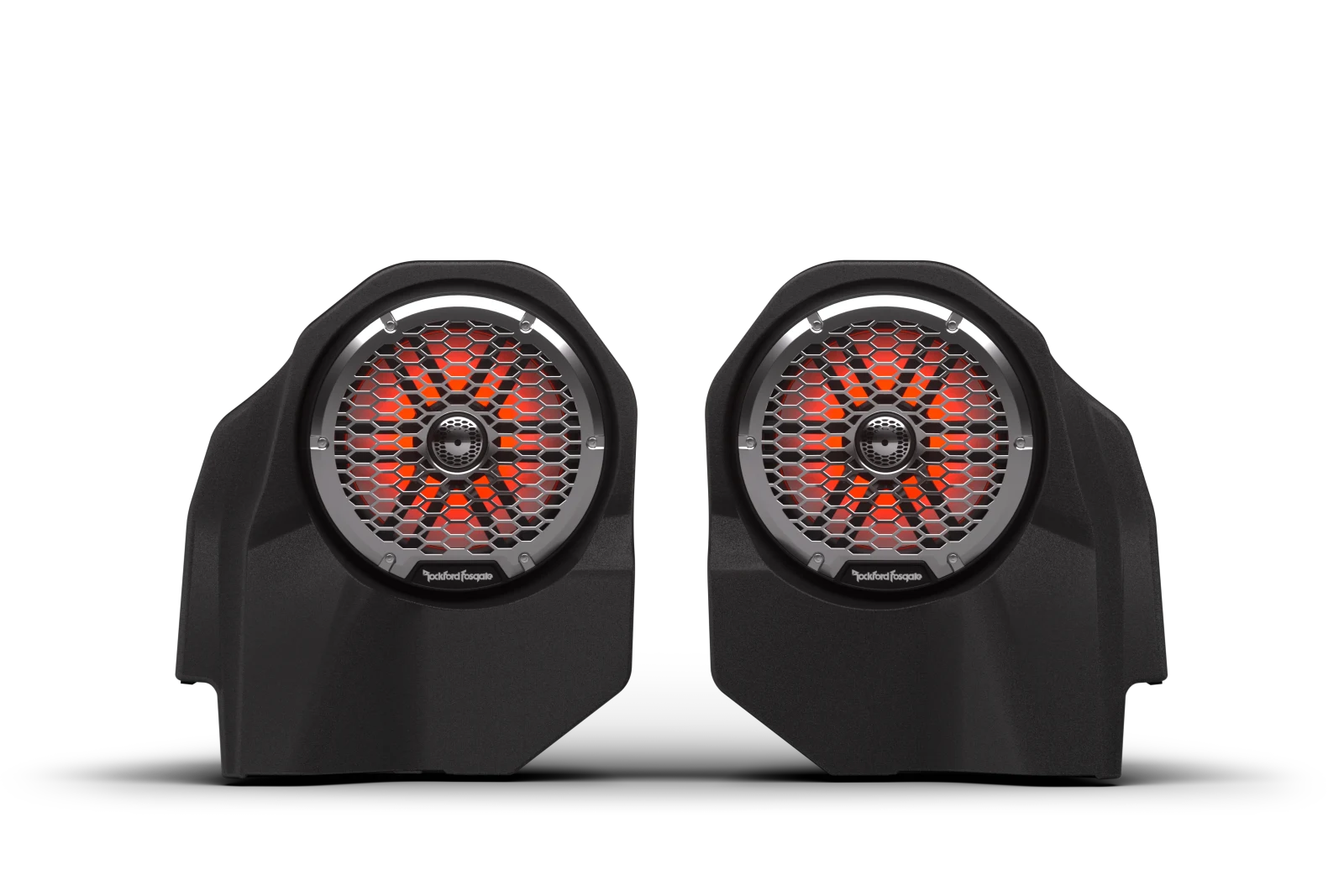

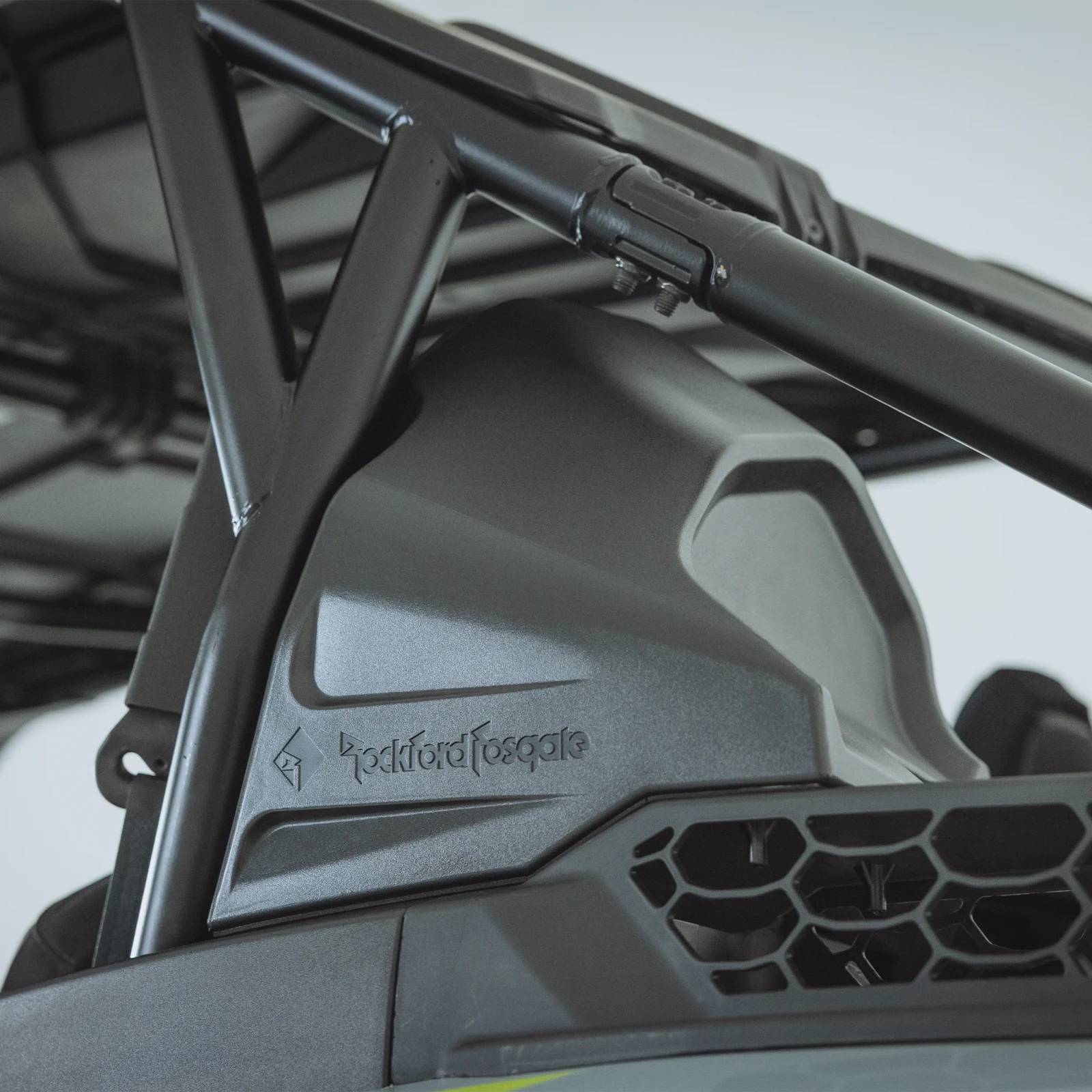

- Rear speaker pods do not interfere with Polaris® branded spare tire carrier, coolers, or storage boxes

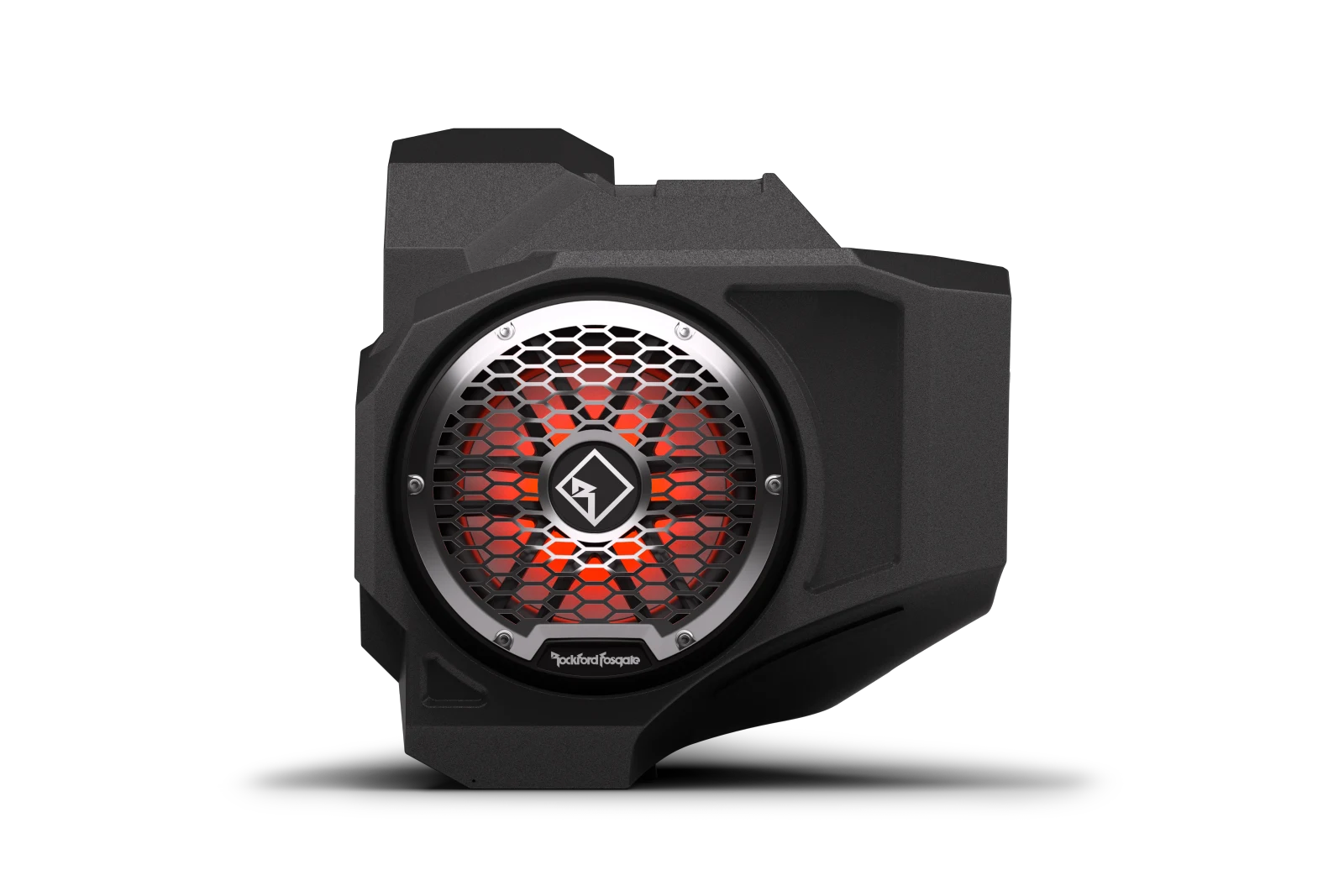

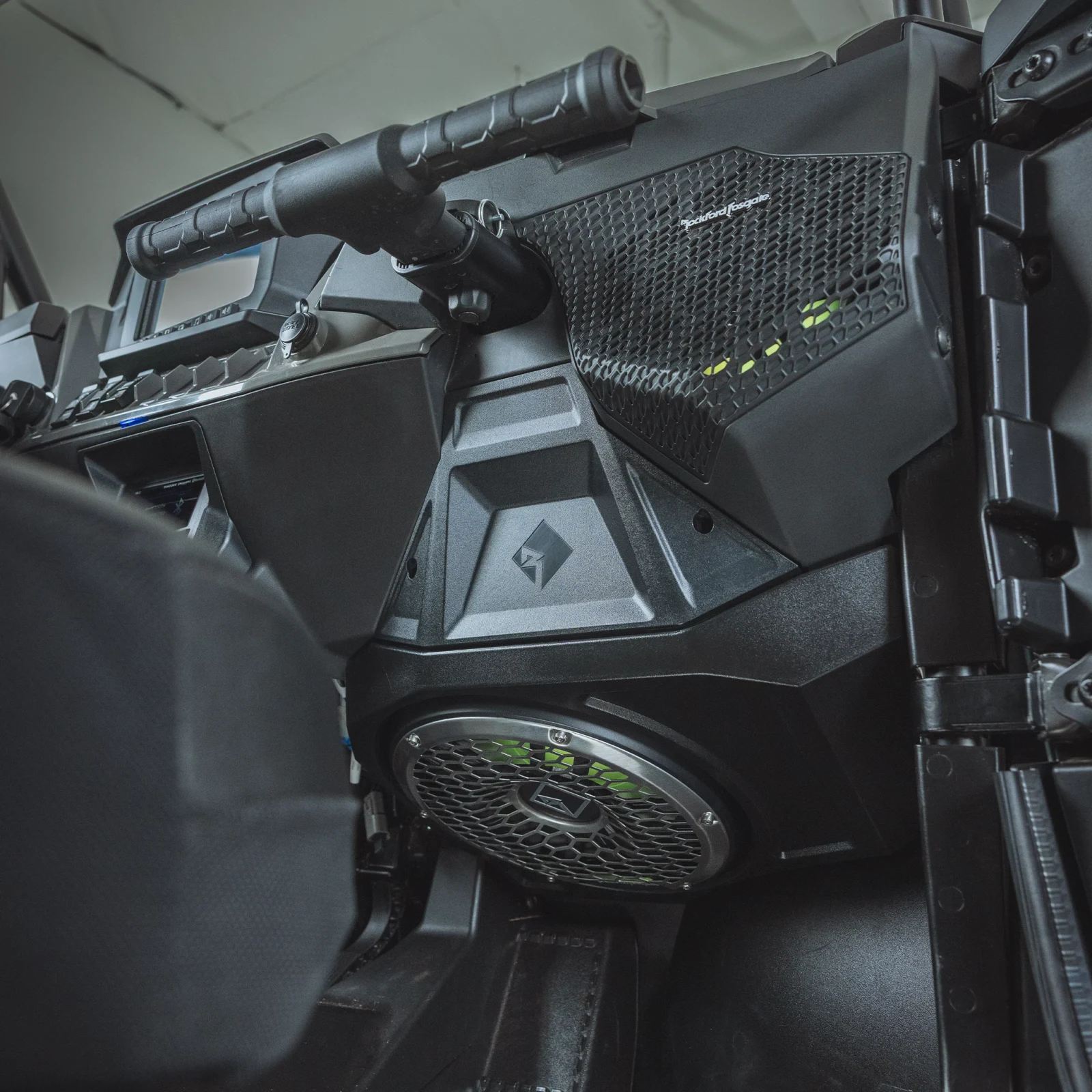

- M2D4-10IB-G2: M2 10" DVC 4Ω Element Ready™ Color Optix™ Subwoofer - Black (Gen-2)
More info
Manufacturer details
The all-new Rockford Fosgate aftermarket Stage 6 is a premium 1,500-Watt 7-speaker audio system for 2024+ Polaris RZR XP and features our PMX-3 SiriusXM Ready® source unit as your audio controller. An IPX6 rated 5-channel amplifier powers M2 Color Optix™ speakers that include 6.5” front coax, 1” door pod tweeters, 8” rear coax, and a single 10” under-dash subwoofer. All enclosures are custom fabricated and designed to fit seamlessly into the interior without loss of functional cabin space. The system features a Color Optix™ controller for adjusting speaker LED colors and includes a complete wiring harness with OEM style connectors for true plug-and-play integration. This kit allows for future expansion of a backup camera.
Unparalleled Performance: Featuring a plug-and-play design, this system is equipped with two 6.5-inch front speakers and 1-inch tweeters, two 8-inch rear speakers, a 10-inch subwoofer and a 2.7-inch source unit and a 1500-watt amplifier, that delivers unparalleled performance.
Plug-and-Play Design: Minimal drilling, no cutting and designed to work right out of the box. Simple installation ensures less time in the garage and more time out riding.
RF3 (Rockford Factory Fit and Finish): Designed and engineered to match and compliment the factory fit and finish of your vehicle. These components are purpose built to the exact specifications to ensure the best-in-class fitment and look.
Element Ready™: Purpose Built for the outdoor environment, Rockford’s Element Ready™ products are built to stand up to Water, Salt, and UV, making sure your products stand the test of time.
Compatibility: Refer to our compatibility chart to verify fitment before purchasing.
2024+ RZR XP | Product Launch
2024+ RZR XP | Product Overview
2024+ RZR XP | Installation Tutorial
2024+ RZR XP | Amp Tuning Guide
Download RF CONNECT to control Color Optix™:
Additional details
UNPARALLELED PERFORMANCE

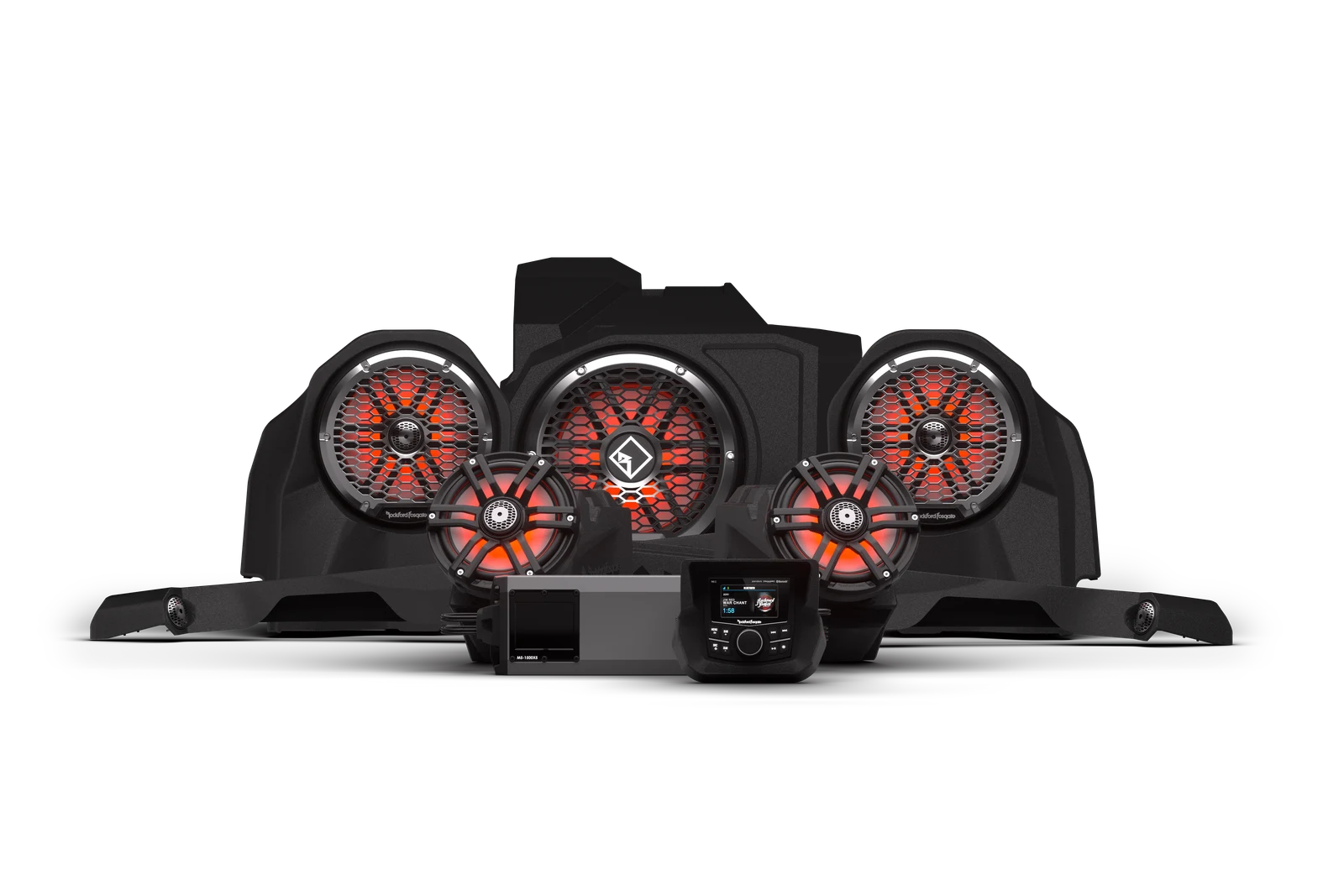

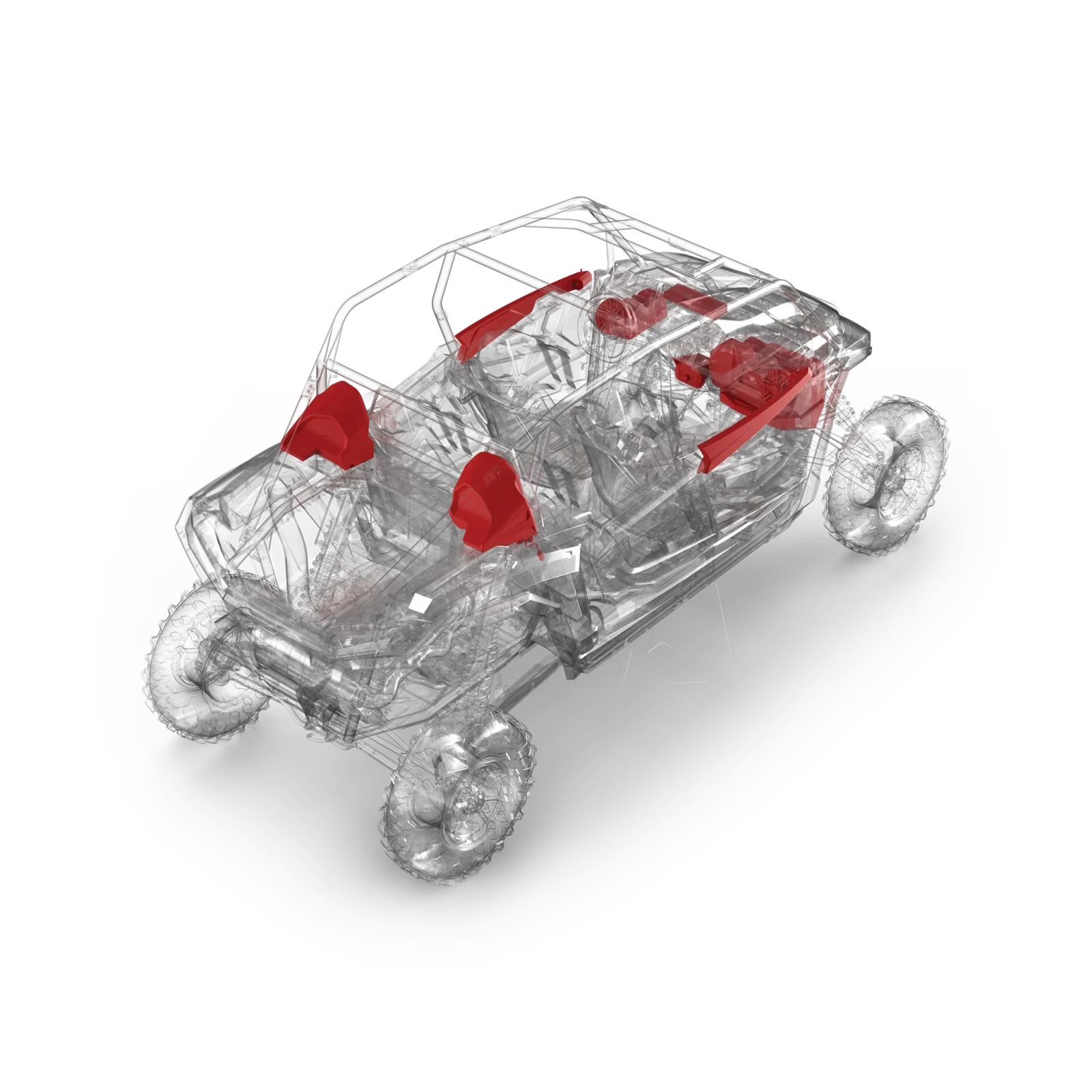

The RZR24XP-STG6 is a high-output, 7-speaker, 1,500-watt amplified front & rear audio system.

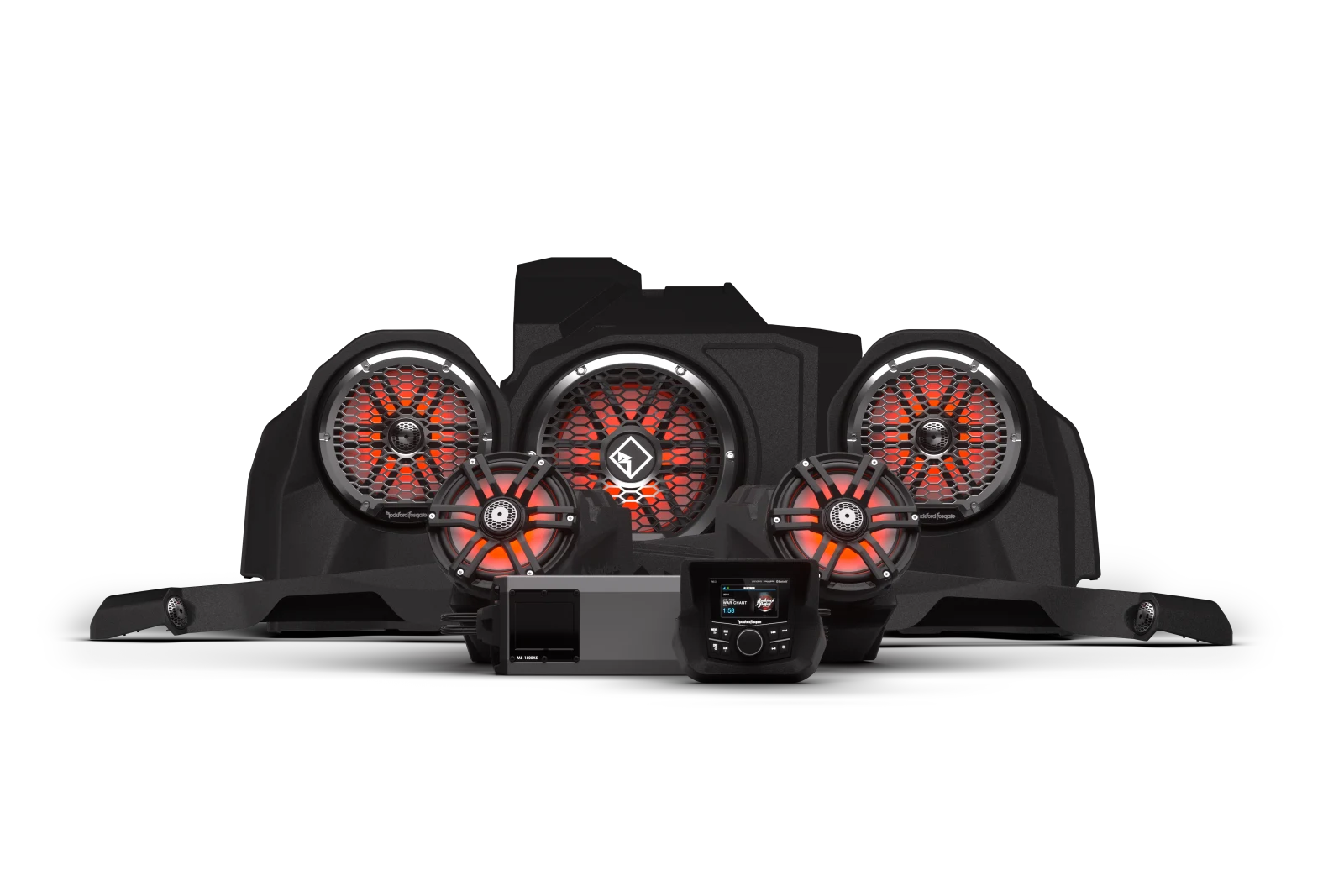

Components:
• (1) SiriusXM Ready® Source Unit
• (1) 1,500-Watt Amplifier
• (2) 1” M2 Element Ready™ Tweeters
• (2) 6.5” M2 Color Optix™ Speakers

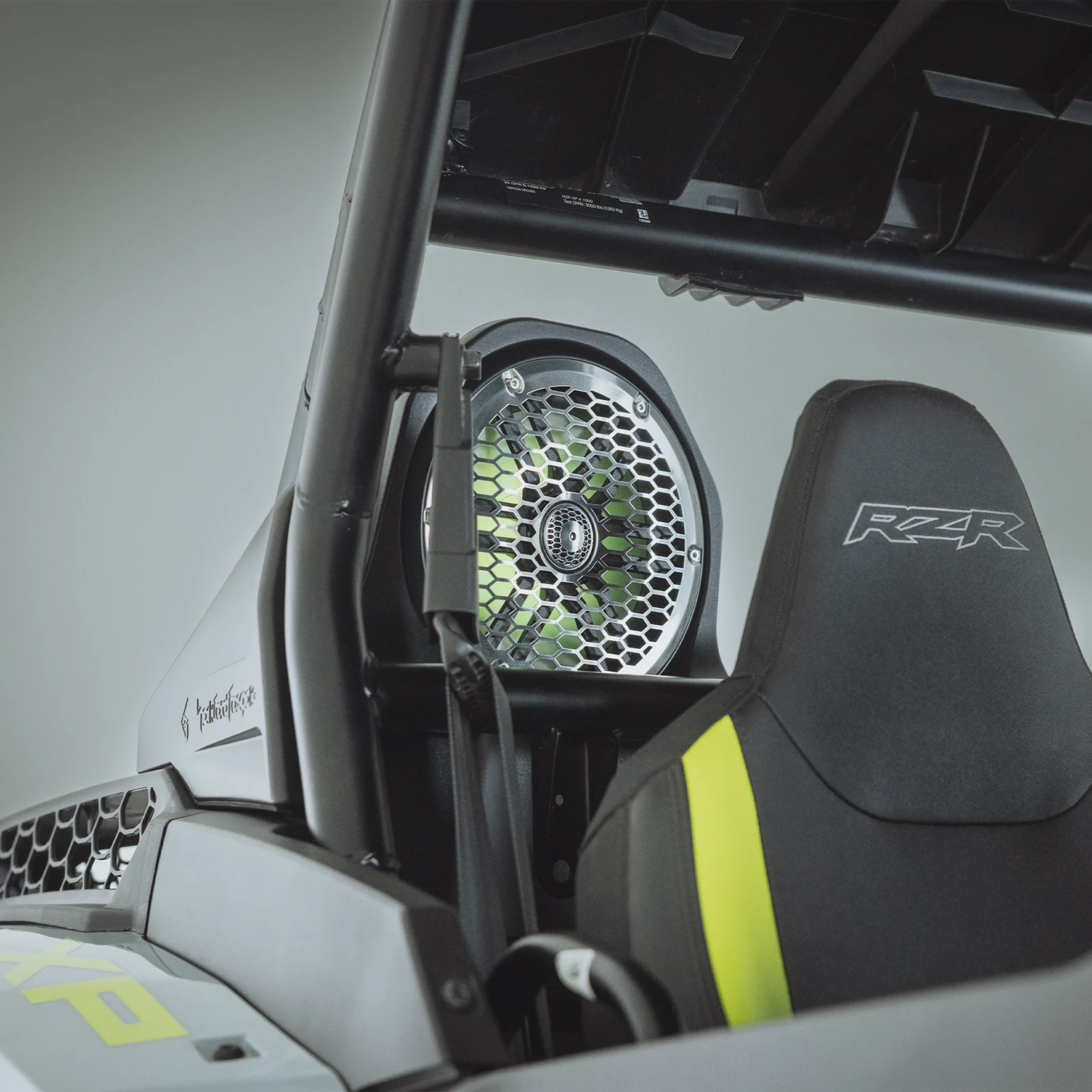

• (2) 8" M2 Color Optix™ Speakers
• (1) 10" M2 Color Optix™ Subwoofer
• (1) Color Optix™ Controller
Installation:
• (6) Hours Typical
Upgrade This Kit:
• (2) PMX-ANT Powered Antenna
• (1) PMX-USBP USB Extension Port
• (1) PMX-BTUR Steering Wheel Remote
• (1) MX-CAM-RZR14 Backup Cam
Technologies
Stainless Hardware
Stainless hardware is used to its natural resistance to corrosion and rusting. This ensures electrical connections
MP3 Playback
This source unit supports MP3 file format playback.
Pandora® Internet Radio
Pandora® (also known as Pandora Internet Radio) is a music streaming and automated music recommendation service.
IPX6 Water Intrusion Rating
A device with a level 6 water resistance rating can survive strong water jets projected by a 12.5mm nozzle at any
SiriusXM Ready™
This radio is ready to accept SiriusXM programming.
USB Playback
This source unit supports playback from a USB device.
Corrosion Protection
Components are tested for salt spray corrosion resistance.
Thermal Shock Resistant
Components are designed to withstand extreme temperature fluctuations ensuring they perform day-in and day-out.
Dust Resistant
Displays and motor structures are sealed tight so they look and sound as clear as possible no matter how many
Showing the main technologies for this product.
Specs
Specifications
10
| Speaker Qty | 7 |
| Amplifier Type | External |
| Total Power | 1,500 Watts |
| Mounting Hardware | Yes |
| Grille-Trim Ring Included | Yes |
| Included In The Box | PMX-DK • (4) Torx plastic tapping screw, ¼” x 1” long • (1) PMX radio bracket RZR24XP-FSE • (1) RZR24 Driver FSE • (1) RZR24 Passenger FSE • (6) Torx Bolt M6x0.75mm, 14mm long • (12) Hex Bolt M4x0.7mm, 22mm long • (2) Hex Screw M6 self-tapping • (2) Tube clamp mount bracket RZR24-FTP • (1) RZR24 Driver Pod • (1) RZR24 Passenger Pod • (4) Washer, M3x1.5” thick • (2) Hex bolt M3x0.6mm, 20mm long • (1) Hex key 2.5mm |
| Shipping Weight | TBA |
| Expansion Ports | Color Optix™ RGB: Front: DT06-4S (4-Pin) Rear: DT06-4S (4-Pin) |
| Included Components | (1 ea) PMX-3 (1 ea) M5-1500X5 (1 pr) M2-TS (1 pr) M2-65B (1 pr) M2-8B (1 ea) M2D4-10IB-G2 (1 ea) PMX-RGB |
| Included In The Box | RZR24-RSE • (1) RZR24 Driver RSE • (1) RZR24 Passenger RSE • (1) RSE Driver bracket • (1) RSE Passenger bracket • (4) Torx screw M8x25mm long • (2) T40 Torx screw M6x25mm long • (2) Gasket A • (2) Gasket B • (12) Hex crew M4x0.7mm, 30mm long RZR24-FWE • (1) RZR24 FWE • (1) Passenger dash trim • (1) Port tube cap • (2) Torx screw M5, 36mm long • (2) Torx screw M5, 22mm long • (6) Hex bolt M5x0.8mm, 48mm long • (4) Torx bolt M6x0.75mm, 14mm long • (2) Tube clamp mount RZR24-K4 • (1) RZR24-K4 bracket • (1) RZR24 wiring harness • (1) Tube clamp • (1) T40 Torx bit • (1) Hex key 2.5mm • (1) Hex key 3mm • (1) Hex key 5mm • (6) Hex screw M4x0.7mm |

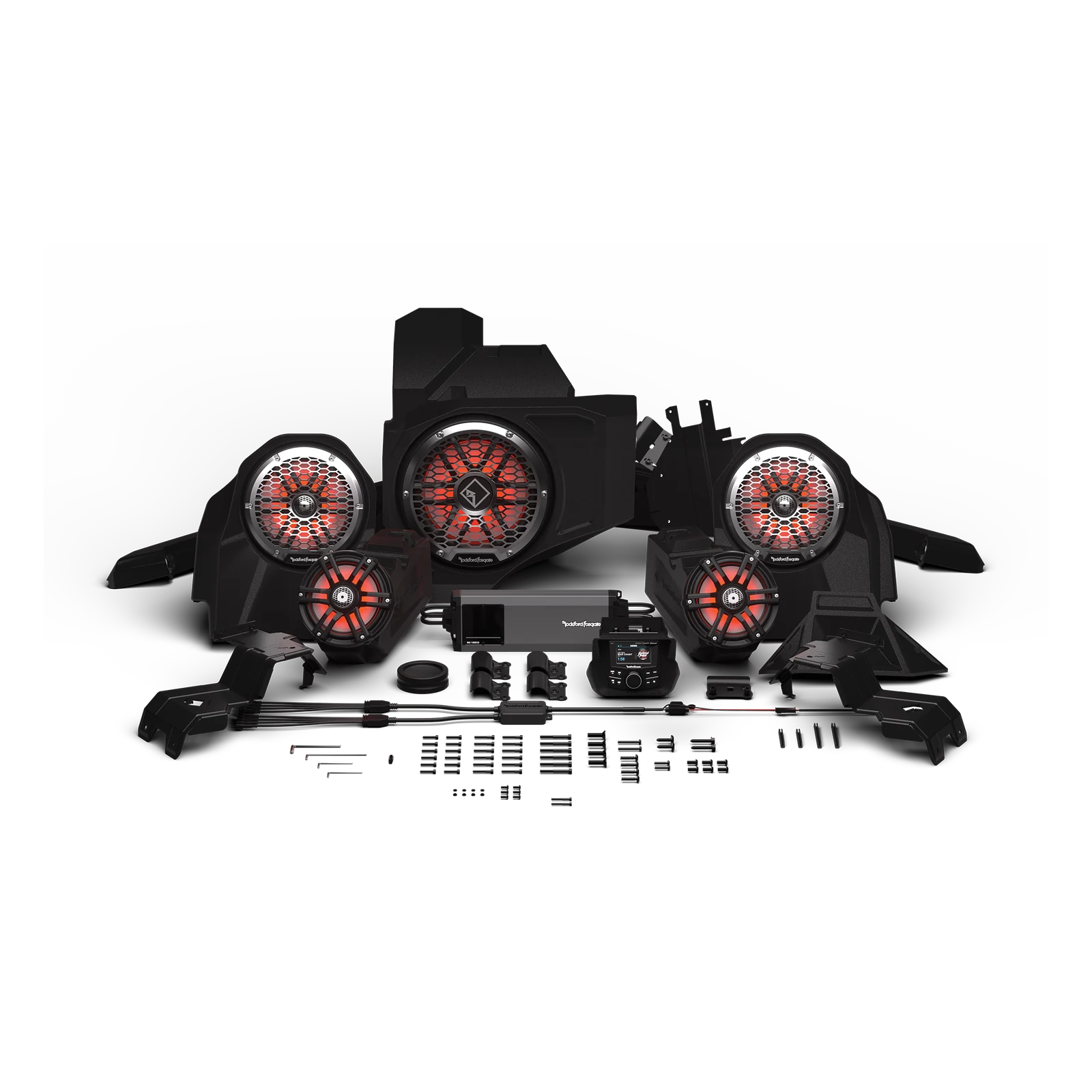

What's in the box
| Qty | Part number | Item details |
|---|---|---|
| 4 | — | Torx plastic tapping screw, ¼” x 1” long |
| 1 | — | PMX radio bracket RZR24XP-FSE |
| 1 | — | RZR24 Driver FSE |
| 1 | — | RZR24 Passenger FSE |
| 6 | — | Torx Bolt M6x0.75mm, 14mm long |
| 12 | — | Hex Bolt M4x0.7mm, 22mm long |
| 2 | — | Hex Screw M6 self-tapping |
| 2 | — | Tube clamp mount bracket RZR24-FTP |
| 1 | — | RZR24 Driver Pod |
| 1 | — | RZR24 Passenger Pod |
| 4 | — | Washer, M3x1.5” thick |
| 2 | — | Hex bolt M3x0.6mm, 20mm long |
| 1 | — | Hex key 2.5mm |
| 1 | — | RZR24 Driver RSE |
| 1 | — | RZR24 Passenger RSE |
| 1 | — | RSE Driver bracket |
| 1 | — | RSE Passenger bracket |
| 4 | — | Torx screw M8x25mm long |
| 2 | — | T40 Torx screw M6x25mm long |
| 2 | — | Gasket A |
| 2 | — | Gasket B |
| 12 | — | Hex crew M4x0.7mm, 30mm long RZR24-FWE |
| 1 | — | RZR24 FWE |
| 1 | — | Passenger dash trim |
| 1 | — | Port tube cap |
| 2 | — | Torx screw M5, 36mm long |
| 2 | — | Torx screw M5, 22mm long |
| 6 | — | Hex bolt M5x0.8mm, 48mm long |
| 4 | — | Torx bolt M6x0.75mm, 14mm long |
| 2 | — | Tube clamp mount RZR24-K4 |
| 1 | RZR24-K4 | bracket |
| 1 | — | RZR24 wiring harness |
| 1 | — | Tube clamp |
| 1 | — | T40 Torx bit |
| 1 | — | Hex key 2.5mm |
| 1 | — | Hex key 3mm |
| 1 | — | Hex key 5mm |
| 6 | — | Hex screw M4x0.7mm |
Reviews (0)
—
No average rating yet
0 reviews
No written reviews are live yet. Signed-in customers can submit one below.
No written reviews are live for this item yet.
Support
Return Authorization
If you bought this product from Onkar Electronics, use the Contact Us page on the Onkar Electronics website and we will help with return authorization and warranty support. If you purchased it from another dealer, contact that authorized dealer first for return assistance.
Popular Questions
No FAQs available
Compatibility
YESCompatible with factory equipment |
NOModel NOT compatible with kit |
NOT AVAILABLEModel not produced this year |
|---|
BYPASSPolaris RIDE COMMAND RCSee our RIDE COMMAND Kit |
YESRZR XP(2-SEAT) |
YESRZR XP(4-SEAT) |
NORZR Pro XP(2-SEAT) |
NORZR Pro XP(4-SEAT) |
NORZR Turbo R(2-SEAT) |
NORZR Turbo R(4-SEAT) |
NORZR Pro R(2-SEAT) |
NORZR Pro R(4-SEAT) |
| 2-SEAT MODELS | 2024 | 2025 |
|---|---|---|
| RZR XP 1000 Sport | ✅ | ✅ |
| RZR XP 1000 Premium RF1 | ✅ | ✅ RC |
| RZR XP 1000 Ultimate RC, RF3 | ✅ | ✅ |
| 4-SEAT MODELS | 2024 | 2025 |
|---|---|---|
| RZR XP 4 1000 Sport | ✅ | ✅ |
| RZR XP 4 1000 Premium RF1 | ✅ | ✅ RC |
| RZR XP 4 1000 Ultimate RC, RF3 | ✅ | ✅ |
[ ] Brackets indicate nomenclature used on earlier models and inherited on later models.
* Optional package available from factory
RC Ride Command comes factory equipped. Required for Rockford Fosgate audio kits with "RC" in model number.
RF1 Stage 1 factory equipped with Rockford Fosgate premium audio (2 front speakers). Needs to be bypassed.
RF2 Stage 2 factory equipped with Rockford Fosgate premium audio (2 tweeters, 2 front speakers, 400W amp). Needs to be bypassed.
RF3 Stage 3 factory equipped with Rockford Fosgate premium audio (2 tweeters, 2 front speakers, 2 rear speakers, 400W amp). Needs to be bypassed.
