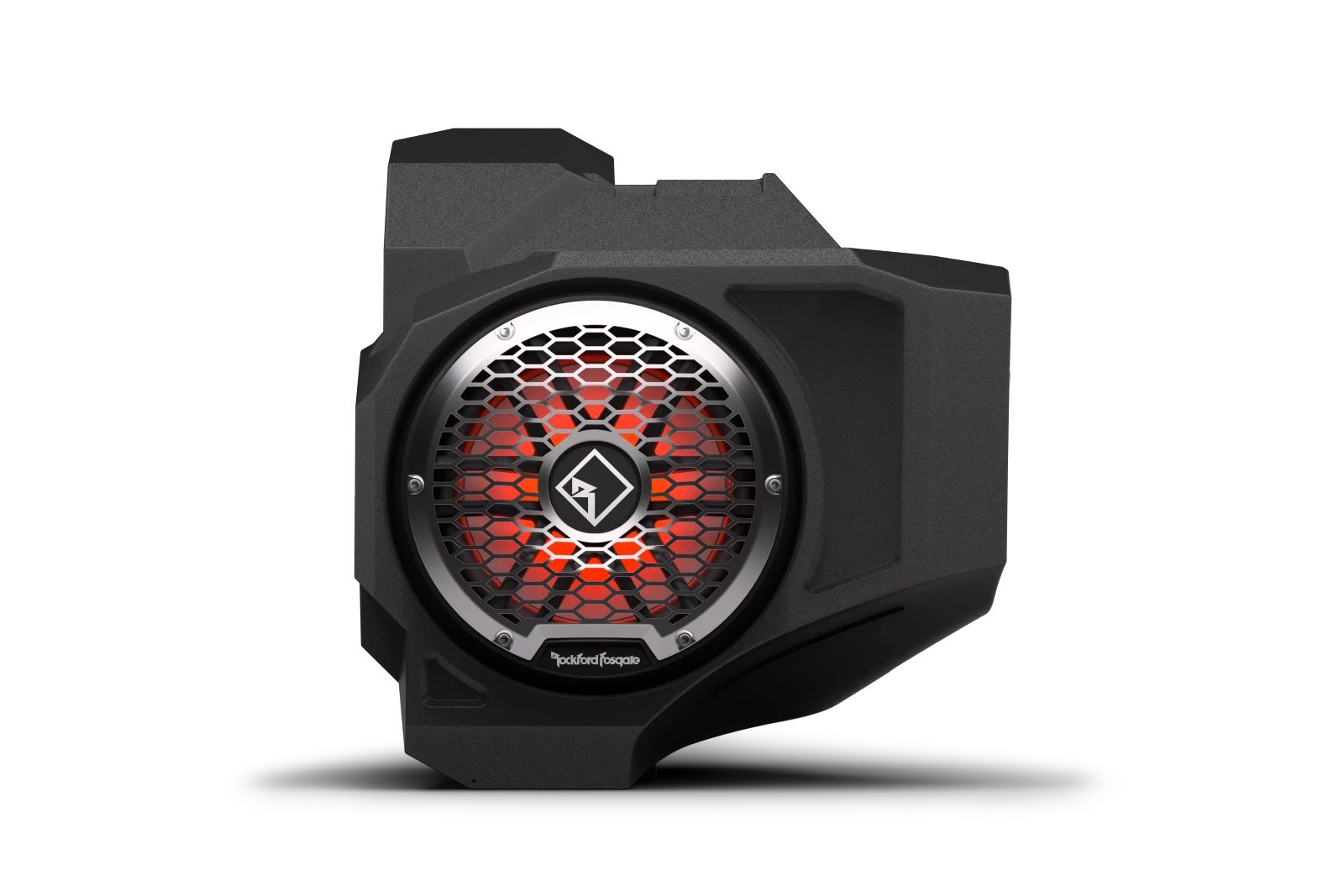

Rockford Fosgate RZR24RCXP-STG6Stage 6 Aftermarket 1,500-Watt Audio System for 2024+ RZR XP w/ Ride Command
Variants
Premium 1,500-Watt, 7-speaker amplified audio system designed for 2024+ Polaris RZR XP that integrates with Ride Command and includes Rockford Fosgate’s Color Optix LED control.
Highlights
- Element Ready™ to withstand the harsh outdoor environment like dust, water, and UV rays
- 2-Year Warranty
- Direct bolt into vehicle using OEM mounting holes. Minimal drilling required
- RFPOL-RCA: Ride Command® 3-way active noise reduction interface for select RZR® models
Key specs
Full specs- Speaker Qty
- 7
- Amplifier Type
- External
- Total Power
- 1,500 Watts
- Mounting Hardware
- Yes
- Grille-Trim Ring Included
- Yes
- Included In The Box
- PMX-DK • (4) Torx plastic tapping screw, ¼” x 1” long • (1) PMX radio bracket RZR24XP-FSE • (1) RZR24 Driver FSE • (1) RZR24 Passenger FSE • (6) Torx Bolt M6x0.75mm, 14mm long • (12) Hex Bolt M4x0.7mm, 22mm long • (2) Hex Screw M6 self-tapping • (2) Tube clamp mount bracket RZR24-FTP • (1) RZR24 Driver Pod • (1) RZR24 Passenger Pod • (4) Washer, M3x1.5” thick • (2) Hex bolt M3x0.6mm, 20mm long • (1) Hex key 2.5mm
- Shipping Weight
- TBA
- Expansion Ports
- Color Optix™ RGB: Front: DT06-4S (4-Pin) Rear: DT06-4S (4-Pin)
Key specs
Full specs- Speaker Qty
- 7
- Amplifier Type
- External
- Total Power
- 1,500 Watts
- Mounting Hardware
- Yes
Highlights
Overview- Element Ready™ to withstand the harsh outdoor environment like dust, water, and UV rays
- 2-Year Warranty
- Direct bolt into vehicle using OEM mounting holes. Minimal drilling required
Overview
Premium 1,500-Watt, 7-speaker amplified audio system designed for 2024+ Polaris RZR XP that integrates with Ride Command and includes Rockford Fosgate’s Color Optix LED control.
Best for
- Owners of 2024+ Polaris RZR XP who want a factory-integrated
- high-output audio upgrade that maintains interior fit and uses Ride Command as the source.
Key points
- 1,500-Watt total output with a 5-channel IPX6-rated amplifier

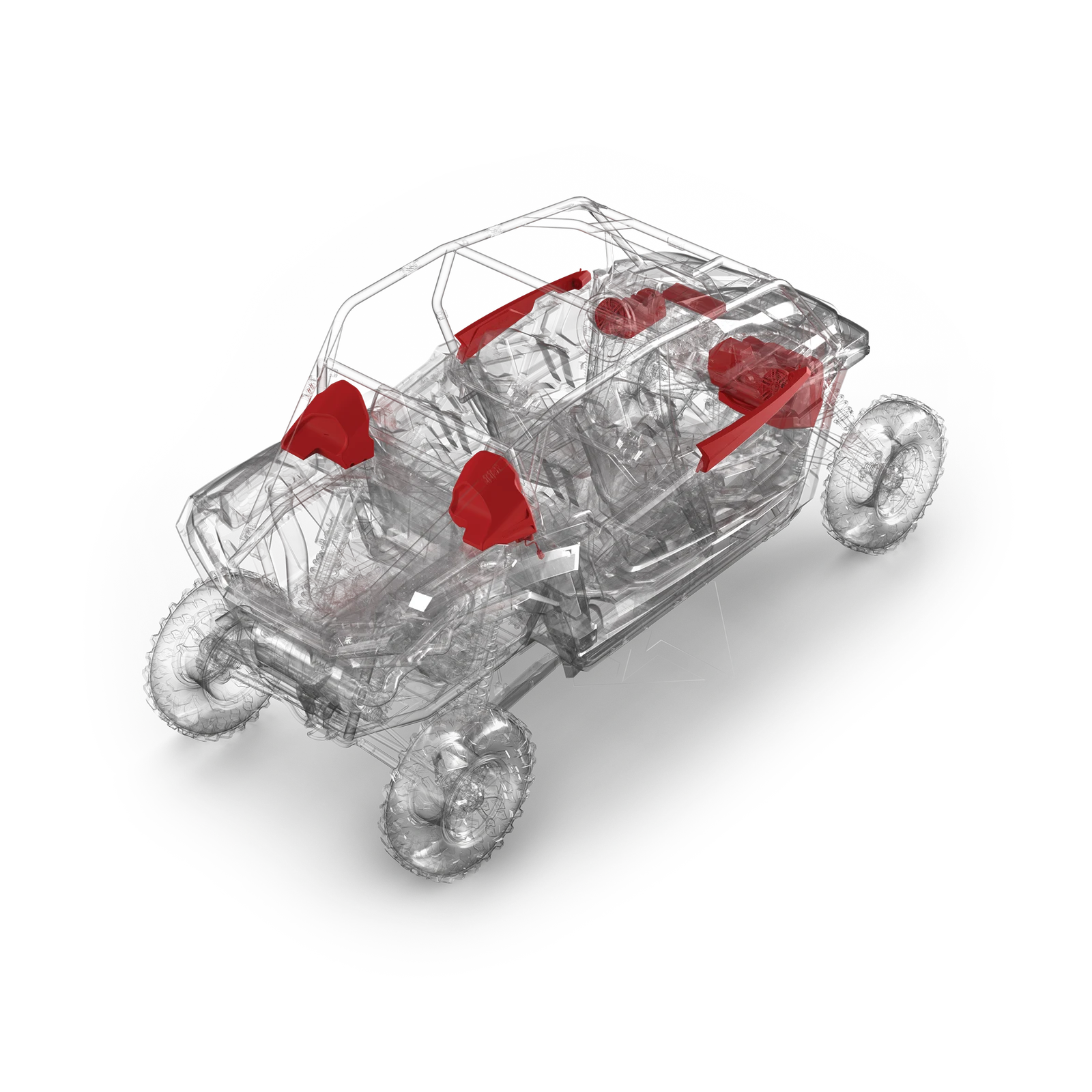

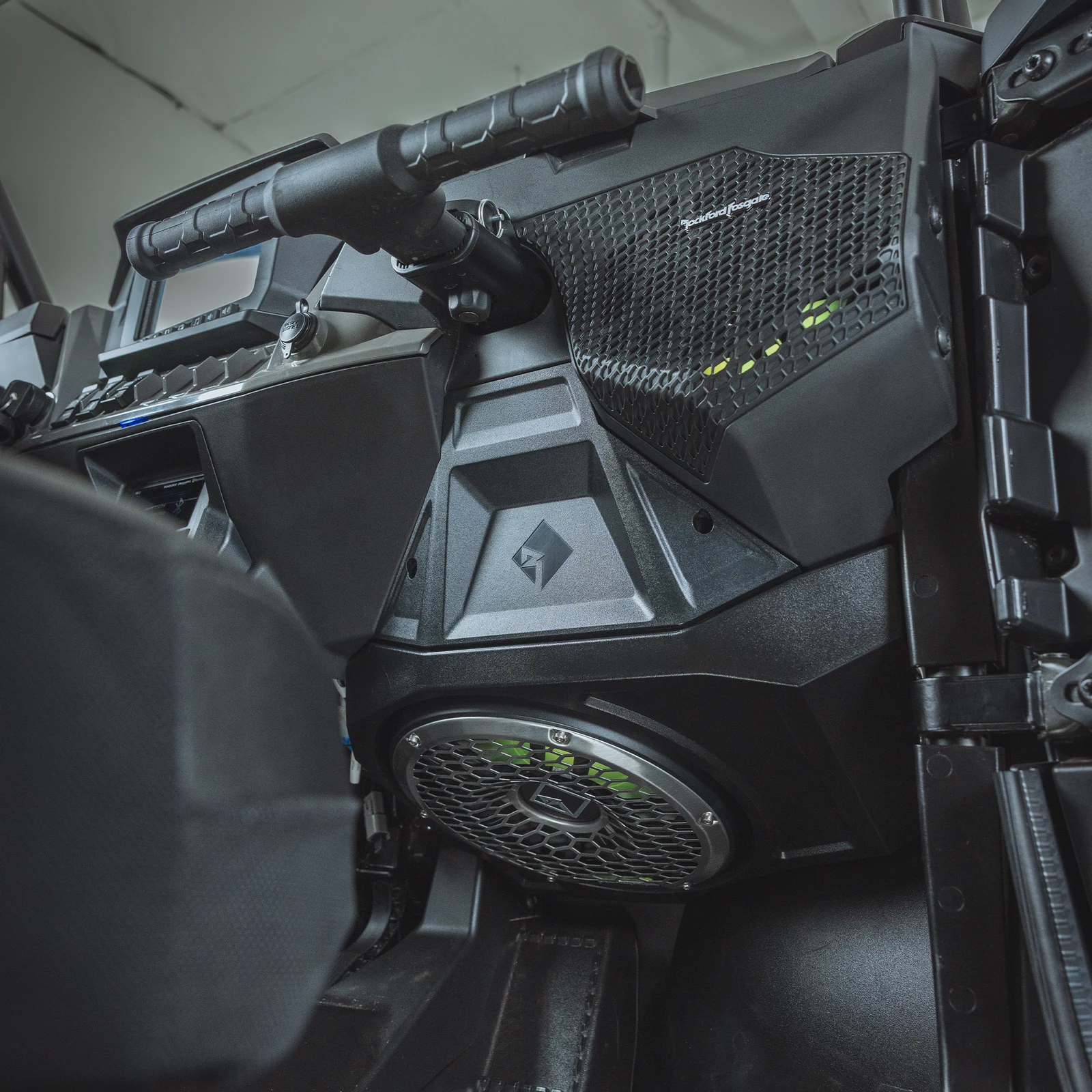

- 7-speaker configuration: (2) 6.5" front coax, (2) 8" rear coax, (2) 1" door pod tweeters, and (1) 10" under-dash subwoofer
- Includes a Ride Command interface and Color Optix controller for speaker LED color adjustments
- Custom-fabricated enclosures designed to fit interior space without loss of functional cabin space

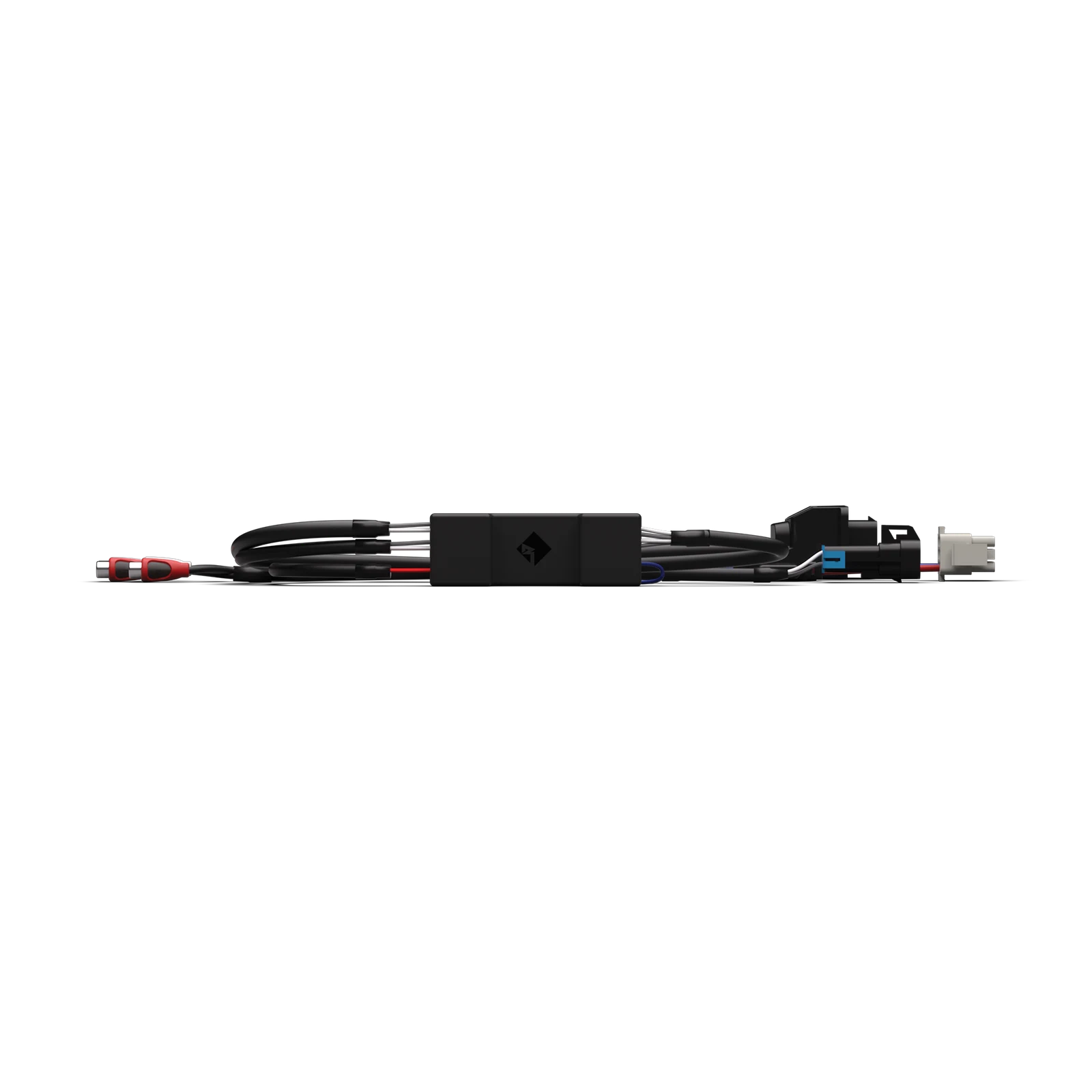

- Complete wiring harness with OEM-style connectors for plug-and-play integration
- Designed for future expansion with a PMX-3 source unit
Fit and use
Fits 2024+ Polaris RZR XP and uses the vehicle’s Ride Command system as the source via the included interface. Typical installation time listed as 6 hours. The system is plug-and-play with OEM-style connectors and supports future PMX-3 upgrades for expanded control.
What to know
This Stage 6 kit integrates with Ride Command through a proprietary interface and uses an IPX6-rated amplifier for environmental protection. Enclosures and components are engineered to fit the RZR XP interior without reducing usable cabin space. A Color Optix controller is provided for LED adjustment. Refer to the sup…
Highlights
Key features
- Element Ready™ to withstand the harsh outdoor environment like dust, water, and UV rays
- 2-Year Warranty
- Direct bolt into vehicle using OEM mounting holes. Minimal drilling required
- RFPOL-RCA: Ride Command® 3-way active noise reduction interface for select RZR® models
- M5-1500X5: 1,500 Watt 5-Channel IPX6 Element Ready™ Amplifier
- M2-TS: M2 1" Element Ready™ marine grade tweeters

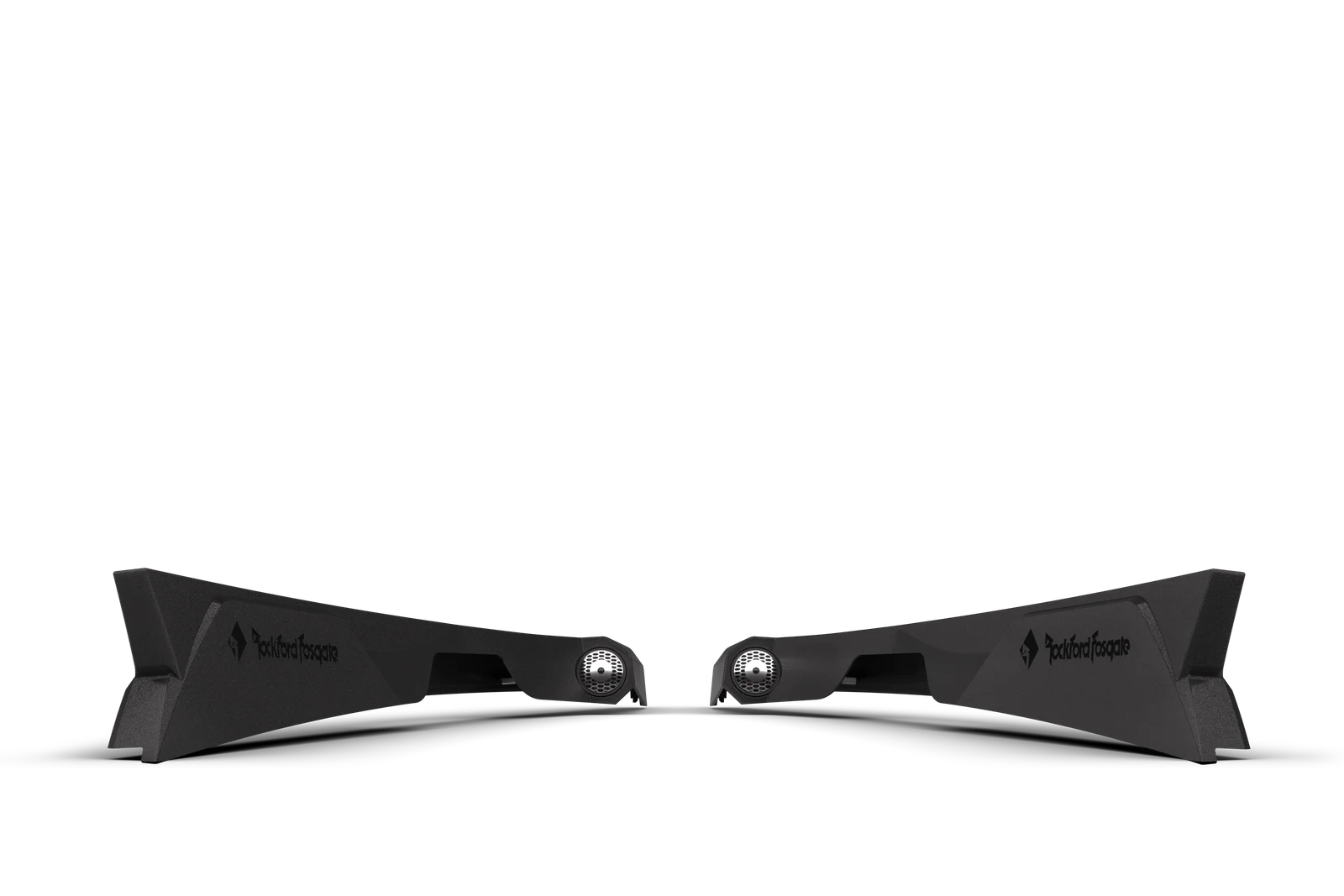

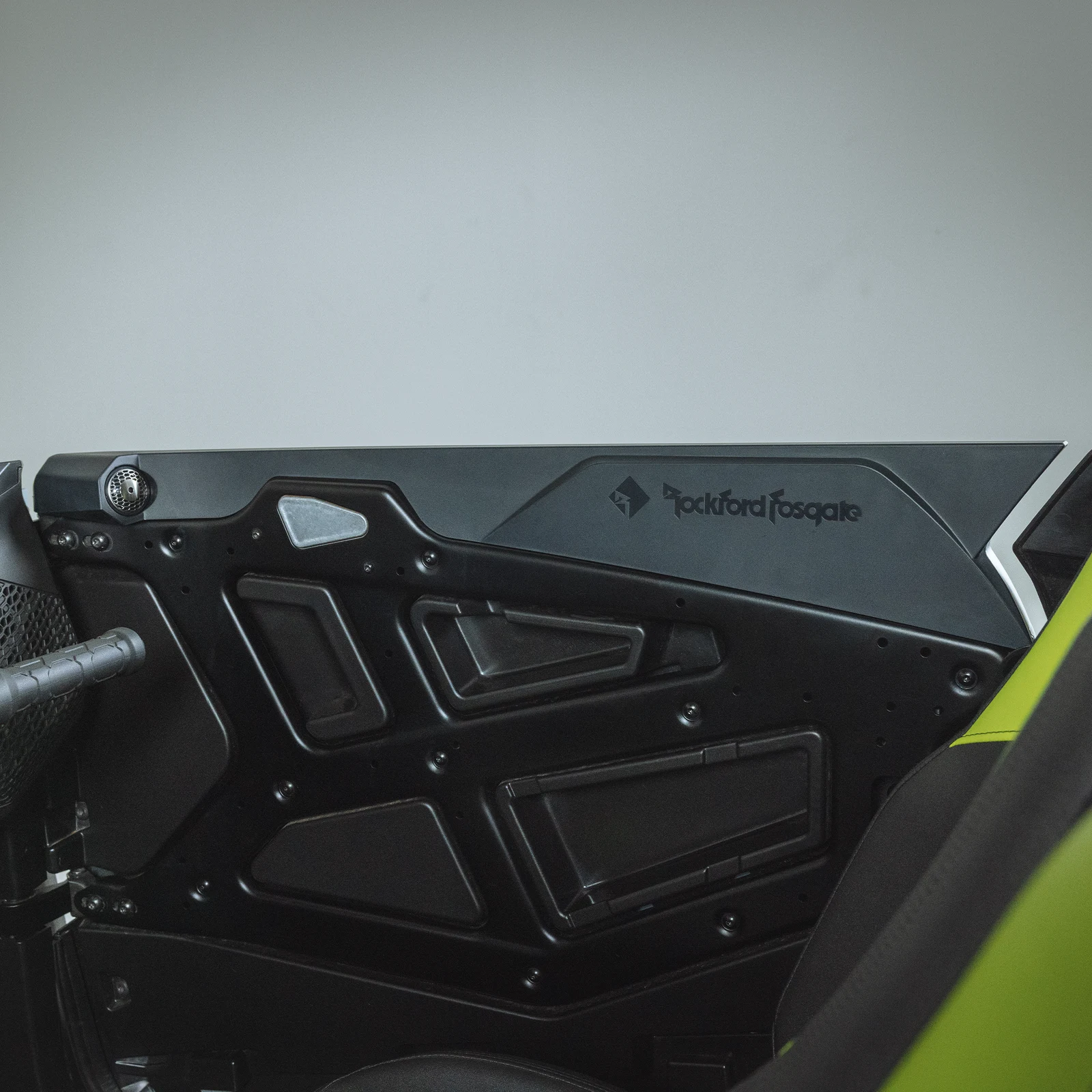

- Tweeter pods mount to top of doors and compliment vehicle body lines

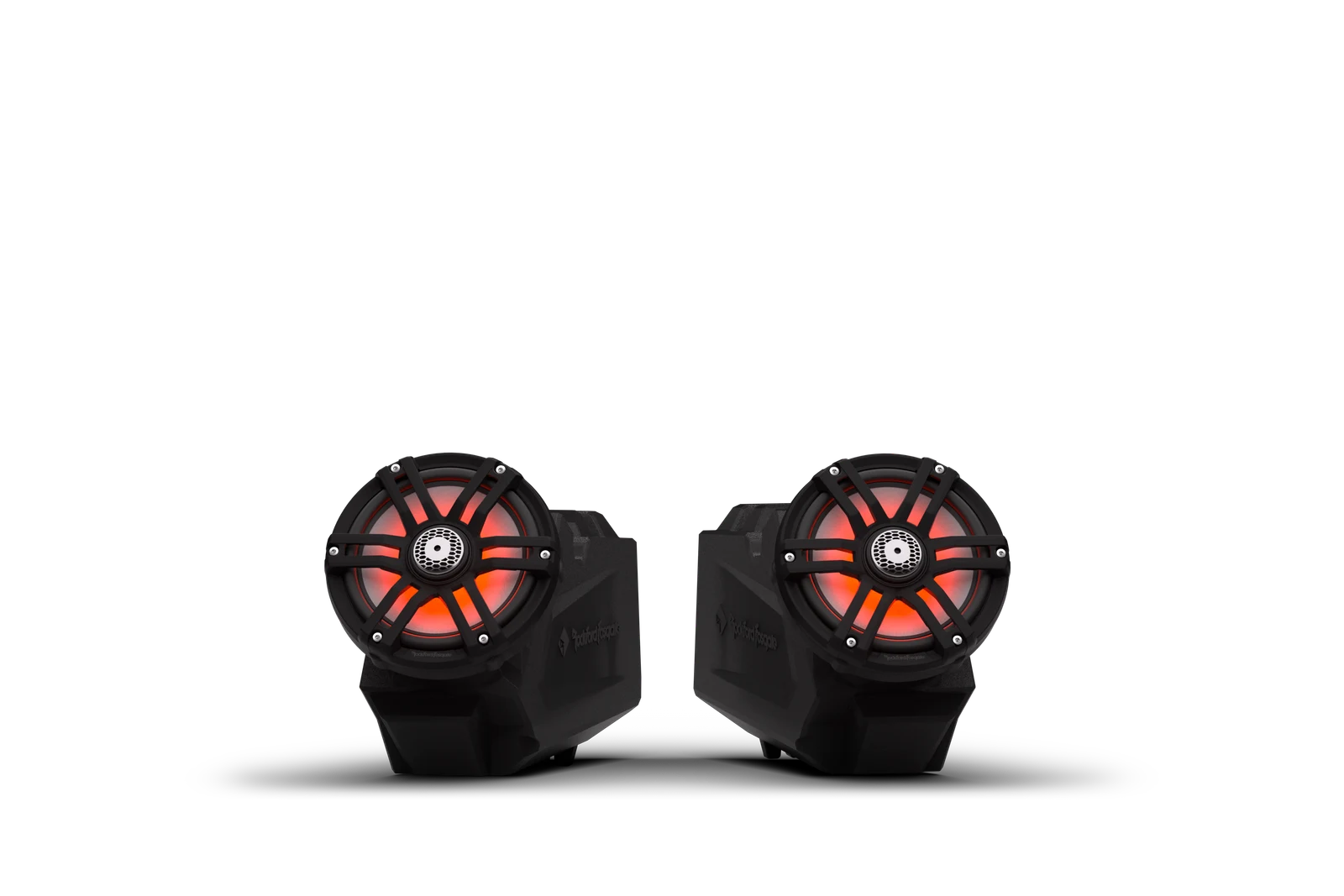

- M2-65B: M2 6.5” Color Optix™ marine grade 2-Way speakers - Black

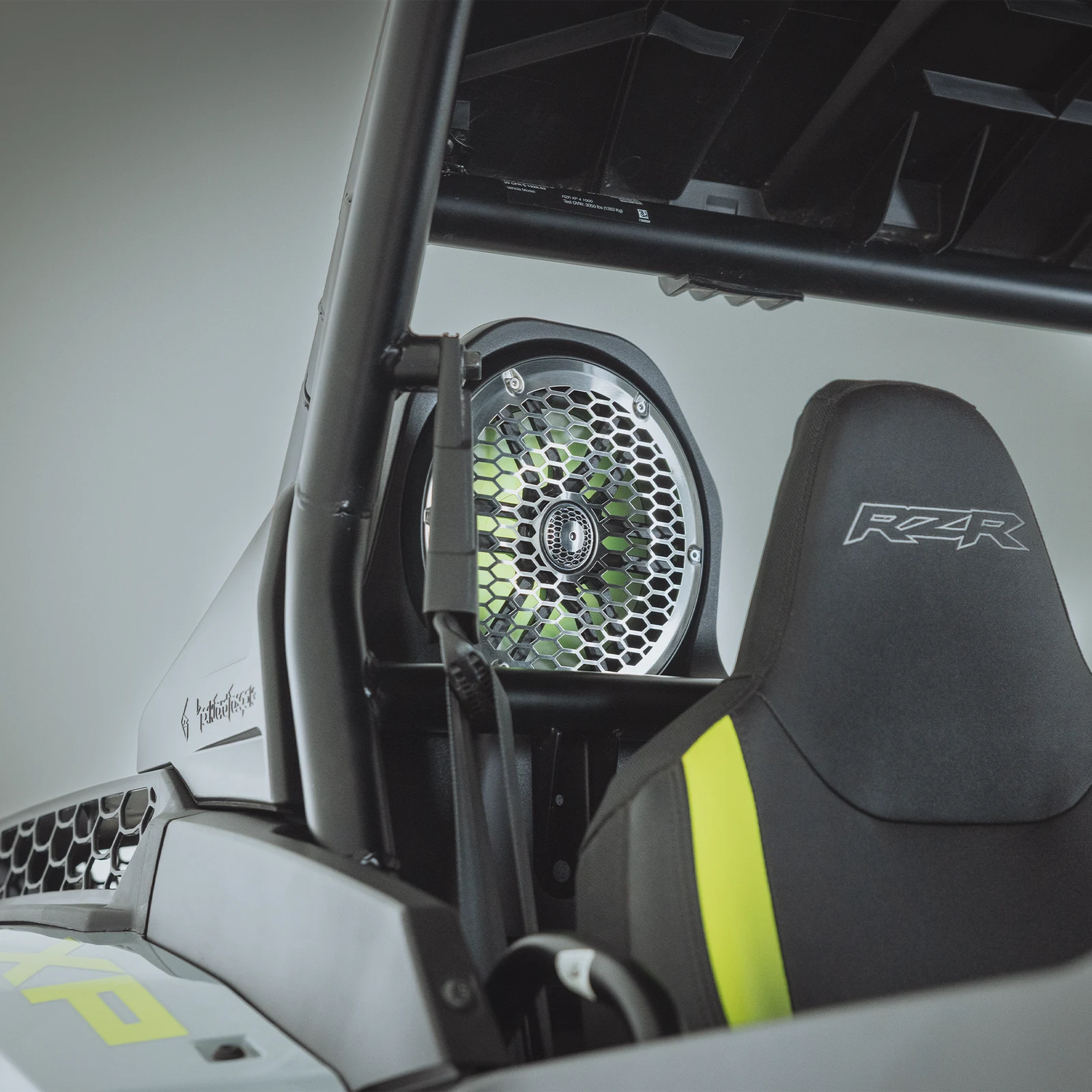

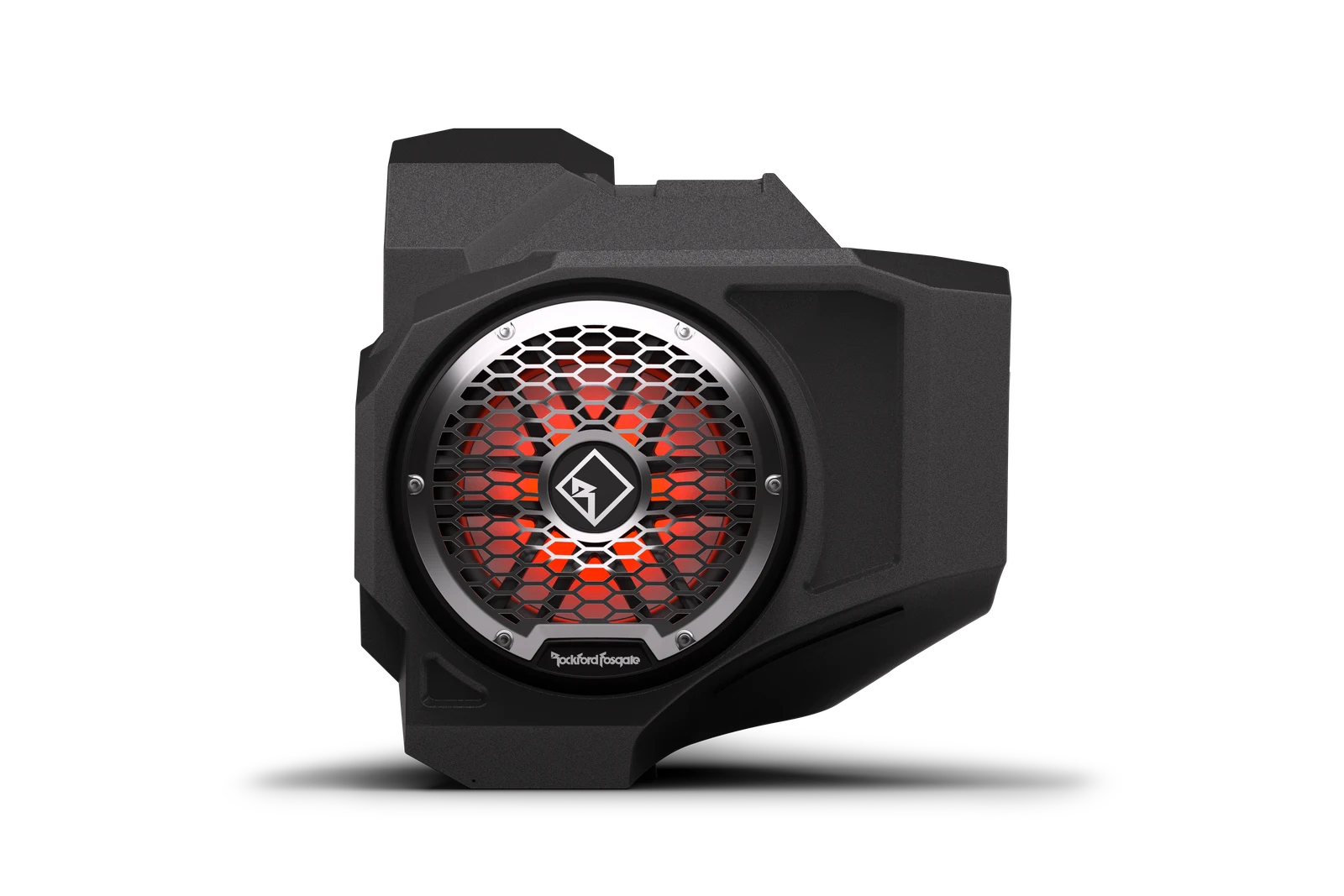

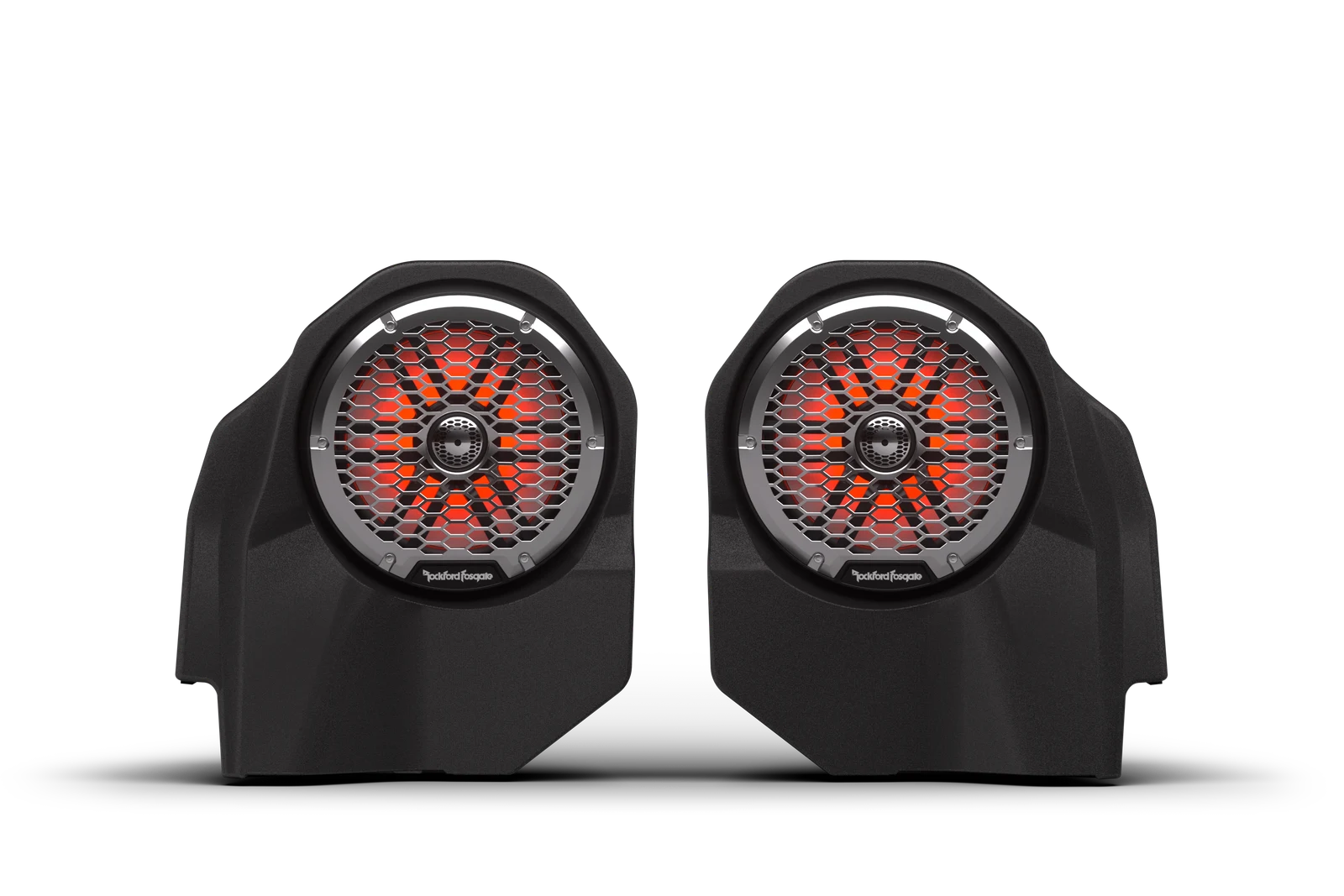

- M2-8B: M2 8" Color Optix™ marine grade 2-way speakers - Black
- Rear speaker pods do not interfere with Polaris® branded spare tire carrier, coolers, or storage boxes

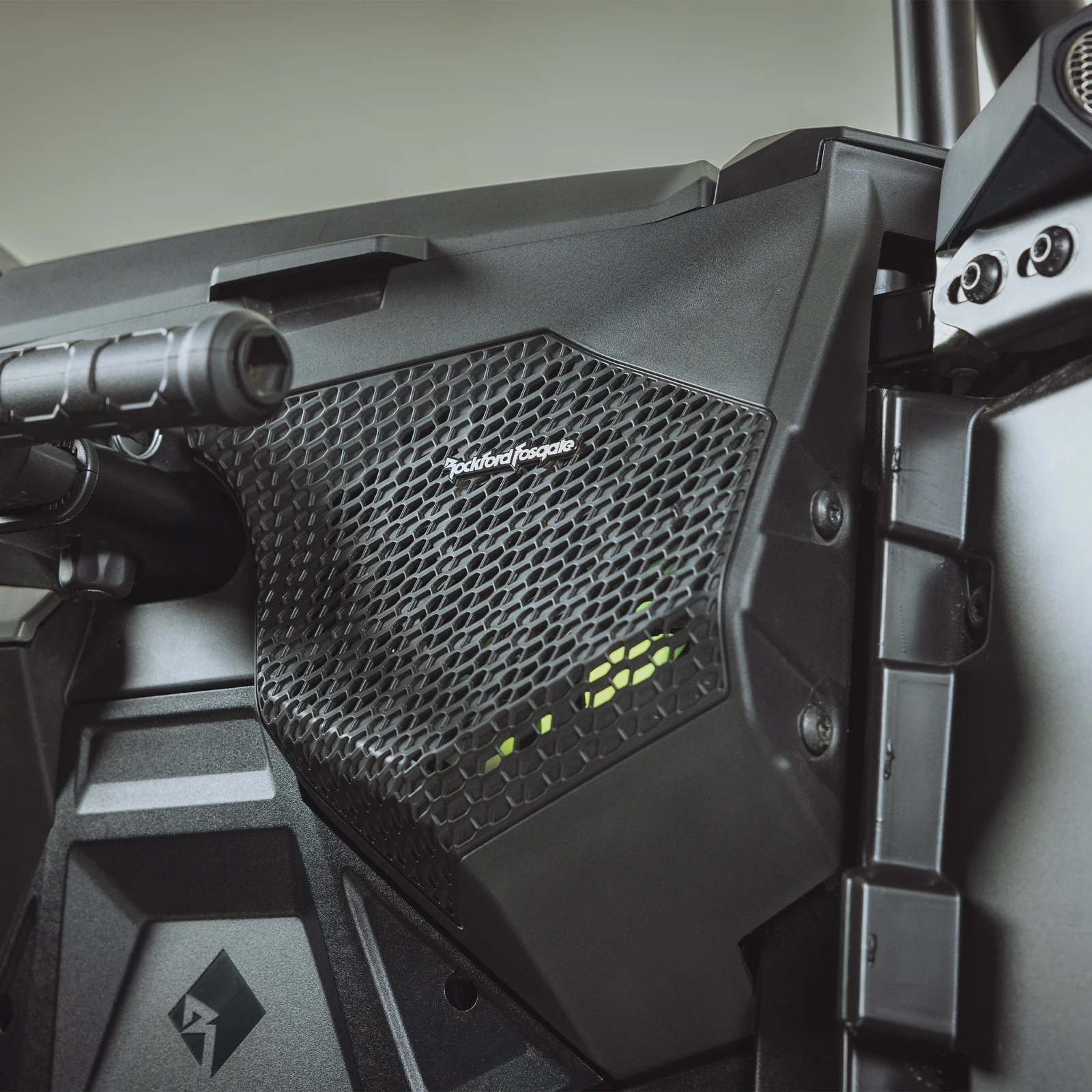

- M2D4-10IB-G2: M2 10" DVC 4Ω Element Ready™ Color Optix™ Subwoofer - Black (Gen-2)
- Ported enclosure with optional cap for deep-water use or tighter, sealed bass
More info
Manufacturer details
The all-new Rockford Fosgate aftermarket Stage 6 is a premium 1,500-Watt 7-speaker audio system for 2024+ Polaris RZR XP and features our proprietary interface that allows you to use Ride Command® as your source unit. An IPX6 rated 5-channel amplifier powers M2 Color Optix™ speakers that include 6.5” front coax, 1” door pod tweeters, 8” rear coax, and a single 10” under-dash subwoofer. All enclosures are custom fabricated and designed to fit seamlessly into the interior without loss of functional cabin space. The system features a Color Optix™ controller for adjusting speaker LED colors and includes a complete wiring harness with OEM style connectors for true plug-and-play integration. This kit allows for future expansion of a PMX-3 source unit for better control and sound quality.
Unparalleled Performance: Featuring a plug-and-play design, this system is equipped with two 6.5-inch front speakers and 1-inch tweeters, two 8-inch rear speakers, a 10-inch subwoofer and a 1500-watt amplifier, that delivers unparalleled performance.
Plug-and-Play Design: Minimal drilling, no cutting and designed to work right out of the box. Simple installation ensures less time in the garage and more time out riding.
RF3 (Rockford Factory Fit and Finish): Designed and engineered to match and compliment the factory fit and finish of your vehicle. These components are purpose built to the exact specifications to ensure the best-in-class fitment and look.
Element Ready™: Purpose Built for the outdoor environment, Rockford’s Element Ready™ products are built to stand up to Water, Salt, and UV, making sure your products stand the test of time.
Compatibility: Refer to our compatibility chart to verify fitment before purchasing.
2024+ RZR XP | Product Launch
2024+ RZR XP | Product Overview
2024+ RZR XP | Installation Tutorial
2024+ RZR XP | Amp Tuning Guide
Download RF CONNECT to control Color Optix™:
Additional details
UNPARALLELED PERFORMANCE

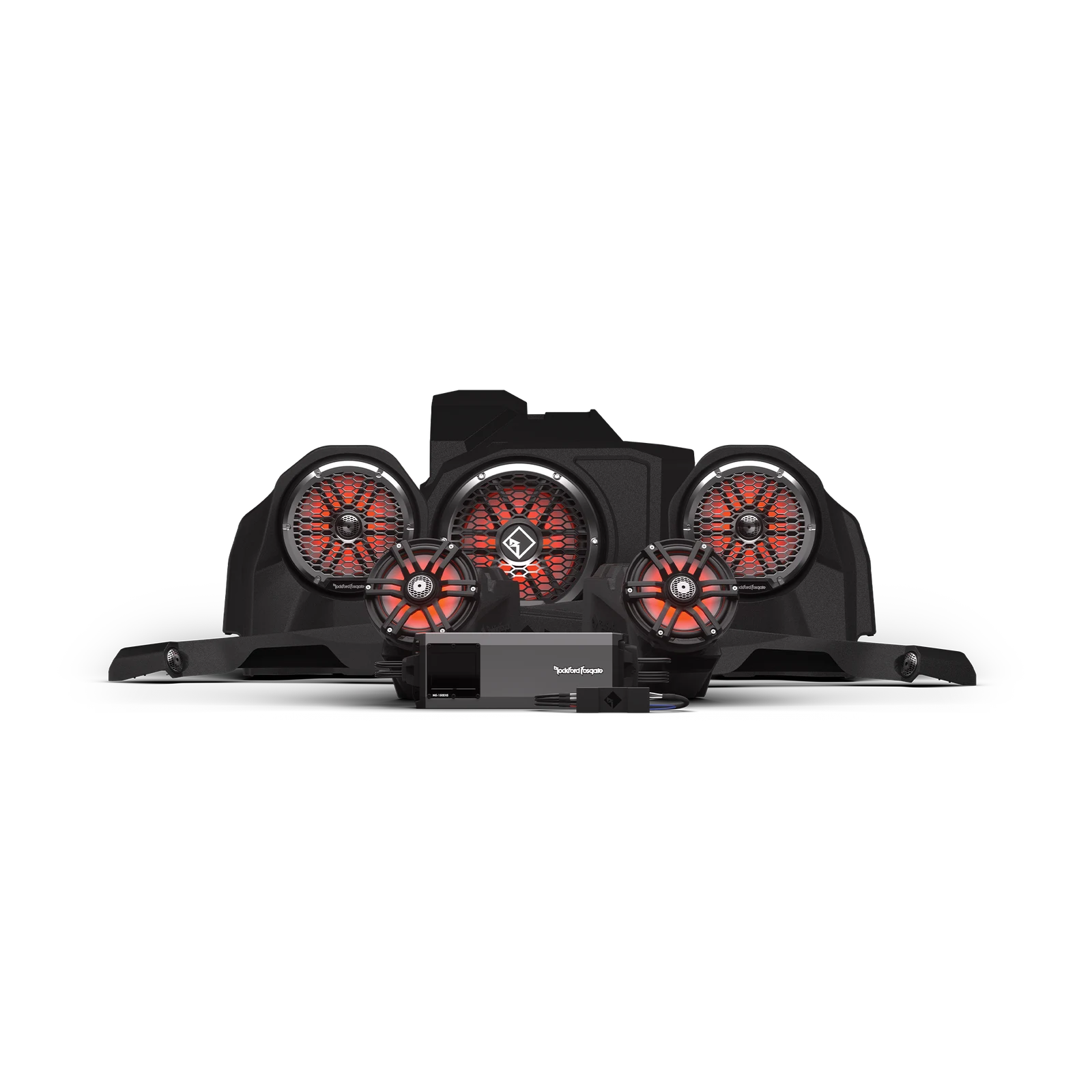

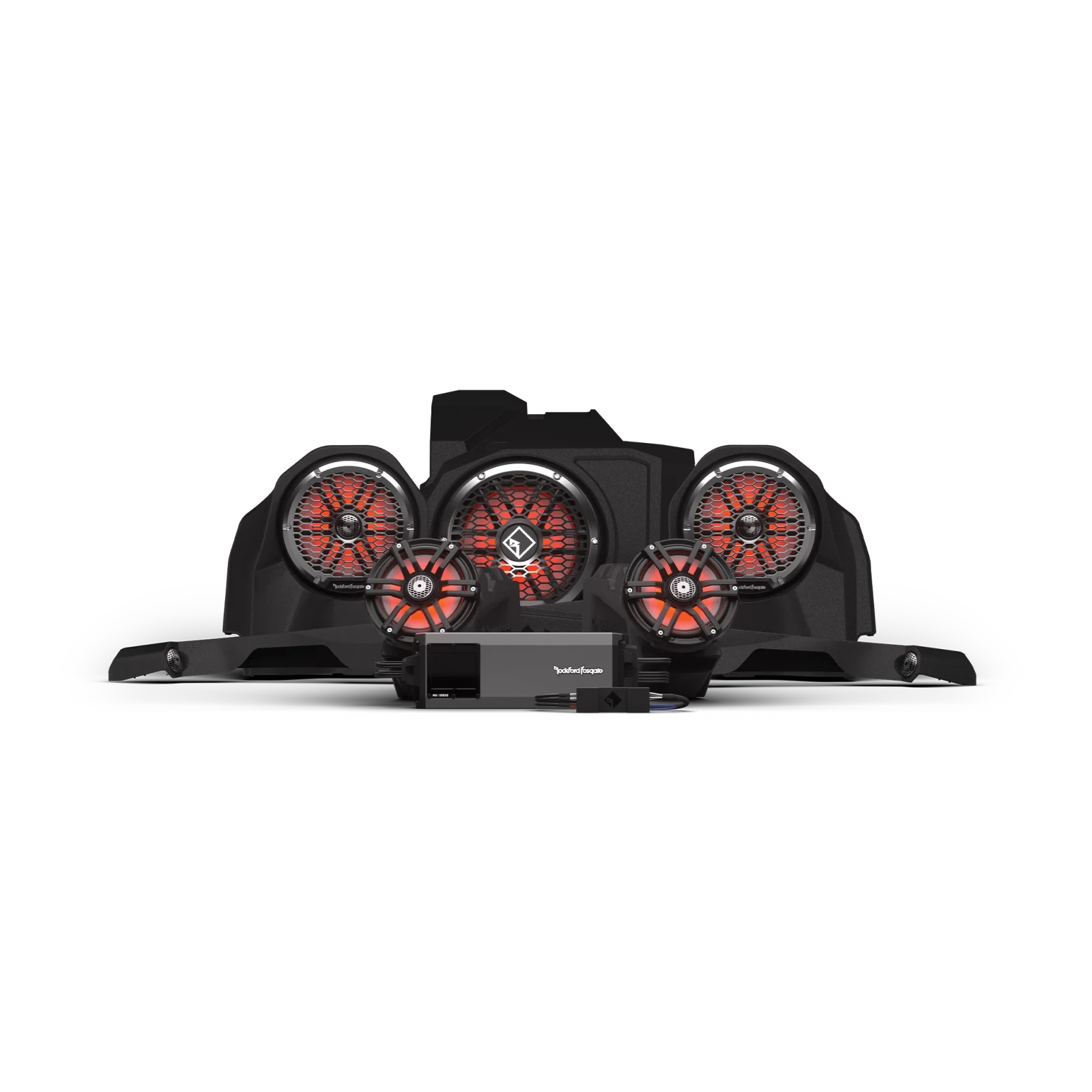

The RZR24RCXP-STG6 is a high-output, 7-speaker, 1,500-watt amplified front & rear audio system.

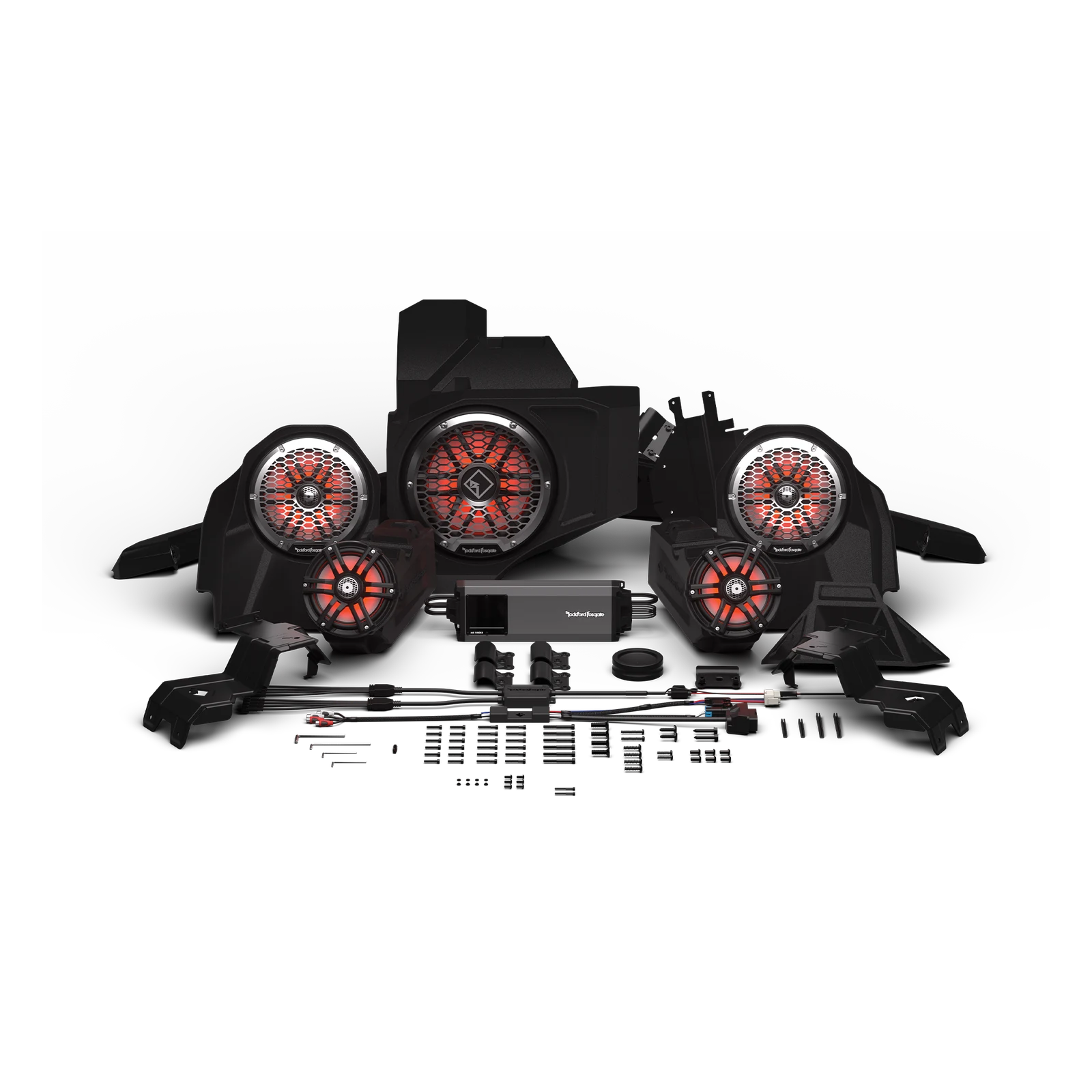

Components:
• (1) Ride Command Interface
• (1) 1,500-Watt Amplifier
• (2) 1” M2 Element Ready™ Tweeters
• (2) 6.5” M2 Color Optix™ Speakers
• (2) 8" M2 Color Optix™ Speakers
• (1) 10" M2 Color Optix™ Subwoofer
• (1) Color Optix™ Controller
Installation:
• (6) Hours Typical
Upgrade This Kit:
• (1) PMX-3 SiriusXM Ready® Source Unit
• (2) PMX-ANT Powered Antenna (for PMX-3)
• (1) PMX-USBP USB Extension Port (for PMX-3)
• (1) PMX-BTUR Steering Wheel Remote (for PMX-3)
• (1) MX-CAM-RZR14 Backup Cam (for PMX-3)
Technologies
IPX6 Water Intrusion Rating
A device with a level 6 water resistance rating can survive strong water jets projected by a 12.5mm nozzle at any
Stainless Hardware
Stainless hardware is used to its natural resistance to corrosion and rusting. This ensures electrical connections
Water Resistant
IPX Ratings allow for the components to be directly sprayed with water without ingress.
Corrosion Protection
Components are tested for salt spray corrosion resistance.
Dust Resistant
Displays and motor structures are sealed tight so they look and sound as clear as possible no matter how many
Thermal Shock Resistant
Components are designed to withstand extreme temperature fluctuations ensuring they perform day-in and day-out.
UV Inhibitor Materials
Centrex and ASA plastic materials are used for their UV radiation resistance and components are tested in
Vibration Resistant
Components are able to withstand shock and vibration conditions common with outdoor vehicles.
Element Ready™ | Motorsports
All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion &
Showing the main technologies for this product.
Specs
Specifications
10
| Speaker Qty | 7 |
| Amplifier Type | External |
| Total Power | 1,500 Watts |
| Mounting Hardware | Yes |
| Grille-Trim Ring Included | Yes |
| Included In The Box | PMX-DK • (4) Torx plastic tapping screw, ¼” x 1” long • (1) PMX radio bracket RZR24XP-FSE • (1) RZR24 Driver FSE • (1) RZR24 Passenger FSE • (6) Torx Bolt M6x0.75mm, 14mm long • (12) Hex Bolt M4x0.7mm, 22mm long • (2) Hex Screw M6 self-tapping • (2) Tube clamp mount bracket RZR24-FTP • (1) RZR24 Driver Pod • (1) RZR24 Passenger Pod • (4) Washer, M3x1.5” thick • (2) Hex bolt M3x0.6mm, 20mm long • (1) Hex key 2.5mm |
| Shipping Weight | TBA |
| Expansion Ports | Color Optix™ RGB: Front: DT06-4S (4-Pin) Rear: DT06-4S (4-Pin) |
| Included Components | (1 ea) RFPOL-RCA (1 ea) M5-1500X5 (1 pr) M2-TS (1 pr) M2-65B (1 pr) M2-8B (1 ea) M2D4-10IB-G2 (1 ea) PMX-RGB |
| Included In The Box | RZR24-RSE • (1) RZR24 Driver RSE • (1) RZR24 Passenger RSE • (1) RSE Driver bracket • (1) RSE Passenger bracket • (4) Torx screw M8x25mm long • (2) T40 Torx screw M6x25mm long • (2) Gasket A • (2) Gasket B • (12) Hex crew M4x0.7mm, 30mm long RZR24-FWE • (1) RZR24 FWE • (1) Passenger dash trim • (1) Port tube cap • (2) Torx screw M5, 36mm long • (2) Torx screw M5, 22mm long • (6) Hex bolt M5x0.8mm, 48mm long • (4) Torx bolt M6x0.75mm, 14mm long • (2) Tube clamp mount RZR24-K4 • (1) RZR24-K4 bracket • (1) RZR24 wiring harness • (1) Tube clamp • (1) T40 Torx bit • (1) Hex key 2.5mm • (1) Hex key 3mm • (1) Hex key 5mm • (6) Hex screw M4x0.7mm |
What's in the box
| Qty | Part number | Item details |
|---|---|---|
| 4 | — | Torx plastic tapping screw, ¼” x 1” long |
| 1 | — | PMX radio bracket RZR24XP-FSE |
| 1 | — | RZR24 Driver FSE |
| 1 | — | RZR24 Passenger FSE |
| 6 | — | Torx Bolt M6x0.75mm, 14mm long |
| 12 | — | Hex Bolt M4x0.7mm, 22mm long |
| 2 | — | Hex Screw M6 self-tapping |
| 2 | — | Tube clamp mount bracket RZR24-FTP |
| 1 | — | RZR24 Driver Pod |
| 1 | — | RZR24 Passenger Pod |
| 4 | — | Washer, M3x1.5” thick |
| 2 | — | Hex bolt M3x0.6mm, 20mm long |
| 1 | — | Hex key 2.5mm |
| 1 | — | RZR24 Driver RSE |
| 1 | — | RZR24 Passenger RSE |
| 1 | — | RSE Driver bracket |
| 1 | — | RSE Passenger bracket |
| 4 | — | Torx screw M8x25mm long |
| 2 | — | T40 Torx screw M6x25mm long |
| 2 | — | Gasket A |
| 2 | — | Gasket B |
| 12 | — | Hex crew M4x0.7mm, 30mm long RZR24-FWE |
| 1 | — | RZR24 FWE |
| 1 | — | Passenger dash trim |
| 1 | — | Port tube cap |
| 2 | — | Torx screw M5, 36mm long |
| 2 | — | Torx screw M5, 22mm long |
| 6 | — | Hex bolt M5x0.8mm, 48mm long |
| 4 | — | Torx bolt M6x0.75mm, 14mm long |
| 2 | — | Tube clamp mount RZR24-K4 |
| 1 | RZR24-K4 | bracket |
| 1 | — | RZR24 wiring harness |
| 1 | — | Tube clamp |
| 1 | — | T40 Torx bit |
| 1 | — | Hex key 2.5mm |
| 1 | — | Hex key 3mm |
| 1 | — | Hex key 5mm |
| 6 | — | Hex screw M4x0.7mm |
Reviews (0)
—
No average rating yet
0 reviews
No written reviews are live yet. Signed-in customers can submit one below.
No written reviews are live for this item yet.
Support
Return Authorization
If you bought this product from Onkar Electronics, use the Contact Us page on the Onkar Electronics website and we will help with return authorization and warranty support. If you purchased it from another dealer, contact that authorized dealer first for return assistance.
Popular Questions
No FAQs available
Compatibility
YESCompatible with factory equipment |
POSSIBLECan fit with required items below |
NOModel NOT compatible with kit |
NOT AVAILABLEModel not produced this year |
|---|
REQUIREDPolaris RIDE COMMAND RCUsed as Source Unit |
YESRZR XP(2-SEAT) |
YESRZR XP(4-SEAT) |
NORZR Pro XP(2-SEAT) |
NORZR Pro XP(4-SEAT) |
NORZR Turbo R(2-SEAT) |
NORZR Turbo R(4-SEAT) |
NORZR Pro R(2-SEAT) |
NORZR Pro R(4-SEAT) |
| 2-SEAT MODELS | 2024 | 2025 |
|---|---|---|
| RZR XP 1000 Sport | ✓ | ✓ |
| RZR XP 1000 Premium RF1 | ✓ | ✅ RC |
| RZR XP 1000 Ultimate RC, RF3 | ✓ | ✓ |
| 4-SEAT MODELS | 2024 | 2025 |
|---|---|---|
| RZR XP 4 1000 Sport | ✓ | ✓ |
| RZR XP 4 1000 Premium RF1 | ✓ | ✅ RC |
| RZR XP 4 1000 Ultimate RC, RF3 | ✓ | ✓ |
[ ] Brackets indicate nomenclature used on earlier models and inherited on later models.
* Optional package available from factory
RC Ride Command comes factory equipped. Required for Rockford Fosgate audio kits with "RC" in model number.
RF1 Stage 1 factory equipped with Rockford Fosgate premium audio (2 front speakers). Needs to be bypassed.
RF2 Stage 2 factory equipped with Rockford Fosgate premium audio (2 tweeters, 2 front speakers, 400W amp). Needs to be bypassed.
RF3 Stage 3 factory equipped with Rockford Fosgate premium audio (2 tweeters, 2 front speakers, 2 rear speakers, 400W amp). Needs to be bypassed.
