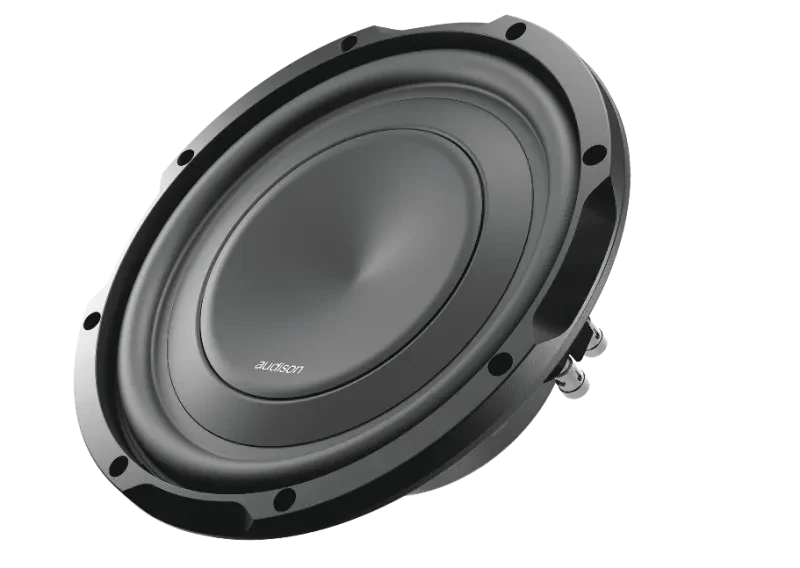

Audison
APS10S4SAPS10S4S Amplifier
Ultra-low profile (4.7 in. / 120 mm) for maximum installation flexibility. Designed to deliver maximum performance in a sealed enclosure starting from 10 lt.
Highlights
- Ultra-low profile (4.7 in. / 120 mm) for maximum installation flexibility.
- Designed to deliver maximum performance in a sealed enclosure starting from 10 lt.
- Special-designed cone-dust cap-basket geometry guarantees a long linear excursion capability (11 mm, one-way) while keeping the mounting depth to a minimum.

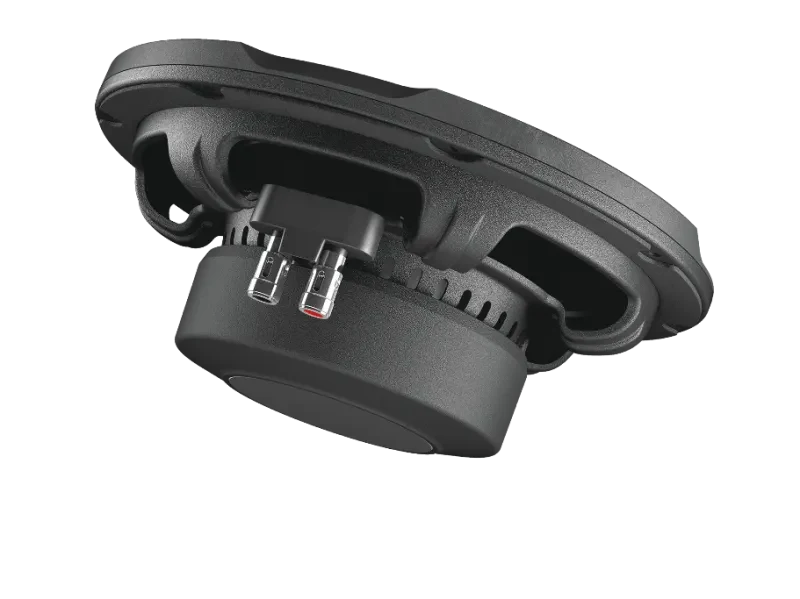

- Air vents on the basket underneath the spider, eliminating the need for the central pole vent allowing mounting close to the rear wall of the enclosure.
Key specs
Full specs- Nominal diameter
- 250 mm (10 in)
- Impedance
- 4 Ohm
- Power Handling - Peak
- 800 W
- Power Handling - Continuous
- 400 W
- Sensitivity
- 83.5 dB
- Voice Coil Ø
- 60 mm
- Magnet Material
- HIGH DENSITY FLUX FERRITE
- Magnet size D x d x h
- 140 x 70 x 30 mm
Key specs
Full specs- Nominal diameter
- 250 mm (10 in)
- Impedance
- 4 Ohm
- Power Handling - Peak
- 800 W
- Power Handling - Continuous
- 400 W
Highlights
Overview- Ultra-low profile (4.7 in. / 120 mm) for maximum installation flexibility.
- Designed to deliver maximum performance in a sealed enclosure starting from 10 lt.
- Special-designed cone-dust cap-basket geometry guarantees a long linear excursion capability (11 mm, one-way) while keeping the mounting depth to a minimum.
Overview
- Ultra-low profile (4.7 in. / 120 mm) for maximum installation flexibility.
- Designed to deliver maximum performance in a sealed enclosure starting from 10 lt.
- Special-designed cone-dust cap-basket geometry guarantees a long linear excursion capability (11 mm, one-way) while keeping the mounting depth to a minimum.
- Air vents on the basket underneath the spider, eliminating the need for the central pole vent allowing mounting close to the rear wall of the enclosure.

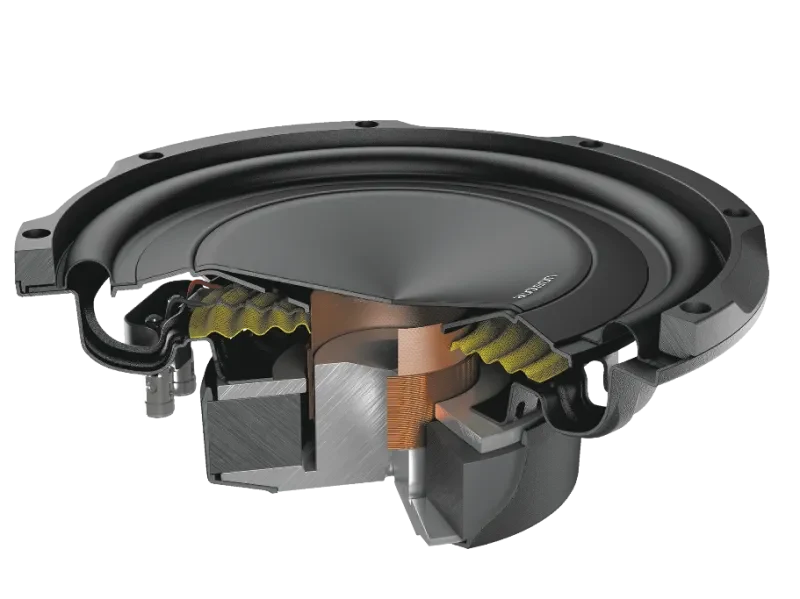

- Massive motor assembly, optimized with FEM (Finite Element Modeling) for perfect control under high power, high excursion conditions.
- Water-repellent treated paper 10 in. cone, featuring a profile developed with FEM simulation and optimized with the Klippel Scan Vibrometer.
- Single voice coil design specifically developed to be combined with either AF M8.4 bit (2 CH bridged 260 W RMS) amplifiers taking advantage of the bass boost feature and integrated parametric equalizer of the built-in DSP.

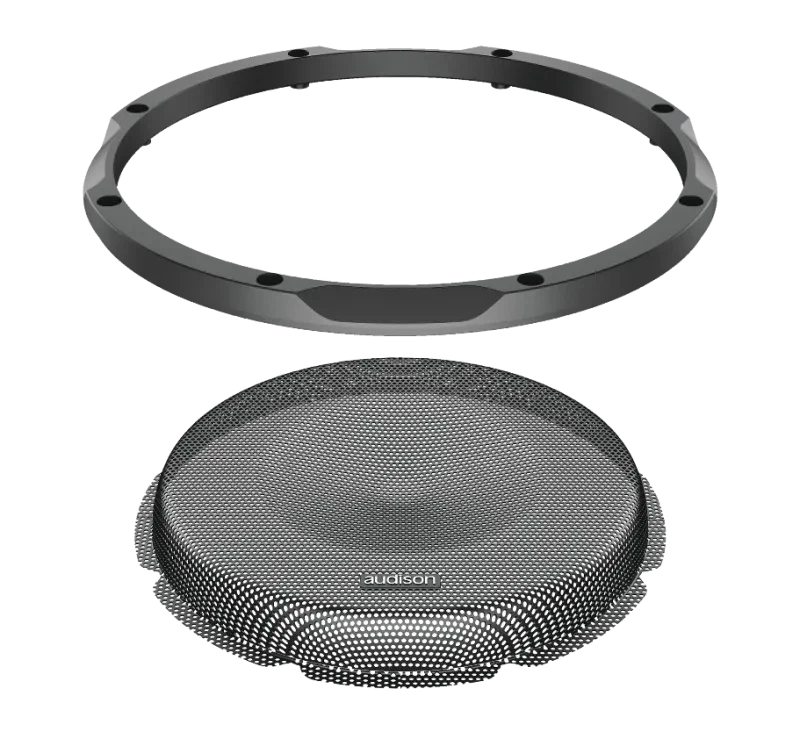

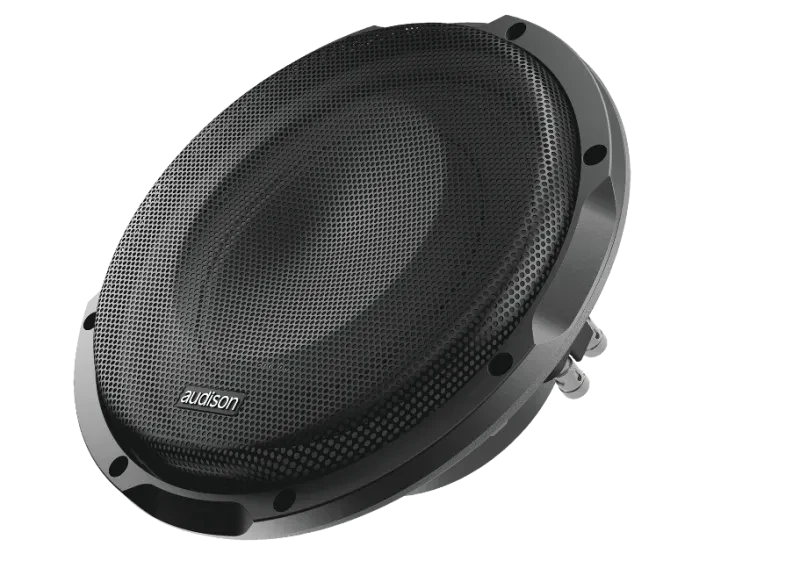

- Steel mesh grille and plastic gasket included. –
- Prima compact subwoofer family expands with the introduction of the new 25 cm (10 in.) APS 10 S4S, optimized for enclosures with a reduced volume starting from 10 liters. The configuration of the single 4 ohm voice coil makes it ideal to be driven by the new AP F8.9 bit amplifier with built-in DSP that delivers an outstanding 260 W RMS with two channels bridged. Also interesting is the possibility to create custom enclosures with two APS 10 S4S driven by the AF M1D amplifier using the 540 W RMS delivered on the 2 ohm load resulting from the drivers connection in parallel.
Highlights
Key features
- Ultra-low profile (4.7 in. / 120 mm) for maximum installation flexibility.
- Designed to deliver maximum performance in a sealed enclosure starting from 10 lt.
- Special-designed cone-dust cap-basket geometry guarantees a long linear excursion capability (11 mm, one-way) while keeping the mounting depth to a minimum.
- Air vents on the basket underneath the spider, eliminating the need for the central pole vent allowing mounting close to the rear wall of the enclosure.
- Massive motor assembly, optimized with FEM (Finite Element Modeling) for perfect control under high power, high excursion conditions.
- Water-repellent treated paper 10 in. cone, featuring a profile developed with FEM simulation and optimized with the Klippel Scan Vibrometer.
- Single voice coil design specifically developed to be combined with either AF M8.4 bit (2 CH bridged 260 W RMS) amplifiers taking advantage of the bass boost feature and integrated parametric equalizer of the built-in DSP.
- Steel mesh grille and plastic gasket included. –
Specs
Technical Specs
12
| Nominal diameter | 250 mm (10 in) |
| Impedance | 4 Ohm |
| Power Handling - Peak | 800 W |
| Power Handling - Continuous | 400 W |
| Sensitivity | 83.5 dB |
| Voice Coil Ø | 60 mm |
| Magnet Material | HIGH DENSITY FLUX FERRITE |
| Magnet size D x d x h | 140 x 70 x 30 mm |
| Cone Material | WATER REPELLENT PRESSED PAPER |
| Xmax | 12.6 mm (0.5 in) |
| Xmech | 18 mm (0.71 in) |
| Driver Displacement Volume | 1.12 l (0.04 ft) |
Electric-acoustic Specs
10
| Re | 3.7 Ohm |
| Fs | 28.5 Hz |
| Le | 1.9 mH |
| Vas | 39.62 l (1.399 ft) |
| Mms | 160 g (5.644 oz) |
| Cms | 0.2 mm/N |
| BL | 12.9 T•m |
| Qts | 0.68 |
| Qes | 0,75 |
| Qms | 6.9 |
General
1
| Weight | 5.24 kg |
Dimensions
5
| Dimension A | 270 mm (10.63 in) |
| Dimension B | 233 mm (9.17 in) |
| Dimension C | 105 mm (4.13 in) |
| Dimension D | 88 mm (3.46 in) |
| Dimension C1 | 119 mm |
Reviews (0)
—
No average rating yet
0 reviews
No written reviews are live yet. Signed-in customers can submit one below.
No written reviews are live for this item yet.
Support
Downloads
Similar products
Compare nearby options
Rockford Fosgate•Power

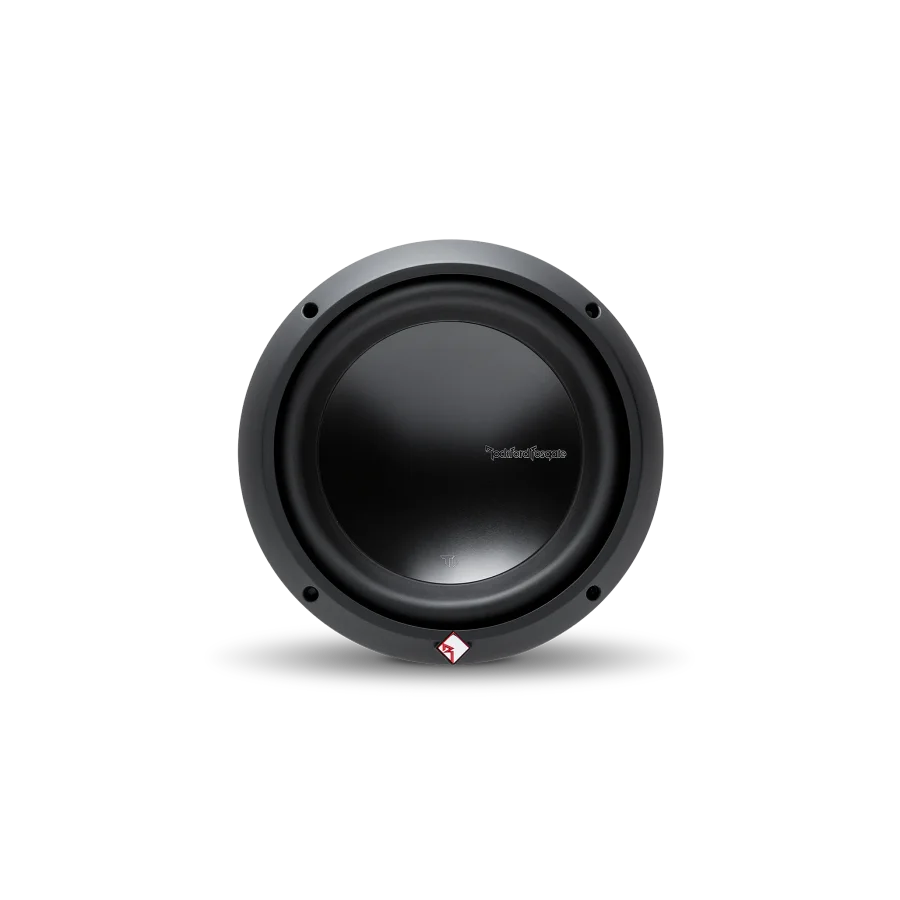

T1D410 Power 10" T1 4-Ohm DVC Subwoofer
5.06 reviews
$689.99CAD
$809.99
In stock
Rockford Fosgate•Punch

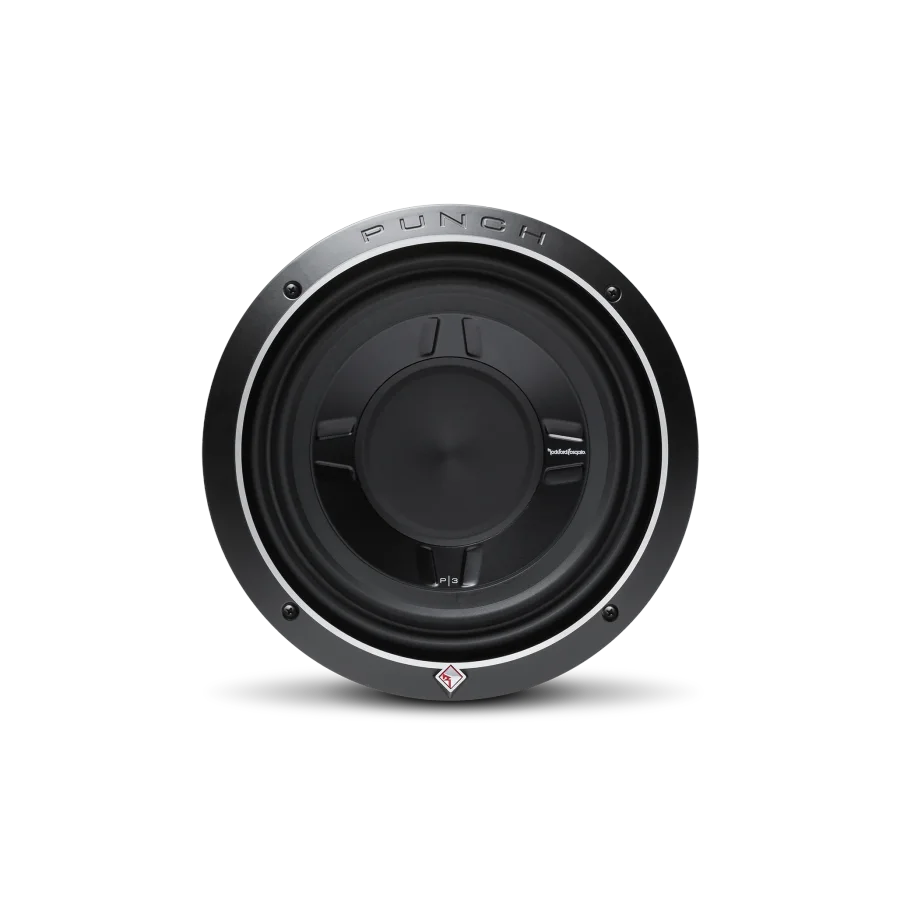

P3SD4-10 Punch 10" P3S Shallow 4-Ohm DVC Subwoofer
4.633 reviews
$329.99CAD
$389.99
In stock
Rockford Fosgate•Punch
P3D4-10 Punch 10" P3 4-Ohm DVC Subwoofer
4.878 reviews
$349.99CAD
$419.99
In stock
Rockford Fosgate•Punch
P2D4-10 Punch 10" P2 4-Ohm DVC Subwoofer
4.947 reviews
$259.99CAD
$309.99
In stock
Rockford Fosgate•Punch
P1S4-10 Punch 10" P1 4-Ohm SVC Subwoofer
4.952 reviews
$169.99CAD
$199.99
In stock
Rockford Fosgate•Prime
R2D4-10 Prime 10" R2 4-Ohm DVC Subwoofer
4.961 reviews
$149.99CAD
$179.99
In stock
Rockford Fosgate•Prime

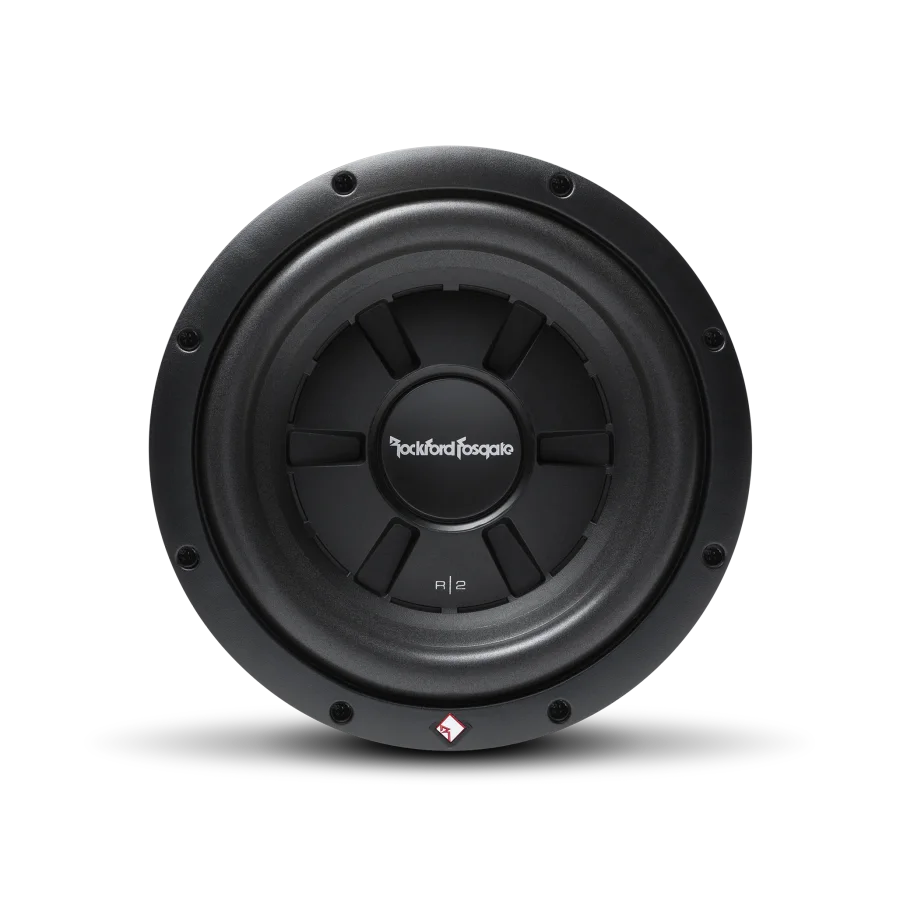

R2SD4-10 Prime 10" R2S 4-Ohm DVC Shallow Subwoofer
