1 / 8
Variants
Delivers strong, clean bass and rugged construction — great for listeners who want hard-hitting low end from a compact 10" driver.
Buyer confidence
89%Highlights
- 1 Year Warranty
- Kevlar fiber reinforced paper cone
- Diamond cut cast aluminum trim ring with optional grille
- StampCast basket with integrated spider venting
Key specs
Full specs- Power Handling (Watts RMS)
- 300 Watts RMS 600 Watts Max
- Mounting Depth
- 5.92 in. (150.4 mm)
- Magnet Weight (oz)
- 66.4 oz. (1.88 kg.)
- Voice Coil Diameter
- 2.25" (57.15 mm)
- Nominal Impedance
- Dual 4-Ohm
- Size
- 10"
- Speaker Connector
- Dual 10 AWG compression
- Shipping Weight
- 13.6 Lbs. (6.16 kg)
Key specs
Full specs- Power Handling (Watts RMS)
- 300 Watts RMS 600 Watts Max
- Mounting Depth
- 5.92 in. (150.4 mm)
- Magnet Weight (oz)
- 66.4 oz. (1.88 kg.)
- Voice Coil Diameter
- 2.25" (57.15 mm)
Highlights
Overview- 1 Year Warranty
- Kevlar fiber reinforced paper cone
- Diamond cut cast aluminum trim ring with optional grille
Review highlights
Based on customer reviewsPunchy, well-built 10" subwoofer with serious low-end impact
Delivers strong, clean bass and rugged construction — great for listeners who want hard-hitting low end from a compact 10" driver.
What buyers praise
- Big, punchy bass and high output for its size
- Solid, overbuilt construction and durable materials
What to watch for
- Leans toward SPL/impact more than the refined, musical 'singing' of some premium SQ-focused subs
Overview
10" Rockford Fosgate Punch P2 DVC subwoofer with Kevlar-reinforced paper cone, Dual 4‑Ohm voice coils, 300W RMS and a diamond-cut cast aluminum trim ring.
Best for
- People building a compact car audio sub system who want impactful low-frequency performance from a 10" driver. Performs…
Key points
- 10" Kevlar fiber reinforced paper cone for durable, punchy bass
- Dual 4-Ohm voice coils (DVC) for flexibility in system wiring
- 300 Watts RMS power handling
- VAST surround increases effective cone surface area up to 25%
- Includes diamond cut cast aluminum trim ring and accommodates a grille insert
- Verified and enhanced performance: Klippel Verified and CEA-2031
Fit and use
Designed for standard sealed or vented enclosures. The trim ring allows a grille insert to be fitted if desired; an optional grille insert is available.
What to know
This subwoofer is rated for 300W RMS and uses Dual 4‑Ohm voice coils. It incorporates VAST surround technology and is Klippel verified for measured performance. Choose an enclosure type (sealed or vented) appropriate for your preferred bass response and match amplifier power to the 300W RMS rating.
Highlights
Key features
- 1 Year Warranty
- Kevlar fiber reinforced paper cone
- Diamond cut cast aluminum trim ring with optional grille
- StampCast basket with integrated spider venting
- Custom 10-AWG nickel plated push terminals
- Protective PVC textured magnet cover
- Extended pole piece and bumped vented backplate
- Dual linear spider with embedded 16 AWG tinsel leads
- High-temp voice coil with spun-laced Nomex® re-inforcement collar
- Stitched Tinsel Leads
- CEA-2031
- VAST Surround - Subs
Technologies
Stitched Tinsel Leads
Multipoint "periodic" stitched lead wire technique reduces the mass of each tinsel lead and spreads stress and
CEA-2031
Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards. This means your speaker has
Patent: Patent Pending
VAST Surround - Subs
Rockford Fosgate's proprietary surround technique, VAST, provides up to a 25% increase in the speakers effective
FlexFit Basket - Subwoofer
The slot mounted frame pattern of the FlexFit basket utilizes slots (where feasible) instead of single screw sized
Anodized Aluminum Voice Coil Former
Two things generally happen when voice coils heat-up. They can generate heat close to the melt-down temp of their
Klippel Verified
To adorn the ‘Verified with Klippel’ mark, the qualifying company’s loudspeaker engineering personnel must be
Specs
Specifications
24
| Power Handling (Watts RMS) | 300 Watts RMS 600 Watts Max |
| Mounting Depth | 5.92 in. (150.4 mm) |
| Magnet Weight (oz) | 66.4 oz. (1.88 kg.) |
| Voice Coil Diameter | 2.25" (57.15 mm) |
| Nominal Impedance | Dual 4-Ohm |
| Size | 10" |
| Speaker Connector | Dual 10 AWG compression |
| Shipping Weight | 13.6 Lbs. (6.16 kg) |
| Cutout Diameter | 9.13 in. (232 mm) |
| Qts | 0.57 |
| SPL (dB @ 1w/1m) | 84 |
| Fs (Hz) | 30.8 |
| Qes | 0.62 |
| Qms | 7.00 |
| Vas (Liters) | 35.4 |
| Xmax (mm) | 11 |
| Woofer Displacement | 0.060 cu. ft. (1.7 Liters) |
| Re (Ohms) | 6.40 |
| Sd (cm2) | 360 |
| Le (mH) | 5.3 |
| Subwoofer Type | Standard |
| Voice Coil Type | Dual Voice Coil |
| Sealed Box Volume (Vb) | 0.59 cu. ft. (16.7 Liters) |
| Vented Box Volume (Vb) | 1.4 cu. ft. (39.6 Liters) |
Reviews (0)
—
No average rating yet
0 reviews
No written reviews are live yet. Signed-in customers can submit one below.
No written reviews are live for this item yet.
Installation resources
Wiring diagrams
9
Wiring Diagram #1
Source: Rockford Fosgate
Wiring Diagram #2
Source: Rockford Fosgate
Wiring Diagram #3
Source: Rockford Fosgate
Wiring Diagram #4
Source: Rockford Fosgate
Wiring Diagram #5
Source: Rockford Fosgate
Wiring Diagram #6
Source: Rockford Fosgate
Wiring Diagram #7
Source: Rockford Fosgate
Wiring Diagram #8
Source: Rockford Fosgate
Wiring Diagram #9
Source: Rockford Fosgate
Box Advisor
Sealed Enclosure
- Recommended volume
- 0.59 cu ft
- Volume range
- 0.5 cu ft to 0.85 cu ft
- Dimensions
- 14 in W x 12 in H x 9.25 in D
- F3
- 46.3 Hz
- Qtc
- 0.93
- Port / ID
- 58 in
- Subwoofer size
- 60 in
- Impedance
- 4 ohm
- Power handling (RMS)
- 300 W
Vented Enclosure
- Recommended volume
- 1.4 cu ft
- Volume range
- 1.25 cu ft to 1.75 cu ft
- Dimensions
- 20 in W x 12 in H x 14 in D
- F3
- 32.2 Hz
- Tuning (Fb)
- 38.5 Hz
- Port / ID
- 60 in
- Subwoofer size
- 60 in
- Impedance
- 4 ohm
- Power handling (RMS)
- 300 W
Similar products
Compare nearby options
Rockford Fosgate•Punch

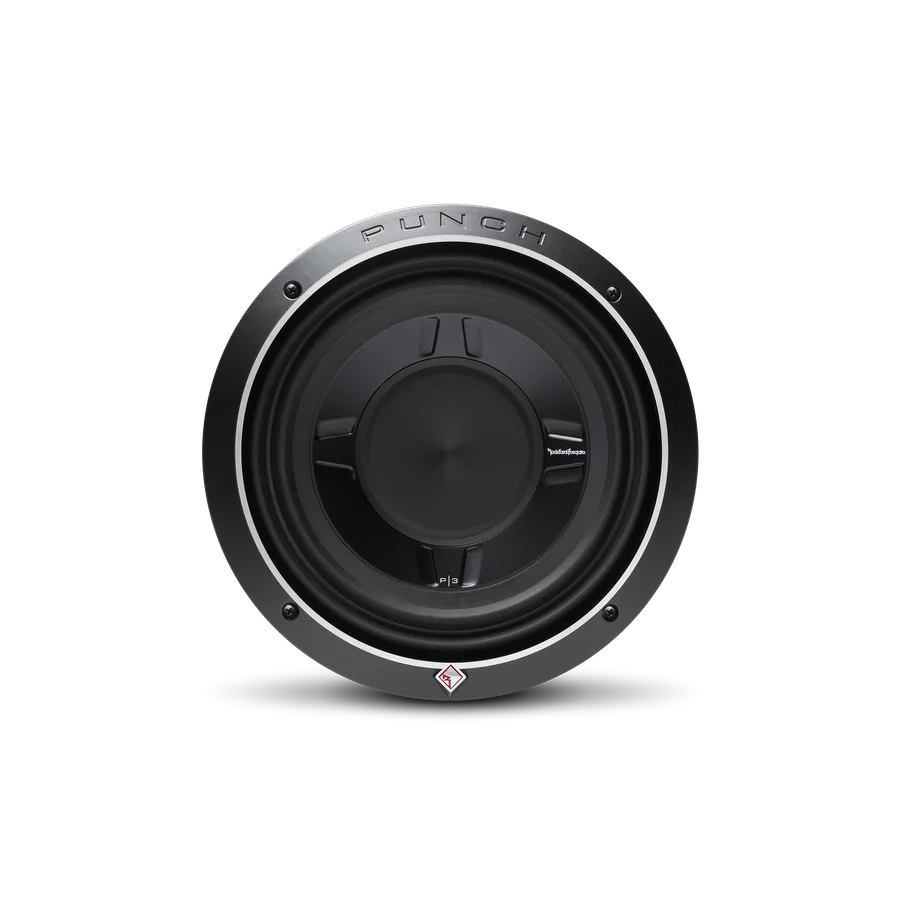

P3SD4-10 Punch 10" P3S Shallow 4-Ohm DVC Subwoofer
4.633 reviews
$329.99CAD
$389.99
Backorder
Rockford Fosgate•Punch
P3D4-10 Punch 10" P3 4-Ohm DVC Subwoofer
4.878 reviews
$349.99CAD
$419.99
In stock
Rockford Fosgate•Prime
R2D4-10 Prime 10" R2 4-Ohm DVC Subwoofer
4.961 reviews
$149.99CAD
$179.99
In stock
Rockford Fosgate•Prime

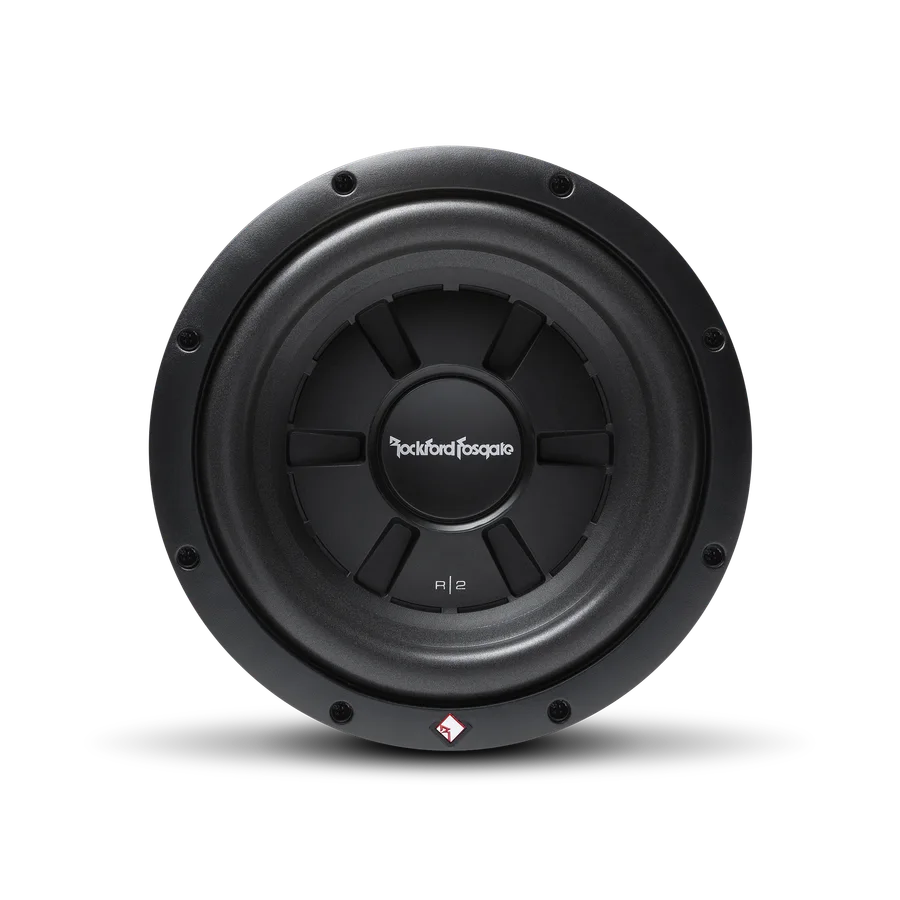

R2SD4-10 Prime 10" R2S 4-Ohm DVC Shallow Subwoofer
$199.99CAD
$239.99
In stock
Rockford Fosgate•Punch
P1S4-10 Punch 10" P1 4-Ohm SVC Subwoofer
4.952 reviews
$169.99CAD
$199.99
In stock
Rockford Fosgate•Power

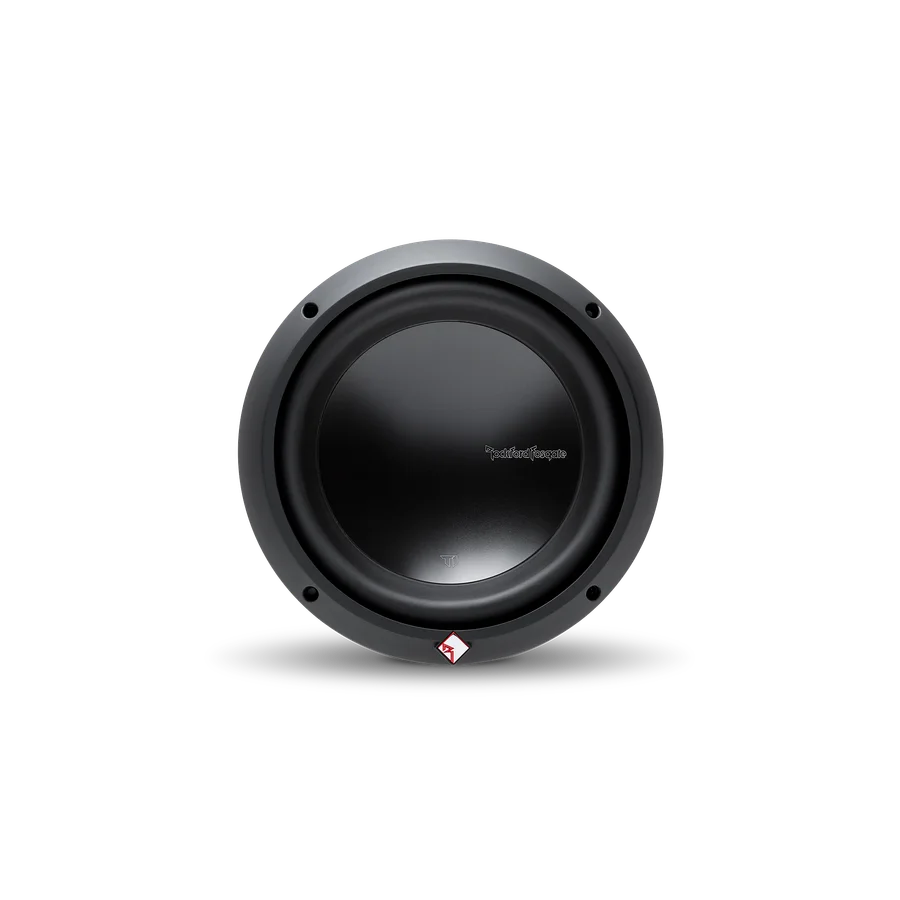

T1D410 Power 10" T1 4-Ohm DVC Subwoofer
