Boss Elite

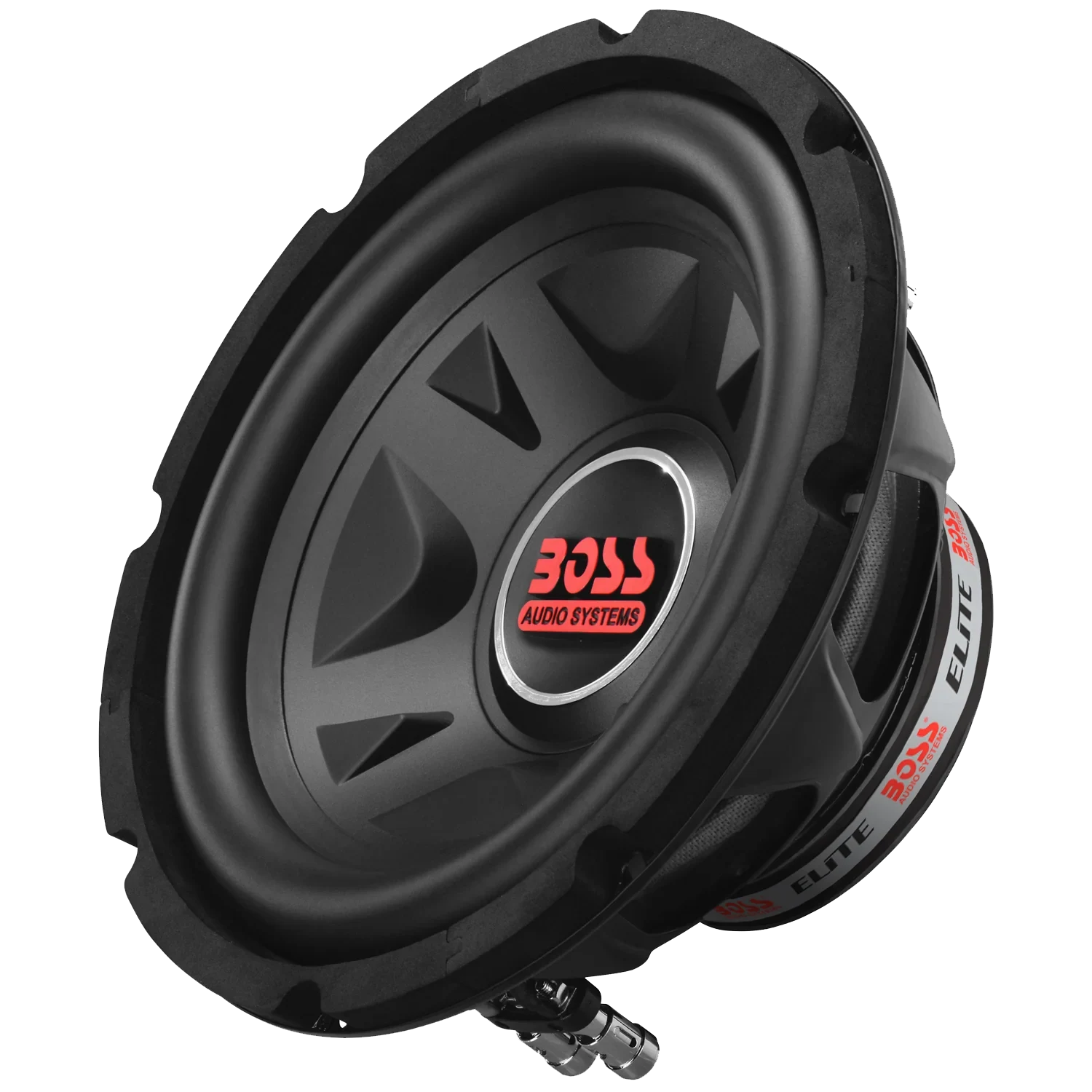

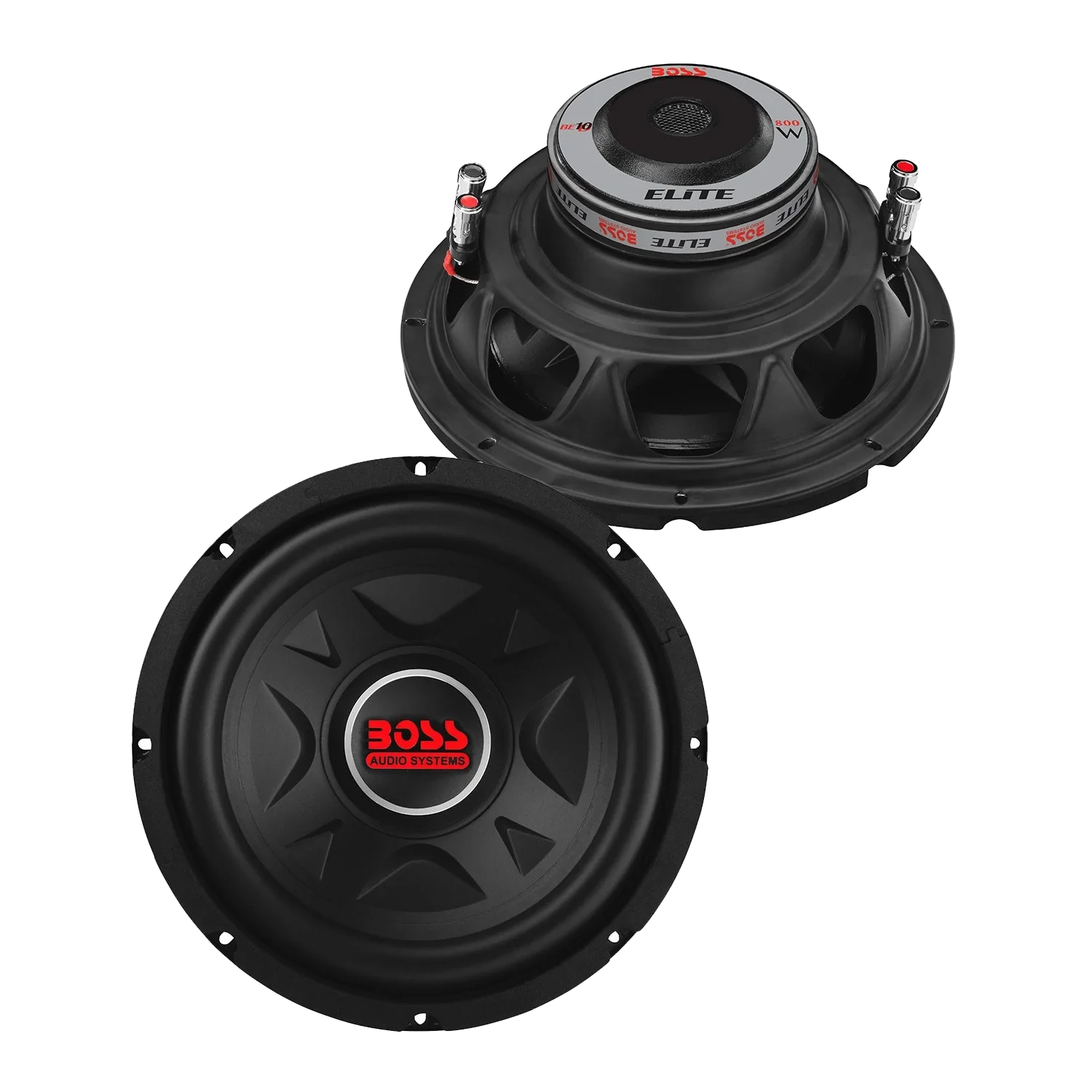

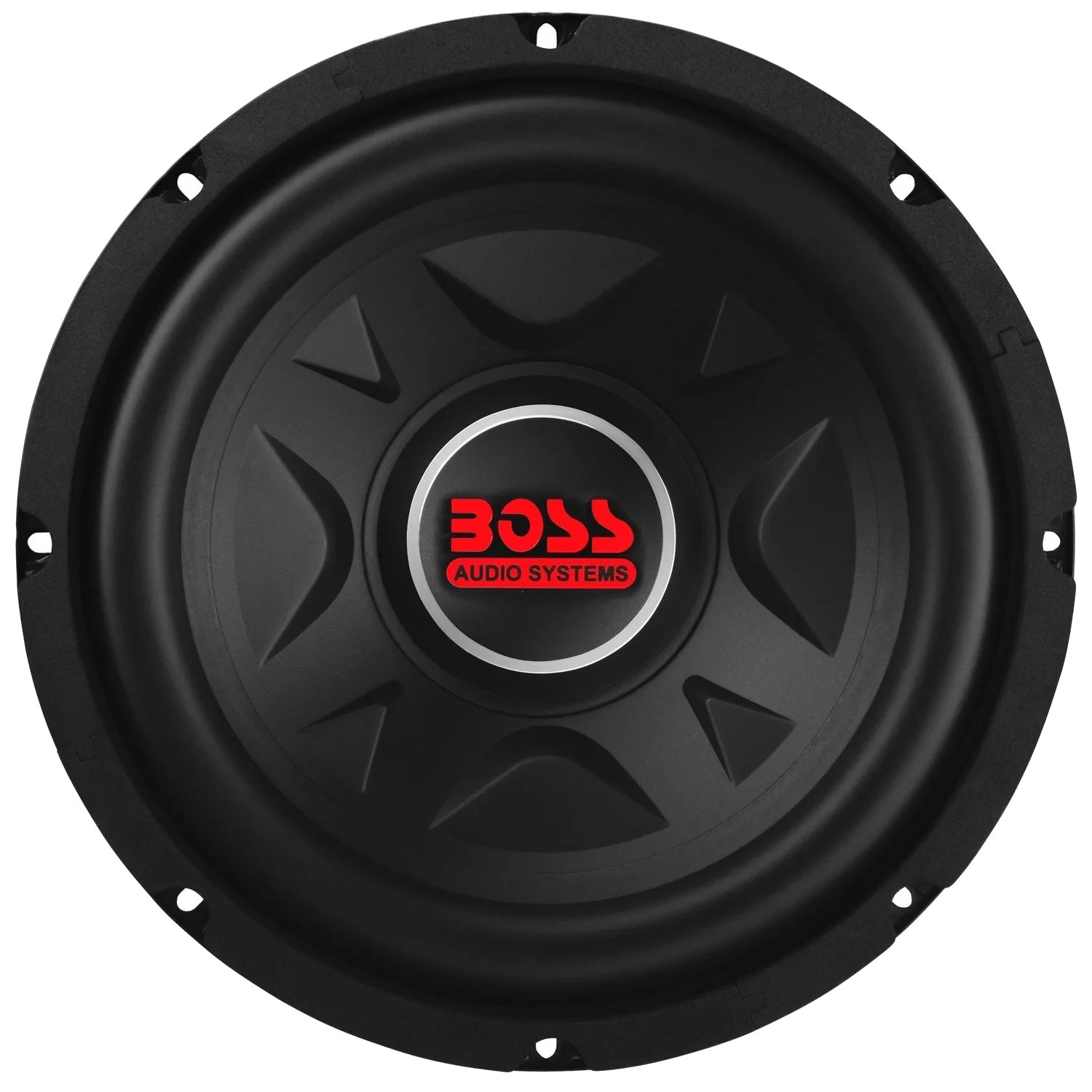

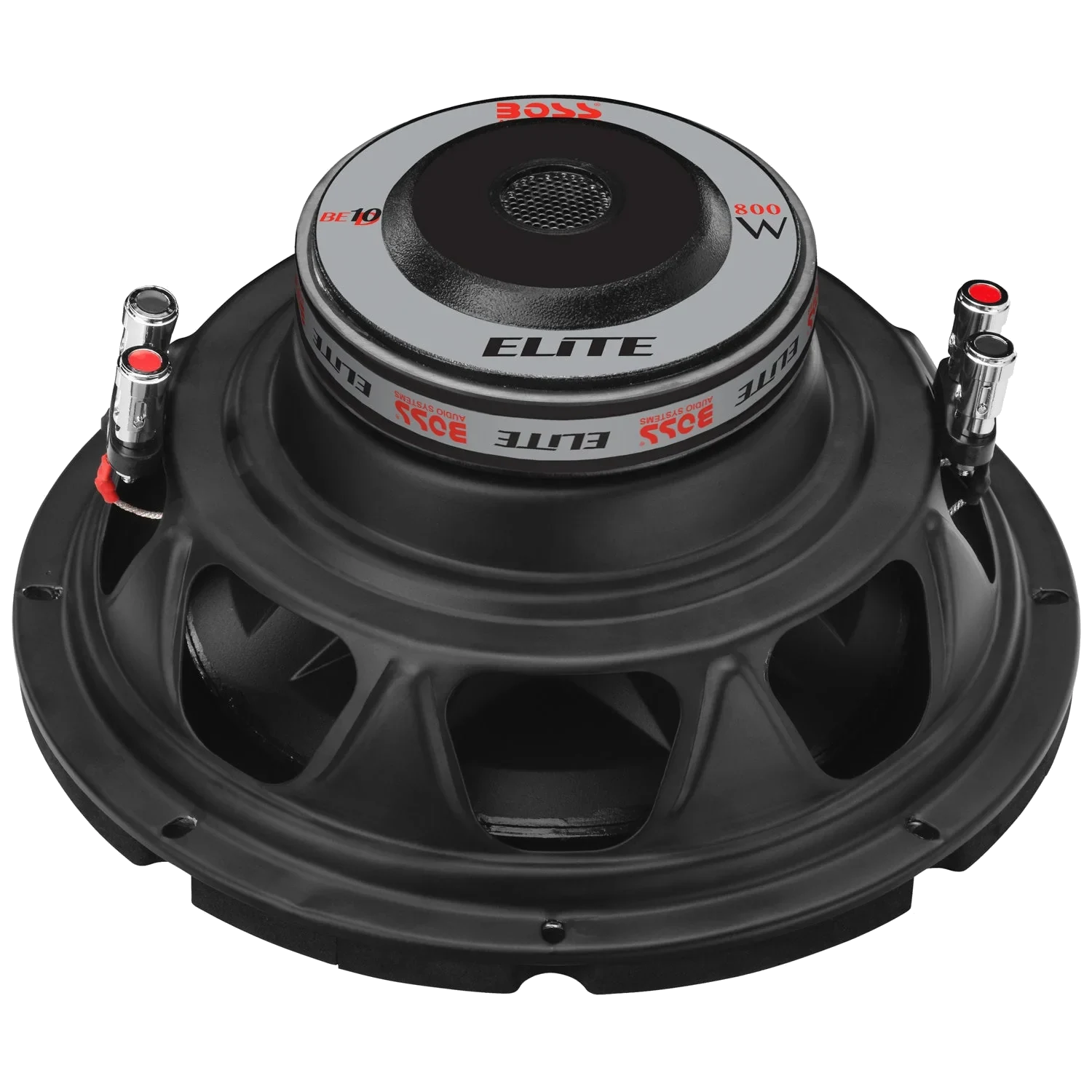

BE10D10-Inch Amplified Subwoofer
The Boss Elite BE10D is organized here as a 10-Inch Amplified Subwoofer for compact bass upgrades, with the main product role, controls, and core specs up front. Important details include High Temperature Voice Coil, Polypropylene Cone, Rubber Surround.
Highlights
- High Temperature Voice Coil
- Polypropylene Cone
- Rubber Surround
- Push Terminals
Key specs
Full specs- Peak Power Handling
- 800 Watts
- RMS Power Handling
- 400 Watts
- Voice Coil Configuration
- DUAL
- Impedance
- 4 Ω
- Mounting Diameter
- 9.2 "
- Mounting Depth
- 4.5625 "
- FS
- 36 Hz
- Qes
- 0.76
Key specs
Full specs- Peak Power Handling
- 800 Watts
- RMS Power Handling
- 400 Watts
- Voice Coil Configuration
- DUAL
- Impedance
- 4 Ω
Highlights
Overview- High Temperature Voice Coil
- Polypropylene Cone
- Rubber Surround
Overview
The Boss Elite BE10D is organized here as a 10-Inch Amplified Subwoofer for compact bass upgrades, with the main product role, controls, and core specs up front. Important details include High Temperature Voice Coil, Polypropylene Cone, Rubber Surround.
Best for
- Subwoofers
- compact bass upgrades
- Car audio upgrades
- Adding compact low-frequency output
Key points
- High Temperature Voice Coil
- Polypropylene Cone
- Rubber Surround
- Push Terminals
- 400 Watts
- 800 Watts
Fit and use
Check the listed dimensions, connection options, and power ratings against the vehicle and system plan before ordering. The specification table keeps the source measurements and electrical details available for comparison.
What to know
This content is normalized from Boss Elite product data and Automob category/inventory data. Use the specs and manuals on the page for final confirmation before installation.
Highlights
Key features
- High Temperature Voice Coil
- Polypropylene Cone
- Rubber Surround
- Push Terminals
- 400 Watts
- 800 Watts
More info
- High Temperature Voice Coil
- Polypropylene Cone
- Rubber Surround
- Push Terminals
Specs
General Specs
4
| Peak Power Handling | 800 Watts |
| RMS Power Handling | 400 Watts |
| Voice Coil Configuration | DUAL |
| Impedance | 4 Ω |
Mounting Dimensions
2
| Mounting Diameter | 9.2 " |
| Mounting Depth | 4.5625 " |
T/S Parameters
7
| FS | 36 Hz |
| Qes | 0.76 |
| Qms | 4.23 |
| Qts | 0.64 |
| Vas | 1.533 CuFt |
| Xmax (One-Way) | 7 mm |
| Sensitivity (1W/1m) | 87 dB |
Enclosure Specs
5
| Recommended Sealed | 0.65 CuFt |
| Recommended Ported | 1 CuFt |
| Port Dimension | Round PORT_DIMENSION (excel value) |
| Port Length | 10 " |
| Port Frequency | 38 Hz |
System Features
1
| SPECS_01 | Package contains 1 subwoofer |
Additional Specs
7
| Unit Length In | 11.0 |
| Unit Width In | 11.0 |
| Mounting Hole High | 9.2 |
| Unit Weight lbs | 5.74 |
| Cone Material | Polypropylene |
| Basket Structure | Stamped |
| Surround Material | Rubber |
