Subwoofers

400W RMS • 4 Ohm

Prima compact subwoofer family expands with the introduction of the new 25 cm (10 in.) APS 10 S4S, optimized for enclosures with a reduced volume starting from 10 liters. The configuration of the single 4 ohm voice coil makes it ideal to be driven by the new AP F8.9 bit amplifier with built-in DSP that delivers an outstanding 260 W RMS with two channels bridged. Also interesting is the possibility to create custom enclosures with two APS 10 S4S driven by the AF M1D amplifier using the 540 W RMS delivered on the 2 ohm load resulting from the drivers connection in parallel.

400W RMS • 4 Ohm

The APS 10 D is designed to deliver maximum performance in a sealed enclosure with ultra-compact volumes, from 10 lt. to 12 lt. The dual voice-coil and single voice coil versions feature push connectors for ease of wiring and configurations. Prima subwoofer components have been developed with a primary goal: to deliver high output in tight spaces. Output is a matter of excursion; the more air the cone moves, the more output. However reduced mounting depth traditionally has meant low excursion. Prima subwoofers employ a special cone-dustcap-basket geometry which guarantees large excursion of the mobile group, while keeping the mounting depth to a minimum. The surround and spider have been carefully designed to prevent the rocking-mode phenomenon. The cooling circuit has been designed with air vents on the basket underneath the spider, eliminating the need for vents on the bottom-plate. This allows the subwoofer to be mounted close to the back wall of the enclosure, making the most of the reduced mounting depth.

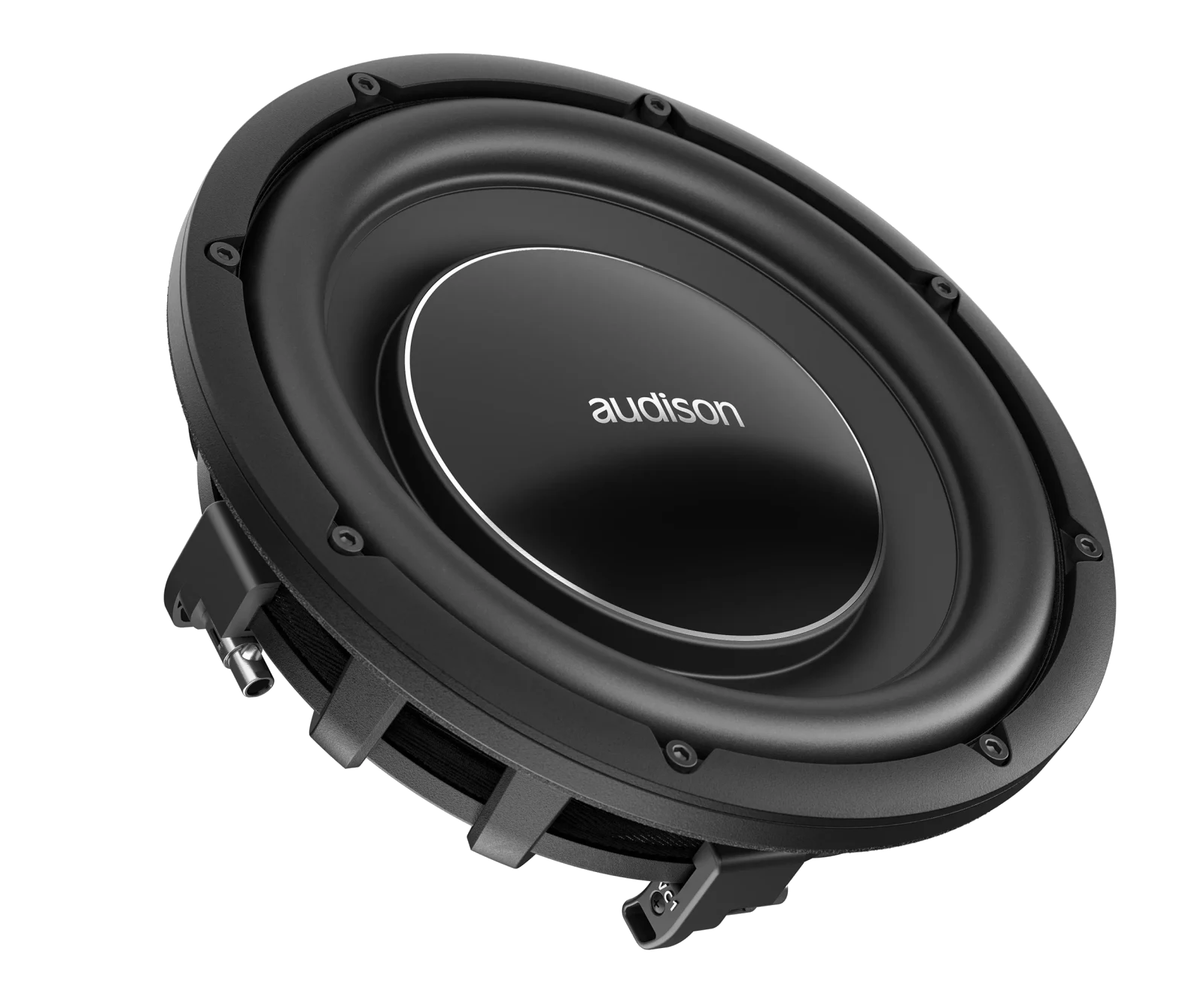

550W RMS • 2 Ohm

Designed for tight spaces and dynamic performance, the AV 10 D2 II delivers powerful, articulate low frequencies with the precision and control that define the VOCE II line. Its dual 2-ohm voice coil configuration provides greater flexibility for low-impedance system design, allowing optimal power transfer from high-performance amplifiers. The subwoofer features a 1.5-inch CCAW voice coil, FEM-optimized motor assembly and a die-cast aluminum basket with integrated cable-routing hooks—each detail engineered to ensure stability, thermal efficiency and long-term reliability. The extended-profile dust cap improves cone rigidity and damping, while the internal Radial Reinforcement Framework strengthens the mechanical structure during high-excursion operation. Airflow Venting Cooling technology ensures effective heat dissipation, preserving performance even under prolonged stress. Optimized to perform at its best in compact sealed enclosures (12–14 L / 0.4–0.5 ft³), the AV 10 D2 II delivers deep, clean and fast bass, ideal for systems where space is limited but sonic expectations are high. It is more than a compact subwoofer, it is a VOCE II-class component built to bring the emotion of music into every detail of your sound system.

550W RMS • 4 Ohm

Compact in size, uncompromising in performance. The AV 10 D4 II is the 10-inch subwoofer of the VOCE II line, designed to deliver fast, impactful and finely controlled bass within reduced enclosure volumes. Its dual 4-ohm voice coil configuration offers maximum installation versatility, while the 1.5-inch CCAW voice coil and FEM-optimized magnetic structure ensure precise response and excellent thermal stability, even during demanding playback. Despite its compact footprint, the AV 10 D4 II features the same advanced technologies as its 12-inch counterpart: the Radial Reinforcement Framework for superior mechanical strength, an extended-profile dust cap for enhanced damping, and the proprietary Airflow Venting Cooling system for continuous heat dissipation. Optimized to perform at its best in compact sealed enclosures (12–14 L / 0.4–0.5 ft³), it offers deep, controlled bass response even in space-limited setups, making it an ideal choice for refined systems where detail and dynamics must coexist in perfect balance. Every element reflects the VOCE II philosophy: precision engineering, signature low-frequency response, and unmistakable Italian design.

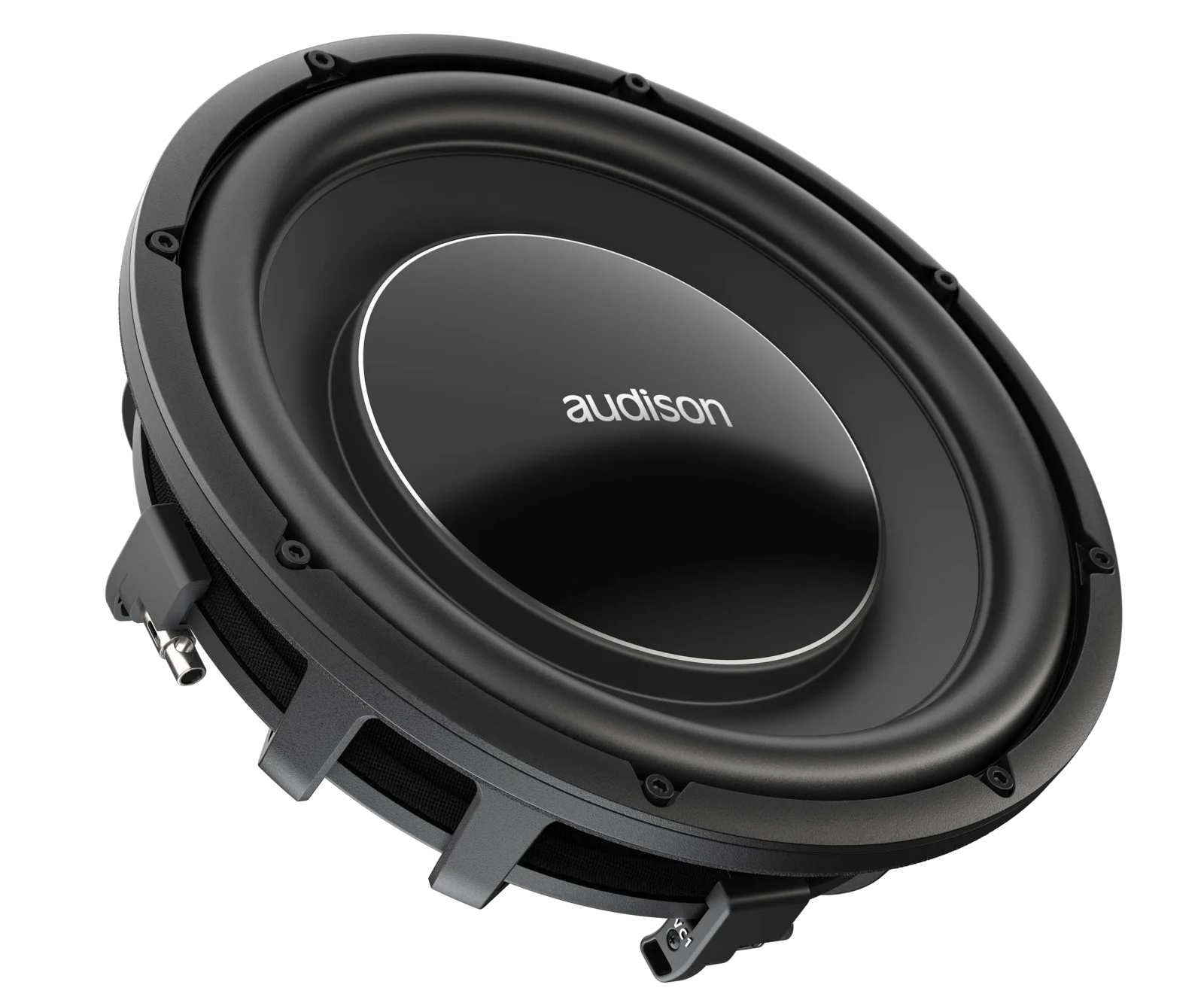

550W RMS • 2 Ohm

Born from the same engineering philosophy that defines the VOCE II line, the AV 12 D2 II subwoofer delivers deep, powerful and highly controlled bass in a compact sealed enclosure. Equipped with a 1.5-inch CCAW voice coil and a 550 W RMS-rated motor structure, it combines dynamic power with thermal stability, ensuring consistent performance even at high sound pressure levels. The die-cast aluminum basket integrates dual cable-routing hooks for clean installation, while the spring-loaded terminals support 8 AWG cables and fast connections. The FEM-optimized dust cap increases rigidity and damping, perfectly matching the refined design language of the VOCE II range. Engineered to perform at its best in 12–14 L sealed boxes, the AV 12 D2 II is ideal for space-limited setups where sound quality is never a compromise. With its dual 2-ohm configuration, it offers maximum system flexibility and seamless integration into high-end audio systems. Precision, power and elegance, this is how VOCE II speaks the language of low frequencies.

250W RMS • 4 Ohm

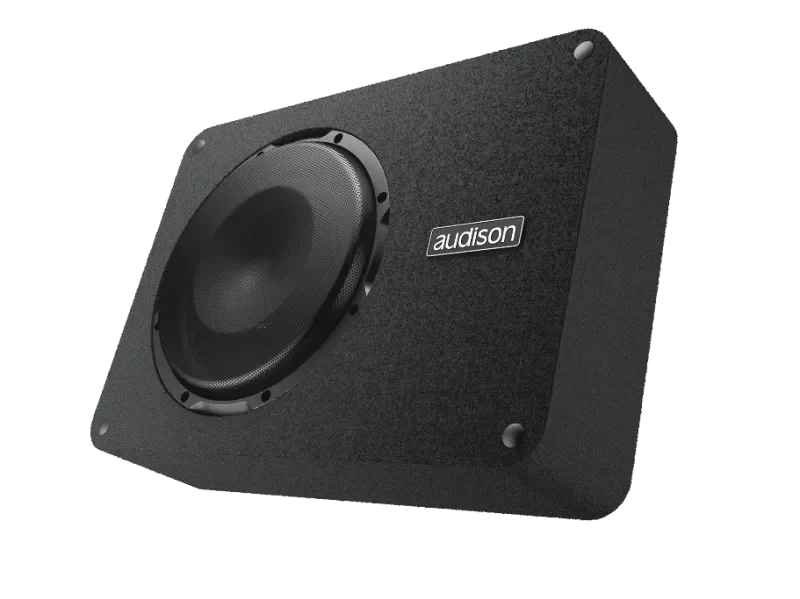

The APBX 8 R loaded enclosure was developed with reflex loading, with tuning designed to concentrate SPL in the lowest frequency range. The aim was to exploit the natural boost in output found in most cars below 60 Hz known as cabin gain. The 8-inch single 4 ohm voice-coil subwoofer has a powerful motor that maximizes efficiency. The low-resonant frequency of the subwoofer, matched to the reflex enclosure keeps excursion low within the entire audio spectrum, allowing also the use with a pair of AF C4.10 bit/AF C4D/AF M4D bridged channels, capable of delivering 260 W rms.

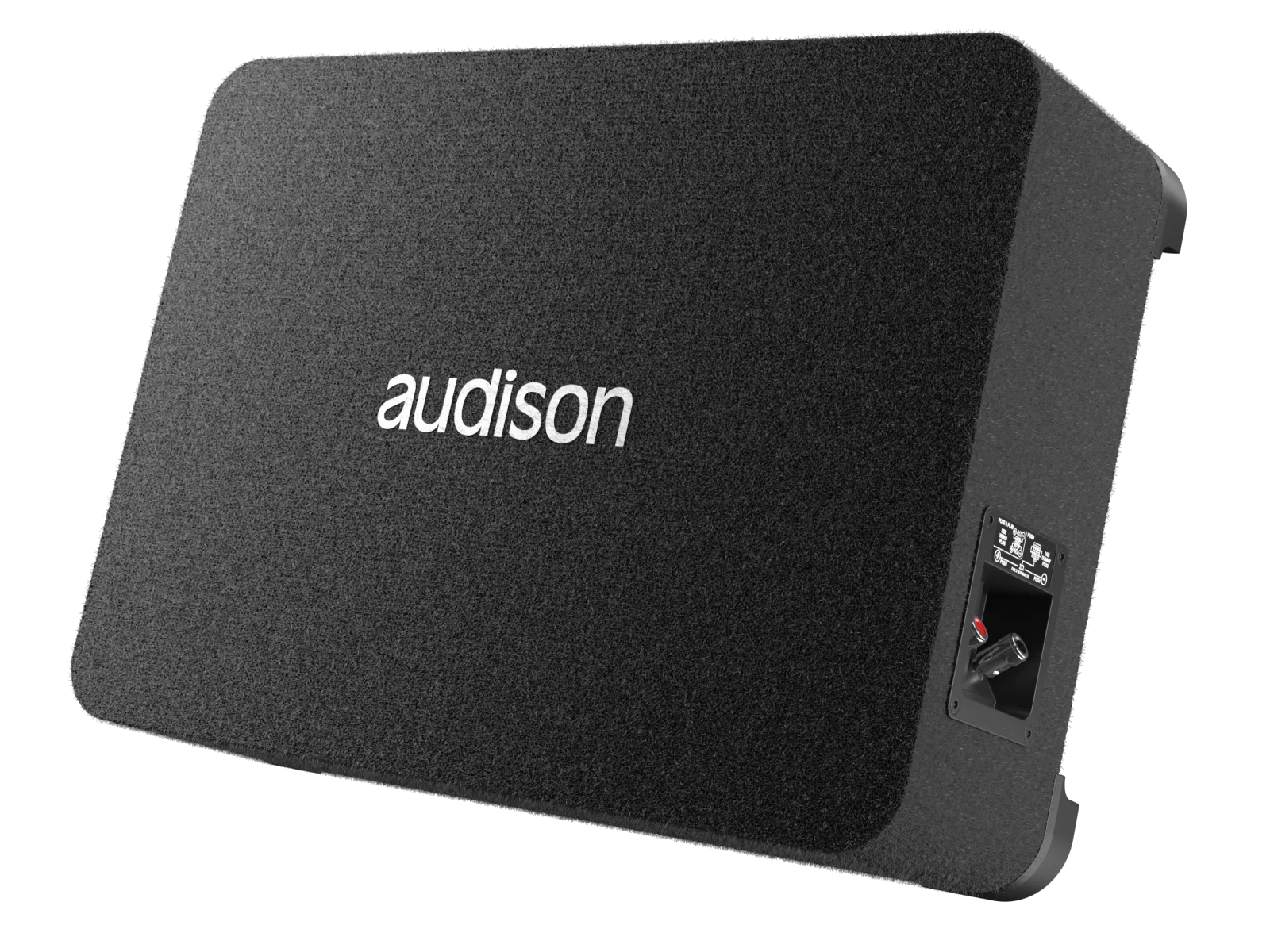

400W RMS • 4 Ohm

The APBX 10 DS, a 10 subwoofer loaded in a 12-liter sealed enclosure, is the flagship. It is dedicated to the highest-performing Forza systems, using the AF M1D amplifier for the sub-section. The speaker’s mechanical excursion of more than 18 mm provides for incredible authority, while the refined Thiele & Small parameters set-up provides the ideal balance for all music genres.

400W RMS • 4 Ohm

The APBX 10 S4S sealed enclosure is the ideal choice to be driven by the Audison AF M8.14 bit using two channels bridged. Designed to house the single 4 ohm voice coil APS 10 S4S subwoofer, it offers an ultra-performing Plug & Play solution boasting all the features that make the Prima boxes unique such as the SSP (Sub Smart Plug) terminal block for a quick connection leaving no room for errors.

550W RMS • 4 Ohm

The AV 12 D4 II brings the unmistakable VOCE II sound signature to the deepest frequencies, combining powerful output with absolute control and musicality. Designed for sealed enclosures, it delivers precise, distortion-free bass in compact spaces—making it an ideal choice for high-performance in-car installations. At its core is a dual 4-ohm voice coil architecture, offering exceptional flexibility in wiring configurations. The 1.5-inch Copper-Clad Aluminum Wire voice coil, coupled with an FEM-optimized magnetic assembly, ensures efficient energy transfer and superior thermal management during extended listening sessions. The subwoofer features an extended-profile dust cap and Radial Reinforcement Framework (R.R.F.) to enhance cone stability and minimize deformation during high excursion. The rugged die-cast aluminum basket integrates smart cable routing hooks, while the spring-loaded terminals allow secure connections with high-current 8 AWG cables. Whether used in a single-sub or multi-driver setup, the AV 12 D4 II guarantees low-end performance that is tight, controlled and deeply engaging—faithful to the Audison philosophy of blending acoustic excellence with refined Italian design.

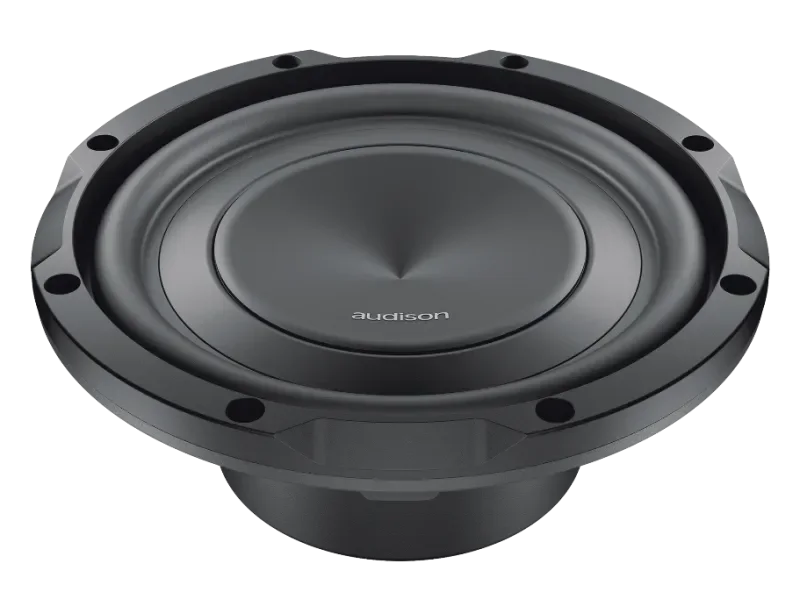

250W RMS • 4 Ohm

With the aim of providing high acoustical output even when used with lower power, the APS 8 R was designed for use in an 8.5-litres reflex enclosure, with tuning between 30 and 40Hz. The APS 8 R has been specifically developed to be combined with either the AF C8.14 bit or AF C4.10 bit / AF C4D / AF M4D. Prima subwoofer components have been developed with a primary goal: to deliver high output in tight spaces. Output is a matter of excursion; the more air the cone moves, the more output. However reduced mounting depth traditionally has meant low excursion. Prima subwoofers employ a special cone-dustcap-basket geometry which guarantees large excursion of the mobile group, while keeping the mounting depth to a minimum. The surround and spider have been carefully designed to prevent the rocking-mode phenomenon. The cooling circuit has been designed with air vents on the basket underneath the spider, eliminating the need for vents on the bottom-plate. This allows the subwoofer to be mounted close to the back wall of the enclosure, making the most of the reduced mounting depth.

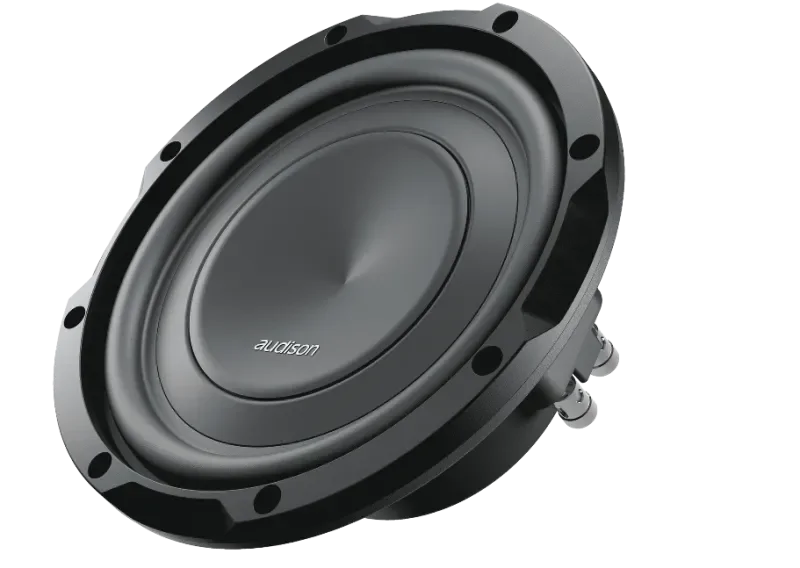

250W RMS • 4 Ohm

The APS 8 D is designed to deliver maximum performance in a sealed enclosure with ultra-compact volumes from 7.5 lt. to 8.5 lt. It features push connectors for ease of wiring and configurations and has been developed with a primary goal: to deliver high output in tight spaces. Output is a matter of excursion; the more air the cone moves, the more output. However reduced mounting depth traditionally has meant low excursion. Prima subwoofers employ a special cone-dustcap-basket geometry which guarantees large excursion of the mobile group, while keeping the mounting depth to a minimum. The surround and spider have been carefully designed to prevent the rocking-mode phenomenon. The cooling circuit has been designed with air vents on the basket underneath the spider, eliminating the need for vents on the bottom-plate. This allows the subwoofer to be mounted close to the back wall of the enclosure, making the most of the reduced mounting depth.

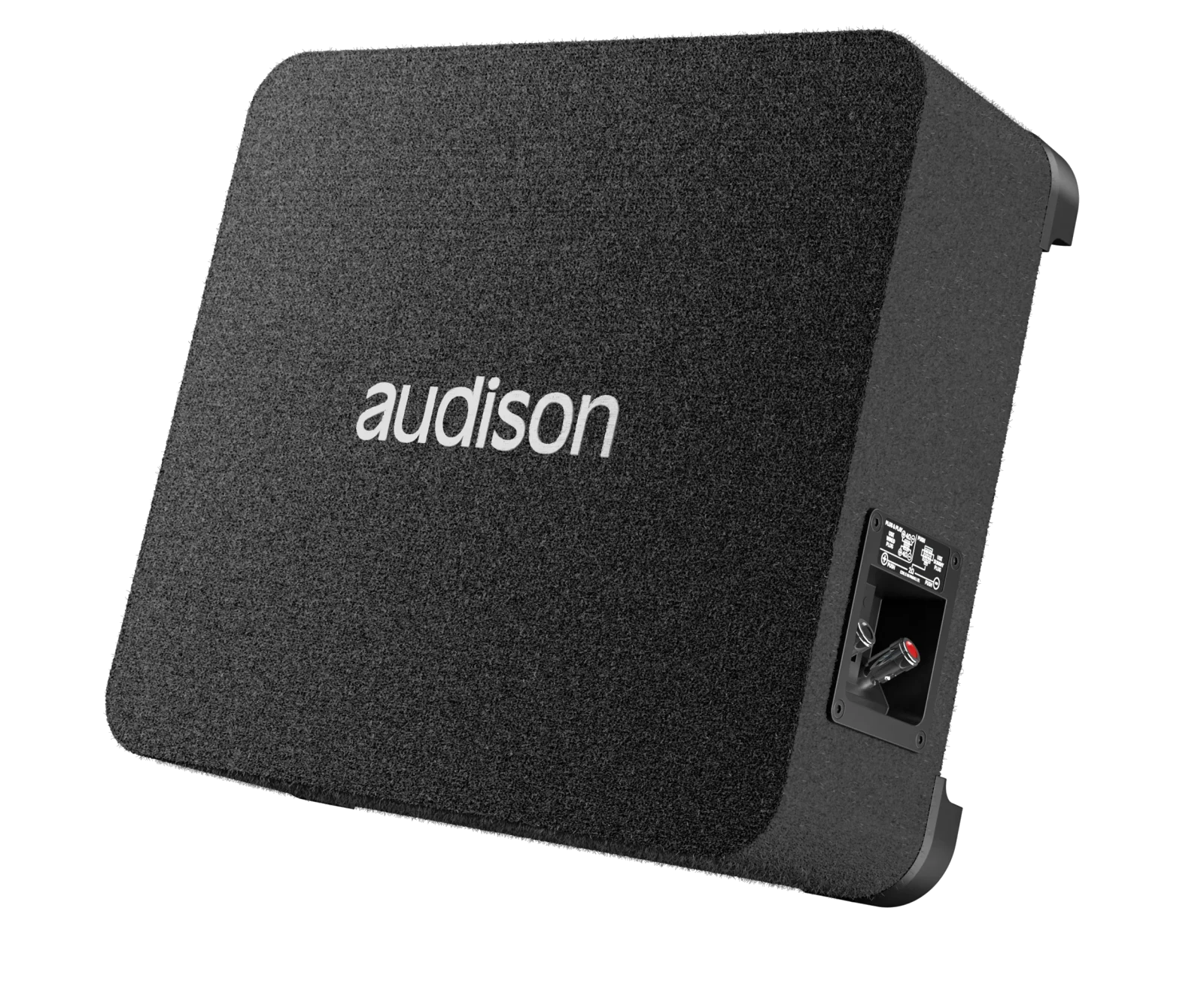

250W RMS • 4 Ohm

The APBX 8 DS loaded enclosure provides the highest performance/ size ratio. For this purpose an 8.5 lt. sealed enclosure with a 4+4 ohm dual voice-coil configuration was adopted to exploit the full power of an AF M5.11 bit (paralleling voice coils for a 2 ohm load) or with two pairs of AF C8.14 bit/AF M8.14 bit bridged channels (one bridged pair of channels to each voice coil). The speakers high excursion capability allows the use of the proprietary BASS BOOST of AP bit amplifiers to make use of all the available power for rich and dynamic bass.

250W RMS

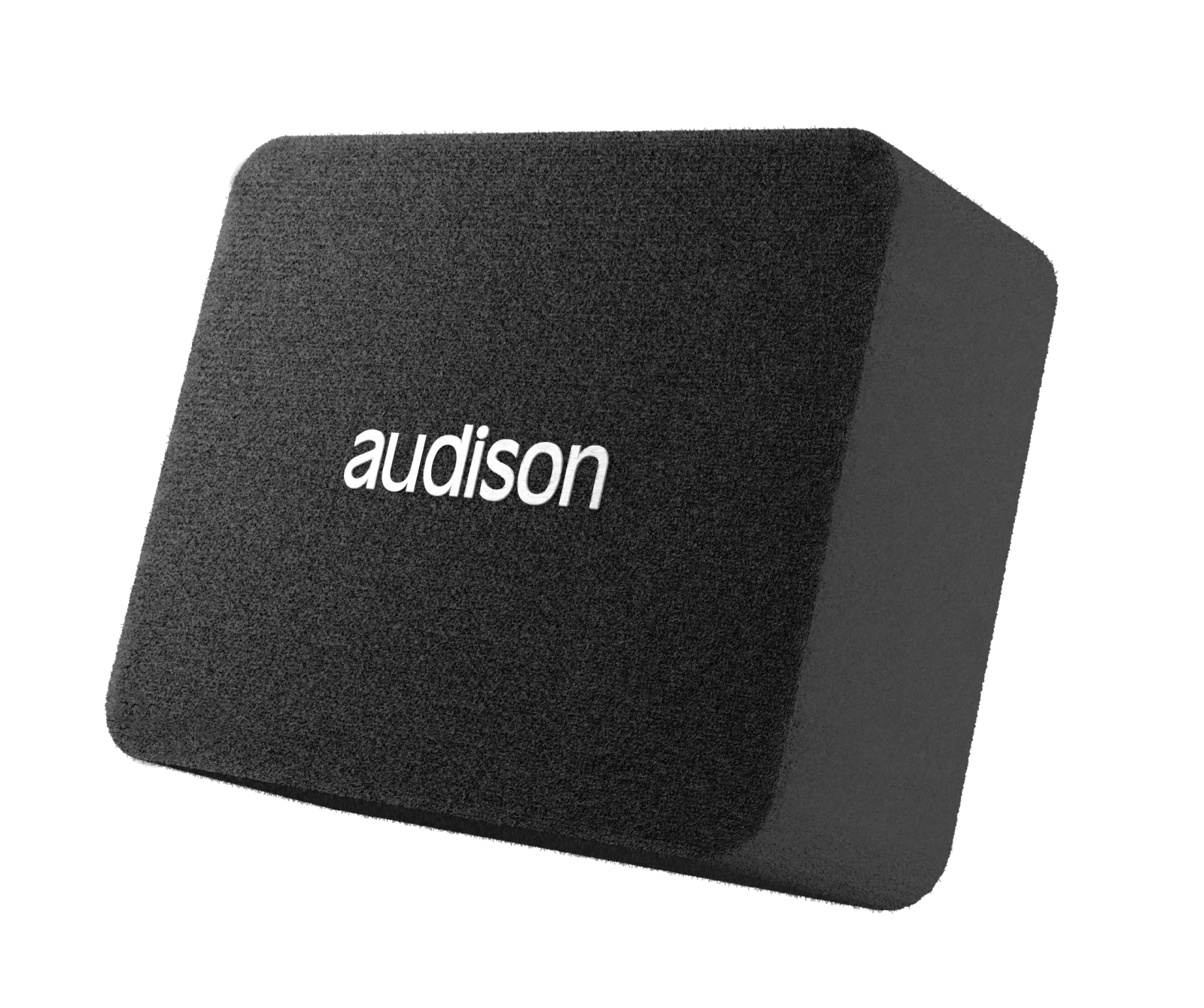

The Prima APBX 8 AS2 active subwoofer, with the 8-inch driver, features a dedicated high-performance amplification module that enhances all the passive box technologies, such as the 2S² (2 Sides / 2 Sounds) design, the Plug & Play terminal block and ultra-compact size. The amplification module, with power outputs of 250W RMS, is developed with he-li technology (high efficiency / low impedance), which thanks to the absence of the DC-DC voltage booster reaches the impressive 90% efficiency level, very close to the theoretical limit of the D-Class. New input stage DBT (Dynamic Bass Tracking) technology allows 100% use of the He-Li (High-Efficiency Low Impedance) amplifier power and to enjoy a tense and dynamic bass even at very high listening volumes. Eliminating the voltage booster was made possible thanks to the development of the new dual coil drivers, which inherit all the technological background of the Prima subwoofers, but differ for the ultra-low impedance. This feature ensures a perfect synergy with the He-Li (High-Efficiency Low Impedance) technology, maximizing the combination of amplifier, speakers, and sealed box, to obtain low, powerful, and crisp frequencies. The controls section is complete and provides an optimal regulation of the low-frequency emission in the car cabin. The Butterworth low pass filter at 12dB/Oct. with variable cut-off frequency (50-200 Hz) can be bypassed when used with an AP bit processor with pre-out output dedicated to the sub. The adjustable bass-boost control (0 ÷ 6 dB) at 45 Hz allows the user to emphasize the response on the lower side of the spectrum. The high-level speaker-in input on the multi-pole connector eases the integration with OEM audio systems while the low-level input on RCA is dedicated to the connection with after-market sources. The subwoofer automatic turn on/off function ART (Automatic Remote Turn-On) can be configured to be controlled by the source remote signal, by the voltage variation on the high-level input, or by the audio signal on both inputs. Phase control (0 – 180°) completes the equipment. The SSP (Sub Smart Plug) terminal block is provided with a single Plug&Play connector to be able to disconnect the box easily and safely.

550W RMS • 4 Ohm

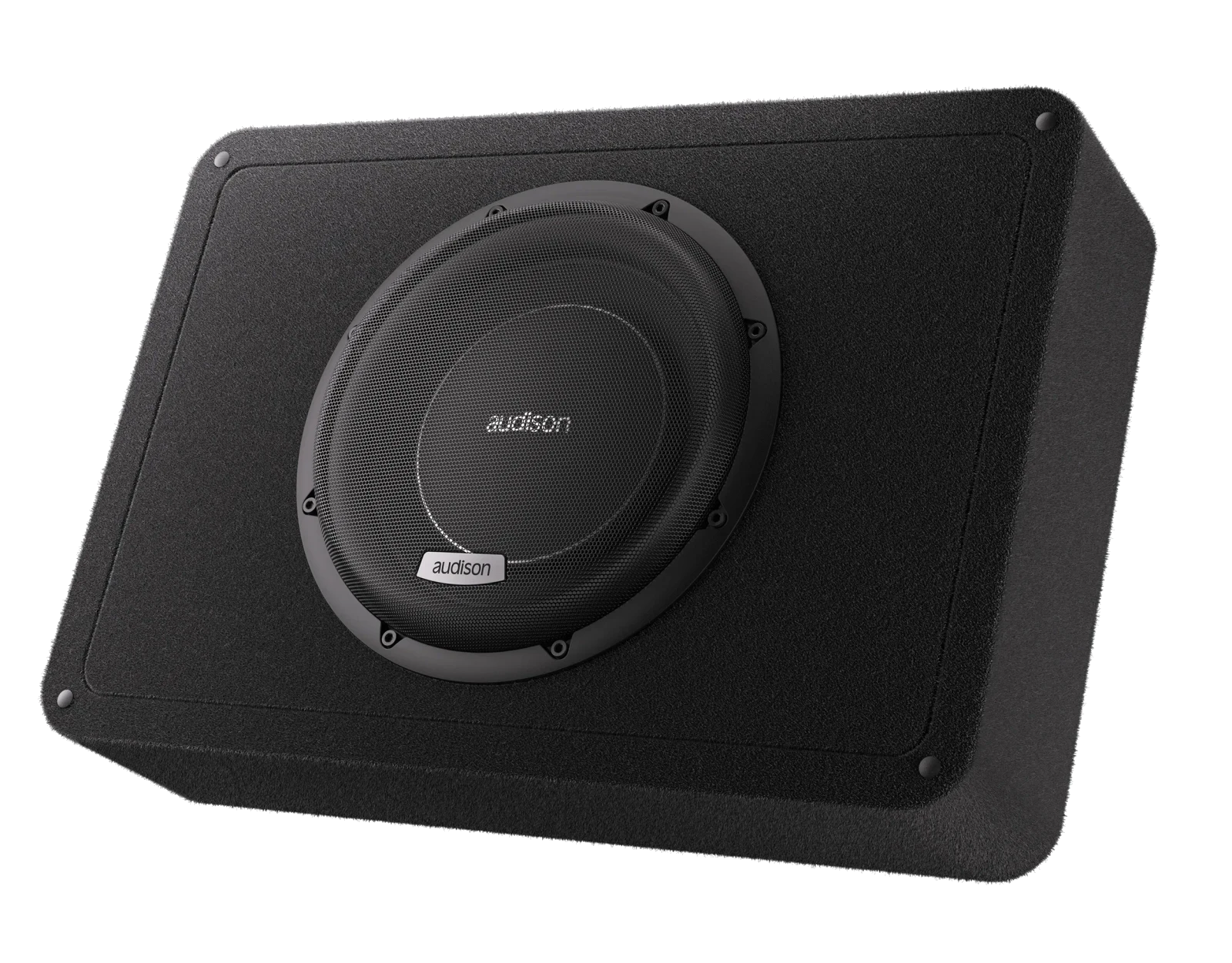

The AVBX 10 D4 II is the compact subwoofer enclosure of the VOCE II line, designed to bring high-end low-frequency performance into tight installation spaces—without compromise. Its ultra-shallow sealed architecture is engineered to deliver tight, accurate and dynamic bass while preserving valuable in-vehicle space. Built from high-density 15 mm MDF with internal bracing, the enclosure ensures maximum rigidity and effective damping, eliminating unwanted resonances and coloration. The internal volume and damping are acoustically matched to the AV 10 D4 II subwoofer, which features a dual 4-ohm voice coil for greater wiring flexibility in high-power system configurations. This pairing guarantees seamless integration and controlled low-end response, even in space-limited applications. Thanks to the 2S² dual-orientation design, the enclosure can be installed in Down-Firing or Up-Firing configuration, adapting to available space and acoustic goals. The Sub Smart Plug terminal combines Plug-&-Play convenience with traditional push connectors, ensuring fast, secure and high-current-ready wiring. The enclosure’s refined styling reflects the visual identity of the VOCE II speaker line, combining performance and elegance in a single, integrated solution. Compact, precise and ready to perform, the AVBX 10 D4 II is the ideal solution for adding impactful, controlled bass to OEM or custom installations—where space is limited but expectations are high.

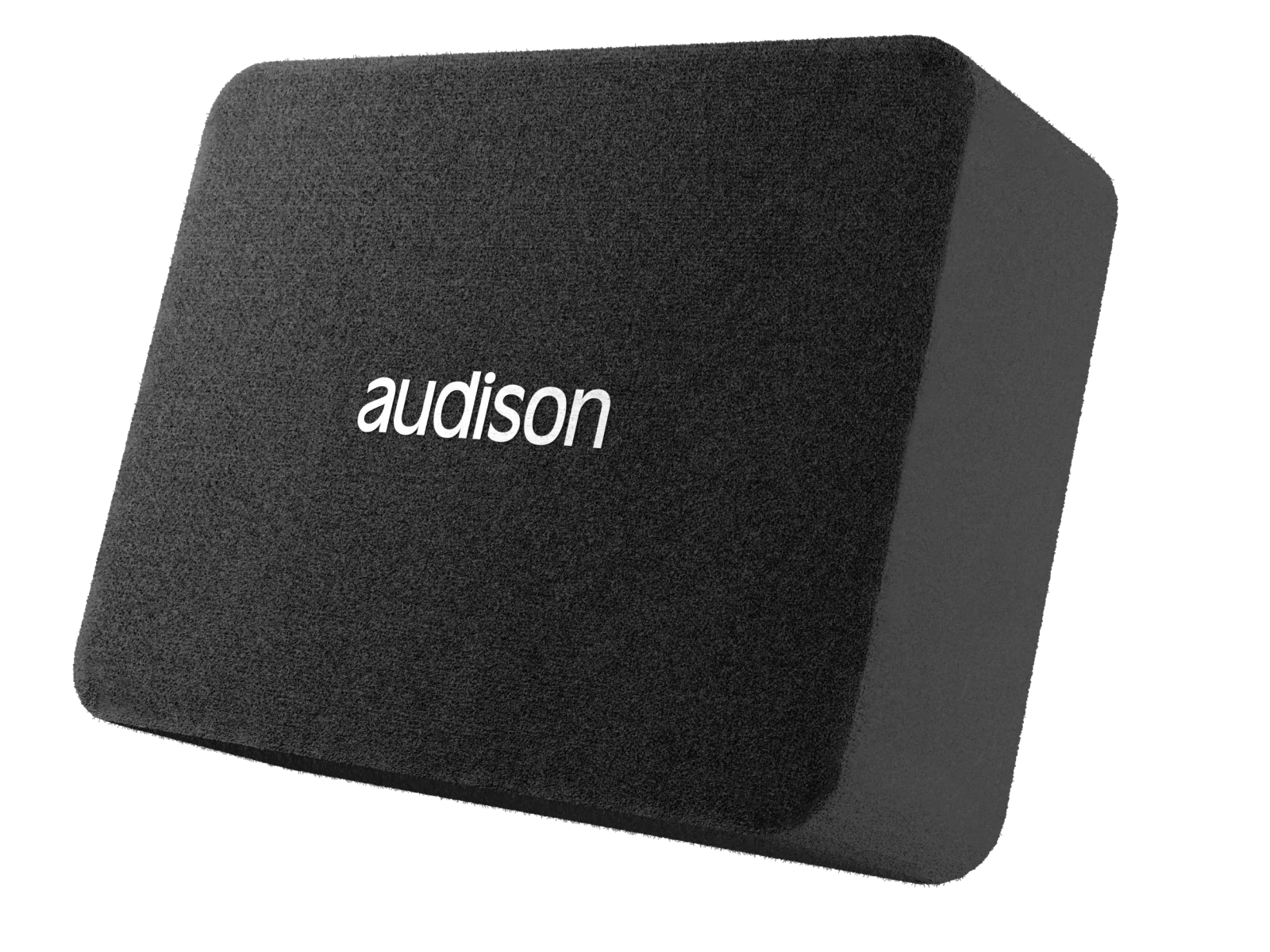

400W RMS

The Prima APBX 10 AS2 brings depth and energy to your music in a surprisingly compact form. Designed to fit easily into any vehicle, it delivers rich, powerful bass that you can feel as much as hear, transforming every drive into a more engaging experience. Effortless to integrate and simple to tune, it adapts seamlessly to your system while maintaining clarity and control even at higher volumes. Every note gains weight, every track more emotion—without sacrificing space or practicality. Small in size, big in impact: the APBX 10 AS2 is made to elevate your sound and make every journey more immersive.

550W RMS • 4 Ohm

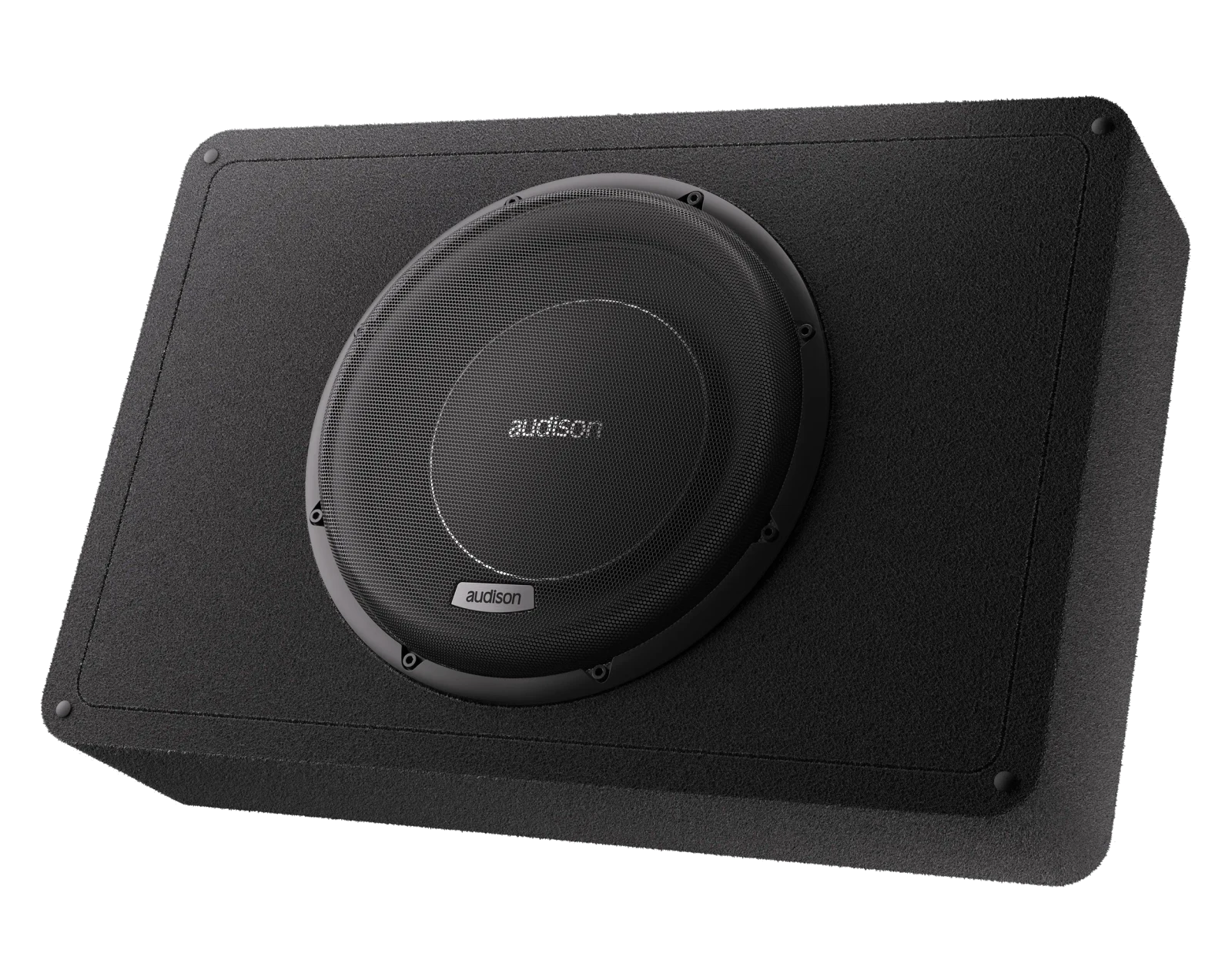

Designed to deliver impactful low-frequency performance in a refined, space-conscious format, the AVBX 12 D4 II combines the full authority of a 12-inch VOCE II subwoofer with an ultra-compact sealed enclosure optimized for modern vehicle interiors. Equipped with the AV 12 D4 II driver—featuring a dual 4-ohm voice coil—the enclosure provides superior power handling and system flexibility, allowing for high-output configurations without compromising clarity or control. The high-density 15 mm MDF structure, reinforced with internal bracing, ensures excellent mechanical stability and damping, while the sealed design produces tight, extended bass with natural decay and definition. Engineered for true musicality, the enclosure reproduces every nuance of the low-frequency spectrum with depth and precision. Its 2S² dual-orientation architecture allows both Down-Firing and Up-Firing installation, adapting to acoustic goals and available trunk space. The Sub Smart Plug terminal simplifies connections with a hybrid interface offering Plug-&-Play and push-connect options, ready for high-current wiring. Every element of the AVBX 12 D4 II is developed to express the VOCE II vision: no excess, no compromise—just deep, elegant and controlled bass designed to enhance every listening moment on the road.

250W RMS

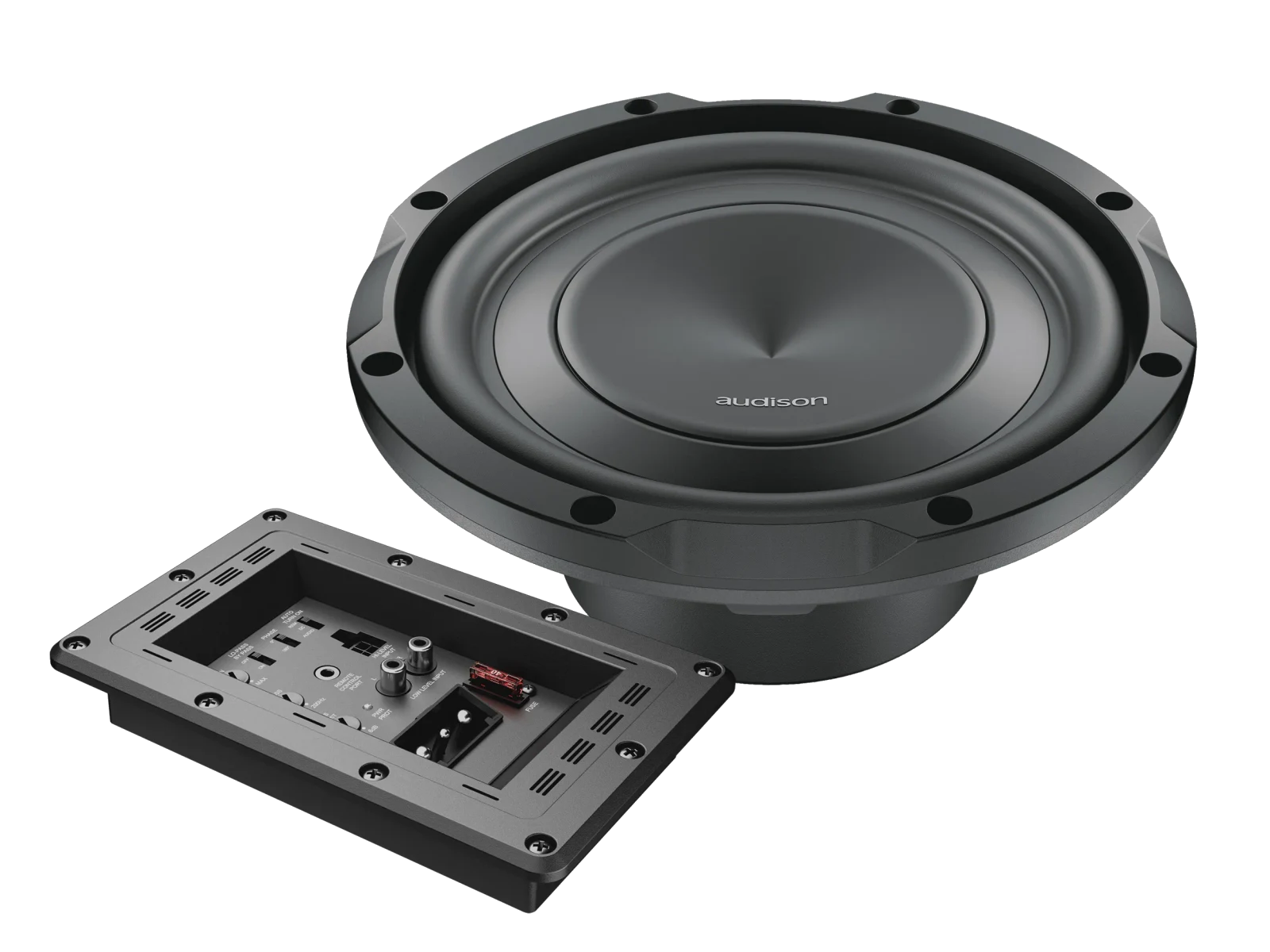

The APS 8 ASK is a complete active subwoofer kit designed to deliver powerful, controlled bass in a compact and flexible solution, perfectly in line with the Audison Prima philosophy. Featuring an 8-inch (200 mm) high-performance subwoofer, a dedicated amplifier and a protective grille, APS 8 ASK is engineered for integration in custom-fit sealed enclosures, allowing maximum freedom in system design. The kit is supplied without enclosure, giving installers the possibility to optimize volume and positioning according to the vehicle and application. The included HRC AP remote level control enables real-time adjustment of the bass level directly from the dashboard, ensuring optimal performance in every listening condition. Thanks to its design and tuning, APS 8 ASK guarantees tight, precise and dynamic low-frequency reproduction, seamlessly integrating with OEM systems and enhancing the overall sound experience without compromising space.

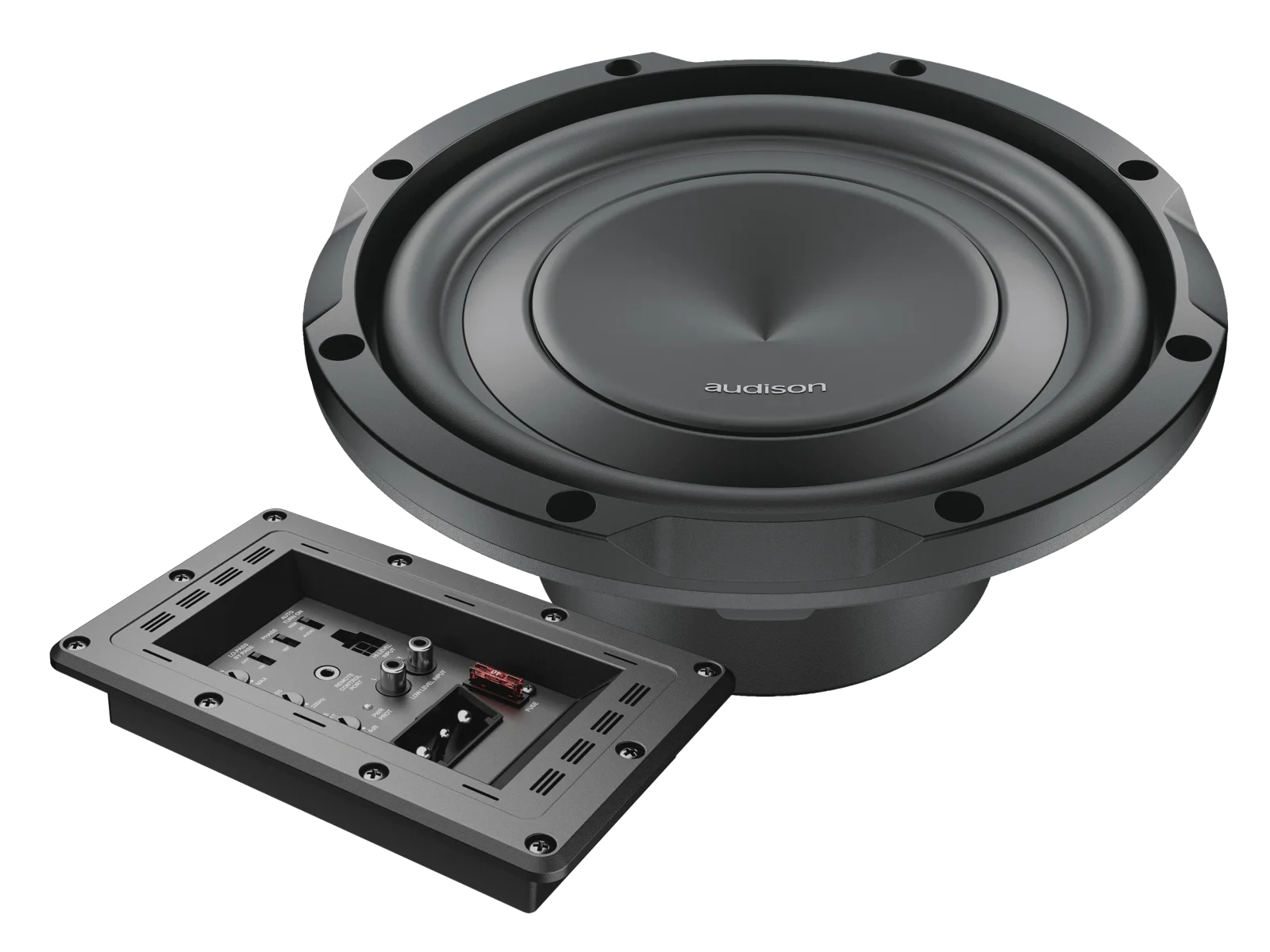

400W RMS

The APS 10 ASK is a complete active subwoofer kit engineered to deliver deeper, more powerful bass while maintaining the precision and control that define the Audison Prima line. Equipped with a 10-inch (250 mm) high-performance subwoofer, a dedicated amplifier and a protective grille, APS 10 ASK is designed for installation in custom-fit sealed enclosures, offering maximum flexibility in system design. Supplied without enclosure, it allows installers to tailor the box volume and positioning to perfectly match the vehicle and acoustic goals. The included HRC AP remote level control provides convenient real-time bass adjustment from the dashboard, ensuring optimal balance across all listening conditions. Thanks to its larger driver and optimized tuning, APS 10 ASK delivers extended low-frequency response with greater impact, while preserving the tight, controlled bass reproduction and seamless OEM integration typical of the Prima range.
